本文详细介绍如何在SpringBoot项目中集成MyBatis框架，包括项目初始化、配置文件设定、生成实体类及Mapper接口等步骤。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

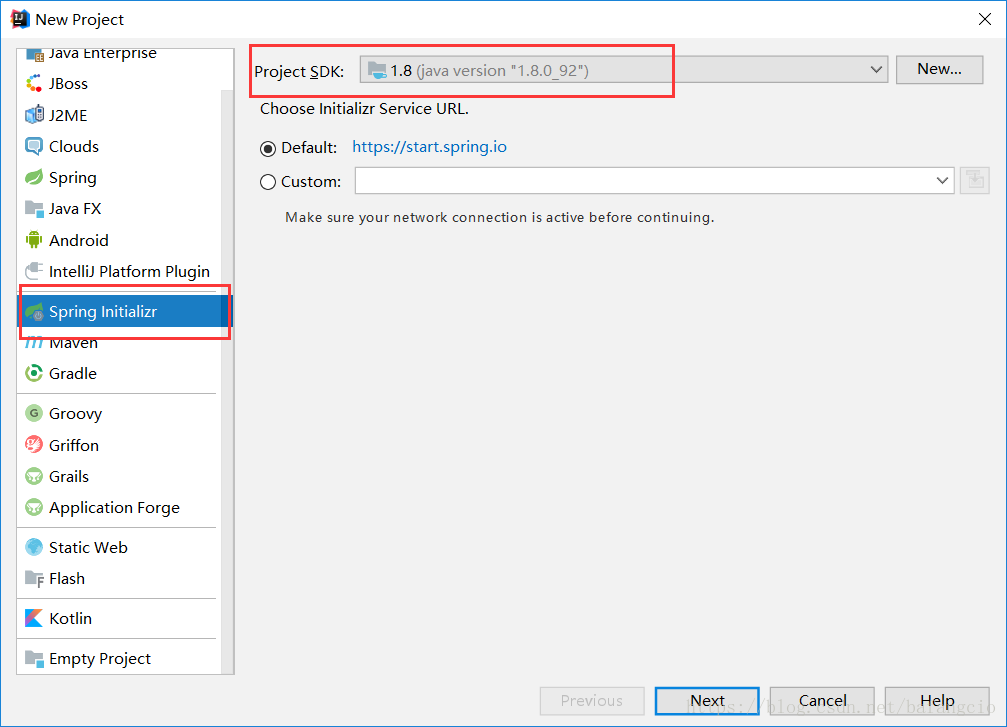

1.new project选择 Spring Initializr ，然后在Project SDK里选择JDK版本，选默认的 url 点击Next

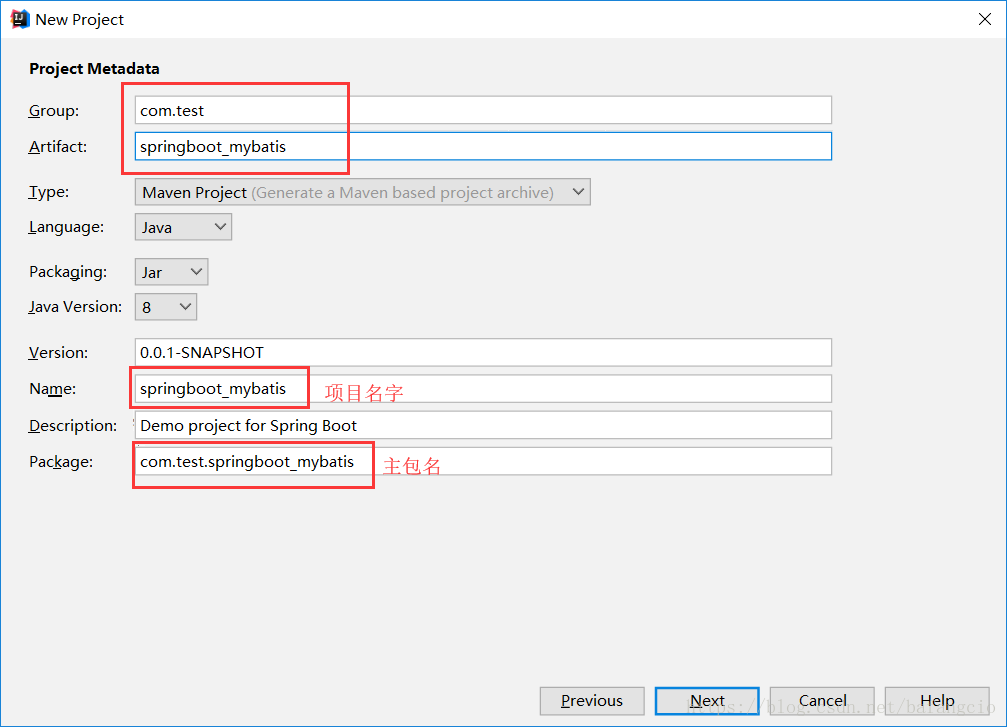

2.修改一下项目的信息

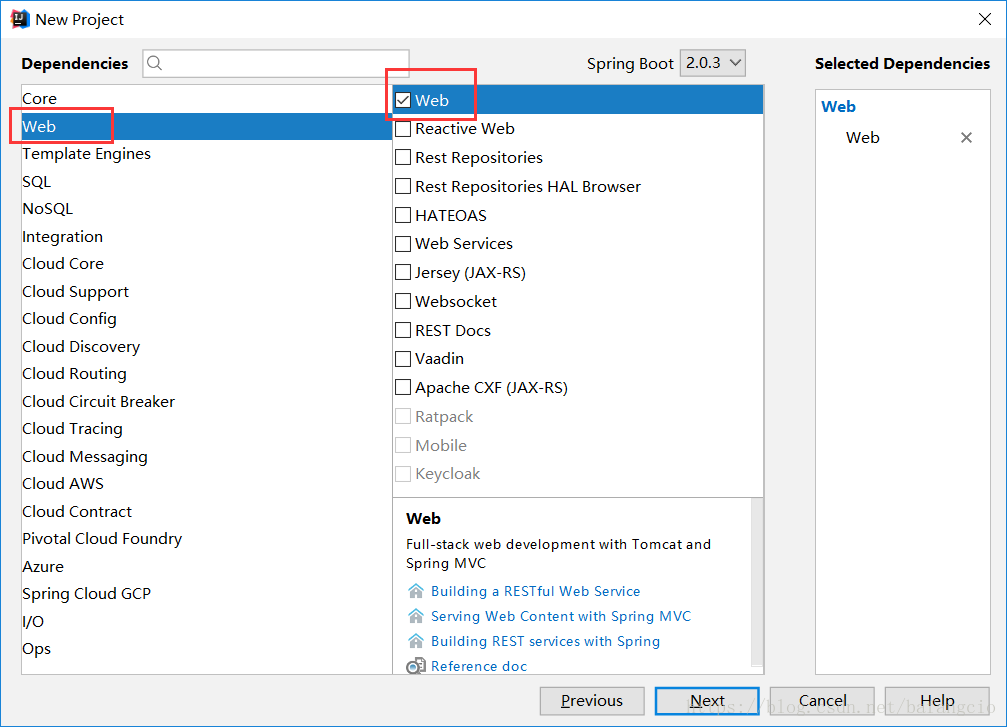

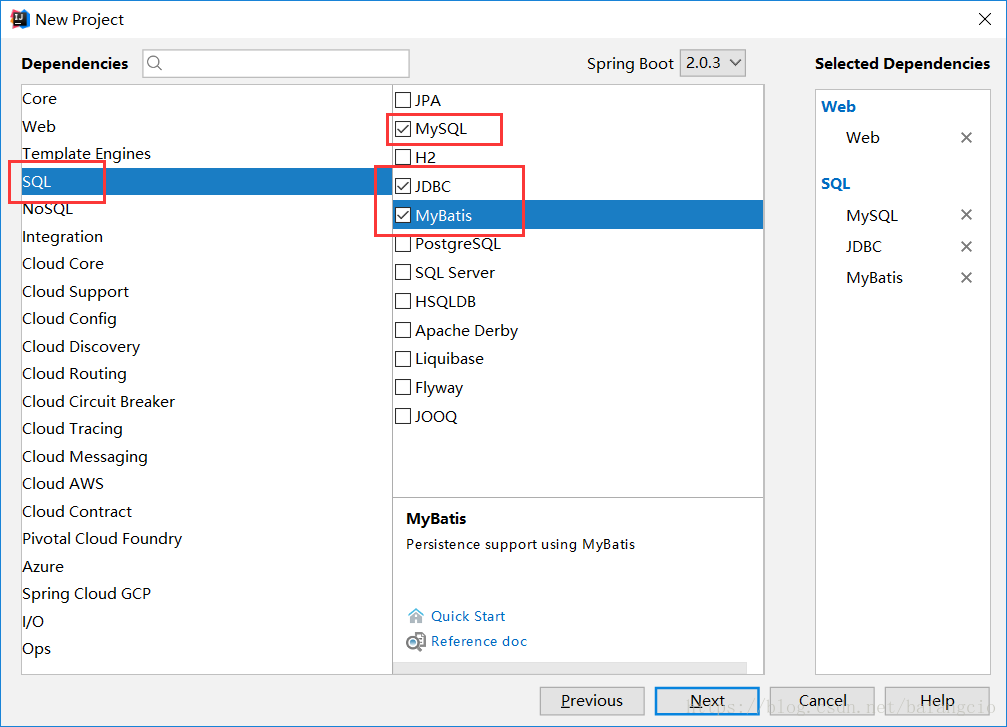

3.勾选上 Web 模板和SQL模板

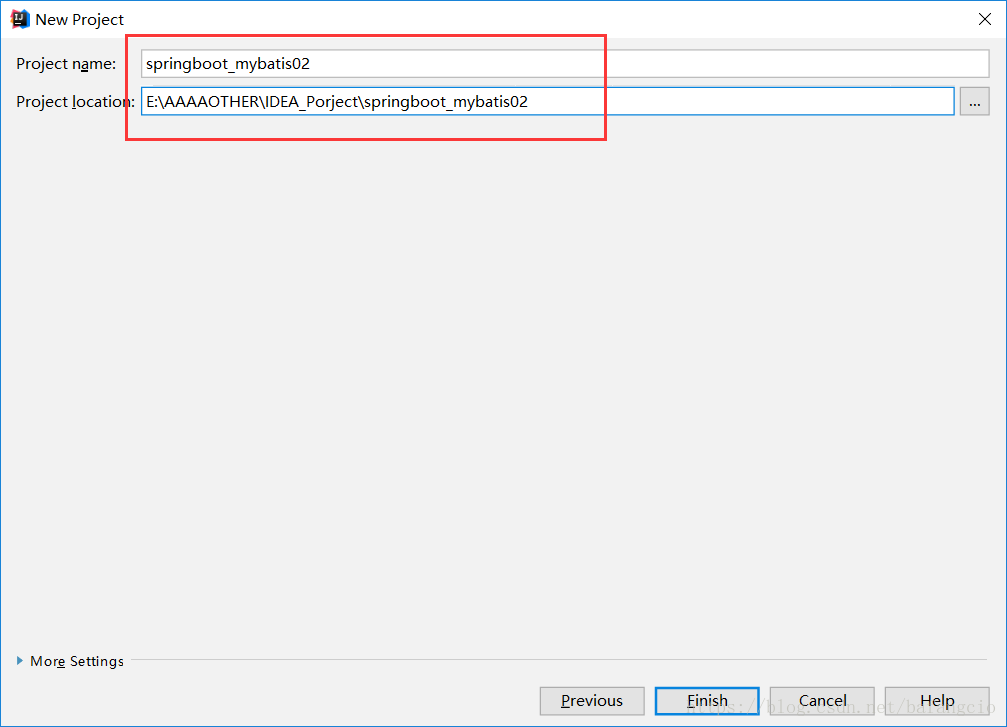

4. 选择好项目的位置，点击Finish

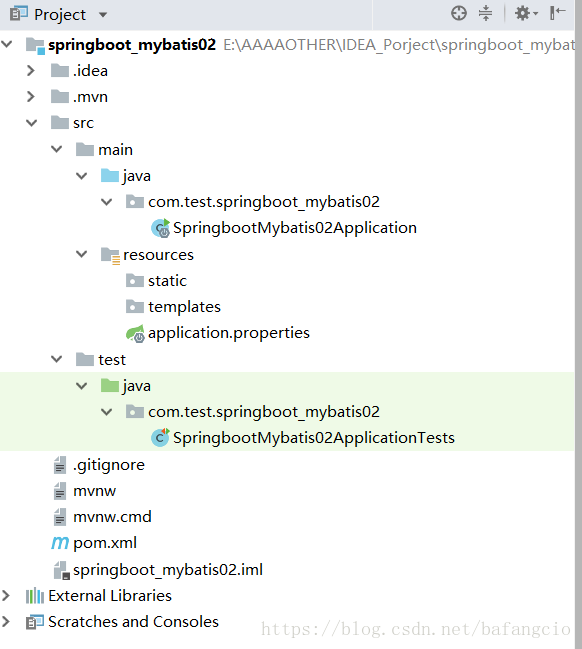

5.如果是第一次配置 Spring Boot 的话可能需要等待一会儿 IDEA 下载相应的依赖包，默认创建好的目录结构如下：

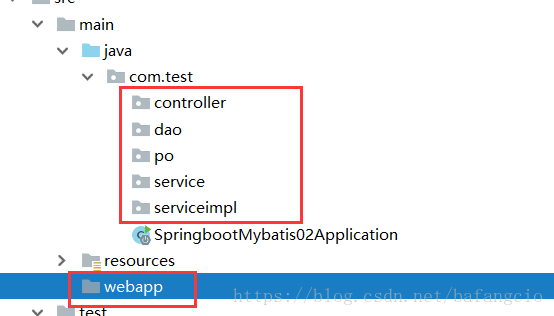

6.完善项目目录（注意默认的Application需放在com.test目录下）

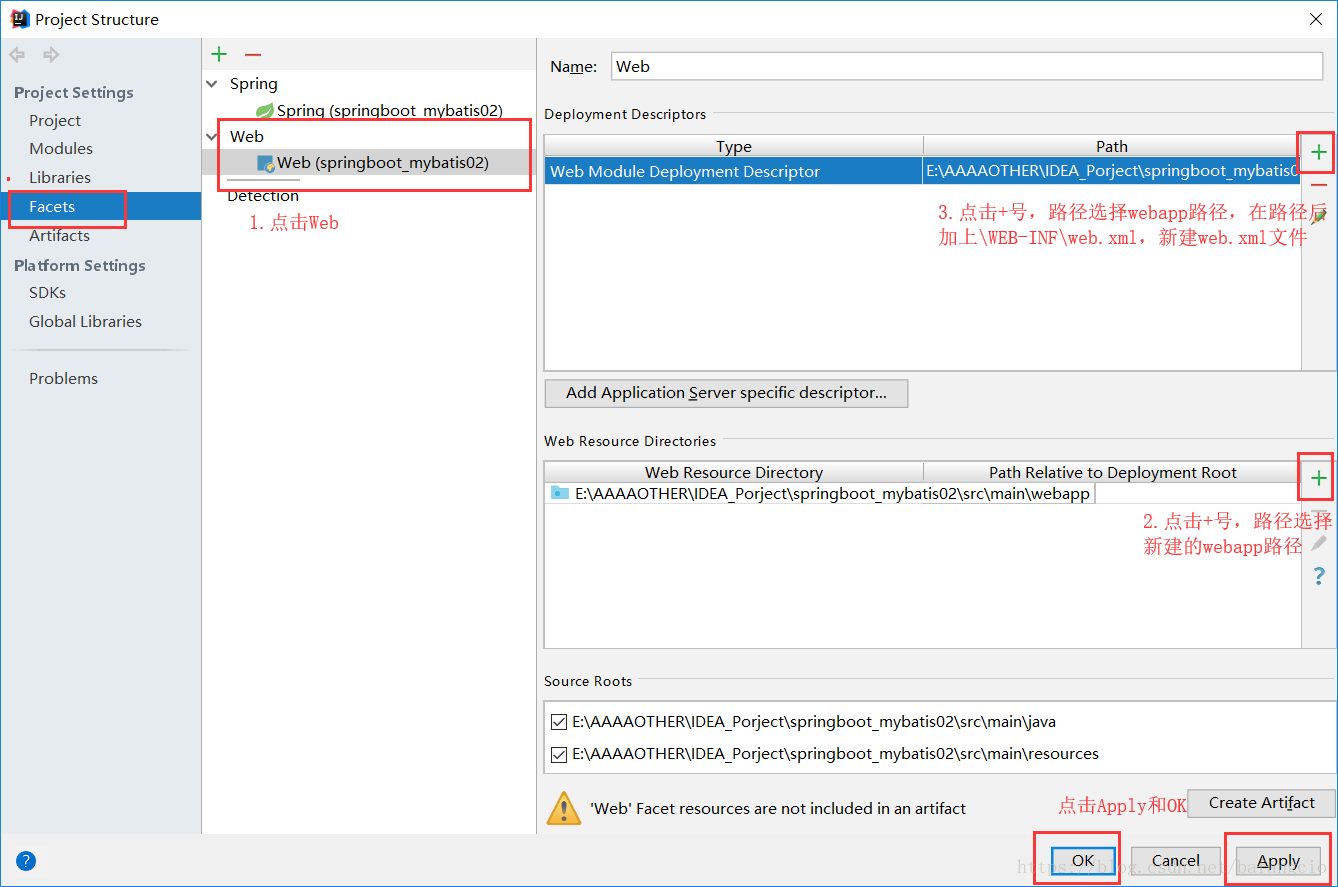

新建webapp\WEB-INF\web.xml：

7.配置pom.xml文件（External Libraries目录下应有77个资源文件）

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.test</groupId>
    <artifactId>springboot_mybatis</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>springboot_mybatis</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.3.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.2</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!-- 分页插件 -->
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper-spring-boot-starter</artifactId>
            <version>1.2.5</version>
        </dependency>
        <!-- alibaba的druid数据库连接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.9</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.3.2</version>
        </dependency>
        <!--jsp依赖,试图解析器使用-->
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
            <scope>compile</scope>
        </dependency>

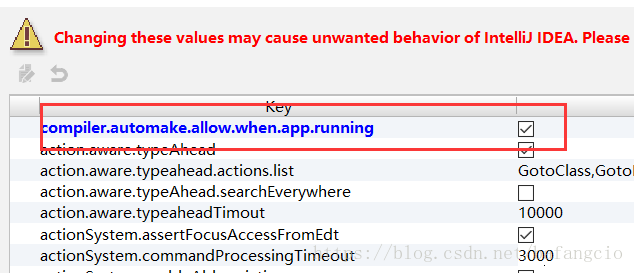

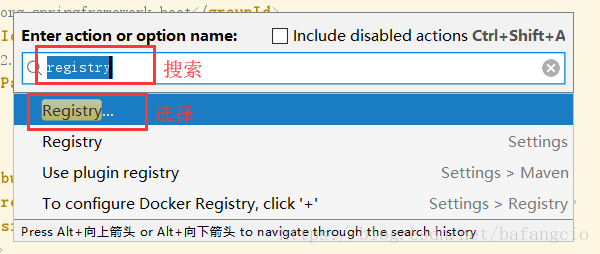

        <!--热更新，热加载，不用每次重启启动类-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
            <scope>true</scope>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.commons/commons-lang3 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.3.2</version>
        </dependency>
        <!-- 试图解析器使用https://mvnrepository.com/artifact/javax.servlet/jstl -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>
    </dependencies>

    <build>

        <!--把xml映射文件强制性集合到项目发布到tomcat服务器-->
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                    <include>**/*.properties</include>
                </includes>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.xml</include>
                    <include>**/*.properties</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>

        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>

            <!--mybatis自动生成器的 插件开始-->
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.2</version>
                <configuration>
                    <!--配置文件的位置-->
                    <configurationFile>src/main/resources/templates/mybatis-generator-config.xml</configurationFile>
                    <verbose>true</verbose>
                    <overwrite>true</overwrite>
                </configuration>
                <executions>
                    <execution>
                        <id>Generate MyBatis Artifacts</id>
                        <goals>
                            <goal>generate</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <!--mybatis自动生成器的 插件结束-->
        </plugins>
    </build>
</project>

8.配置resources目录下的application.properties

#mybatis起别名
mybatis.type-aliases-package=com.test.po
#jdbc
#spring.datasource.driver-class-name=com.mysql.jdbc.Driver
#spring.datasource.url=jdbc:mysql://localhost:3306/emp?useUnicode=true&zeroDateTimeBehavior=convertToNull&autoReconnect=true
#spring.datasource.username=root
#spring.datasource.password=ROOT

#spring-boot整合Druid
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
spring.datasource.url=jdbc:mysql://localhost:3306/emp?allowMultiQueries=true&autoReconnect=true
spring.datasource.username=root
spring.datasource.password=root
spring.datasource.driverClassName=com.mysql.jdbc.Driver

#dataSource Pool configuration
spring.datasource.initialSize=5
spring.datasource.minIdle=5
spring.datasource.maxActive=20
spring.datasource.maxWait=60000
spring.datasource.timeBetweenEvictionRunsMillis=60000
spring.datasource.minEvictableIdleTimeMillis=300000
spring.datasource.validationQuery=SELECT 1 FROM DUAL
spring.datasource.testWhileIdle=true
spring.datasource.testOnBorrow=false
spring.datasource.exceptionSorter=true
spring.datasource.testOnReturn=false
spring.datasource.poolPreparedStatements=true
spring.datasource.filters=stat,wall,log4j
spring.datasource.maxPoolPreparedStatementPerConnectionSize=20
spring.datasource.connectionProperties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=500
spring.datasource.useGlobalDataSourceStat=true


#设置jsp 访问资源前缀
spring.mvc.view.prefix=/WEB-INF/views/
#设置jsp 访问资源后缀
spring.mvc.view.suffix=.jsp

9.在templates目录下配置mybatis-generator-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
    <!--1mysql 连接数据库jar 这里选择自己本地位置-->
    <classPathEntry location="C:\Users\LENOVO\.m2\repository\mysql\mysql-connector-java\5.1.29\mysql-connector-java-5.1.29.jar" />
    <context id="testTables" targetRuntime="MyBatis3">
        <commentGenerator>
            <!-- 2是否去除自动生成的注释 true：是 ： false:否 -->
            <property name="suppressAllComments" value="true" />
        </commentGenerator>
        <!--3数据库连接的信息：驱动类、连接地址、用户名、密码 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost:3306/emp"
                        userId="root"
                        password="root">
        </jdbcConnection>
        <!-- 默认false，把JDBC DECIMAL 和 NUMERIC 类型解析为 Integer，为 true时把JDBC DECIMAL 和
           NUMERIC 类型解析为java.math.BigDecimal -->
        <javaTypeResolver>
            <property name="forceBigDecimals" value="false" />
        </javaTypeResolver>

        <!-- 4targetProject:生成PO类的位置 -->
        <javaModelGenerator targetPackage="com.test.po"
                            targetProject="src/main/java">
            <!-- enableSubPackages:是否让schema作为包的后缀 -->
            <property name="enableSubPackages" value="false" />
            <!-- 从数据库返回的值被清理前后的空格 -->
            <property name="trimStrings" value="true" />
        </javaModelGenerator>
        <!-- 5targetProject:mapper映射文件生成的位置
           如果maven工程只是单独的一个工程，targetProject="src/main/java"
           若果maven工程是分模块的工程，targetProject="所属模块的名称"，例如：
           targetProject="ecps-manager-mapper"，下同-->
        <sqlMapGenerator targetPackage="com.test.dao"
                         targetProject="src/main/java">
            <!-- enableSubPackages:是否让schema作为包的后缀 -->
            <property name="enableSubPackages" value="false" />
        </sqlMapGenerator>
        <!-- 6targetPackage：mapper接口生成的位置 -->
        <javaClientGenerator type="XMLMAPPER"
                             targetPackage="com.test.dao"
                             targetProject="src/main/java">
            <!-- enableSubPackages:是否让schema作为包的后缀 -->
            <property name="enableSubPackages" value="false" />
        </javaClientGenerator>
        <!-- 7指定数据库表 -->
        <table  tableName="emp"
                enableCountByExample="false"
                enableDeleteByExample="false"
                enableSelectByExample="false"
                enableUpdateByExample="false"
        >
            <property name="modelOnly" value="false" />
        </table>
        <table
                tableName="dept"
                enableCountByExample="false"
                enableDeleteByExample="false"
                enableSelectByExample="false"
                enableUpdateByExample="false"
        >
            <property name="modelOnly" value="false" />
        </table>
        <!--example:https://blog.youkuaiyun.com/sinat_30474567/article/details/72625651-->
    </context>
</generatorConfiguration>

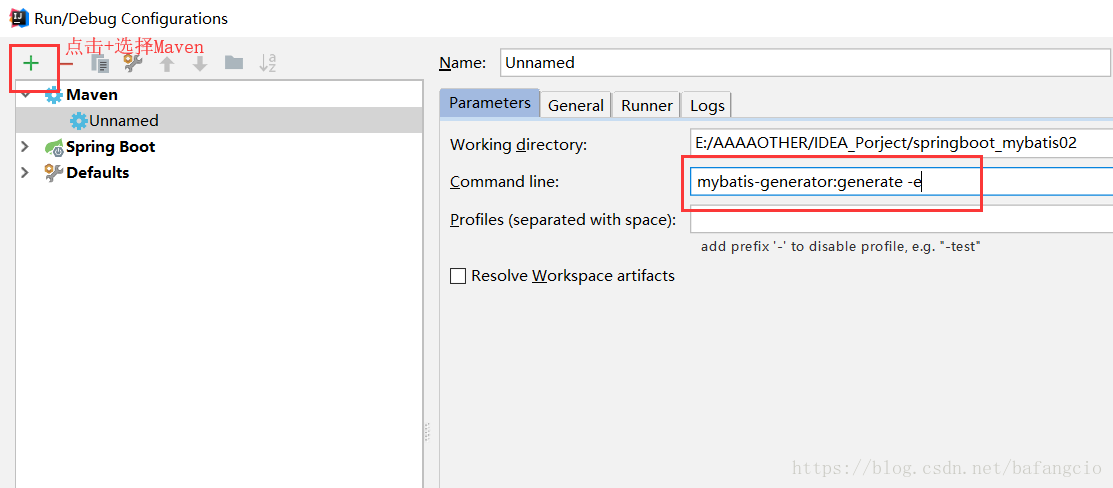

10.在Run/Debug Configurations下配置Maven，在Command lline处填上mybatis-generator:generate -e
