一、概述

Apache RocketMQ是阿里开源的一款高性能、高吞吐量、队列模型的消息中间件的分布式消息中间件。

关于RocketMQ集群架构的详细介绍，请参考链接：传送门

二、提前下载镜像

docker pull apache/rocketmq:4.9.4
docker pull apacherocketmq/rocketmq-dashboard

主要用到了2个镜像，第1个用来部署NameServer和Broker，第2个用来管理rocketmq

三、部署

本文主要采用一台服务器来部署RocketMQ集群，集群部署模式采用多master模式，也就是2个NameServer和2个Broker，刷盘机制采用异步复制，异步刷盘。

服务器配置：

操作系统：centos 7.6

硬件配置：4核8g

ip地址：192.168.48.13

1、创建目录

mkdir -p /rocketmq/logs/nameserver-a
mkdir -p /rocketmq/logs/nameserver-b
mkdir -p /rocketmq/logs/broker-a
mkdir -p /rocketmq/logs/broker-b
mkdir -p /rocketmq/store/broker-a
mkdir -p /rocketmq/store/broker-b
mkdir -p /rocketmq/broker-a/
mkdir -p /rocketmq/broker-b/
mkdir -p /rocketmq/console-ng/data

设置权限

chmod 777 -R /rocketmq/logs/*
chmod 777 -R /rocketmq/store/*

注意：这里如果不设置权限，会导致docker写入文件失败，导致rocketmq启动异常。

2、创建broker.conf

修改第一个节点配置

vim /rocketmq/broker-a/broker-a.conf

编辑内容，这里需要根据自己的实际环境做适当修改
注意：brokerIP1，namesrvAddr，这2个参数，一般配置为内网ip，提供内网访问。如果需要公网访问，这里一定要配置公网ip，否则无法访问。

brokerClusterName = rocketmq-cluster
brokerName = broker-a
brokerId = 0
#这个很有讲究 如果是正式环境 这里一定要填写内网地址（安全）
#如果是用于测试或者本地这里建议要填外网地址，因为你的本地代码是无法连接到阿里云内网，只能连接外网。
brokerIP1 = 192.168.48.13
deleteWhen = 04
fileReservedTime = 48
brokerRole = ASYNC_MASTER
flushDiskType = ASYNC_FLUSH
# 内网的(阿里云有内网IP和外网IP)
namesrvAddr=192.168.48.13:9876;192.168.48.13:9877
autoCreateTopicEnable=true
#Broker 对外服务的监听端口,
listenPort = 10911
#Broker角色
#- ASYNC_MASTER 异步复制Master
#- SYNC_MASTER 同步双写Master
#- SLAVE
brokerRole=ASYNC_MASTER
#刷盘方式
#- ASYNC_FLUSH 异步刷盘
#- SYNC_FLUSH 同步刷盘
flushDiskType=ASYNC_FLUSH

修改第二个节点配置

vim /rocketmq/broker-b/broker-b.conf

编辑内容，这里需要根据自己的实际环境做适当修改
注意：brokerName，listenPort这2个参数和第一个节点不一样，其他内容和第一个节点配置一样。

brokerClusterName = rocketmq-cluster
brokerName = broker-b
brokerId = 0
#这个很有讲究 如果是正式环境 这里一定要填写内网地址（安全）
#如果是用于测试或者本地这里建议要填外网地址，因为你的本地代码是无法连接到阿里云内网，只能连接外网。
brokerIP1 = 192.168.48.13
deleteWhen = 04
fileReservedTime = 48
brokerRole = ASYNC_MASTER
flushDiskType = ASYNC_FLUSH
# 内网的(阿里云有内网IP和外网IP)
namesrvAddr=192.168.48.13:9876;192.168.48.13:9877
autoCreateTopicEnable=true
#Broker 对外服务的监听端口,
listenPort = 10912
#Broker角色
#- ASYNC_MASTER 异步复制Master
#- SYNC_MASTER 同步双写Master
#- SLAVE
brokerRole=ASYNC_MASTER
#刷盘方式
#- ASYNC_FLUSH 异步刷盘
#- SYNC_FLUSH 同步刷盘
flushDiskType=ASYNC_FLUSH

3、编辑docker-compose.yml文件

version: '3.5'
services:
  rmqnamesrv-a:
    image: apache/rocketmq:4.9.4
    container_name: rmqnamesrv-a
    ports:
      - 9876:9876
    volumes:
      #- /rocketmq/logs/nameserver-a:/home/rocketmq/logs
      - /rocketmq/broker-a/broker-a.conf:/home/rocketmq/rocketmq-4.9.4/conf/broker.conf
    command: sh mqnamesrv
    networks:
      rmq:
        aliases:
          - rmqnamesrv-a

  rmqnamesrv-b:
    image: apache/rocketmq:4.9.4
    container_name: rmqnamesrv-b
    ports:
      - 9877:9876
    volumes:
      #- /rocketmq/logs/nameserver-b:/home/rocketmq/logs
      - /rocketmq/broker-b/broker-b.conf:/home/rocketmq/rocketmq-4.9.4/conf/broker.conf
    command: sh mqnamesrv
    networks:
      rmq:
        aliases:
          - rmqnamesrv-b

  rmqbroker-a:
    image: apache/rocketmq:4.9.4
    container_name: rmqbroker-a
    ports:
      - 10911:10911
    volumes:
     # - /rocketmq/logs/broker-a/logs:/home/rocketmq/logs
     # - /rocketmq/store/broker-a/store:/home/rocketmq/store
      - /rocketmq/broker-a/broker-a.conf:/home/rocketmq/rocketmq-4.9.4/conf/broker.conf
    environment:
      TZ: Asia/Shanghai
      NAMESRV_ADDR: "rmqnamesrv-a:9876"
      JAVA_OPTS: " -Duser.home=/opt"
      JAVA_OPT_EXT: "-server -Xms256m -Xmx256m -Xmn256m"
    command: sh mqbroker -c /home/rocketmq/rocketmq-4.9.4/conf/broker.conf
    links:
      - rmqnamesrv-a:rmqnamesrv-a
      - rmqnamesrv-b:rmqnamesrv-b
    networks:
      rmq:
        aliases:
          - rmqbroker-a

  rmqbroker-b:
    image: apache/rocketmq:4.9.4
    container_name: rmqbroker-b
    ports:
      - 10912:10912
    volumes:
     # - /rocketmq/logs/broker-b/logs:/home/rocketmq/logs
     # - /rocketmq/store/broker-b/store:/home/rocketmq/store
      - /rocketmq/broker-b/broker-b.conf:/home/rocketmq/rocketmq-4.9.4/conf/broker.conf
    environment:
      TZ: Asia/Shanghai
      NAMESRV_ADDR: "rmqnamesrv-b:9877"
      JAVA_OPTS: " -Duser.home=/opt"
      JAVA_OPT_EXT: "-server -Xms256m -Xmx256m -Xmn256m"
    command: sh mqbroker -c /home/rocketmq/rocketmq-4.9.4/conf/broker.conf
    links:
      - rmqnamesrv-a:rmqnamesrv-a
      - rmqnamesrv-b:rmqnamesrv-b
    networks:
      rmq:
        aliases:
          - rmqbroker-b
  rmqconsole:
    image: apacherocketmq/rocketmq-dashboard
    container_name: rmqconsole
    ports:
      - 8087:8080
    environment:
      JAVA_OPTS: -Drocketmq.namesrv.addr=rmqnamesrv-a:9876;rmqnamesrv-b:9877 -Dcom.rocketmq.sendMessageWithVIPChannel=false -Drocketmq.config.accessKey=rocketmq2 -Drocketmq.config.secretKey=12345678
    volumes:
      - /rocketmq/console-ng/data:/tmp/rocketmq-console/data
    networks:
      rmq:
        aliases:
          - rmqconsole
networks:
  rmq:
    name: rmq
    driver: bridge

4、执行docker-compose

cd /rocketmq

docker-compose up -d

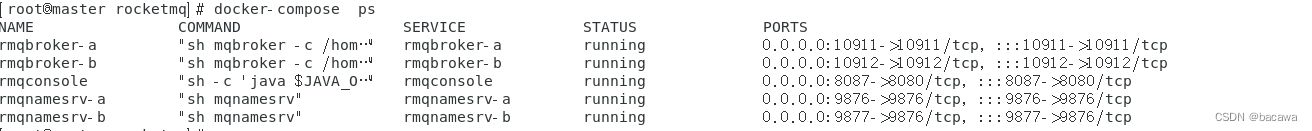

查看进程，使用命令docker-compose ps，确保State状态为up

在这里插入图片描述

5、访问控制台

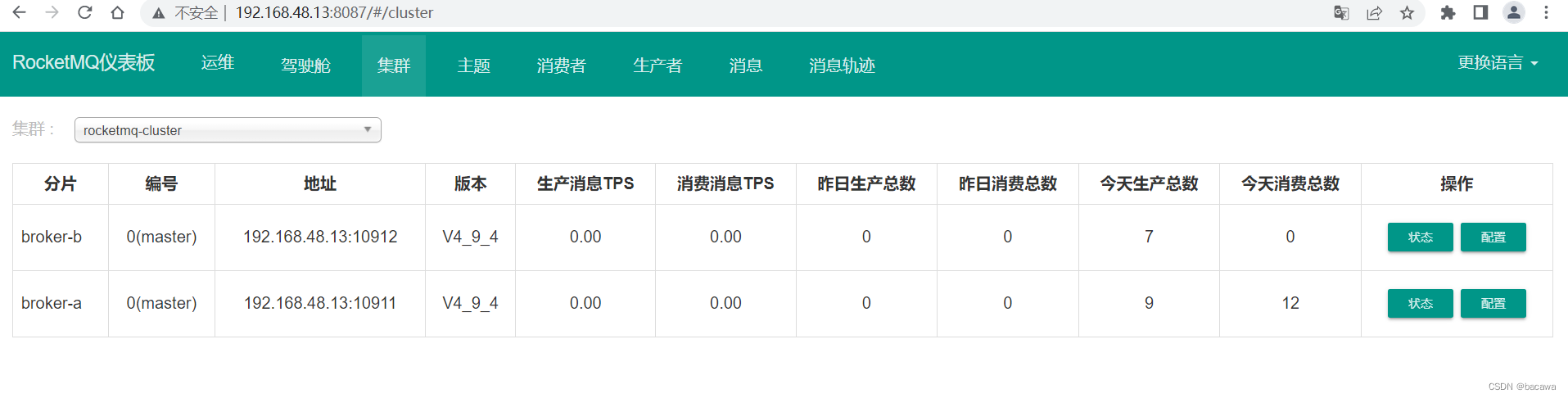

点击右上角切换语言为简体中文，点击集群，效果如下：

在这里插入图片描述

看到如下界面，说明集群启动正常。

在这里插入图片描述

四、数据持久化

上面的 docker-compose.yml，注释掉了一些文件挂载操作，因为新版本的rocketmq无法启动创建文件，直接挂载一个空目录，会启动报错。

复制docker里面的文件

docker cp rmqnamesrv-a:/home/rocketmq/logs /rocketmq/logs/nameserver-a
docker cp rmqnamesrv-b:/home/rocketmq/logs /rocketmq/logs/nameserver-b
docker cp rmqbroker-a:/home/rocketmq/logs /rocketmq/logs/broker-a
docker cp rmqbroker-a:/home/rocketmq/store /rocketmq/store/broker-a
docker cp rmqbroker-b:/home/rocketmq/logs /rocketmq/logs/broker-b
docker cp rmqbroker-b:/home/rocketmq/store /rocketmq/store/broker-b

设置权限，否则会写入文件失败，造成启动失败。

chmod 777 -R /rocketmq/logs/*
chmod 777 -R /rocketmq/store/*

关闭相关docker进程

docker-compose down

修改docker-compose.yml，开启持久化配置

version: '3.5'
services:
  rmqnamesrv-a:
    image: apache/rocketmq:4.9.4
    container_name: rmqnamesrv-a
    ports:
      - 9876:9876
    volumes:
      - /rocketmq/logs/nameserver-a:/home/rocketmq/logs
      - /rocketmq/broker-a/broker-a.conf:/home/rocketmq/rocketmq-4.9.4/conf/broker.conf
    command: sh mqnamesrv
    networks:
      rmq:
        aliases:
          - rmqnamesrv-a

  rmqnamesrv-b:
    image: apache/rocketmq:4.9.4
    container_name: rmqnamesrv-b
    ports:
      - 9877:9876
    volumes:
      - /rocketmq/logs/nameserver-b:/home/rocketmq/logs
      - /rocketmq/broker-b/broker-b.conf:/home/rocketmq/rocketmq-4.9.4/conf/broker.conf
    command: sh mqnamesrv
    networks:
      rmq:
        aliases:
          - rmqnamesrv-b

  rmqbroker-a:
    image: apache/rocketmq:4.9.4
    container_name: rmqbroker-a
    ports:
      - 10911:10911
    volumes:
      - /rocketmq/logs/broker-a/logs:/home/rocketmq/logs
      - /rocketmq/store/broker-a/store:/home/rocketmq/store
      - /rocketmq/broker-a/broker-a.conf:/home/rocketmq/rocketmq-4.9.4/conf/broker.conf
    environment:
      TZ: Asia/Shanghai
      NAMESRV_ADDR: "rmqnamesrv-a:9876"
      JAVA_OPTS: " -Duser.home=/opt"
      JAVA_OPT_EXT: "-server -Xms256m -Xmx256m -Xmn256m"
    command: sh mqbroker -c /home/rocketmq/rocketmq-4.9.4/conf/broker.conf
    links:
      - rmqnamesrv-a:rmqnamesrv-a
      - rmqnamesrv-b:rmqnamesrv-b
    networks:
      rmq:
        aliases:
          - rmqbroker-a

  rmqbroker-b:
    image: apache/rocketmq:4.9.4
    container_name: rmqbroker-b
    ports:
      - 10912:10912
    volumes:
      - /rocketmq/logs/broker-b/logs:/home/rocketmq/logs
      - /rocketmq/store/broker-b/store:/home/rocketmq/store
      - /rocketmq/broker-b/broker-b.conf:/home/rocketmq/rocketmq-4.9.4/conf/broker.conf
    environment:
      TZ: Asia/Shanghai
      NAMESRV_ADDR: "rmqnamesrv-b:9877"
      JAVA_OPTS: " -Duser.home=/opt"
      JAVA_OPT_EXT: "-server -Xms256m -Xmx256m -Xmn256m"
    command: sh mqbroker -c /home/rocketmq/rocketmq-4.9.4/conf/broker.conf
    links:
      - rmqnamesrv-a:rmqnamesrv-a
      - rmqnamesrv-b:rmqnamesrv-b
    networks:
      rmq:
        aliases:
          - rmqbroker-b
  rmqconsole:
    image: apacherocketmq/rocketmq-dashboard
    container_name: rmqconsole
    ports:
      - 8087:8080
    environment:
      JAVA_OPTS: -Drocketmq.namesrv.addr=rmqnamesrv-a:9876;rmqnamesrv-b:9877 -Dcom.rocketmq.sendMessageWithVIPChannel=false -Drocketmq.config.accessKey=rocketmq2 -Drocketmq.config.secretKey=12345678
    volumes:
      - /rocketmq/console-ng/data:/tmp/rocketmq-console/data
    networks:
      rmq:
        aliases:
          - rmqconsole
networks:
  rmq:
    name: rmq
    driver: bridge
