qml----Model/View入门（一）listview

最新推荐文章于 2025-11-03 23:08:36 发布

转载最新推荐文章于 2025-11-03 23:08:36 发布 · 383 阅读

0 ·

CC 4.0 BY-SA版权

原文链接：http://www.cnblogs.com/SaveDictator/p/8192391.html

文章标签：

#设计模式

本文详细介绍了QML中的Model-View-Delegate模式，并通过一个具体的例子展示了如何利用这种模式进行数据展示和操作。包括数据模型的定义、视图的布局设置以及委托组件的使用。

在SmallTalk中有一个经典的设计模式-MVC。即模型-视图-控制器，在qml中将control改成了delegate(委托)，也就是现在的Model-View-Delegate.换了个说法，Model还是负责数据，View管着视图输出，Delegate呢就是一个介于视图和数据之间的桥梁。

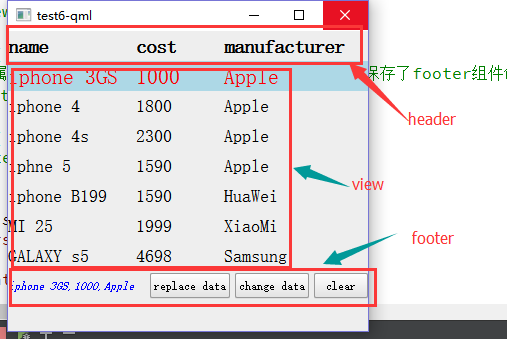

下面先来看个例子，效果图如下：

import QtQuick 2.2
import QtQuick.Controls 1.1
import QtQuick.Layouts 1.1

Rectangle{
    width: 360
    height: 300
    color: "#EEEEEE"

    Component{
        id: phoneModel

        ListModel{
            ListElement{
                name: "iphone 3GS"
                cost: "1000"
                manufacturer: "Apple"
            }

            ListElement{
                name: "iphone 4"
                cost: "1800"
                manufacturer: "Apple"
            }

            ListElement{
                name: "iphone 4s"
                cost: "2300"
                manufacturer: "Apple"
            }

            ListElement{
                name: "iphne 5"
                cost: "1590"
                manufacturer: "Apple"
            }

            ListElement{
                name: "iphone B199"
                cost: "1590"
                manufacturer: "HuaWei"
            }

            ListElement{
                name: "MI 25"
                cost: "1999"
                manufacturer: "XiaoMi"
            }

            ListElement{
                name: "GALAXY s5"
                cost: "4698"
                manufacturer: "Samsung"
            }
        }
    }//phoneModel is end（视图数据）

    Component{
        id: headView
        Item {
            width: parent.width
            height: 30
            RowLayout{
                anchors.left: parent.left
                anchors.verticalCenter: parent.verticalCenter
                spacing: 8
                Text{
                    text: "name"
                    font.bold: true
                    font.pixelSize: 20
                    Layout.preferredWidth: 120
                }

                Text{
                    text: "cost"
                    font.bold: true
                    font.pixelSize: 20
                    Layout.preferredWidth: 80
                }

                Text{
                    text: "manufacturer"
                    font.bold: true
                    font.pixelSize: 20
                    Layout.fillWidth: true
                }
            }
        }
    }//headview is end(定义的表头)

    Component{
        id: footerView

        Item{
            id: footerRootItem
            width: parent.width
            height: 30
            property alias text: txt.text
            signal clean()
            signal change()
            signal replace()

            Text{
                id: txt
                anchors.left: parent.left
                anchors.top: parent.top
                anchors.bottom: parent.bottom
                width: parent.width/4
                font.italic: true
                color: "blue"
                verticalAlignment: Text.AlignVCenter
            }

            Button{
                id: cleanBtn
                anchors.right: parent.right
                anchors.verticalCenter: parent.verticalCenter
                text: "clear"
                onClicked: footerRootItem.clean()
            }//清空视图数据的按钮

            Button{
                id: changeBtn
                anchors.right: cleanBtn.left
                anchors.rightMargin:  5
                anchors.verticalCenter: parent.verticalCenter
                text: "change data"
                onClicked: footerRootItem.change()
            }//改变选中行数据

            Button{
                id: replaceBtn
                anchors.right: changeBtn.left
                anchors.rightMargin: 5
                anchors.verticalCenter: parent.verticalCenter
                text: "replace data"
                onClicked: footerRootItem.replace()
            }//替换选中行的数据
        }

    }//footer属性允许我们制定listview的页脚，footerItem保存了footer组件创建出来的item对象，这个item会被
    //添加到listview的末尾，在所有可见的item之后

    Component{
        id: phoneDelegate
        Item {
            id: wrapper
            width: parent.width
            height: 30

            MouseArea{
                anchors.fill: parent
                onClicked: wrapper.ListView.view.currentIndex = index
                onDoubleClicked: wrapper.ListView.view.model.remove(index)
            }

            RowLayout{
                anchors.left: parent.left
                anchors.verticalCenter: parent.verticalCenter
                spacing: 8
                Text{
                    id: coll
                    text: name
                    color: wrapper.ListView.isCurrentItem ? "red" : "black"
                    font.pixelSize: wrapper.ListView.isCurrentItem ? 22 : 18
                    Layout.preferredWidth: 120
                }//coll text is end

                Text{
                    text: cost
                    color: wrapper.ListView.isCurrentItem ? "red" : "black"
                    font.pixelSize: wrapper.ListView.isCurrentItem ? 22 : 18
                    Layout.preferredWidth: 80
                }//cost text is end

                Text{
                    text: manufacturer
                    color: wrapper.ListView.isCurrentItem ? "red" : "black"
                    font.pixelSize: wrapper.ListView.isCurrentItem ? 22 : 18
                    Layout.fillWidth: true
                }//manufacturer is end
            }
        }
    }//delegate is end(视图的委托)

    ListView{
        id: listView
        anchors.fill: parent
        focus: trues
        delegate: phoneDelegate
        model: phoneModel.createObject(listView)
        header: headView
        footer: footerView
        highlight: Rectangle{
            color: "lightblue"
        }

        onCurrentIndexChanged: {
            if(listView.currentIndex >= 0){
                var data = listView.model.get(listView.currentIndex)
                listView.footerItem.text = data.name + "," + data.cost + "," + data.manufacturer
            }
            else
                listView.footerItem.text = " "
        }

        function changeItem()//修改模型数据
        {
            listView.model.setProperty(listView.currentIndex, "manufacturer", "China")
        }

        function replaceItem()//替换模型数据
        {
            listView.model.set(listView.currentIndex, {"name": "234 ninbi",                                                    "cost": 1999, "manufacturer": "ZhongXing"})
        }

        Component.onCompleted: {
            listView.footerItem.clean.connect(listView.model.clear)//关联信号
            listView.footerItem.change.connect(listView.changeItem)//关联改变信号
            listView.footerItem.replace.connect(listView.replaceItem)
        }
    }//定义listview
}

View Code

这个例子比较简单，增加了头和footer。另外，在下面放了几个按钮，用以演示对数据的修改和删除。如果要实现插入数据，那么需要在footerView中添加signal insert()

，并添加Button

Button{         id: insertOne
                anchors.right: addOne.left
                anchors.leftMargin: 4
                anchors.verticalCenter: parent.verticalCenter
                text: "Insert"
                onClicked: footerRootItem.insert()
            }

并且在 listView中实现Insert函数、建立与footerView的信号链接

 function addOne()
        {
            model.append(
                {
                    "name": "MX5",
                    "cost": "1899",
                    "manufacture" : "MeiZu"
                }
            )
        }

        function insertOne()
        {
            model.insert(Math.round(Math.random() * model.count),
               {
                    "name" : "HTC One E8",
                    "cost" : "2900",
                    "manufacture" : "HTC"
               }
            )
        }

        Component.onCompleted: {
            listView.footerItem.add.connect(listView.addOne)
            listView.footerItem.insert.connect(listView.insertOne)
        }
