那么有了ListView、GridView为什么还需要RecyclerView这样的控件呢？整体上看RecyclerView架构，提供了一种插拔式的体验，高度的解耦，异常的灵活，通过设置它提供的不同LayoutManager，ItemDecoration , ItemAnimator实现令人瞠目的效果。

你想要控制其显示的方式，请通过布局管理器LayoutManager
你想要控制Item间的间隔（可绘制），请通过ItemDecoration
你想要控制Item增删的动画，请通过ItemAnimator
你想要控制点击、长按事件，请自己写（擦，这点尼玛。）

鉴于我们对于ListView的使用特别的熟悉，对比下RecyclerView的使用代码：

code中需要

//设置布局管理器，必须
mRecyclerView.setLayoutManager(layout);
//设置RecycleView的Adapter，必须
mRecyclerView.setAdapter(adapter)
//设置分割线，非必须
mRecyclerView.addItemDecoration(ItemDecoration);
//设置item的增删动画，非必须
mRecyclerView.setItemAnimator(animator);

现在先最简单创建一个列表

新建Item的布局recycleview_item，以TextView为根节点

<TextView xmlns:android="http://schemas.android.com/apk/res/android"
          android:id="@+id/recycle_textview"
          android:layout_width="match_parent"
          android:layout_height="50dp"
          android:gravity="center"
          android:textSize="20sp"/>

新建一个RecyclerView.Adapter适配器TestRecycleViewAdapter

public class TestRecycleViewAdapter extends RecyclerView.Adapter<TestRecycleViewAdapter.ViewHolderA> {
    private Context mContext;
    private List<String> mList;

    public TestRecycleViewAdapter(Context context, List<String> list) {
        mContext = context;
        mList = list;
    }

    @Override
    public ViewHolderA onCreateViewHolder(ViewGroup parent, int viewType) {
        //此处动态加载ViewHolder的布局文件并返回holder
        View view = LayoutInflater.from(mContext).inflate(R.layout.recycleview_item, parent, false);
        ViewHolderA holderA = new ViewHolderA(view);
        return holderA;
    }

    @Override
    public void onBindViewHolder(ViewHolderA holder, int position) {
        //此处设置Item中view的数据
        holder.mTextView.setText(mList.get(position));
    }

    @Override
    public int getItemCount() {
        //生成的item的数量
        return mList.size();
    }

    //Item的ViewHolder以及item内部布局控件的id绑定
    class ViewHolderA extends RecyclerView.ViewHolder{

        TextView mTextView;
        public ViewHolderA(View itemView) {
            super(itemView);
            mTextView = (TextView) itemView.findViewById(R.id.recycle_textview);
        }
    }
}

用Android Studio生成Adapter结构技巧

先新建一个类TestRecycleViewAdapter
继承自RecyclerView.Adapter<这里填ViewHolder名字的>，现在出现红线，先不管它
然后在TestRecycleViewAdapter 内部写内部类ViewHolderA 继承自 RecyclerView.ViewHolder，这个时候会自动生成构造函数
接着将ViewHolder的名字ViewHolderA填入第2步粗体处，注意这里是内部类所以正确填入是TestRecycleViewAdapter.ViewHolderA
接着点红线，然后IDE会自己生成所需的3个方法

Activity中代码是这样

public class MainActivity extends AppCompatActivity {
    private List<String> list;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        RecyclerView mRecyclerView = (RecyclerView) findViewById(R.id.activity_main_recycle_view);
        mRecyclerView.setLayoutManager(new LinearLayoutManager(this));
        initData();
        //实例化并传输数据给adapter
        TestRecycleViewAdapter adapter = new TestRecycleViewAdapter(getApplicationContext(), list);
        mRecyclerView.setAdapter(adapter);
    }

    /**
     *  添加数据
     * */
    private void initData() {
        list = new ArrayList<>();
        for (int i = 0; i < 50; i++) {
            list.add("item" + i);
        }
    }
}

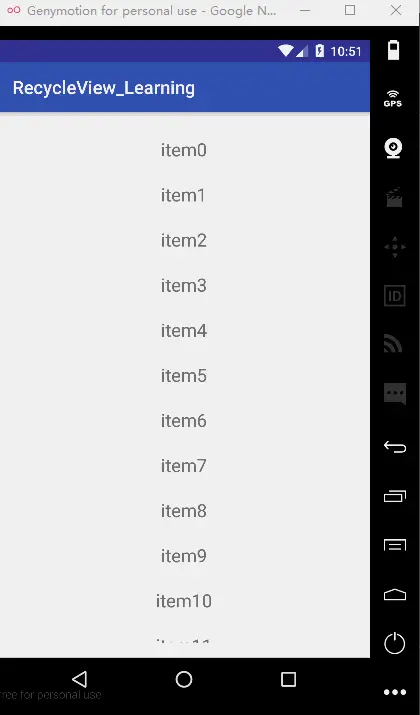

这样子一个最基本的RecycleView就写好了，效果图

最基本的RecycleView

可以看到默认没有Scrollbars，没有item之间的间隔线，没有item点击效果，实际上这些我们需要自定义（虽然有点麻烦）

ItemDecoration

该方法的参数为RecyclerView.ItemDecoration，该类为抽象类，官方目前并没有提供默认的实现类

该类的源码：

public static abstract class ItemDecoration {

public void onDraw(Canvas c, RecyclerView parent, State state) {
            onDraw(c, parent);
 }


public void onDrawOver(Canvas c, RecyclerView parent, State state) {
            onDrawOver(c, parent);
 }

public void getItemOffsets(Rect outRect, View view, RecyclerView parent, State state) {
            getItemOffsets(outRect, ((LayoutParams) view.getLayoutParams()).getViewLayoutPosition(),
                    parent);
}

@Deprecated
public void getItemOffsets(Rect outRect, int itemPosition, RecyclerView parent) {
            outRect.set(0, 0, 0, 0);
 }

   1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
   1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

当我们调用mRecyclerView.addItemDecoration()方法添加decoration的时候，RecyclerView在绘制的时候，去会绘制decorator，即调用该类的onDraw和onDrawOver方法，

onDraw方法先于drawChildren
onDrawOver在drawChildren之后，一般我们选择复写其中一个即可。
getItemOffsets 可以通过outRect.set()为每个Item设置一定的偏移量，主要用于绘制Decorator。

该类参考自：DividerItemDecoration


package com.zhy.sample.demo_recyclerview;

/*
 * Copyright (C) 2014 The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * limitations under the License.
 */

import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Rect;
import android.graphics.drawable.Drawable;
import android.support.v7.widget.LinearLayoutManager;
import android.support.v7.widget.RecyclerView;
import android.support.v7.widget.RecyclerView.State;
import android.util.Log;
import android.view.View;


/**
 * This class is from the v7 samples of the Android SDK. It's not by me!
 * <p/>
 * See the license above for details.
 */
public class DividerItemDecoration extends RecyclerView.ItemDecoration {

    private static final int[] ATTRS = new int[]{
            android.R.attr.listDivider
    };

    public static final int HORIZONTAL_LIST = LinearLayoutManager.HORIZONTAL;

    public static final int VERTICAL_LIST = LinearLayoutManager.VERTICAL;

    private Drawable mDivider;

    private int mOrientation;

    public DividerItemDecoration(Context context, int orientation) {
        final TypedArray a = context.obtainStyledAttributes(ATTRS);
        mDivider = a.getDrawable(0);
        a.recycle();
        setOrientation(orientation);
    }

    public void setOrientation(int orientation) {
        if (orientation != HORIZONTAL_LIST && orientation != VERTICAL_LIST) {
            throw new IllegalArgumentException("invalid orientation");
        }
        mOrientation = orientation;
    }

    @Override
    public void onDraw(Canvas c, RecyclerView parent) {
        Log.v("recyclerview - itemdecoration", "onDraw()");

        if (mOrientation == VERTICAL_LIST) {
            drawVertical(c, parent);
        } else {
            drawHorizontal(c, parent);
        }

    }


    public void drawVertical(Canvas c, RecyclerView parent) {
        final int left = parent.getPaddingLeft();
        final int right = parent.getWidth() - parent.getPaddingRight();

        final int childCount = parent.getChildCount();
        for (int i = 0; i < childCount; i++) {
            final View child = parent.getChildAt(i);
            android.support.v7.widget.RecyclerView v = new android.support.v7.widget.RecyclerView(parent.getContext());
            final RecyclerView.LayoutParams params = (RecyclerView.LayoutParams) child
                    .getLayoutParams();
            final int top = child.getBottom() + params.bottomMargin;
            final int bottom = top + mDivider.getIntrinsicHeight();
            mDivider.setBounds(left, top, right, bottom);
            mDivider.draw(c);
        }
    }

    public void drawHorizontal(Canvas c, RecyclerView parent) {
        final int top = parent.getPaddingTop();
        final int bottom = parent.getHeight() - parent.getPaddingBottom();

        final int childCount = parent.getChildCount();
        for (int i = 0; i < childCount; i++) {
            final View child = parent.getChildAt(i);
            final RecyclerView.LayoutParams params = (RecyclerView.LayoutParams) child
                    .getLayoutParams();
            final int left = child.getRight() + params.rightMargin;
            final int right = left + mDivider.getIntrinsicHeight();
            mDivider.setBounds(left, top, right, bottom);
            mDivider.draw(c);
        }
    }

    @Override
    public void getItemOffsets(Rect outRect, int itemPosition, RecyclerView parent) {
        if (mOrientation == VERTICAL_LIST) {
            outRect.set(0, 0, 0, mDivider.getIntrinsicHeight());
        } else {
            outRect.set(0, 0, mDivider.getIntrinsicWidth(), 0);
        }
    }
}
   1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
   1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110

所以，自定义间隔线步骤如下：

在Style文件里加上name="android:listDivider"的item

<item name="android:listDivider">@drawable/divider_backgroud</item>

书写divider_bg.xml文件，shape文件为渐变xml

<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">
    <gradient
        android:centerColor="#b3b35f"
        android:endColor="#515187"
        android:startColor="#b34747"
        android:type="linear" />
    <size android:height="5dp"/>
</shape>

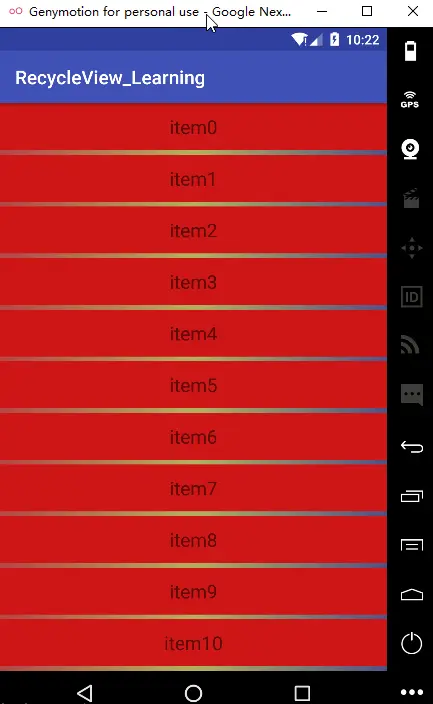

这样一个自定义间隔线样式就好了

LayoutManager

好了，上面实现了类似ListView样子的Demo，通过使用其默认的LinearLayoutManager。

RecyclerView.LayoutManager吧，这是一个抽象类，好在系统提供了3个实现类：

LinearLayoutManager 现行管理器，支持横向、纵向。
GridLayoutManager 网格布局管理器
StaggeredGridLayoutManager 瀑布就式布局管理器

我们尝试去实现类似GridView，秒秒钟的事情：

//mRecyclerView.setLayoutManager(new LinearLayoutManager(this));
        mRecyclerView.setLayoutManager(new GridLayoutManager(this,4));
  1
2
  1
2

只需要修改LayoutManager即可，还是很nice的。

瀑布流式的布局，其实他可以实现GridLayoutManager一样的功能，仅仅按照下列代码：

// mRecyclerView.setLayoutManager(new GridLayoutManager(this,4));
        mRecyclerView.setLayoutManager(new StaggeredGridLayoutManager(4,StaggeredGridLayoutManager.VERTICAL));
  1
2
  1
2

这两种写法显示的效果是一致的，但是注意StaggeredGridLayoutManager构造的第二个参数传一个orientation，如果传入的是StaggeredGridLayoutManager.VERTICAL代表有多少列；那么传入的如果是StaggeredGridLayoutManager.HORIZONTAL就代表有多少行，比如本例如果改为：

mRecyclerView.setLayoutManager(new StaggeredGridLayoutManager(4,
        StaggeredGridLayoutManager.HORIZONTAL));
  1
2
  1
2

那么效果为：

感觉上和网格布局没啥差别，因为这上面的item我们使用了固定的高度，我们可以在适配器的onBindViewHolder方法中随机设置item高度

先在adapter的里声明
```
private List<Integer> mHeight;
```

在构造方法里随机生成高度值

mHeight = new ArrayList<Integer>();
      for (int i = 0; i < mList.size(); i++) {
          mHeight.add((int) (80 + Math.random() * 300));
      }

接着在onBindViewHolder方法里

ViewGroup.LayoutParams lp = holder.mTextView.getLayoutParams();
lp.height = mHeight.get(position);

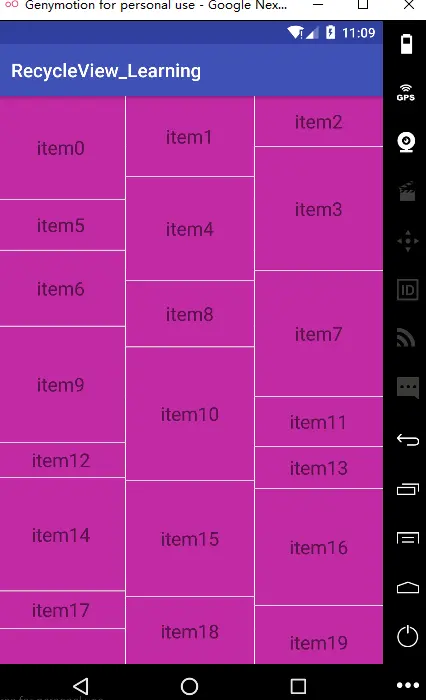

瀑布流

ItemAnimator

ItemAnimator也是一个抽象类，好在系统为我们提供了一种默认的实现类，期待系统多
添加些默认的实现。

借助默认的实现，当Item添加和移除的时候，添加动画效果很简单:

// 设置item动画
mRecyclerView.setItemAnimator(new DefaultItemAnimator());
  1
2
  1
2

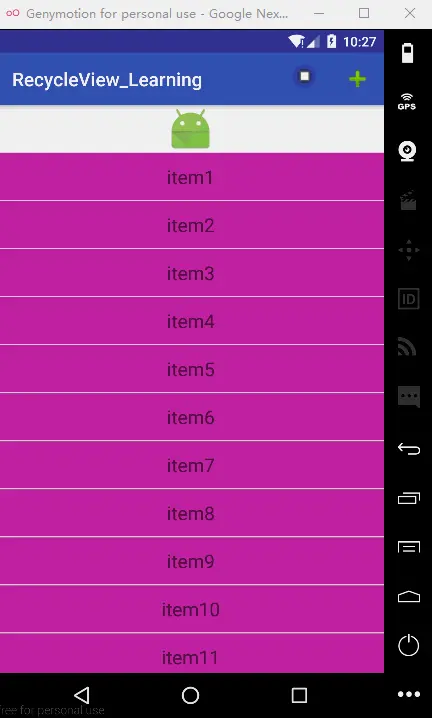

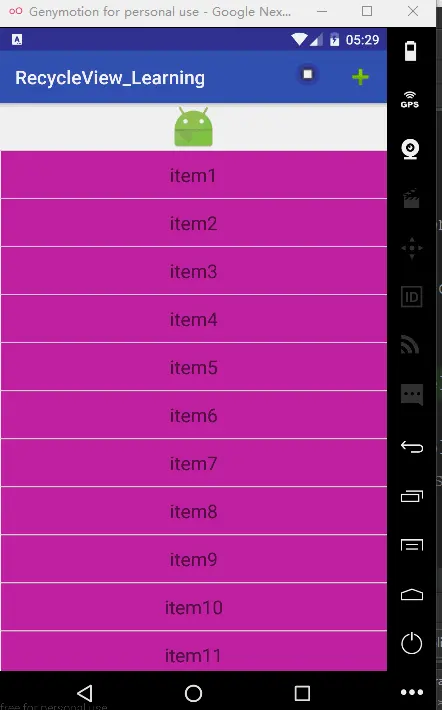

系统为我们提供了一个默认的实现，我们为我们的瀑布流添加以上一行代码，效果为：

注意，这里更新数据集不是用adapter.notifyDataSetChanged()而是
notifyItemInserted(position)与notifyItemRemoved(position)
否则没有动画效果。
上述为adapter中添加了两个方法：

public void addData(int position) {
        mDatas.add(position, "Insert One");
        notifyItemInserted(position);
    }

    public void removeData(int position) {
            mDatas.remove(position);
        notifyItemRemoved(position);
    }
  1
2
3
4
5
6
7
8
9
  1
2
3
4
5
6
7
8
9

Activity中点击MenuItem触发：

    @Override
    public boolean onCreateOptionsMenu(Menu menu)
    {
        getMenuInflater().inflate(R.menu.main, menu);
        return super.onCreateOptionsMenu(menu);
    }

    @Override
    public boolean onOptionsItemSelected(MenuItem item)
    {
        switch (item.getItemId())
        {
        case R.id.id_action_add:
            mAdapter.addData(1);
            break;
        case R.id.id_action_delete:
            mAdapter.removeData(1);
            break;
        }
        return true;
    }
  1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21



  1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

好了，到这我对这个控件已经不是一般的喜欢了~~~

当然了只提供了一种动画，那么我们肯定可以去自定义各种nice的动画效果。
高兴的是，github上已经有很多类似的项目了，这里我们直接引用下： RecyclerViewItemAnimators ，大家自己下载查看。
提供了 SlideInOutLeftItemAnimator , SlideInOutRightItemAnimator ,
SlideInOutTopItemAnimator , SlideInOutBottomItemAnimator 等动画效果。

点击事件：

Click and LongClick

不过一个挺郁闷的地方就是，系统没有提供ClickListener和LongClickListener。
不过我们也可以自己去添加，只是会多了些代码而已。
实现的方式比较多，你可以通过mRecyclerView.addOnItemTouchListener去监听然后去判断手势，
当然你也可以通过adapter中自己去提供回调，这里我们选择后者，前者的方式，大家有兴趣自己去实现。

那么代码也比较简单：

class HomeAdapter extends RecyclerView.Adapter<HomeAdapter.MyViewHolder>
{

//...
    public interface OnItemClickLitener
    {
        void onItemClick(View view, int position);
        void onItemLongClick(View view , int position);
    }

    private OnItemClickLitener mOnItemClickLitener;

    public void setOnItemClickLitener(OnItemClickLitener mOnItemClickLitener)
    {
        this.mOnItemClickLitener = mOnItemClickLitener;
    }

    @Override
    public void onBindViewHolder(final MyViewHolder holder, final int position)
    {
        holder.tv.setText(mDatas.get(position));

        // 如果设置了回调，则设置点击事件
        if (mOnItemClickLitener != null)
        {
            holder.itemView.setOnClickListener(new OnClickListener()
            {
                @Override
                public void onClick(View v)
                {
                    int pos = holder.getLayoutPosition();
                    mOnItemClickLitener.onItemClick(holder.itemView, pos);
                }
            });

            holder.itemView.setOnLongClickListener(new OnLongClickListener()
            {
                @Override
                public boolean onLongClick(View v)
                {
                    int pos = holder.getLayoutPosition();
                    mOnItemClickLitener.onItemLongClick(holder.itemView, pos);
                    return false;
                }
            });
        }
    }
//...
}

  1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
  1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

adapter中自己定义了个接口，然后在onBindViewHolder中去为holder.itemView去设置相应
的监听最后回调我们设置的监听。

最后别忘了给item添加一个drawable:

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android" >
    <item android:state_pressed="true" android:drawable="@color/color_item_press"></item>
    <item android:drawable="@color/color_item_normal"></item>
</selector>

  1
2
3
4
5
6
  1
2
3
4
5
6

Activity中去设置监听：


        mAdapter.setOnItemClickLitener(new OnItemClickLitener()
        {

            @Override
            public void onItemClick(View view, int position)
            {
                Toast.makeText(HomeActivity.this, position + " click",
                        Toast.LENGTH_SHORT).show();
            }

            @Override
            public void onItemLongClick(View view, int position)
            {
                Toast.makeText(HomeActivity.this, position + " long click",
                        Toast.LENGTH_SHORT).show();
                        mAdapter.removeData(position);
            }
        });

  1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
  1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

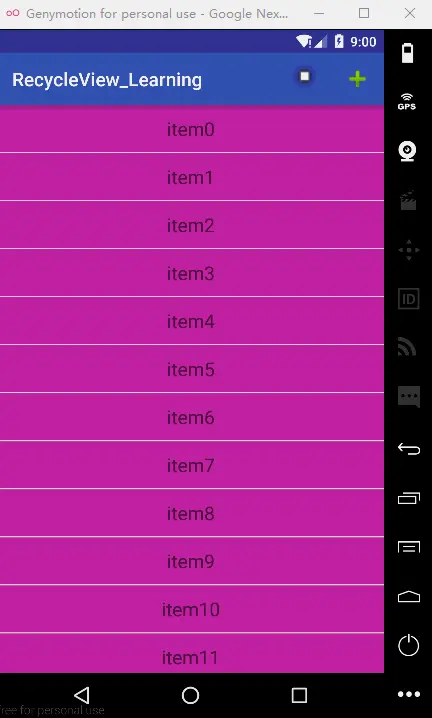

测试效果：

这里不需要暴露点击事件的话，直接在里面设置点击就可以了

public void onBindViewHolder(ViewHolderA holder, final int position) {
        .....
         .....
        holder.mTextView.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Toast.makeText(mContext, "item"+position,Toast.LENGTH_SHORT).show();
            }
        });

       .....
    }

与某些View结合使用

可以被SwipeRefreshLayout实现Android原生下拉刷新，也可以实现第三方下拉刷新
item可以使用CardView，恩，超漂亮

滑动监听addOnScrollListener 可实现下拉刷新等

实现这个借口的俩个方法

onScrollStateChanged
onScrolled

mRecyclerView.addOnScrollListener(new RecyclerView.OnScrollListener() {
            //标记当前是否向最后一项滑动
            boolean isSlidingToLast = false;

            @Override
            public void onScrollStateChanged(RecyclerView recyclerView, int newState) {
                super.onScrollStateChanged(recyclerView, newState);
                //获取当前的LayoutManager
                LinearLayoutManager manager = (LinearLayoutManager) recyclerView.getLayoutManager();
                //当不滚动的时候
                if (newState == RecyclerView.SCROLL_STATE_IDLE) {
                    //得到最后一个完全显示的item的position
                    int lastViusalItem = manager.findLastCompletelyVisibleItemPosition();
                    //总的ITemPosition
                    int totalItemCount = manager.getItemCount();
                    //当前是否向下滑，是否滚动到LastItem
                    if (lastViusalItem == (totalItemCount - 1) && isSlidingToLast) {
                        // 这里就是下拉加载更多功能的逻辑
                        //往item的List里添加数据，并通知适配器更新
                        adapter.addListData(lastViusalItem);

                    }
                }
            }

            @Override
            public void onScrolled(RecyclerView recyclerView, int dx, int dy) {
                super.onScrolled(recyclerView, dx, dy);
                //如果dy>0则当前向下滑state
                if (dy > 0) {
                    isSlidingToLast = true;
                } else if (dy < 0) {
                    isSlidingToLast = false;
                }
            }
        });

case RecyclerView.SCROLL_STATE_IDLE:    //当停止滚动时,当前的recycleView不滑动(滑动已经停止时)

    break;

case RecyclerView.SCROLL_STATE_DRAGGING:    //滚动时,当前的recycleView被拖动滑动
    //没错，下面这一坨就是隐藏软键盘的代码
    //((InputMethodManager)getSystemService(INPUT_METHOD_SERVICE)).hideSoftInputFromWindow(CustomClaimTargetListDetailActivity.this.getCurrentFocus().getWindowToken(), InputMethodManager.HIDE_NOT_ALWAYS);
    break;

case RecyclerView.SCROLL_STATE_SETTLING:   //手指抬起，但是屏幕还在滚动状态,当前的recycleView在滚动到某个位置的动画过程,但没有被触摸滚动.调用 scrollToPosition(int) 应该会触发这个状态

    break;

adapter里添加

public void addListData(int position){
        for (int i = 0; i <6; i++) {
            mList.add("底部添加" + i);
        }
        //通知适配器item内容删除
        notifyItemChanged(position);
    }

这里的LayoutManager对象manager还可以获取到很多参数，比如

可以用tm来实现更多逻辑功能

自动加载

ItemTouchHelper实现item删除，互相拉动

一个大神写的

Android实现RecyclerView侧滑删除和长按拖拽-ItemTouchHelper
，讲的很清楚，这里不再详解，贴上测试的代码，仅做记录

在setAdapter后面添加

      ItemTouchHelper.Callback mCallback = new ItemTouchHelper.SimpleCallback(ItemTouchHelper.DOWN|ItemTouchHelper.UP, ItemTouchHelper.RIGHT) {
            @Override
            public boolean onMove(RecyclerView recyclerView, RecyclerView.ViewHolder viewHolder, RecyclerView.ViewHolder target) {
                int fromPosition = viewHolder.getAdapterPosition();//得到拖动ViewHolder的position
                int toPosition = target.getAdapterPosition();//得到目标ViewHolder的position
                if (fromPosition < toPosition){
//                向下
                    for (int i = fromPosition; i < toPosition; i++) {
                        Collections.swap(list, i, i+1);
                    }
                }else {
                    for (int i = fromPosition; i < toPosition; i++) {
                        //                向上
                        Collections.swap(list, i, i-1);
                    }
                }
                mTestRecycleViewAdapterMulType.notifyItemMoved(fromPosition, toPosition);
                //返回true表示执行拖动
                return true;
            }

            @Override
            public void onSwiped(RecyclerView.ViewHolder viewHolder, int direction) {
                int position = viewHolder.getAdapterPosition();
                list.remove(position);
                mTestRecycleViewAdapterMulType.notifyItemRemoved(position);
            }
        };

        ItemTouchHelper mItemTouchHelper = new ItemTouchHelper(mCallback);
        mItemTouchHelper.attachToRecyclerView(mRecyclerView);

效果


RecycleView多种布局显示

先看效果

多布局

RecycleView.Adapter也提供了getItemViewType方法，此方法和ListView加载多布局一样。

这里需要注意的是这里的范型不再是自己写的ViewHolder

public class TestRecycleViewAdapterMulType extends RecyclerView.Adapter<RecyclerView.ViewHolder>

重写adapter的getItemViewType

 public int getItemViewType(int position) {
        if (position == 0) {
            //111代表顶部item
            return 111;
        } else if (position == getItemCount() - 1) {
            //111代表di部item
            return 112;
        }
        //111代表中间item
        return 110;
    }

自定义3个ViewHolder，分别表示top ，bottom 和中间的item布局

/**
     * 代表顶部item
     */
    class ViewHolderA extends RecyclerView.ViewHolder {
        ImageView mImageViewA;

        public ViewHolderA(View itemView) {
            super(itemView);
            mImageViewA = (ImageView) itemView.findViewById(R.id.top_imageview);
        }
    }

    /**
     * 代表di部item
     */
    class ViewHolderB extends RecyclerView.ViewHolder {
        ImageView mImageViewB;

        public ViewHolderB(View itemView) {
            super(itemView);
            mImageViewB = (ImageView) itemView.findViewById(R.id.bottom_imageview);
        }
    }

    /**
     * 代表中间item
     */
    class ViewHolderC extends RecyclerView.ViewHolder {
        TextView mTextView;

        public ViewHolderC(View itemView) {
            super(itemView);
            mTextView = (TextView) itemView.findViewById(R.id.recycle_textview);
        }
    }

在onCreateViewHolder方法里

@Override
    public RecyclerView.ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
        View view = null;
        RecyclerView.ViewHolder holder = null;
        //此处动态加载ViewHolder的布局文件并返回holder
        switch (viewType) {
            case 111:
                //111代表顶部item
                view = LayoutInflater.from(mContext).inflate(R.layout.top, parent, false);
                holder = new ViewHolderA(view);
                break;
            case 112:
                //112代表顶部item
                view = LayoutInflater.from(mContext).inflate(R.layout.bottom, parent, false);
                holder = new ViewHolderB(view);
                break;
            case 110:
                //112代表中间item
                view = LayoutInflater.from(mContext).inflate(R.layout.recycleview_item, parent, false);
                holder = new ViewHolderC(view);
                break;
        }
        return holder;
    }

最后是onBindViewHolder，在这里分别设置不同布局item数据

@Override
    public void onBindViewHolder(RecyclerView.ViewHolder holder, final int position) {
//        //这样写也行
//        if(holder instanceof ViewHolderA){
//            ViewHolderA holderA = (ViewHolderA) holder;
//            holderA.mImageViewA.setImageResource(R.mipmap.ic_launcher);
//        }else if(holder instanceof ViewHolderB).....
//        .....
        switch (getItemViewType(position)) {
            case 111:
                ViewHolderA holderA = (ViewHolderA) holder;
                holderA.mImageViewA.setImageResource(R.mipmap.ic_launcher);
                break;
            case 112:
                ViewHolderB holderB = (ViewHolderB) holder;
                holderB.mImageViewB.setImageResource(R.mipmap.ic_launcher);
                break;
            case 110:
                ViewHolderC holderC = (ViewHolderC) holder;
                holderC.mTextView.setText(mList.get(position));
                break;
        }
    }

贴一下完整Adapter代码

**
 * Created by NIWA on 2017/3/9.
 */

public class TestRecycleViewAdapterMulType extends RecyclerView.Adapter<RecyclerView.ViewHolder> {
    private Context mContext;
    private List<String> mList;

    public TestRecycleViewAdapterMulType(Context context, List<String> list) {
        mContext = context;
        mList = list;

    }

    @Override
    public RecyclerView.ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
        View view = null;
        RecyclerView.ViewHolder holder = null;
        //此处动态加载ViewHolder的布局文件并返回holder
        switch (viewType) {
            case 111:
                //111代表顶部item
                view = LayoutInflater.from(mContext).inflate(R.layout.top, parent, false);
                holder = new ViewHolderA(view);
                break;
            case 112:
                //112代表顶部item
                view = LayoutInflater.from(mContext).inflate(R.layout.bottom, parent, false);
                holder = new ViewHolderB(view);
                break;
            case 110:
                //112代表中间item
                view = LayoutInflater.from(mContext).inflate(R.layout.recycleview_item, parent, false);
                holder = new ViewHolderC(view);
                break;
        }
        return holder;
    }


    @Override
    public void onBindViewHolder(RecyclerView.ViewHolder holder, final int position) {
//        //这样写也行
//        if(holder instanceof ViewHolderA){
//            ViewHolderA holderA = (ViewHolderA) holder;
//            holderA.mImageViewA.setImageResource(R.mipmap.ic_launcher);
//        }else if(holder instanceof ViewHolderB).....
//        .....
        switch (getItemViewType(position)) {
            case 111:
                ViewHolderA holderA = (ViewHolderA) holder;
                holderA.mImageViewA.setImageResource(R.mipmap.ic_launcher);
                break;
            case 112:
                ViewHolderB holderB = (ViewHolderB) holder;
                holderB.mImageViewB.setImageResource(R.mipmap.ic_launcher);
                break;
            case 110:
                ViewHolderC holderC = (ViewHolderC) holder;
                holderC.mTextView.setText(mList.get(position));
                break;
        }
    }

    @Override
    public int getItemCount() {
        //生成的item的数量
        return mList.size();
    }


    /**
     * 代表顶部item
     */
    class ViewHolderA extends RecyclerView.ViewHolder {
        ImageView mImageViewA;

        public ViewHolderA(View itemView) {
            super(itemView);
            mImageViewA = (ImageView) itemView.findViewById(R.id.top_imageview);
        }
    }

    /**
     * 代表di部item
     */
    class ViewHolderB extends RecyclerView.ViewHolder {
        ImageView mImageViewB;

        public ViewHolderB(View itemView) {
            super(itemView);
            mImageViewB = (ImageView) itemView.findViewById(R.id.bottom_imageview);
        }
    }

    /**
     * 代表中间item
     */
    class ViewHolderC extends RecyclerView.ViewHolder {
        TextView mTextView;

        public ViewHolderC(View itemView) {
            super(itemView);
            mTextView = (TextView) itemView.findViewById(R.id.recycle_textview);
        }
    }

    @Override
    public int getItemViewType(int position) {
        if (position == 0) {
            //111代表顶部item
            return 111;
        } else if (position == getItemCount() - 1) {
            //因为item是从0开始，所以最后一项应该是getItemCount() - 1
            //111代表di部item
            return 112;
        }
        //111代表中间item
        return 110;
    }

}

最后在Activity里

mTestRecycleViewAdapterMulType = new TestRecycleViewAdapterMulType(getApplicationContext(), list);
        mRecyclerView.setAdapter(mTestRecycleViewAdapterMulType);

heiheihei

注意

刷新数据的几个方法

notifyItemInserted();
notifyItemRangeInserted();

notifyItemChanged();
notifyItemRangeChanged();

notifyItemRemoved();
notifyItemRangeRemoved();

稍作记录，待测试中

开源库XRecycleView

据我所知，支付宝用了这个库

XRecyclerView

用法和原生RecycleView一样
封装好了下拉刷新，上拉加载，刷新动画
增加头部，甚至增加俩个headerView

本篇完

参考文章：

http://www.jianshu.com/p/c35ca003654d

http://blog.youkuaiyun.com/lmj623565791/article/details/45059587

RecycleView万能适配器：http://www.jianshu.com/p/b343fcff51b0
