Python第三方库之openpyxl(9)

Python第三方库之openpyxl(9)

油炸圈饼图

甜甜圈图表与饼图相似，只是他们用的是环而不是圆。他们还可以将几个系列的数据绘制成同心环

from openpyxl import Workbook

from openpyxl.chart import (
    DoughnutChart,
    Reference,
    Series,
)
from openpyxl.chart.series import DataPoint

data = [
    ['Pie', 2014, 2015],
    ['Plain', 40, 50],
    ['Jam', 2, 10],
    ['Lime', 20, 30],
    ['Chocolate', 30, 40],
]

wb = Workbook()
ws = wb.active

for row in data:
    ws.append(row)

chart = DoughnutChart()
labels = Reference(ws, min_col=1, min_row=2, max_row=5)
data = Reference(ws, min_col=2, min_row=1, max_row=5)
chart.add_data(data, titles_from_data=True)
chart.set_categories(labels)
chart.title = "Doughnuts sold by category"
chart.style = 26

# Cut the first slice out of the doughnut
slices = [DataPoint(idx=i) for i in range(4)]
plain, jam, lime, chocolate = slices
chart.series[0].data_points = slices
plain.graphicalProperties.solidFill = "FAE1D0"
jam.graphicalProperties.solidFill = "BB2244"
lime.graphicalProperties.solidFill = "22DD22"
chocolate.graphicalProperties.solidFill = "61210B"
chocolate.explosion = 10

ws.add_chart(chart, "E1")

from copy import deepcopy

chart2 = deepcopy(chart)
chart2.title = None
data = Reference(ws, min_col=3, min_row=1, max_row=5)
series2 = Series(data, title_from_data=True)
series2.data_points = slices
chart2.series.append(series2)

ws.add_chart(chart2, "E17")

wb.save("doughnut.xlsx")

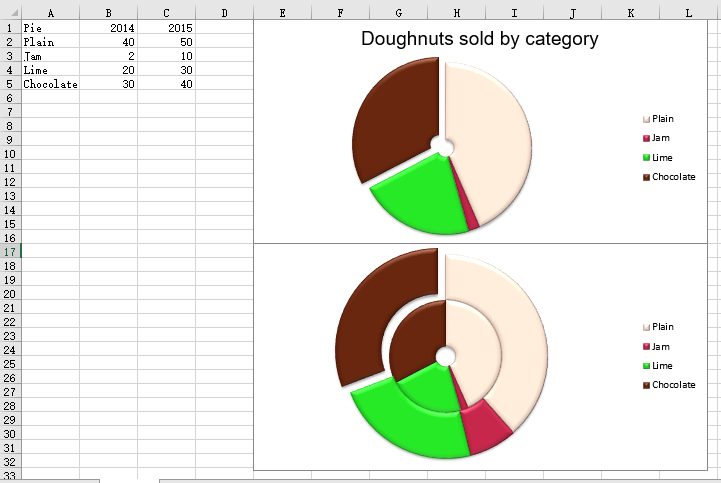

运行结果
