Spring Security Config : HttpSecurity安全配置器 ExceptionHandlingConfigurer

概述

介绍

作为一个配置HttpSecurity的SecurityConfigurer,ExceptionHandlingConfigurer的配置任务如下 :

• 配置如下安全过滤器Filter
  • ExceptionTranslationFilter

ExceptionHandlingConfigurer配置过程中使用到了如下共享对象 :

• RequestCache

  如果该共享对象不存在，则缺省使用一个HttpSessionRequestCache

• AuthenticationEntryPoint

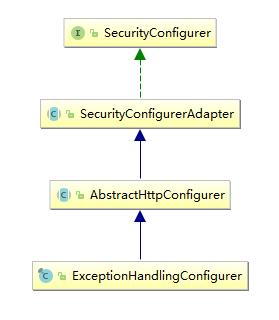

继承关系

使用

例子 1 : ExceptionHandlingConfigurer对象的创建

	// HttpSecurity 代码片段
	public ExceptionHandlingConfigurer<HttpSecurity> exceptionHandling() throws Exception {
		return getOrApply(new ExceptionHandlingConfigurer<>());
	}

例子 2 : 通过ExceptionHandlingConfigurer配置httpSecurity

@Configuration
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
	// ...
	@Override
    protected void configure(final HttpSecurity http) throws Exception {
        http.exceptionHandling()
            .authenticationEntryPoint(new MyLoginUrlAuthenticationEntryPoint("/custom-login"))
            .accessDeniedHandler(new MyAccessDeniedHandler());
    }
	// ...
}

源代码

源代码版本 Spring Security Config 5.1.4.RELEASE

package org.springframework.security.config.annotation.web.configurers;

// 省略 imports

public final class ExceptionHandlingConfigurer<H extends HttpSecurityBuilder<H>> extends
		AbstractHttpConfigurer<ExceptionHandlingConfigurer<H>, H> {

	private AuthenticationEntryPoint authenticationEntryPoint;

	private AccessDeniedHandler accessDeniedHandler;

	private LinkedHashMap<RequestMatcher, AuthenticationEntryPoint> defaultEntryPointMappings =
            new LinkedHashMap<>();

	private LinkedHashMap<RequestMatcher, AccessDeniedHandler> defaultDeniedHandlerMappings =
            new LinkedHashMap<>();

	/**
	 * Creates a new instance
	 * @see HttpSecurity#exceptionHandling()
	 */
	public ExceptionHandlingConfigurer() {
	}

	/**
	 * Shortcut to specify the AccessDeniedHandler to be used is a specific error
	 * page
	 * 快捷方式，设置访问被拒绝使用的 AccessDeniedHandler 是一个 使用 AccessDeniedHandlerImpl ，
     * 并且指向设定的错误页面(比如 /errors/401) accessDeniedUrl :
	 * 1. 如果 accessDeniedUrl 为 null，则返回 403 给浏览器端
	 * 2. 如果 accessDeniedUrl 不为 null，是某个 / 开头的有效路径，则 foward 用户到相应的错误页面
	 * @param accessDeniedUrl the URL to the access denied page (i.e. /errors/401)
	 * @return the ExceptionHandlingConfigurer for further customization
	 * @see AccessDeniedHandlerImpl
	 * @see #accessDeniedHandler(org.springframework.security.web.access.AccessDeniedHandler)
	 */
	public ExceptionHandlingConfigurer<H> accessDeniedPage(String accessDeniedUrl) {
		AccessDeniedHandlerImpl accessDeniedHandler = new AccessDeniedHandlerImpl();
		accessDeniedHandler.setErrorPage(accessDeniedUrl);
		return accessDeniedHandler(accessDeniedHandler);
	}

	/**
	 * Specifies the AccessDeniedHandler to be used
     * 设置访问被拒绝时使用的 AccessDeniedHandler
	 *
	 * @param accessDeniedHandler the AccessDeniedHandler to be used
	 * @return the ExceptionHandlingConfigurer for further customization
	 */
	public ExceptionHandlingConfigurer<H> accessDeniedHandler(
			AccessDeniedHandler accessDeniedHandler) {
		this.accessDeniedHandler = accessDeniedHandler;
		return this;
	}

	/**
	 * Sets a default AccessDeniedHandler to be used which prefers being
	 * invoked for the provided RequestMatcher. If only a single default
	 * AccessDeniedHandler is specified, it will be what is used for the
	 * default AccessDeniedHandler. If multiple default
	 * AccessDeniedHandler instances are configured, then a
	 * RequestMatcherDelegatingAccessDeniedHandler will be used.
	 *
	 * @param deniedHandler the AccessDeniedHandler to use
	 * @param preferredMatcher the RequestMatcher for this default
	 * AccessDeniedHandler
	 * @return the ExceptionHandlingConfigurer for further customizations
	 * @since 5.1
	 */
	public ExceptionHandlingConfigurer<H> defaultAccessDeniedHandlerFor(
			AccessDeniedHandler deniedHandler, RequestMatcher preferredMatcher) {
		this.defaultDeniedHandlerMappings.put(preferredMatcher, deniedHandler);
		return this;
	}

	/**
	 * Sets the AuthenticationEntryPoint to be used.
	 *
	 *
	 * If no #authenticationEntryPoint(AuthenticationEntryPoint) is specified,
	 * then
	 * #defaultAuthenticationEntryPointFor(AuthenticationEntryPoint, RequestMatcher)
	 * will be used. The first AuthenticationEntryPoint will be used as the
	 * default is no matches were found.
	 *
	 *
	 *
	 * If that is not provided defaults to Http403ForbiddenEntryPoint.
	 *
	 *
	 * @param authenticationEntryPoint the AuthenticationEntryPoint to use
	 * @return the ExceptionHandlingConfigurer for further customizations
	 */
	public ExceptionHandlingConfigurer<H> authenticationEntryPoint(
			AuthenticationEntryPoint authenticationEntryPoint) {
		this.authenticationEntryPoint = authenticationEntryPoint;
		return this;
	}

	/**
	 * Sets a default AuthenticationEntryPoint to be used which prefers being
	 * invoked for the provided RequestMatcher. If only a single default
	 * AuthenticationEntryPoint is specified, it will be what is used for the
	 * default AuthenticationEntryPoint. If multiple default
	 * AuthenticationEntryPoint instances are configured, then a
	 * DelegatingAuthenticationEntryPoint will be used.
	 *
	 * @param entryPoint the AuthenticationEntryPoint to use
	 * @param preferredMatcher the RequestMatcher for this default
	 * AuthenticationEntryPoint
	 * @return the ExceptionHandlingConfigurer for further customizations
	 */
	public ExceptionHandlingConfigurer<H> defaultAuthenticationEntryPointFor(
			AuthenticationEntryPoint entryPoint, RequestMatcher preferredMatcher) {
		this.defaultEntryPointMappings.put(preferredMatcher, entryPoint);
		return this;
	}

	/**
	 * Gets any explicitly configured AuthenticationEntryPoint
	 * @return
	 */
	AuthenticationEntryPoint getAuthenticationEntryPoint() {
		return this.authenticationEntryPoint;
	}

	/**
	 * Gets the AccessDeniedHandler that is configured.
	 *
	 * @return the AccessDeniedHandler
	 */
	AccessDeniedHandler getAccessDeniedHandler() {
		return this.accessDeniedHandler;
	}

    // SecurityConfigurer 所定义的配置方法：生成一个 ExceptionTranslationFilter 配置到目标安全构建器
	@Override
	public void configure(H http) throws Exception {
      // 准备最终要应用到目标 ExceptionTranslationFilter 的 AuthenticationEntryPoint,
      // 先尝试使用外部指定值，未指定的话使用缺省值
		AuthenticationEntryPoint entryPoint = getAuthenticationEntryPoint(http);
       // 创建目标 ExceptionTranslationFilter
       // 这里使用到了 RequestCache， 获取该 RequestCache 对象的过程是 :
       // 先尝试使用 http 中的共享对象，如果没有找到，则使用缺省值， 新建一个 HttpSessionRequestCache 对象
		ExceptionTranslationFilter exceptionTranslationFilter = new ExceptionTranslationFilter(
				entryPoint, getRequestCache(http));
       // 准备访问被拒绝时要是用的处理器 AccessDeniedHandler
       // 先尝试使用外部指定值，未指定的话使用缺省值
		AccessDeniedHandler deniedHandler = getAccessDeniedHandler(http);
		exceptionTranslationFilter.setAccessDeniedHandler(deniedHandler);

       // 后置处理目标 ExceptionTranslationFilter
		exceptionTranslationFilter = postProcess(exceptionTranslationFilter);
       // 将目标 ExceptionTranslationFilter 添加到目标安全构建器 http
		http.addFilter(exceptionTranslationFilter);
	}

	/**
	 * Gets the AccessDeniedHandler according to the rules specified by
	 * #accessDeniedHandler(AccessDeniedHandler)
	 * @param http the HttpSecurity used to look up shared
	 * AccessDeniedHandler
	 * @return the AccessDeniedHandler to use
	 */
	AccessDeniedHandler getAccessDeniedHandler(H http) {
		AccessDeniedHandler deniedHandler = this.accessDeniedHandler;
		if (deniedHandler == null) {
			deniedHandler = createDefaultDeniedHandler(http);
		}
		return deniedHandler;
	}

	/**
	 * Gets the AuthenticationEntryPoint according to the rules specified by
	 * #authenticationEntryPoint(AuthenticationEntryPoint)
	 * @param http the HttpSecurity used to look up shared
	 * AuthenticationEntryPoint
	 * @return the AuthenticationEntryPoint to use
	 */
	AuthenticationEntryPoint getAuthenticationEntryPoint(H http) {
		AuthenticationEntryPoint entryPoint = this.authenticationEntryPoint;
		if (entryPoint == null) {
			entryPoint = createDefaultEntryPoint(http);
		}
		return entryPoint;
	}

    // 创建缺省使用的 AccessDeniedHandler ： 访问被拒绝时的处理器 :
    // 1. 如果 this.defaultDeniedHandlerMappings 为空，则是用一个新的 AccessDeniedHandlerImpl
    // 对象：访问被拒绝时想浏览器返回状态字 403
    // 2. 如果 this.defaultDeniedHandlerMappings 包含一个元素，这是用该元素;
    // 3. 如果 this.defaultDeniedHandlerMappings 包含多个元素，则构造一个
    // RequestMatcherDelegatingAccessDeniedHandler 对象包装和代理
    // this.defaultDeniedHandlerMappings 中的这组元素，此 RequestMatcherDelegatingAccessDeniedHandler
    // 缺省的 AccessDeniedHandler 则是一个新的 AccessDeniedHandlerImpl
    // 对象：访问被拒绝时想浏览器返回状态字 403
	private AccessDeniedHandler createDefaultDeniedHandler(H http) {
		if (this.defaultDeniedHandlerMappings.isEmpty()) {
			return new AccessDeniedHandlerImpl();
		}
		if (this.defaultDeniedHandlerMappings.size() == 1) {
			return this.defaultDeniedHandlerMappings.values().iterator().next();
		}
		return new RequestMatcherDelegatingAccessDeniedHandler(
				this.defaultDeniedHandlerMappings,
				new AccessDeniedHandlerImpl());
	}

    // 创建缺省使用的 AuthenticationEntryPoint ：
    // 1. 如果 this.defaultEntryPointMappings 为空，则使用一个 Http403ForbiddenEntryPoint 实例
    // 2. 如果 this.defaultEntryPointMappings 只包含一个元素，直接使用该元素
    // 3. 如果 this.defaultEntryPointMappings 有多个元素，构建一个 DelegatingAuthenticationEntryPoint
    // 代理对象供使用，该代理对象也是一个 AuthenticationEntryPoint，它将任务代理给
    // this.defaultEntryPointMappings 中的各个 AuthenticationEntryPoint 对象,并将其中第一个设置为
    // 缺省
	private AuthenticationEntryPoint createDefaultEntryPoint(H http) {
		if (this.defaultEntryPointMappings.isEmpty()) {
			return new Http403ForbiddenEntryPoint();
		}
		if (this.defaultEntryPointMappings.size() == 1) {
			return this.defaultEntryPointMappings.values().iterator().next();
		}
		DelegatingAuthenticationEntryPoint entryPoint = new DelegatingAuthenticationEntryPoint(
				this.defaultEntryPointMappings);
		entryPoint.setDefaultEntryPoint(this.defaultEntryPointMappings.values().iterator()
				.next());
		return entryPoint;
	}

	/**
	 * Gets the RequestCache to use. If one is defined using
	 * #requestCache(org.springframework.security.web.savedrequest.RequestCache),
	 * then it is used. Otherwise, an attempt to find a RequestCache shared object
	 * is made. If that fails, an HttpSessionRequestCache is used
	 *
	 * @param http the HttpSecurity to attempt to fined the shared object
	 * @return the RequestCache to use
	 */
	private RequestCache getRequestCache(H http) {
		RequestCache result = http.getSharedObject(RequestCache.class);
		if (result != null) {
			return result;
		}
		return new HttpSessionRequestCache();
	}
}

参考文章

• Spring Security Config : SecurityConfigurerAdapter SecurityConfigurer 缺省实现类
