ServiceMethod serviceMethod = Retrofit.this.loadServiceMethod(method);
OkHttpCall okHttpCall = new OkHttpCall(serviceMethod, args);
return serviceMethod.callAdapter.adapt(okHttpCall);
loadServiceMethod其实就是加载ServiceMethod,它是对应我们接口中定义好的一个网络请求方法,例如getCall这个方法,最后还是交给OKHTTP,
ServiceMethod<?, ?> loadServiceMethod(Method method) {
ServiceMethod<?, ?> result = serviceMethodCache.get(method);
if (result != null) return result;
// 设置了一个线程同步锁,主要是为了保证我们的线程的数据安全。
synchronized (serviceMethodCache) {
/**
* 获取到我们的ServiceMethod,这个ServiceMethod采用的是单例模式进行创建的,
* 它其实有一个serciveMethodCache缓存池进行获取。
*/
result = serviceMethodCache.get(method);
/**
* 非空判断。如果没有缓存就自己创建一个ServiceMethod对象,
* 它是通过构建者模式Builder来进行创建的。
*/
if (result == null) {
// 最终调用build()来创建我们实际的ServiceMethod对象的创建。
result = new ServiceMethod.Builder<>(this, method).build();
/**
* 放到缓存池当中,以HTTP请求方法做为KEY,
* ServiceMethod这个对象做为VALUES,保存在这个缓存池当中。
*/
serviceMethodCache.put(method, result);
}
}
return result;
}
final class ServiceMethod<R, T> {
// Upper and lower characters, digits, underscores, and hyphens, starting with a character.
static final String PARAM = "[a-zA-Z][a-zA-Z0-9_-]*";
static final Pattern PARAM_URL_REGEX = Pattern.compile("\\{(" + PARAM + ")\\}");
static final Pattern PARAM_NAME_REGEX = Pattern.compile(PARAM);
/**
* 网络请求工厂,用于生产我们的网络请求,
* 这个call在Retrofit当中其实就是我们的OKHTTP Call,
* 而OKHTTP Call呢就是Retrofit对它做了封装。它内部其实是调用了OKHTTP Call。
*/
private final okhttp3.Call.Factory callFactory;
// 网络请求适配器,把我们的Call请求适用于不同的平台。例如:RxJava等。
private final CallAdapter<R, T> callAdapter;
private final HttpUrl baseUrl;
// 数据转换器。作用就是把服务器返回给我们的数据,转换成我们需要的java Bean对象。
private final Converter<ResponseBody, R> responseConverter;
// 网络请求的HTTP方法,比如:get, post, put等等。
private final String httpMethod;
// 网络请求的相对地址。 相对地址 + baseUrl = 网络请求的绝对地址。
private final String relativeUrl;
// HTTP网络请求的请求头。键值对。
private final Headers headers;
// HTTP网络请求报文的body类型。
private final MediaType contentType;
private final boolean hasBody;
private final boolean isFormEncoded;
private final boolean isMultipart;
// 方法参数处理器,
private final ParameterHandler<?>[] parameterHandlers;
ServiceMethod这个对象,其实完全包含了我们访问网络的所以基本信息,它都涵括在内了,以下是它的构造函数。
ServiceMethod(Builder<R, T> builder) {
this.callFactory = builder.retrofit.callFactory();
this.callAdapter = builder.callAdapter;
this.baseUrl = builder.retrofit.baseUrl();
this.responseConverter = builder.responseConverter;
this.httpMethod = builder.httpMethod;
this.relativeUrl = builder.relativeUrl;
this.headers = builder.headers;
this.contentType = builder.contentType;
this.hasBody = builder.hasBody;
this.isFormEncoded = builder.isFormEncoded;
this.isMultipart = builder.isMultipart;
this.parameterHandlers = builder.parameterHandlers;
}
接下来我们来看下 ServiceMethod 的内部类 Builder。
Builder(Retrofit retrofit, Method method) {
this.retrofit = retrofit;
// 获取网络请求方法(get,post等)
this.method = method;
// 获取网络请求接口方法里面的注解
this.methodAnnotations = method.getAnnotations();
// 获取网络请求接口方法里的参数的类型,它是一个types。
this.parameterTypes = method.getGenericParameterTypes();
// 获取网络请求接口方法里注解的完整内容
this.parameterAnnotationsArray = method.getParameterAnnotations();
}

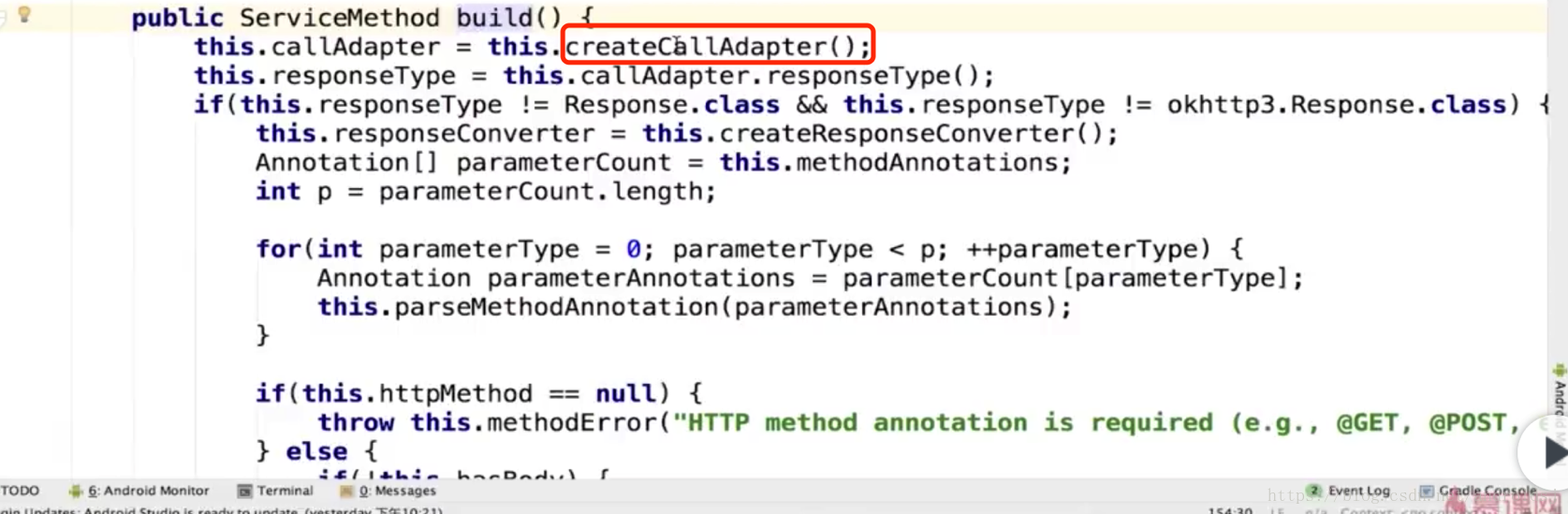

接下来,我们来看下上面的这行代码:result = new ServiceMethod.Builder<>(this, method).build();
最终调用build()来创建我们实际的ServiceMethod对象的创建。
private CallAdapter<T, R> createCallAdapter() {
//获取网络请求接口方法里的返回的类型。
Type returnType = method.getGenericReturnType();
if (Utils.hasUnresolvableType(returnType)) {
throw methodError(
"Method return type must not include a type
variable or wildcard: %s", returnType);
}
if (returnType == void.class) {
throw methodError("Service methods cannot return void.");
}
//获取网络请求接口里的注解,调用的反射当中的getAnnotations()。
Annotation[] annotations = method.getAnnotations();
try {
//noinspection unchecked。callAdapter(返回值, 注解类型)
return (CallAdapter<T, R>) retrofit.callAdapter(returnType, annotations);
} catch (RuntimeException e) {
// Wide exception range because factories are user code.
throw methodError(e, "Unable to create call adapter for %s", returnType);
}
