Spring Boot Security使用 JDBC 和 MySQL 进行验证，登录界面增加kaptcha验证码，并限制单个用户会话数

  在本教程中，我将指导您如何编写代码，以使用具有基于表单的身份验证的Spring安全API来保护Spring Boot应用程序中的网页。用户详细信息存储在MySQL数据库中，并使用春季JDBC连接到数据库。我们将从本教程中的 ProductManager 项目开始，向现有的弹簧启动项目添加登录和注销功能。

1. 创建用户表和虚拟凭据

凭据应存储在数据库中，因此让我们创建新表：

-- --------------------------------------------------------
-- 主机:                           127.0.0.1
-- 服务器版本:                        8.0.22 - MySQL Community Server - GPL
-- 服务器操作系统:                      Win64
-- HeidiSQL 版本:                  12.1.0.6537
-- --------------------------------------------------------

/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET NAMES utf8 */;
/*!50503 SET NAMES utf8mb4 */;
/*!40103 SET @OLD_TIME_ZONE=@@TIME_ZONE */;
/*!40103 SET TIME_ZONE='+00:00' */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;


-- 导出 sales2 的数据库结构
CREATE DATABASE IF NOT EXISTS `sales2` /*!40100 DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci */ /*!80016 DEFAULT ENCRYPTION='N' */;
USE `sales2`;

-- 导出  表 sales2.product 结构
CREATE TABLE IF NOT EXISTS `product` (
  `id` bigint NOT NULL AUTO_INCREMENT,
  `brand` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL,
  `madein` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL,
  `name` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL,
  `price` float NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci;

-- 正在导出表  sales2.product 的数据：~1 rows (大约)
INSERT INTO `product` (`id`, `brand`, `madein`, `name`, `price`) VALUES
	(1, '1', '1', '1', 1);

-- 导出  表 sales2.users 结构
CREATE TABLE IF NOT EXISTS `users` (
  `user_id` int NOT NULL AUTO_INCREMENT,
  `username` varchar(45) COLLATE utf8mb4_unicode_ci NOT NULL,
  `password` varchar(64) COLLATE utf8mb4_unicode_ci NOT NULL,
  `role` varchar(45) COLLATE utf8mb4_unicode_ci NOT NULL,
  `enabled` tinyint DEFAULT NULL,
  PRIMARY KEY (`user_id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci;

-- 正在导出表  sales2.users 的数据：~0 rows (大约)
INSERT INTO `users` (`user_id`, `username`, `password`, `role`, `enabled`) VALUES
	(1, 'namhm', '$2a$10$U8bbzqZof07fvyVE.GwUR.ULMl4wKQerriNAkT1/j.hJ5yfNYuFBK', 'ROLE_USER', 1),
	(2, 'admin', '$2a$10$U8bbzqZof07fvyVE.GwUR.ULMl4wKQerriNAkT1/j.hJ5yfNYuFBK', 'ROLE_ADMIN', 1);

/*!40103 SET TIME_ZONE=IFNULL(@OLD_TIME_ZONE, 'system') */;
/*!40101 SET SQL_MODE=IFNULL(@OLD_SQL_MODE, '') */;
/*!40014 SET FOREIGN_KEY_CHECKS=IFNULL(@OLD_FOREIGN_KEY_CHECKS, 1) */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40111 SET SQL_NOTES=IFNULL(@OLD_SQL_NOTES, 1) */;

2. 配置数据源属性

接下来，在应用程序属性文件中指定数据库连接信息，如下所示：根据您的MySQL数据库更新URL，用户名和密码。

spring.jpa.hibernate.ddl-auto=update
spring.datasource.url=jdbc:mysql://localhost:3306/sales2?autoReconnect=true&useSSL=false&useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
spring.datasource.username=root
spring.datasource.password=root
#logging.level.root=WARN

3. 声明弹簧安全性和 MySQL JDBC 驱动程序的依赖关系

要将Spring安全API用于项目，请在pom.xml文件中声明以下依赖项：并且要将JDBC与弹簧启动和MySQL一起使用：请注意，依赖项版本已由弹簧启动初学者父项目定义。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.5</version>
        <relativePath /> <!-- lookup parent from repository -->
    </parent>
    <groupId>net.codejava</groupId>
    <artifactId>ProductManagerMaximumSessionsCaptcha</artifactId>
    <version>2.0</version>
    <name>ProductManagerMaximumSessionsCaptcha</name>
    <description>Spring Boot CRUD Web App Example</description>
    <packaging>jar</packaging>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.thymeleaf.extras</groupId>
            <artifactId>thymeleaf-extras-springsecurity5</artifactId>
        </dependency>
        <dependency>
            <groupId>com.github.penggle</groupId>
            <artifactId>kaptcha</artifactId>
            <version>2.3.2</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-validation</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

4. 配置 JDBC 身份验证详细信息

要将 Spring 安全性与基于表单的身份验证和 JDBC 结合使用，请按如下方式创建 WebSecurityConfig 类：

package com.example;

import javax.servlet.Filter;
import javax.sql.DataSource;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.web.servlet.ServletListenerRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.core.session.SessionRegistry;
import org.springframework.security.core.session.SessionRegistryImpl;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;
import org.springframework.security.web.session.HttpSessionEventPublisher;

@Configuration
@EnableWebSecurity
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

    @Autowired
    private DataSource dataSource;

    @Autowired
    public void configAuthentication(AuthenticationManagerBuilder authBuilder) throws Exception {
        authBuilder.jdbcAuthentication()
                .dataSource(dataSource)
                .passwordEncoder(new BCryptPasswordEncoder())
                .usersByUsernameQuery("select username, password, enabled from users where username=?")
                .authoritiesByUsernameQuery("select username, role from users where username=?");
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        Filter filter = new KaptchaAuthenticationFilter("/login", "/login?error");
        http.addFilterBefore(filter, UsernamePasswordAuthenticationFilter.class);

        http.authorizeRequests()
                .antMatchers("/captcha_image**").permitAll()
                .antMatchers("/edit/*", "/delete/*").hasRole("ADMIN")
                .anyRequest().authenticated()
                .and()
                .formLogin()
                .loginPage("/login")
                .permitAll()
                .and()
                .logout().permitAll()
                .and()
                .exceptionHandling().accessDeniedPage("/403");
        http
                .sessionManagement()
                .maximumSessions(1)
                .expiredUrl("/")
                .maxSessionsPreventsLogin(false)
                .sessionRegistry(sessionRegistry());
    }

    @Bean
    public SessionRegistry sessionRegistry() {
        SessionRegistry sessionRegistry = new SessionRegistryImpl();
        return sessionRegistry;
    }

    // Register HttpSessionEventPublisher
    @Bean
    public static ServletListenerRegistrationBean httpSessionEventPublisher() {
        return new ServletListenerRegistrationBean(new HttpSessionEventPublisher());
    }
}

此安全配置类必须使用@EnableWebSecurity注释进行批注，并且是 Web 安全配置器适配器的子类。数据源对象的实例将由Spring框架创建并注入：

    @Autowired
    private DataSource dataSource;

它将从应用程序属性文件中读取数据库连接信息。要使用JDBC配置身份验证，请编写以下方法：

    @Autowired
    public void configAuthentication(AuthenticationManagerBuilder authBuilder) throws Exception {
        authBuilder.jdbcAuthentication()
                .dataSource(dataSource)
                .passwordEncoder(new BCryptPasswordEncoder())
                .usersByUsernameQuery("select username, password, enabled from users where username=?")
                .authoritiesByUsernameQuery("SELECT users.username,permissions.name FROM users,roles,users_roles,permissions,roles_permissions WHERE users.username=users_roles.username AND roles.name=users_roles.role_name AND roles.name=roles_permissions.role_name AND permissions.name=roles_permissions.permission AND users.username=?");
    }

如您所见，我们需要指定密码编码器（建议使用BCrypt），数据源和两个SQL语句：第一个根据用户名选择用户，第二个选择用户的角色。请注意，Spring安全性要求列名必须是用户名，密码，启用和角色。为了配置基于表单的身份验证，我们重写了 configure（HttpSecurity） 方法，如下所示：

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                .antMatchers("/edit/*", "/delete/*").hasAnyAuthority("ADMIN")
                .anyRequest().authenticated()
                .and()
                .formLogin().permitAll()
                .and()
                .logout().permitAll()
                .and()
                .exceptionHandling().accessDeniedPage("/403");
    }

在这里，我们指定所有请求都必须进行身份验证，这意味着用户必须登录才能使用该应用程序。使用Spring安全性提供的默认登录表单。要显示已登录用户的用户名，请在Thymeleaf模板文件中编写以下代码：

<div sec:authorize="isAuthenticated()">
                Welcome <b><span sec:authentication="name">Username</span></b>
                &nbsp;
                <i><span sec:authentication="principal.authorities">Roles</span></i>
            </div>

并添加注销按钮：

            <form th:action="@{/logout}" method="post">
                <input type="submit" value="Logout" />
            </form>

如您所见，Spring Security将处理应用程序的登录和注销。我们不必编写重复的代码，只需指定一些配置即可。

5.登录验证

package com.example;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;

@Controller
public class CommonController {

    @GetMapping("/login")
    public String viewLoginPage() {
        // custom logic before showing login page...

        return "login";
    }
}

kaptcha验证码

package com.example;

import java.awt.image.BufferedImage;

import javax.imageio.ImageIO;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;

import com.google.code.kaptcha.Constants;
import com.google.code.kaptcha.Producer;

/**
 * @author will
 */
@Controller
public class KaptchaController {
    @Autowired
    private Producer captchaProducer;

    @GetMapping("/captcha_image")
    public void getKaptchaImage(HttpServletResponse response, HttpSession session) throws Exception {
        response.setDateHeader("Expires", 0);
        // Set standard HTTP/1.1 no-cache headers.
        response.setHeader("Cache-Control", "no-store, no-cache, must-revalidate");
        // Set IE extended HTTP/1.1 no-cache headers (use addHeader).
        response.addHeader("Cache-Control", "post-check=0, pre-check=0");
        // Set standard HTTP/1.0 no-cache header.
        response.setHeader("Pragma", "no-cache");
        // return a jpeg
        response.setContentType("image/jpeg");
        // create the text for the image
        String capText = captchaProducer.createText();
        // store the text in the session
        // request.getSession().setAttribute(Constants.KAPTCHA_SESSION_KEY, capText);

        // save captcha to session
        session.setAttribute(Constants.KAPTCHA_SESSION_KEY, capText);

        // create the image with the text
        BufferedImage bi = captchaProducer.createImage(capText);
        ServletOutputStream out = response.getOutputStream();

        // write the data out
        ImageIO.write(bi, "jpg", out);
        try {
            out.flush();
        } finally {
            out.close();
        }
    }
}

package com.example;

import com.google.code.kaptcha.impl.DefaultKaptcha;
import com.google.code.kaptcha.util.Config;
import org.springframework.context.annotation.Bean;
import org.springframework.stereotype.Component;

import java.util.Properties;

@Component
public class KaptchaConfig {

    @Bean
    public DefaultKaptcha getDefaultKaptcha() {
        DefaultKaptcha defaultKaptcha = new DefaultKaptcha();
        Properties properties = new Properties();
        properties.put("kaptcha.border", "no");
        properties.put("kaptcha.textproducer.font.color", "black");
        properties.put("kaptcha.image.width", "150");
        properties.put("kaptcha.image.height", "40");
        properties.put("kaptcha.textproducer.font.size", "30");
        properties.put("kaptcha.session.key", "verifyCode");
        properties.put("kaptcha.textproducer.char.space", "5");
//        properties.setProperty("kaptcha.textproducer.char.length", "4");
        Config config = new Config(properties);
        defaultKaptcha.setConfig(config);

        return defaultKaptcha;
    }

}

package com.example;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.security.authentication.InsufficientAuthenticationException;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter;
import org.springframework.security.web.authentication.SimpleUrlAuthenticationFailureHandler;

import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

import com.google.code.kaptcha.Constants;

public class KaptchaAuthenticationFilter extends AbstractAuthenticationProcessingFilter {

    final static Logger logger = LoggerFactory.getLogger(KaptchaAuthenticationFilter.class);

    private String servletPath;

    public KaptchaAuthenticationFilter(String servletPath, String failureUrl) {
        super(servletPath);
        this.servletPath = servletPath;
        setAuthenticationFailureHandler(new SimpleUrlAuthenticationFailureHandler(failureUrl));
    }

    @Override
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
            throws IOException, ServletException {
        HttpServletRequest req = (HttpServletRequest) request;
        HttpServletResponse res = (HttpServletResponse) response;

        if ("POST".equalsIgnoreCase(req.getMethod()) && servletPath.equals(req.getServletPath())) {
            String expect = (String) req.getSession().getAttribute(Constants.KAPTCHA_SESSION_KEY);
            if (expect != null && !expect.equalsIgnoreCase(req.getParameter("kaptcha"))) {
                unsuccessfulAuthentication(req, res, new InsufficientAuthenticationException("Incorrect captcha code."));
                return;
            }
        }
        chain.doFilter(request, response);
    }

    @Override
    public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response)
            throws AuthenticationException {
        return null;
    }
}

6.登录页面

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
    <head>
        <meta charset="UTF-8">
        <meta http-equiv="X-UA-Compatible" content="IE=edge">
        <meta name="viewport" content="width=device-width, initial-scale=1.0">
        <title>Bootstrap 5 Sign In Form with Image Example</title>
        <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.0.2/dist/css/bootstrap.min.css" rel="stylesheet"
              integrity="sha384-EVSTQN3/azprG1Anm3QDgpJLIm9Nao0Yz1ztcQTwFspd3yD65VohhpuuCOmLASjC" crossorigin="anonymous">
        <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.0.2/dist/js/bootstrap.bundle.min.js"
                integrity="sha384-MrcW6ZMFYlzcLA8Nl+NtUVF0sA7MsXsP1UyJoMp4YLEuNSfAP+JcXn/tWtIaxVXM"
        crossorigin="anonymous"></script>
        <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/bootstrap-icons@1.5.0/font/bootstrap-icons.css">
    </head>

    <body>

        <form th:action="@{/login}" method="post">
            <div class="container-fluid vh-100" style="margin-top:50px">
                <div class="" style="margin-top:50px">
                    <div class="rounded d-flex justify-content-center">
                        <div class=" col-md-4 col-sm-12 shadow-lg p-5 bg-light">
                            <div th:if="${param.error}">
                                <p class="text-danger">[[${session.SPRING_SECURITY_LAST_EXCEPTION.message}]]</p>
                            </div>

                            <div th:if="${param.logout}">
                                <p class="text-warning">You have been logged out.</p>
                            </div>
                            <div class="text-center">
                                <h3 class="text-primary">请登录</h3>
                            </div>
                            <div class="p-4">
                                <div class="input-group mb-3">
                                    <span class="input-group-text bg-secondary"><i
                                            class="bi bi-person-fill text-white"></i></span>
                                    <input id="username" type="text" name="username" required class="form-control" placeholder="用户名">
                                </div>
                                <div class="input-group mb-3">
                                    <span class="input-group-text bg-secondary"><i
                                            class="bi bi-key-fill text-white"></i></span>
                                    <input  id="password" type="password" name="password" required class="form-control" placeholder="密码">
                                </div>
                                <div class="input-group mb-3">
                                    <span class="input-group-text bg-secondary"><i
                                            class="bi bi-lock-fill text-white"></i></span>
                                    <input type="text" name="kaptcha"  class="form-control" placeholder="输入下图中的校验码">
                                </div>
                                <div class="input-group mb-3">
                                    <span class="input-group-text bg-secondary"><i
                                            class="bi bi-image-fill text-white"></i></span>
                                    <img alt="Click the picture to refresh!" class="pointer" th:src="@{/captcha_image}"
                                         onclick="this.src = '/captcha_image?d=' + new Date() * 1">
                                </div>
                                <div class="col-12">
                                    <button type="submit" class="btn btn-primary px-4 float-end mt-4">登录</button>
                                </div>

                            </div>
                        </div>
                    </div>
                </div>
            </div>
    </body>

</html>

5. 测试登录和注销

启动Spring Boot应用程序并访问 http://localhost:8080 在Web浏览器中，您将看到自定义的登录页面出现：

 现在输入正确的用户名admin和密码admin，您将看到主页如下：

再其他浏览器中再打开登录

 现在输入正确的用户名admin和密码admin，您将看到主页如下：

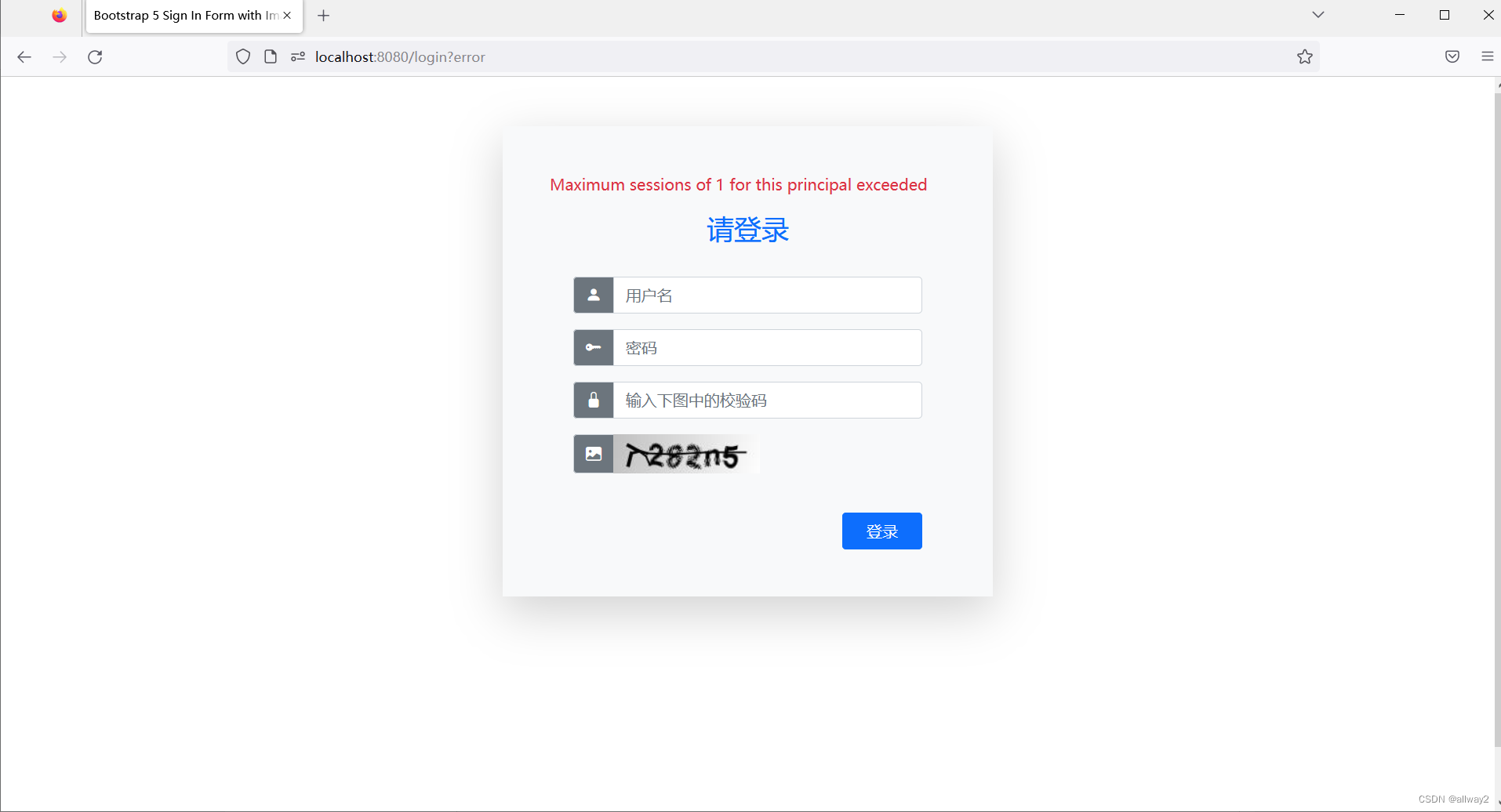

返回之前的页面点击创建新产品，会自动跳转到登录界面，是因为新会话踢掉了旧会话，如果 修改.maxSessionsPreventsLogin(false)为 .maxSessionsPreventsLogin(true)则在旧会话未退出时，新登录会失败。



并注意欢迎消息后跟用户名。用户现在已通过身份验证以使用该应用程序。单击“注销”按钮，您将看到自定义的登录页面出现，这意味着我们已成功实现登录并注销到我们的Spring Boot应用程序。

结论：

到目前为止，您已经学会了使用基于表单的身份验证和数据库内凭据来保护Spring Boot应用程序。您会看到 Spring 安全性使实现登录和注销功能变得非常容易，并且非常方便。为方便起见，您可以下载下面的示例项目。

下载源码：GitHub - allwaysoft/ProductManagerMaximumSessionsCaptcha
