StretchedBillboard 实现

参考Unity粒子系统的StretchedBillboard,在保持模型的右朝向不变的情况下,尽量朝向摄像机

转化为数学问题: 一个向量在一个面上的投影

基础的Billboard的方向应为: 从中点指向摄像机

限制的平面为以right为法向量的平面

算法

Vector3 rightward = transform.parent.forward; if (isShowLeft) rightward = -rightward; Vector3 forward = (Camera.current.transform.position - transform.position).normalized; if (isShowBack) forward = -forward; float cosVal = Vector3.Dot(rightward, forward); if (Mathf.Abs(cosVal) >= 0.999999f) return; rightward = rightward * cosVal; forward = forward - rightward; //不能用forward改变,不能保证right朝向 有时候会反过来 if (cosVal > 0) transform.rotation = Quaternion.LookRotation(forward, Vector3.Cross(rightward, forward)); else transform.rotation = Quaternion.LookRotation(forward, Vector3.Cross(forward, rightward)); //角度旋转 if (billboardAngle != 0) { Vector3 oriAngle = transform.eulerAngles; oriAngle.x += billboardAngle; transform.eulerAngles = oriAngle; }

x

24



1

            Vector3 rightward = transform.parent.forward;

2

            if (isShowLeft) rightward = -rightward;

3

            Vector3 forward = (Camera.current.transform.position - transform.position).normalized;

4

            if (isShowBack) forward = -forward;

5

6

            float cosVal = Vector3.Dot(rightward, forward);

7

            if (Mathf.Abs(cosVal) >= 0.999999f) return;

8

9

            rightward = rightward * cosVal;

10

            forward = forward - rightward;

11

12

            //不能用forward改变,不能保证right朝向 有时候会反过来

13

            if (cosVal > 0)

14

                transform.rotation = Quaternion.LookRotation(forward, Vector3.Cross(rightward, forward));

15

            else

16

                transform.rotation = Quaternion.LookRotation(forward, Vector3.Cross(forward, rightward));

17

18

            //角度旋转

19

            if (billboardAngle != 0)

20

            {

21

                Vector3 oriAngle = transform.eulerAngles;

22

                oriAngle.x += billboardAngle;

23

                transform.eulerAngles = oriAngle;

24

            }

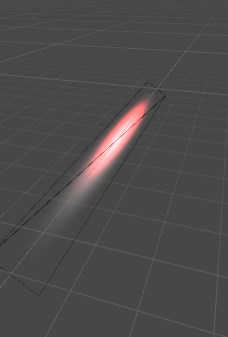

效果: 白色为粒子系统的 StretchedBillboard 红色为仿制的StretchedBillboard



最终计算朝向
