本文详述了使用Spring4、Mybatis3和MySQL搭建SSM框架的过程，涵盖基础的增删改查操作和单元测试。通过前后端分离，使用JSON进行数据交互，Maven管理依赖，并在IDEA中进行开发。文章描述了从项目创建、配置到编写Controller、Service、DAO和Mapper的步骤，以及如何进行单元测试和接口测试。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

       本篇文章主要为项目总结的一部分，其中主要为Mybatis的基础增删改查，包括单元测试。详细地记录了操作过程和代码，以作备忘。使用的是spring4+mybatis3+mysql，前后端分离，数据交互采用json,使用Maven管理，IDE为IDEA。

一、搭建SSM框架

1、创建项目：

创建Maven项目后设置Artifacts、Facets及run servers，配置完成后设置一般的项目结构bean/controller/service/dao/mapping等等，如下图：

2、添加Maven,主要为Spring4+Mybaits+mysql驱动+c3p0+jackson

<dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
    </dependency>

    <!--spring核心包-->
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>4.3.7.RELEASE</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>4.3.7.RELEASE</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-tx -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>4.3.7.RELEASE</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-core -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-core</artifactId>
      <version>4.3.7.RELEASE</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-web -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>4.3.7.RELEASE</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-test -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>4.3.7.RELEASE</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/javax.servlet/servlet-api -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>servlet-api</artifactId>
      <version>2.5</version>
      <scope>provided</scope>
    </dependency>


    <!--数据连接相关-->
    <!-- https://mvnrepository.com/artifact/com.mchange/c3p0 -->
    <dependency>
      <groupId>com.mchange</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.2.1</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.4.2</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.1</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.46</version>
    </dependency>

    <!--json相关-->
    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-core -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-core</artifactId>
      <version>2.8.8</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.8.8</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-annotations -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-annotations</artifactId>
      <version>2.8.8</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.module/jackson-module-jaxb-annotations -->
    <dependency>
      <groupId>com.fasterxml.jackson.module</groupId>
      <artifactId>jackson-module-jaxb-annotations</artifactId>
      <version>2.8.8</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.jaxrs/jackson-jaxrs-json-provider -->
    <dependency>
      <groupId>com.fasterxml.jackson.jaxrs</groupId>
      <artifactId>jackson-jaxrs-json-provider</artifactId>
      <version>2.8.8</version>
    </dependency>
    <dependency>
      <groupId>net.sf.json-lib</groupId>
      <artifactId>json-lib</artifactId>
      <version>2.4</version>
      <classifier>jdk15</classifier>
    </dependency>

    <!--工具包-->
    <!-- https://mvnrepository.com/artifact/commons-beanutils/commons-beanutils -->
    <dependency>
      <groupId>commons-beanutils</groupId>
      <artifactId>commons-beanutils</artifactId>
      <version>1.7.0</version>
    </dependency>
    <!--JWT-->
    <dependency>
      <groupId>com.auth0</groupId>
      <artifactId>java-jwt</artifactId>
      <version>3.3.0</version>
    </dependency>


  </dependencies>

3、配置文件

web.xml需要配置1）启动spring容器，2)编码过滤器，3）springmvc的前端控制器（DispacherServlet）

<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app xmlns="http://java.sun.com/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         version="3.0">
  <display-name>Archetype Created Web Application</display-name>
  <!--启动spring的容器-->
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:spring/spring-mybatis.xml</param-value>
  </context-param>
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>

  <!-- 编码过滤器 -->
  <filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>encodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>

  <!--springmvc的前端控制器，请求重定向到相应的控制器-->
  <servlet>
    <servlet-name>springmvc</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:spring/spring-mvc.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
    <async-supported>true</async-supported>
  </servlet>
  <servlet-mapping>
    <servlet-name>springmvc</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>


</web-app>

spring-mybaits.xml需要配置1）自动扫描数据库属性文件，2)配置数据源，3）spring和mybatis整合（指定数据源+mapper文件位置），4）配置扫描器，将mybaits接口实现加入到ioc容器中

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:Context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">


    <!--自动扫描数据库属性文件-->
    <context:property-placeholder location="classpath:prop/db.properties"></context:property-placeholder>

    <!--配置数据源-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="user" value="${jdbc.user}"></property>
        <property name="password" value="${jdbc.password}"></property>
        <property name="driverClass" value="${jdbc.driver}"></property>
        <property name="jdbcUrl" value="${jdbc.url}"></property>
    </bean>

    <!--spring和mybaits整合-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--指定数据源-->
        <property name="dataSource" ref="dataSource"></property>
        <!--指定mybaits.mapper文件的位置-->
        <property name="mapperLocations" value="classpath*:mapping/*.xml"></property>
    </bean>

    <!--配置扫描器，将mybaits接口的实现加入到ioc容器中-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.hld.dispatch.dao"></property>
        <!--使用多个DataSource-->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"></property>
    </bean>

    <!--事务管理-->
    <bean id="transactionManager"
          class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>

</beans>

spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!--启用注解扫描-->
    <context:component-scan base-package="com.hld.dispatch"></context:component-scan>

    <!--开启注解-->
    <mvc:annotation-driven/>

    <!--避免执行AJAX时，返回JSON出现下载文件 -->
    <bean id="mappingJacksonHttpMessageConverter"
          class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter">
        <property name="supportedMediaTypes">
            <list>
                <value>text/html;charset=UTF-8</value>
                <value>application/json;charset=UTF-8</value>
                <value>text/plain;charset=UTF-8</value>
            </list>
        </property>
    </bean>

</beans>

二、编写程序

1、拆分模块编写程序

这个思路就是根据controller>service>dao>mapper来编写，controller写处理请求的操作，里面调用service实现具体功能，service里再调用dao与数据库交互，根据mybatis的特性写mapper映射。以下是具体实现：

1）查询（与条件查询、分页查询结合）

条件查询采用了mybatis的动态sql，分页查询是采用mysql的limit实现;

2）更新（新增和编辑）

这里controller层是合在一起的，在service根据前端传递的userId进行识别，如果userId是-1（数据库没有的），则进行插入操作；如果userId存在，就根据userId进行数据更新。

3）删除（批量删除）

这里采用了in的方式，可以进行批量或单个删除。

好啦，话不多少，上代码：

controller层

@Controller
@RequestMapping(value = "/userManagement")
public class UserManagementController {
    @Autowired
    private UserManagementService userManagementService;

    /*

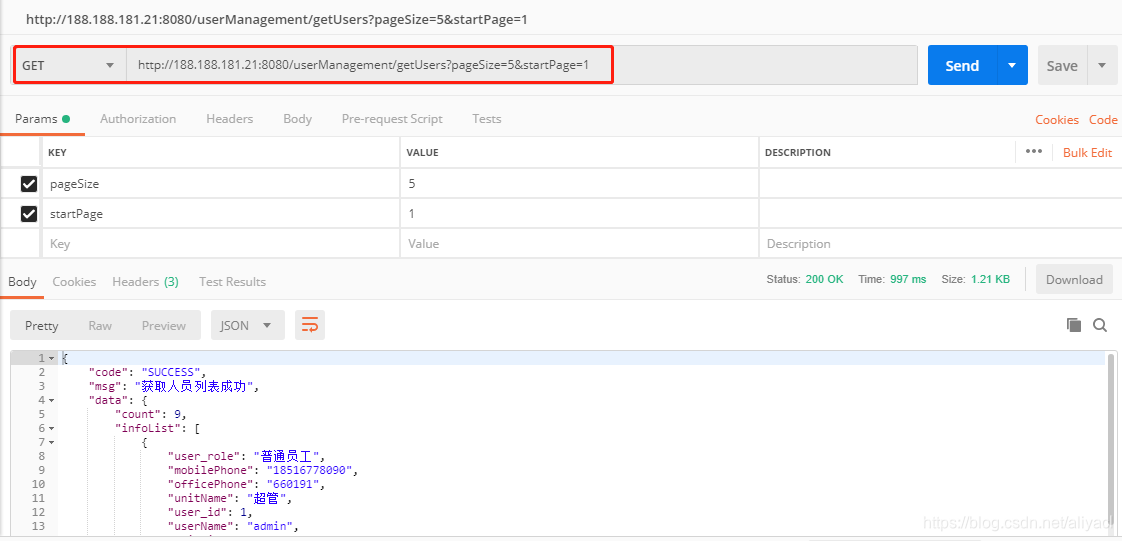

    获取人员列表（信息和总数）
     */
    @RequestMapping(value = "getUsers",method = RequestMethod.GET)
    @ResponseBody
    public BaseResponse getUserList(Integer pageSize,Integer startPage,Integer unitQid,String userName){
        BaseResponse baseResponse =new BaseResponse();
        try{
            Map<String, Object> users = userManagementService.getUserList(pageSize,startPage,unitQid,userName);
            baseResponse.setCode(BaseResponse.RESPONSE_SUCCESS_CODE);
            baseResponse.setMsg("获取人员列表成功");
            baseResponse.setData(users);
        }catch (Exception e){
            baseResponse.setCode(BaseResponse.RESPONSE_ERROR_CODE);
            baseResponse.setMsg("获取人员列表失败");
        }finally {
            return baseResponse;
        }

    }
    /*

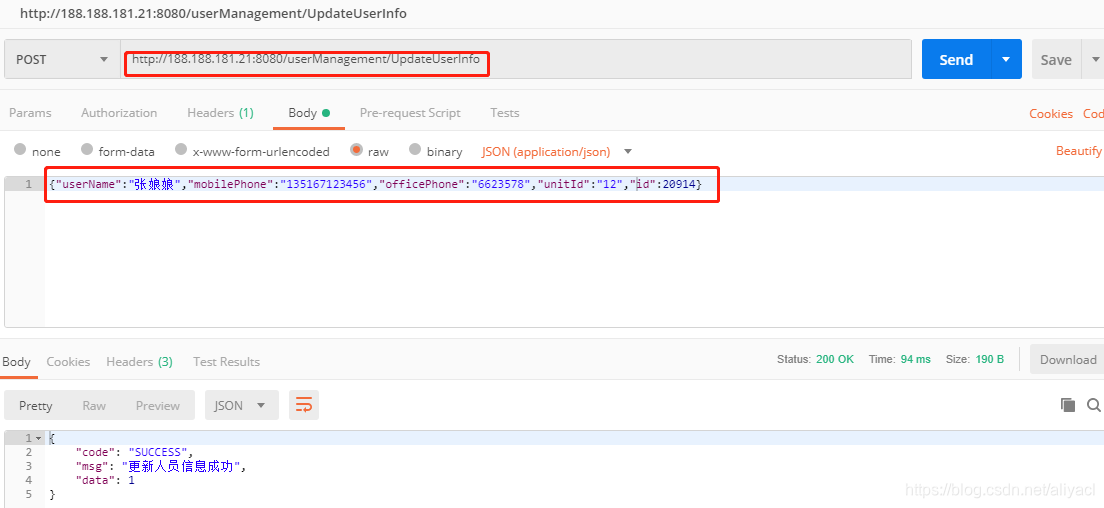

    更新人员信息
     */
    @RequestMapping(value = "UpdateUserInfo",method = RequestMethod.POST)
    @ResponseBody
    public BaseResponse updateUserInfo(@RequestBody BaseUser params){
        BaseResponse baseResponse =new BaseResponse();
        try{
            int count = userManagementService.updateUserInfo(params);
            baseResponse.setCode(BaseResponse.RESPONSE_SUCCESS_CODE);
            baseResponse.setMsg("更新人员信息成功");
            baseResponse.setData(count);
        }catch (Exception e){
            baseResponse.setCode(BaseResponse.RESPONSE_ERROR_CODE);
            baseResponse.setMsg("更新人员信息失败");
        }finally {
            return  baseResponse;
        }

    }
/*

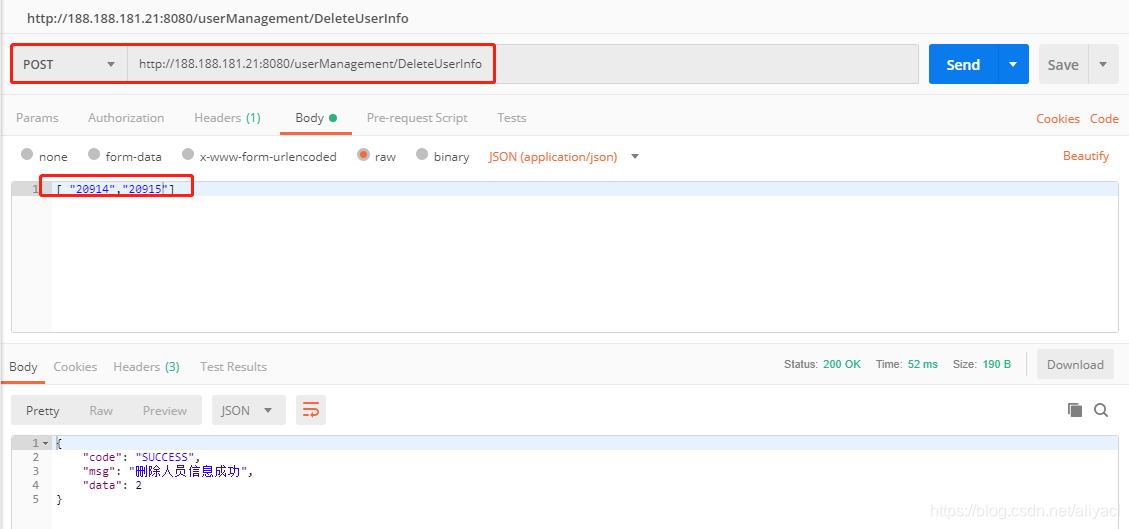

    删除人员信息
     */
    @RequestMapping(value = "DeleteUserInfo",method = RequestMethod.POST)
    @ResponseBody
    public BaseResponse deleteUserInfo(@RequestBody List<String> list){
        BaseResponse baseResponse =new BaseResponse();
        try{
            String userIds = "";
            for(String userId:list){
                userIds += userId+",";
            }
            userIds = userIds.substring(0,userIds.length()-1);
            int count=userManagementService.deleteUserInfo(userIds);
            baseResponse.setCode(BaseResponse.RESPONSE_SUCCESS_CODE);
            baseResponse.setMsg("删除人员信息成功");
            baseResponse.setData(count);
        }catch (Exception e){
            baseResponse.setCode(BaseResponse.RESPONSE_ERROR_CODE);
            baseResponse.setMsg("删除人员信息失败");
        }finally {
            return  baseResponse;
        }
    }
}

service层（接口）

package com.hld.dispatch.service;

import com.hld.dispatch.bean.BaseUser;

import java.util.Map;

public interface UserManagementService {

    //获取人员列表（信息和总数）
    Map<String, Object> getUserList(Integer pageSize, Integer startPage, Integer unitQid, String userName);

    //更新人员信息
    int updateUserInfo(BaseUser baseUser);

    //删除人员信息
    int deleteUserInfo(String userIds);
}

service层（实现）

package com.hld.dispatch.service.Impl;

import com.hld.dispatch.bean.BaseUser;
import com.hld.dispatch.dao.UserManagementDao;
import com.hld.dispatch.service.UserManagementService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

@Service
public class UserManagementServiceImpl implements UserManagementService {

    @Autowired
    private UserManagementDao userManagementDao;

    @Autowired
    private BaseDataServiceImpl baseDataServiceImpl;

    /*
   获取人员列表（信息和总数）
    */
    public Map<String, Object> getUserList(Integer pageSize, Integer startPage, Integer unitQid, String userName){
        Integer start = (startPage - 1) * pageSize;
        String unitIds="";
        if(unitQid!=null){
            unitIds=baseDataServiceImpl.getChildUnit(unitQid);
        }
        List<Map<String, Object>> infoList =userManagementDao.getUserList(pageSize,start,unitIds,userName);
        int count = userManagementDao.getUserCount(pageSize,start,unitIds,userName);
        Map<String, Object> resultMap = new HashMap<String, Object>();
        resultMap.put("infoList",infoList);
        resultMap.put("count",count);
        return resultMap;
    }

    /*
    更新或新增人员列表信息
     */
    public int updateUserInfo(BaseUser baseUser){
        int count = 0;
        int userId = baseUser.getId();
        if(userId == -1){
            count=userManagementDao.newUserInfo(baseUser);//没有Id的话就插入
        }else{
            count=userManagementDao.updateUserInfo(baseUser);//有传递Id的话就更新
        }
        return count;
    }

    /*
    删除人员列表信息
     */
    public int deleteUserInfo(String userIds){
        int count = 0;
        count=userManagementDao.deleteUserInfo(userIds);
        return count;
    }
}

Dao层

package com.hld.dispatch.dao;

import com.hld.dispatch.bean.BaseUser;
import org.apache.ibatis.annotations.Param;

import java.util.List;
import java.util.Map;

public interface UserManagementDao {

    //获取人员信列表信息
    List<Map<String, Object>> getUserList(@Param("pageSize") Integer pageSize,
                                           @Param("start") Integer start,
                                           @Param("unitIds") String unitIds,
                                           @Param("userName") String userName);

    //获取人员列表总数
    int getUserCount(@Param("pageSize") Integer pageSize,
                     @Param("start") Integer start,
                     @Param("unitIds") String unitIds,
                     @Param("userName") String userName);

    //新增人员信息
    int newUserInfo(BaseUser baseUser);

    //更改人员信息
    int updateUserInfo(BaseUser baseUser);

    //删除人员信息
    int deleteUserInfo(@Param("userIds")String userIds);
}

mapper(映射Dao）

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.hld.dispatch.dao.UserManagementDao">

    <!--按条件获取用户列表信息-->
    <select id="getUserList" resultType="java.util.HashMap">
        select
            u.user_id,
            u.userName,
            u.user_role,
            u.user_role_id,
            ifnull(u.mobilePhone,'') mobilePhone,
            ifnull(u.officePhone,'') officePhone,
            u.super_unit_name,
            u.super_unit_id,
            u.unitName,
            u.unit_id
        from
            unit_user u
        where 1=1
        <if test="userName != null and userName != '' ">
            and u.userName like '%${userName}%'
        </if>
        <if test="unitIds != null and unitIds != '' ">
            and u.unit_id in (${unitIds})
        </if>
        order by u.user_id
        limit #{start},#{pageSize}
    </select>

    <!--按条件获取用户列表总数-->
    <select id="getUserCount" resultType="int">
        select
          count(1)
        from
          unit_user u
        where 1=1
        <if test="userName != null and userName != '' ">
            and u.userName like '%${userName}%'
        </if>
        <if test="unitIds != null and unitIds != '' ">
            and u.unit_id in (${unitIds})
        </if>
    </select>

    <!--新增用户信息-->
    <insert id="newUserInfo" parameterType="com.hld.dispatch.bean.BaseUser" useGeneratedKeys="true" keyProperty="id">
        insert into
            base_user(userName,
                      post,
                      mobilePhone,
                      officePhone,
                      unitId)
        values(#{userName},
               #{post},
               #{mobilePhone},
               #{officePhone},
               #{unitId})
    </insert>

    <!--修改用户信息-->
    <update id="updateUserInfo" parameterType="com.hld.dispatch.bean.BaseUser">
        update
            base_user
        <trim prefix="set" suffixOverrides=",">
            <if test="userName != null">
                userName = #{userName,jdbcType=VARCHAR},
            </if>
            <if test="post != null">
                post = #{post,jdbcType=VARCHAR},
            </if>
            <if test="officePhone != null">
                officePhone = #{officePhone,jdbcType=VARCHAR},
            </if>
            <if test="mobilePhone != null">
                mobilePhone = #{mobilePhone,jdbcType=VARCHAR},
            </if>
            <if test="unitId != null">
                unitId = #{unitId,jdbcType=VARCHAR},
            </if>
        </trim>
        WHERE id=#{id}
    </update>

    <!--删除用户-->
    <delete id="deleteUserInfo">
        delete from base_user where id in (${userIds})
    </delete>


</mapper>

2、单元测试

1）测试数据操作（mysql执行是否成功）

这个功能采用了spring的test，需要使用RunWith(SpringJunit4ClassRunner.class)，可以先写一个父测试，然后其他test继承这个父测试，就不用每个都写配置了

BaseTest

package com.hld.dispatch.test;

import org.junit.runner.RunWith;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = {"classpath:spring/spring-mybatis.xml"})
public class BaseTest {
}

UserTest

package com.hld.dispatch.test;

import com.hld.dispatch.bean.BaseUser;
import com.hld.dispatch.dao.LoginDao;
import com.hld.dispatch.dao.UserManagementDao;
import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;

import java.util.List;
import java.util.Map;

public class UserTest extends BaseTest {

    @Autowired
    private UserManagementDao userManagementDao;

    @Test
    public void query1(){
        List<Map<String, Object>> users = userManagementDao.getUserList(5,1,"8,9,10,11","");
        for(Map<String, Object> user:users){
            System.out.println(user);
        }
    }

    @Test
    public void query2(){
        int count = userManagementDao.getUserCount(5,1,"8,9,10,11","");
        System.out.println(count);
    }

    @Test
    public void query3(){
        BaseUser baseuser1=new BaseUser();
        baseuser1.setUserName("李大佬");
        baseuser1.setPost(2);
        baseuser1.setMobilePhone("135167123456");
        baseuser1.setOfficePhone("6623578");
        baseuser1.setUnitId(10);

        int count = userManagementDao.newUserInfo(baseuser1);
        System.out.println(count);
    }

    @Test
    public void query4(){
        BaseUser baseuser2=new BaseUser();
        baseuser2.setUserName("张小佬");
        baseuser2.setPost(2);
        baseuser2.setMobilePhone("135167123456");
        baseuser2.setOfficePhone("6623578");
        baseuser2.setUnitId(10);
        baseuser2.setId(20910);

        int count = userManagementDao.updateUserInfo(baseuser2);
        System.out.println(count);
    }

    @Test
    public void query5(){
        int count = userManagementDao.deleteUserInfo("20910");
        System.out.println(count);
    }


}

2）通过postman测试请求

地址是根据后端的接口中RequestMapping写的，例如类上写@RequestMapping(value = "/userManagement")，方法上写@RequestMapping(value = "getUsers",method = RequestMethod.GET)那么实际的请求地址就是http://serverip//userManagement/getUsers。另外根据后端设置的传递请求的格式，如果是@RequestBody，说明用json格式传递数据，看测试样例如下图：

1·查询请求测试（接口是getUserList(Integer pageSize,Integer startPage,Integer unitQid,String userName)）

2·更新请求测试（接口是public BaseResponse updateUserInfo(@RequestBody BaseUser params)）

3·删除请求测试（接口是deleteUserInfo(@RequestBody List<String> list)）

aliyacl
关注
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
