Blazor组件自做四 : 使用JS隔离封装signature_pad签名组件

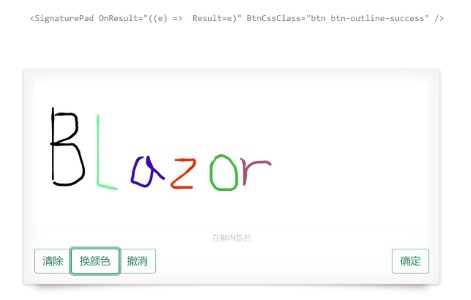

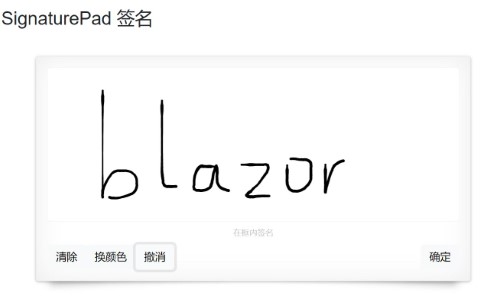

运行截图

演示地址:

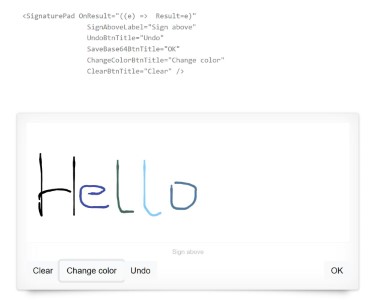

响应式:

感谢szimek写的棒棒的signature_pad.js项目, 来源: https://github.com/szimek/signature_pad

正式开始

1. 在文件夹wwwroot/lib,添加signature_pad子文件夹,里面下载库文件(文件文末源码里可复制) signature_pad.umd.js复制到此文件夹. 最终版本参考如下

+signature_pad
  |-signature_pad.umd.js

2. 添加app.js文件

+signature_pad
  |-app.js

代码里 wrapperc.invokeMethodAsync(“signatureResult”, imgBase64) 为签名canvas结果回调到c#

js代码

import '/lib/signature_pad/signature_pad.umd.js';

export function init(wrapperc, element, alertText,) {
    //Code modify from https://github.com/szimek/signature_pad
    var wrapper = element;//document.getElementById("signature-pad");
    var clearButton = wrapper.querySelector("[data-action=clear]");
    var changeColorButton = wrapper.querySelector("[data-action=change-color]");
    var undoButton = wrapper.querySelector("[data-action=undo]");
    var saveBase64Button = wrapper.querySelector("[data-action=save-base64]");
    var savePNGButton = wrapper.querySelector("[data-action=save-png]");
    var saveJPGButton = wrapper.querySelector("[data-action=save-jpg]");
    var saveSVGButton = wrapper.querySelector("[data-action=save-svg]");
    var canvas = wrapper.querySelector("canvas");
    var signaturePad = new SignaturePad(canvas, {
        // It's Necessary to use an opaque color when saving image as JPEG;
        // this option can be omitted if only saving as PNG or SVG
        backgroundColor: 'rgb(255, 255, 255)'
    });

    // Adjust canvas coordinate space taking into account pixel ratio,
    // to make it look crisp on mobile devices.
    // This also causes canvas to be cleared.
    function resizeCanvas() {
        // When zoomed out to less than 100%, for some very strange reason,
        // some browsers report devicePixelRatio as less than 1
        // and only part of the canvas is cleared then.
        var ratio = Math.max(window.devicePixelRatio || 1, 1);

        // This part causes the canvas to be cleared
        canvas.width = canvas.offsetWidth * ratio;
        canvas.height = canvas.offsetHeight * ratio;
        canvas.getContext("2d").scale(ratio, ratio);

        // This library does not listen for canvas changes, so after the canvas is automatically
        // cleared by the browser, SignaturePad#isEmpty might still return false, even though the
        // canvas looks empty, because the internal data of this library wasn't cleared. To make sure
        // that the state of this library is consistent with visual state of the canvas, you
        // have to clear it manually.
        signaturePad.clear();
    }

    // On mobile devices it might make more sense to listen to orientation change,
    // rather than window resize events.
    window.onresize = resizeCanvas;
    resizeCanvas();

    function download(dataURL, filename) {
        if (navigator.userAgent.indexOf("Safari") > -1 && navigator.userAgent.indexOf("Chrome") === -1) {
            window.open(dataURL);
        } else {
            var blob = dataURLToBlob(dataURL);
            var url = window.URL.createObjectURL(blob);

            var a = document.createElement("a");
            a.style = "display: none";
            a.href = url;
            a.download = filename;

            document.body.appendChild(a);
            a.click();

            window.URL.revokeObjectURL(url);
        }
    }

    // One could simply use Canvas#toBlob method instead, but it's just to show
    // that it can be done using result of SignaturePad#toDataURL.
    function dataURLToBlob(dataURL) {
