Ti 949 配置 948 i2c

如果不想用 远端 slave，只访问948   选 i2c pass through all =1  ；i2c pass through =0/1

0x0c 0x17 0x9e

如果想用远端  slave，和948 ，选择 i2c pass through all = i2c pass through = 1

0x0c 0x07  0x60(slave 的i2c地址  8bit)

0x0c 0x08 0x62 (在949 总线上扫描到的新地址 0x62 8bit)

0x0c 0x17 0x9e

0x0c 0x03 0xda

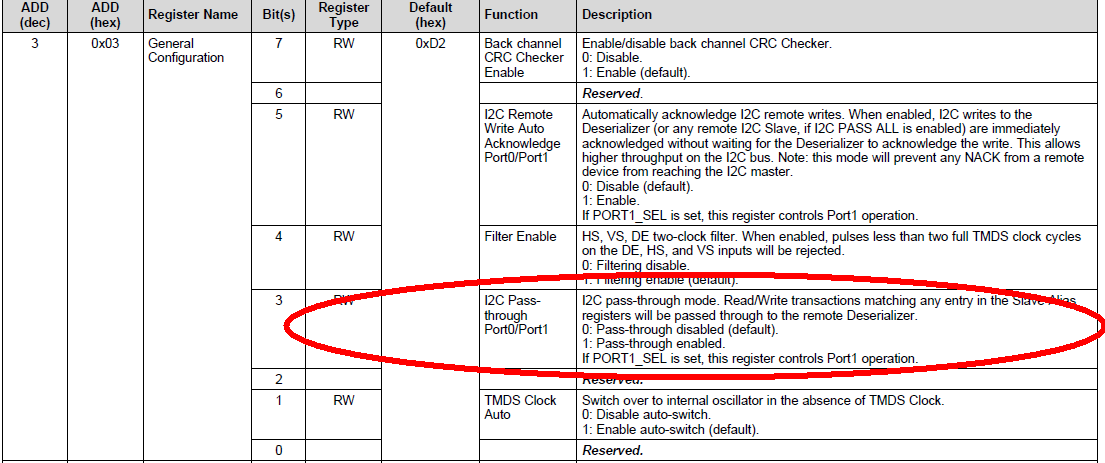

949芯片的I2c pass through

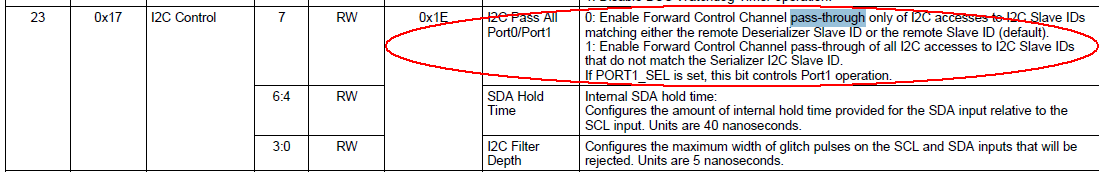

PASS through ALL
