1. Notification通知

1.1. Notification通知, 悬浮出现在页面角落, 显示全局的通知提醒消息。

1.2. Options

参数

说明

类型

可选值

默认值

title

标题

string

message

说明文字

string/Vue.VNode

dangerouslyUseHTMLString

是否将message属性作为HTML片段处理

boolean

false

type

主题样式, 如果不在可选值内将被忽略

string

success/warning/info/error

iconClass

自定义图标的类名。若设置了type, 则iconClass会被覆盖

string

customClass

自定义类名

string

duration

显示时间, 毫秒。设为0则不会自动关闭

number

4500

position

自定义弹出位置

string

top-right

showClose

是否显示关闭按钮

boolean

true

onClose

关闭时的回调函数

function

onClick

点击Notification时的回调函数

function

offset

偏移的距离, 在同一时刻, 所有的Notification实例应当具有一个相同的偏移量

number

0

1.3. 方法

方法名

说明

close

关闭当前的Notification

2. Notification通知全局方法

2.1. 如果你完整引入了Element, 它会为Vue.prototype添加如下全局方法: $notify。因此在vue instance中可以采用本页面中的方式调用Notification。

this.$notify(options)
this.$notify.info(options)
this.$notify.success(options)
this.$notify.warning(options)
this.$notify.error(options)

3. Notification通知单独引用

3.1. 单独引入Notification:

import { Notification } from 'element-ui';

Notification(options);
Notification.info(options);
Notification.success(options);
Notification.warning(options);
Notification.error(options);

3.2. 可以调用Notification.closeAll()手动关闭所有实例。

4. Notification通知例子

4.1. 使用脚手架新建一个名为element-ui-messagebox的前端项目, 同时安装Element插件。

4.2. 编辑index.js

import Vue from 'vue'
import VueRouter from 'vue-router'
import Notification from '../components/Notification.vue'
import TypeNotification from '../components/TypeNotification.vue'
import PositionNotification from '../components/PositionNotification.vue'
import OffsetNotification from '../components/OffsetNotification.vue'
import HtmlNotification from '../components/HtmlNotification.vue'
import CloseNotification from '../components/CloseNotification.vue'

Vue.use(VueRouter)

const routes = [
  { path: '/', redirect: '/Notification' },
  { path: '/Notification', component: Notification },
  { path: '/TypeNotification', component: TypeNotification },
  { path: '/PositionNotification', component: PositionNotification },
  { path: '/OffsetNotification', component: OffsetNotification },
  { path: '/HtmlNotification', component: HtmlNotification },
  { path: '/CloseNotification', component: CloseNotification }
]

const router = new VueRouter({
  routes
})

export default router

4.3. 在components下创建Notification.vue

<template>
  <div>
    <h1>基本用法-适用性广泛的通知栏</h1>
    <h4>Notification组件提供通知功能, Element注册了$notify方法, 接收一个options字面量参数, 在最简单的情况下, 你可以设置title字段和message字段, 用于设置通知的标题和正文。默认情况下, 经过一段时间后Notification组件会自动关闭, 但是通过设置duration, 可以控制关闭的时间间隔, 特别的是, 如果设置为0, 则不会自动关闭。注意: duration接收一个Number, 单位为毫秒, 默认为4500。</h4>
    <el-button plain @click="open1">可自动关闭</el-button>
    <el-button plain @click="open2">不会自动关闭</el-button>
  </div>
</template>

<script>
export default {
  methods: {
    open1 () {
      const h = this.$createElement

      this.$notify({
        title: '标题名称',
        message: h('i', { style: 'color: teal' }, '这是提示文案')
      })
    },
    open2 () {
      this.$notify({
        title: '提示',
        message: '这是一条不会自动关闭的消息',
        duration: 0
      })
    }
  }
}
</script>

4.4. 在components下创建TypeNotification.vue

<template>
  <div>
    <h1>带有倾向性</h1>
    <h4>Element为Notification组件准备了四种通知类型: success, warning, info, error。通过type字段来设置, 除此以外的值将被忽略。同时, 我们也为Notification的各种type注册了方法, 可以在不传入type字段的情况直接调用。</h4>
    <el-button plain @click="open1">成功</el-button>
    <el-button plain @click="open2">警告</el-button>
    <el-button plain @click="open3">消息</el-button>
    <el-button plain @click="open4">错误</el-button>
  </div>
</template>

<script>
export default {
  methods: {
    open1 () {
      this.$notify({
        title: '成功',
        message: '这是一条成功的提示消息',
        type: 'success'
      })
    },
    open2 () {
      this.$notify({
        title: '警告',
        message: '这是一条警告的提示消息',
        type: 'warning'
      })
    },
    open3 () {
      this.$notify.info({
        title: '消息',
        message: '这是一条消息的提示消息'
      })
    },
    open4 () {
      this.$notify.error({
        title: '错误',
        message: '这是一条错误的提示消息'
      })
    }
  }
}
</script>

4.5. 在components下创建PositionNotification.vue

<template>
  <div>
    <h1>自定义弹出位置</h1>
    <h4>使用position属性定义Notification的弹出位置, 支持四个选项: top-right、top-left、bottom-right、bottom-left, 默认为top-right。</h4>
    <el-button plain @click="open1">右上角</el-button>
    <el-button plain @click="open2">右下角</el-button>
    <el-button plain @click="open3">左下角</el-button>
    <el-button plain @click="open4">左上角</el-button>
  </div>
</template>

<script>
export default {
  methods: {
    open1 () {
      this.$notify({
        title: '自定义位置',
        message: '右上角弹出的消息'
      })
    },
    open2 () {
      this.$notify({
        title: '自定义位置',
        message: '右下角弹出的消息',
        position: 'bottom-right'
      })
    },
    open3 () {
      this.$notify({
        title: '自定义位置',
        message: '左下角弹出的消息',
        position: 'bottom-left'
      })
    },
    open4 () {
      this.$notify({
        title: '自定义位置',
        message: '左上角弹出的消息',
        position: 'top-left'
      })
    }
  }
}
</script>

4.6. 在components下创建OffsetNotification.vue

<template>
  <div>
    <h1>带有偏移</h1>
    <h4>Notification提供设置偏移量的功能, 通过设置offset字段, 可以使弹出的消息距屏幕边缘偏移一段距离。注意在同一时刻, 所有的Notification实例应当具有一个相同的偏移量。</h4>
    <el-button plain @click="open">偏移的消息</el-button>
  </div>
</template>

<script>
export default {
  methods: {
    open () {
      this.$notify({
        title: '偏移',
        message: '这是一条带有偏移的提示消息',
        offset: 100
      })
    }
  }
}
</script>

4.7. 在components下创建HtmlNotification.vue

<template>
  <div>
    <h1>使用HTML片段</h1>
    <h4>将dangerouslyUseHTMLString属性设置为true, message就会被当作HTML片段处理。</h4>
    <el-button plain @click="open">使用 HTML 片段</el-button>
  </div>
</template>

<script>
export default {
  methods: {
    open () {
      this.$notify({
        title: 'HTML 片段',
        dangerouslyUseHTMLString: true,
        message: '<strong>这是 <i>HTML</i> 片段</strong>'
      })
    }
  }
}
</script>

4.8. 在components下创建CloseNotification.vue

<template>
  <div>
    <h1>隐藏关闭按钮</h1>
    <h4>将showClose属性设置为false即可隐藏关闭按钮。</h4>
     <el-button plain @click="open">隐藏关闭按钮</el-button>
  </div>
</template>

<script>
export default {
  methods: {
    open () {
      this.$notify.success({
        title: 'Info',
        message: '这是一条没有关闭按钮的消息',
        showClose: false
      })
    }
  }
}
</script>

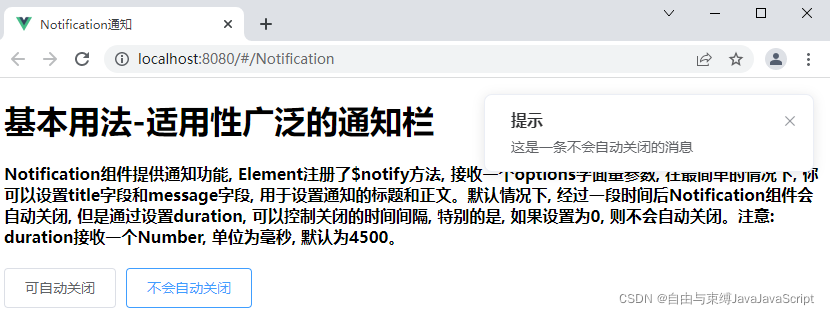

4.9. 运行项目, 访问http://localhost:8080/#/Notification

4.10. 运行项目, 访问http://localhost:8080/#/TypeNotification

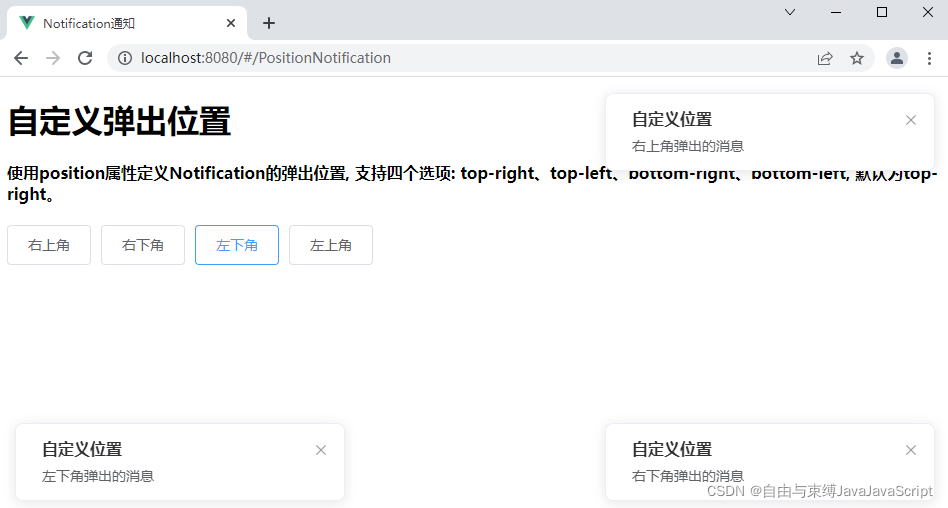

4.11. 运行项目, 访问http://localhost:8080/#/PositionNotification

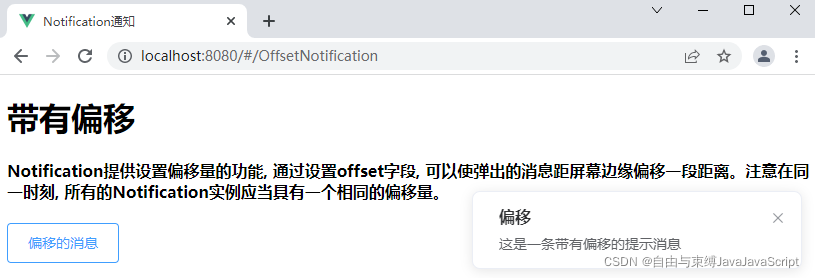

4.12. 运行项目, 访问http://localhost:8080/#/OffsetNotification

4.13. 运行项目, 访问http://localhost:8080/#/HtmlNotification

4.14. 运行项目, 访问http://localhost:8080/#/CloseNotification
