本文介绍了如何使用SpringBoot Admin构建服务器端和客户端应用。首先，通过maven创建SpringBoot项目，引入spring-boot-admin-starter-server和spring-boot-admin-starter-client依赖。接着，配置application.properties文件，设置端口和服务端地址。最后，启动服务端和客户端，并在浏览器中查看监控详情。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

1. 服务器端例子

1.1. 使用maven构建SpringBoot的名叫sing-boot-admin-server项目

1.2. 配置pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

	<modelVersion>4.0.0</modelVersion>
	<groupId>com.bjbs</groupId>
	<artifactId>sing-boot-admin-server</artifactId>
	<version>0.0.1-SNAPSHOT</version>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>1.5.13.RELEASE</version>
	</parent>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<!-- spring-boot-admin-server启动器 -->
		<dependency>
			<groupId>de.codecentric</groupId>
			<artifactId>spring-boot-admin-starter-server</artifactId>
			<version>1.5.7</version>
		</dependency>
	</dependencies>
</project>

1.3. 在src/main/resources下, 新建application.properties, 配置端口号

server.port=9090

1.4. 新建App.java

package com.bjbs;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import de.codecentric.boot.admin.config.EnableAdminServer;

@SpringBootApplication
@EnableAdminServer // 开启AdminServer
public class App {
	public static void main(String[] args) {
		SpringApplication.run(App.class, args);
	}
}

2. 客户端例子

2.1. 使用maven构建SpringBoot的名叫sing-boot-admin-server项目

2.2. 配置pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

	<modelVersion>4.0.0</modelVersion>
	<groupId>com.bjbs</groupId>
	<artifactId>spring-boot-admin-client</artifactId>
	<version>0.0.1-SNAPSHOT</version>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>1.5.13.RELEASE</version>
	</parent>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<!-- spring-boot-admin-client启动器 -->
		<dependency>
			<groupId>de.codecentric</groupId>
			<artifactId>spring-boot-admin-starter-client</artifactId>
			<version>1.5.7</version>
			<exclusions>
				<exclusion>
					<groupId>org.jolokia</groupId>
					<artifactId>jolokia-core</artifactId>
				</exclusion>
				<exclusion>
					<groupId>com.googlecode.json-simple</groupId>
					<artifactId>json-simple</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
	</dependencies>
</project>

2.3. 在src/main/resources下, 新建application.properties

#关闭安全限制, 它的默认值是true
management.security.enabled=false
#Spring Boot Admin服务端的IP地 址以及端口号
spring.boot.admin.url: http://localhost:9090

2.4. 新建App.java

package com.bjbs;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class App {
	public static void main(String[] args) {
		SpringApplication.run(App.class, args);
	}
}

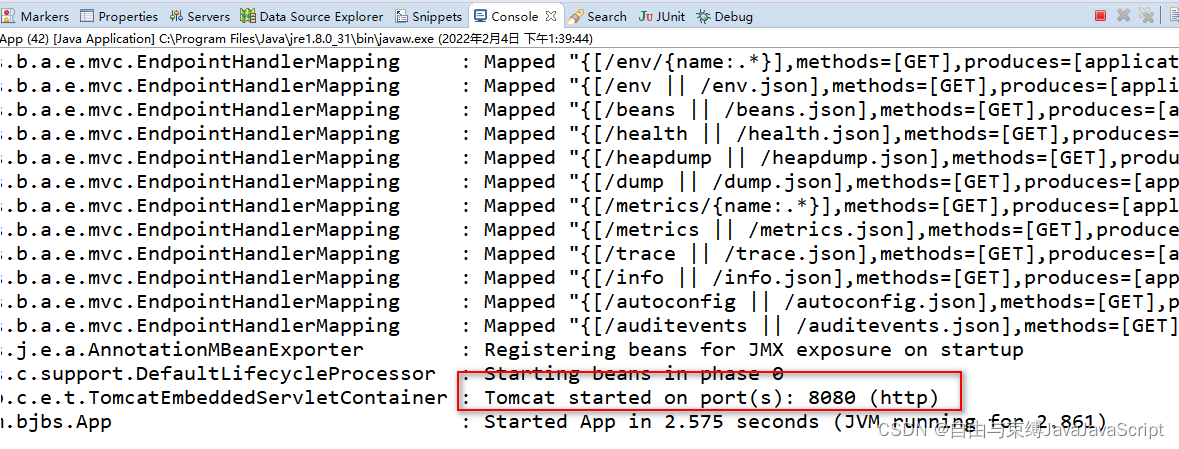

3. 运行项目

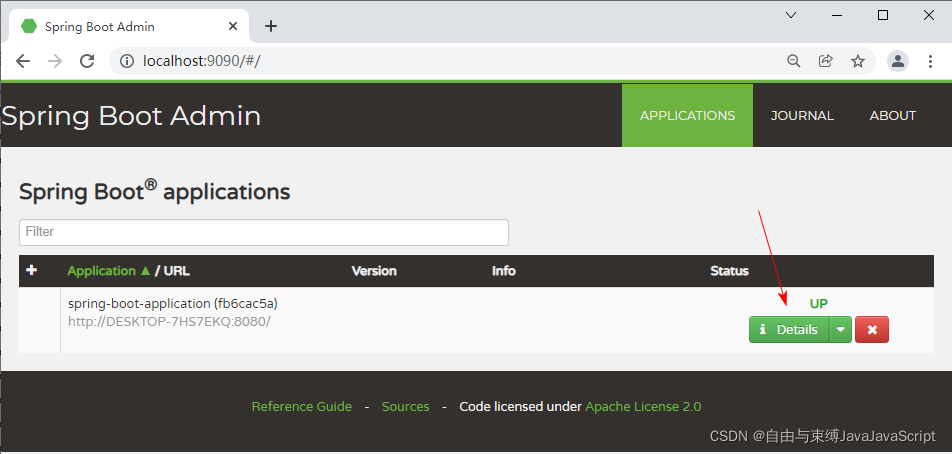

3.1. 运行服务端
