Android中RecyclerView简单使用和(Padding、分隔线、标签)设置

 参考网址:android recycleView 简单使用二---分割线 - FeelRose - 博客园

app下的build.gradle中

dependencies {
	...
	implementation 'com.android.support:recyclerview-v7:+'
}

xml布局文件使用
说明:RecyclerView中不能直接设置分隔线,所以设置divider没用

<android.support.v7.widget.RecyclerView
        android:id="@+id/lv_data"
        android:layout_width="match_parent"
        android:layout_height="match_parent"/>

Activity中使用

List dataList = new ArrayList();//数据集合
RecyclerView lv_data = findViewById(R.id.lv_data);
LinearLayoutManager manager = new LinearLayoutManager(this);
lv_data.setLayoutManager(manager);//不设置这个数据不显示
//适配器
RecyclerViewAdapter adapter = new RecyclerViewAdapter(this,list);
lv_data.setAapter(adapter);
//设置分隔线
int dividerHeight = 15;  // 分割线高度
int dividerColor = Color.RED;  // 分割线颜色
DividerItemDecoration divider = new DividerItemDecoration(dividerHeight, dividerColor);
//addItemDecoration这个方法可以叠加使用
lv_data.addItemDecoration(divider);
lv_data.addItemDecoration(new DividerItemDecoration(this));

适配器

public class RecyclerViewAdapter extends RecyclerView.Adapter<RecyclerViewAdapter.ItemViewHolder> {
	Context context;
    List<String> list;

    public RecyclerViewAdapter(Context context, List<String> list) {
        this.context = context;
        this.list = list;
    }
	@Override
    public int getItemCount() {
        return list == null ? 0 : list.size();
    }
	@NonNull
    @Override
    public ItemViewHolder onCreateViewHolder(@NonNull ViewGroup viewGroup, int i) {
        View view = LayoutInflater.from(context).inflate(R.layout.recyclerview_item, viewGroup, false);
        return new ItemViewHolder(view);//初始化item布局
    }
	@Override
    public void onBindViewHolder(@NonNull ItemViewHolder viewHolder, int i) {
		viewHolder.tv_item_data.setText(list.get(i));
	}
	class ItemViewHolder extends RecyclerView.ViewHolder {
		TextView tv_item_data,
		public ItemViewHolder(View view) {
            super(view);
			//初始化item控件
			tv_item_data = (TextView) view.findViewById(R.id.tv_item_data);
		}
	}
}

padding

public class DividerItemDecoration extends RecyclerView.ItemDecoration {

    public DividerItemDecoration() {

    }
    @Override
    public void getItemOffsets(@NonNull Rect outRect, @NonNull View view, @NonNull RecyclerView parent, @NonNull RecyclerView.State state) {
        super.getItemOffsets(outRect, view, parent, state);
        //outRect.bottom、left,right,top设置为int值
        outRect.bottom =100 ;
        outRect.left =50 ;
    }
}

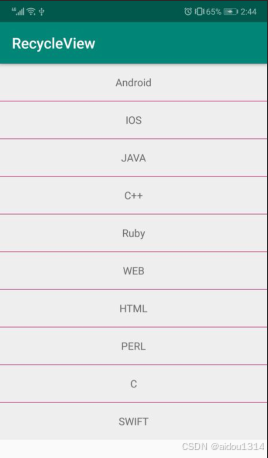

分隔线

public class DividerItemDecoration extends RecyclerView.ItemDecoration {
    private Paint paint;
    private int dividerHeight;
    public DividerItemDecoration(int height, int color) {
        this.dividerHeight = height;
        paint = new Paint();
        paint.setColor(color);
    }
    @Override
    public void onDraw(@NonNull Canvas c, @NonNull RecyclerView parent, @NonNull RecyclerView.State state) {
        int left = parent.getPaddingLeft();
        int right = parent.getWidth() - parent.getPaddingRight();
        for (int i = 0; i < parent.getChildCount() - 1; i++) {
            View child = parent.getChildAt(i);
            RecyclerView.LayoutParams params = (RecyclerView.LayoutParams) child.getLayoutParams();
            int top = child.getBottom() + params.bottomMargin;
            int bottom = top + dividerHeight;
            c.drawRect(left, top, right, bottom, paint);
        }
    }
    @Override
    public void getItemOffsets(@NonNull Rect outRect, @NonNull View view, @NonNull RecyclerView parent, @NonNull RecyclerView.State state) {
        super.getItemOffsets(outRect, view, parent, state);
        //outRect.bottom、left,right,top设置为int值,设置每一项的padding
        outRect.bottom =dividerHeight ;
    }
}

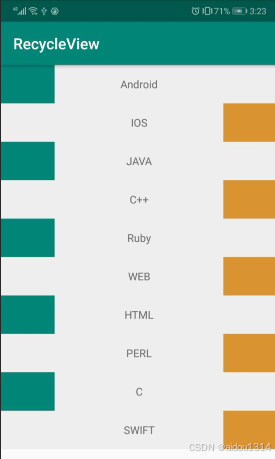

标签

public class DividerItemDecoration extends RecyclerView.ItemDecoration {

    private int tagWidth;  //标签的宽度
    private Paint leftPaint;  //左边的画笔
    private Paint rightPaint;  //右边的画笔
    public DividerItemDecoration(Context context){
        leftPaint =new Paint();
        leftPaint.setColor(context.getResources().getColor(R.color.colorPrimary));
        rightPaint = new Paint();
        rightPaint.setColor(context.getResources().getColor(R.color.colorOrange));//上面是画笔的初始化,和设置颜色,下面是标签宽度的获取
        tagWidth = context.getResources().getDimensionPixelSize(R.dimen.tag_width);
    }

    //绘制标签
    @Override
    public void onDrawOver(Canvas c, RecyclerView parent, RecyclerView.State state) {
        super.onDrawOver(c, parent, state);
        int childCount = parent.getChildCount();
        for(int i=0;i<childCount;i++){
            View child = parent.getChildAt(i);
            int pos = parent.getChildAdapterPosition(child);
            boolean isLeft = pos%2==0;
            if(isLeft){
                float left = child.getLeft();
                float right = left+tagWidth;
                float top = child.getTop();
                float bottom =child.getBottom();
                c.drawRect(left,top,right,bottom,leftPaint);
            }else{
                float right = child.getRight();
                float left = right-tagWidth;
                float top = child.getTop();
                float bottom =child.getBottom();
                c.drawRect(left,top,right,bottom,rightPaint);
            }
        }
    }
}

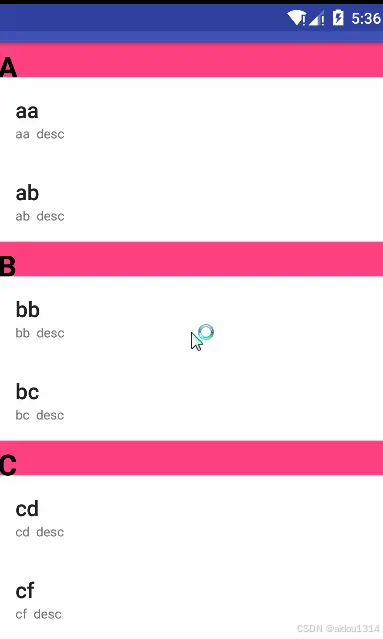

section

手机上面的通讯录联系人,不是所有的item都需要分割线,只有同组的第一个需要。

public interface DecorationCallback {

        long getGroupId(int position);

        String getGroupFirstLine(int position);
    }
public class SectionDecoration extends RecyclerView.ItemDecoration {

    private DecorationCallback callback;
    private TextPaint textPaint;  //文字画笔
    private Paint paint;  //普通画笔
    private int topGap;  //padding_top
    private Paint.FontMetrics fontMetrics;

    //自定义构造函数
    public SectionDecoration(Context context, DecorationCallback decorationCallback) {
        Resources res = context.getResources();
        this.callback = decorationCallback;

        //画笔
        paint = new Paint();
        paint.setColor(res.getColor(R.color.colorPrimary));

        //文字画笔,样式设置
        textPaint = new TextPaint();
        textPaint.setTypeface(Typeface.DEFAULT_BOLD);  //加粗
        textPaint.setAntiAlias(true);
        textPaint.setTextSize(70);  //字体大小
        textPaint.setColor(Color.BLACK);  //字体颜色
        textPaint.getFontMetrics(fontMetrics);  //字体的材质
        textPaint.setTextAlign(Paint.Align.LEFT);  //字体的向左对齐

        fontMetrics = new Paint.FontMetrics();
        topGap = res.getDimensionPixelSize(R.dimen.sectioned_top);//32dp Padding——top的值

    }

    @Override
    public void getItemOffsets(Rect outRect, View view, RecyclerView parent, RecyclerView.State state) {
        super.getItemOffsets(outRect, view, parent, state);

        //视图的位置
        int pos = parent.getChildAdapterPosition(view);
        long groupId = callback.getGroupId(pos);
        if (groupId < 0) return;
        if (pos == 0 || isFirstInGroup(pos)) {//同组的第一个才添加padding
            outRect.top = topGap;
        } else {
            outRect.top = 0;
        }

    }

    @Override
    public void onDraw(Canvas c, RecyclerView parent, RecyclerView.State state) {
        super.onDraw(c, parent, state);


        int left = parent.getPaddingLeft();
        int right = parent.getWidth() - parent.getPaddingRight();
        int childCount = parent.getChildCount();
        for (int i = 0; i < childCount; i++) {
            View view = parent.getChildAt(i);
            int position = parent.getChildAdapterPosition(view);
            long groupId = callback.getGroupId(position);
            if (groupId < 0) return;
            //分组的文本
            String textLine = callback.getGroupFirstLine(position).toUpperCase();
            if (position == 0 || isFirstInGroup(position)) {
                float top = view.getTop() - topGap;
                float bottom = view.getTop();
                c.drawRect(left, top, right, bottom, paint);//绘制矩形
                c.drawText(textLine, left, bottom, textPaint);//绘制文本
            }
        }
    }

    //是否是一个组
    private boolean isFirstInGroup(int pos) {
        if (pos == 0) {
            return true;
        } else {
            long prevGroupId = callback.getGroupId(pos - 1);
            long groupId = callback.getGroupId(pos);
            return prevGroupId != groupId;
        }
    }
    //接口实现分组的依据
    public interface DecorationCallback {

        long getGroupId(int position);

        String getGroupFirstLine(int position);
    }
}

在Activity中使用

mRecycleView.addItemDecoration(new SectionDecoration(this,
	new SectionDecoration.DecorationCallback() {
		@Override
		public long getGroupId(int position) {
			return Character.toUpperCase(homeAdapter.mTitles[position].charAt(0));
		}
		@Override
		public String getGroupFirstLine(int position) {
			return homeAdapter.mTitles[position].substring(0, 1).toUpperCase();
		}
	}
));

StickyHeader

 手机联系人固定头部

public class PinnedSectionDecoration extends RecyclerView.ItemDecoration {
    private static final String TAG = "PinnedSectionDecoration";

    private DecorationCallback callback;
    private TextPaint textPaint;
    private Paint paint;
    private int topGap;
    private Paint.FontMetrics fontMetrics;


    public PinnedSectionDecoration(Context context, DecorationCallback decorationCallback) {
        Resources res = context.getResources();
        this.callback = decorationCallback;

        paint = new Paint();
        paint.setColor(res.getColor(R.color.colorAccent));

        textPaint = new TextPaint();
        textPaint.setTypeface(Typeface.DEFAULT_BOLD);
        textPaint.setAntiAlias(true);
        textPaint.setTextSize(80);
        textPaint.setColor(Color.BLACK);
        textPaint.getFontMetrics(fontMetrics);
        textPaint.setTextAlign(Paint.Align.LEFT);
        fontMetrics = new Paint.FontMetrics();
        topGap = res.getDimensionPixelSize(R.dimen.sectioned_top);


    }


    @Override
    public void getItemOffsets(Rect outRect, View view, RecyclerView parent, RecyclerView.State state) {
        super.getItemOffsets(outRect, view, parent, state);
        int pos = parent.getChildAdapterPosition(view);
        long groupId = callback.getGroupId(pos);
        if (groupId < 0) return;
        if (pos == 0 || isFirstInGroup(pos)) {
            outRect.top = topGap;
        } else {
            outRect.top = 0;
        }
    }


    @Override
    public void onDrawOver(Canvas c, RecyclerView parent, RecyclerView.State state) {
        super.onDrawOver(c, parent, state);
        int itemCount = state.getItemCount();
        int childCount = parent.getChildCount();
        int left = parent.getPaddingLeft();
        int right = parent.getWidth() - parent.getPaddingRight();
        float lineHeight = textPaint.getTextSize() + fontMetrics.descent;

        long preGroupId, groupId = -1;
        for (int i = 0; i < childCount; i++) {
            View view = parent.getChildAt(i);
            int position = parent.getChildAdapterPosition(view);

            preGroupId = groupId;
            groupId = callback.getGroupId(position);
            if (groupId < 0 || groupId == preGroupId) continue;

            String textLine = callback.getGroupFirstLine(position).toUpperCase();
            if (TextUtils.isEmpty(textLine)) continue;

            int viewBottom = view.getBottom();
            float textY = Math.max(topGap, view.getTop());
            if (position + 1 < itemCount) { //下一个和当前不一样移动当前
                long nextGroupId = callback.getGroupId(position + 1);
                if (nextGroupId != groupId && viewBottom < textY ) {//组内最后一个view进入了header
                    textY = viewBottom;
                }
            }
            c.drawRect(left, textY - topGap, right, textY, paint);
            c.drawText(textLine, left, textY, textPaint);
        }

    }

}
