WebRTC实现多人视频聊天之客户端设计

写在前面

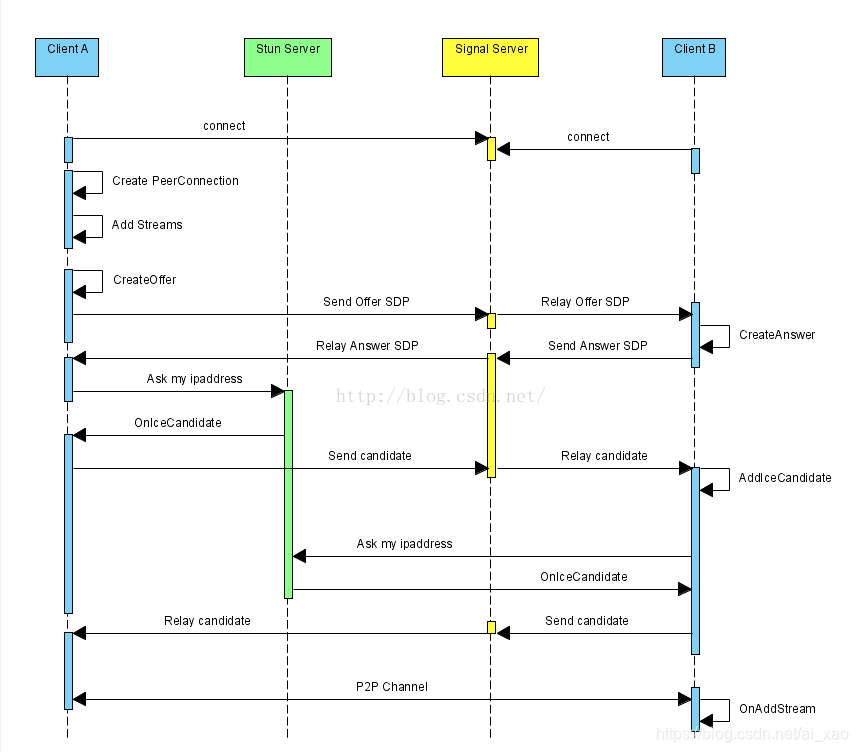

在开始之前，需要对如何建立点对点连接有一个了解，参考我的另一篇博文：WebRTC之点对点连接。下图是来自参考博文中的一张图片。

基础想法

---

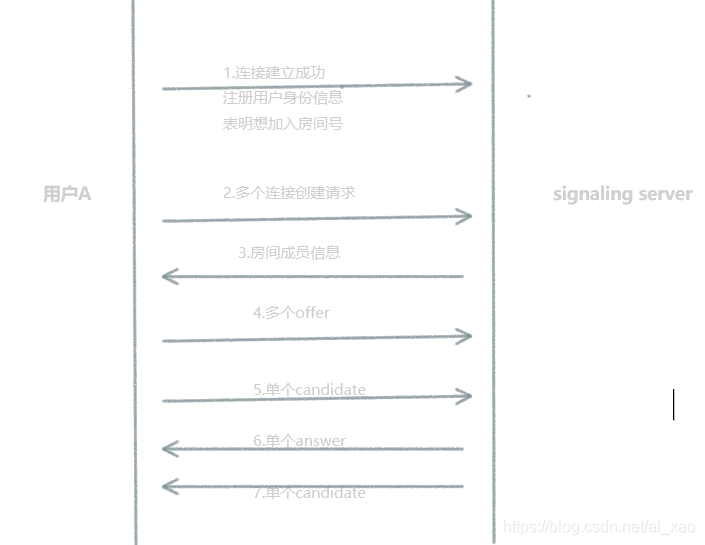

基础架构如下：

客户端主要在于处理从WebSockets接收到的消息，并且有着发起连接和被动接受连接的功能。

实现

1. 连接建立成功时，注册用户身份，表明想加入的房间号。

   ws.onopen = function () {
           console.log("connect success ... ");
           // 初始化当前用户身份
           let urlParams = urlSearch();
           user = {
               name: urlParams['name'],
               roomId: urlParams['roomId']
           };
           console.log("current user...", user);
           ws.send(JSON.stringify({
               msgType: requestType.USER_IDENTITY,
               msgBody: user
           }));
       };


2. 通过web sockets 发起创建多个连接的请求。

   // call 按钮的点击事件中执行
   ws.send(JSON.stringify({
           msgType: requestType.CLIENT_MULTIPLY_CONNECTION_CREATEQUE,
           msgBody: user
       }));


3. 接收服务器响应的房间成员信息，并创建多个用户连接（封装一个具有username和连接属性的对象），发送多个用户offer（username和offer）给信令服务器

   // web socket 接收到该消息
   ws.onmessage = function (evt) {
           // 接收到成员消息响应，创建多个连接
           if(result.msgType === requestType.SERVER_CALLEESRESP){
               console.log("接收到创建多个连接消息响应" + result.msgBody);
               createConnections(result.msgBody).catch((error)=>{
                   console.log("创建成员连接出错..." , result.msgBody,error);
               });
           }
       };

   // 创建多个点对点连接和video元素
   async function createConnections(userNames) {
       const tempPcs = [];
       userNames.forEach(function (username){
           tempPcs.push({
               userName: username,
               pc: createRTCPeerConnection(username,createRemoteVideo(username))
           });
       });
       // 发送多个用户的username和offer
       const offers = [];
       for (let i = 0; i < tempPcs.length; i++) {
           const pcc = tempPcs[i];
           const offer = await pcc.pc.createOffer(offerOptions);
           pcc.pc.setLocalDescription(offer).catch(()=>{
               console.log(pcc.userName + ">>> setLocalDescription error" , offer);
           });
           console.log("offer 创建完成...",offer);
           offers.push({
               userName: pcc.userName,
               sdp: offer
           });
       }
       if(offers.length !== 0){
           console.log("发送 多个offer消息...",offers);
           ws.send(JSON.stringify({
               msgType: requestType.SDP_OFFER,
               msgBody: offers
           }));
       }
   }

   // 创建点对点连接
   function createRTCPeerConnection(username,remoteVideo){
       const configuration = getSelectedSdpSemantics();
       console.log('RTCPeerConnection configuration:', configuration);
       const pc = new RTCPeerConnection(configuration);
       console.log(username+'>>> Created peer connection object pc');
       pc.addEventListener('icecandidate', e => onIceCandidate(e,username));
       pc.addEventListener('iceconnectionstatechange', e => onIceStateChange(pc, e));
       pc.addEventListener('track', e => {
           if (remoteVideo.srcObject !== e.streams[0]) {
               remoteVideo.srcObject = e.streams[0];
               console.log(username+'>>> pc received remote stream');
           }
       });
       localStream.getTracks().forEach(track => pc.addTrack(track, localStream));
       pcs.push({
           userName: username,
           pc: pc
       });
       return pc;
   }
   //
   function createRemoteVideo(id) {
       let remoteVideo = document.createElement('video');
       remoteVideo.playsinline = true;
       remoteVideo.autoplay = true;
       remoteVideo.id=id;
       //获取body节点
       localVideo.parentNode.insertBefore(remoteVideo, localVideo.nextSibling);
       return remoteVideo;
   }




4. 客户端接收到offer消息时，创建连接，响应answer；并发起创建多个连接的请求消息,收到信令服务器响应的成员信息，创建多个连接，发送多个用户offer给信令服务器，并将之前创建的用户连接放入连接池中。

   // 接收到offer消息时
           if(result.msgType === requestType.SDP_OFFER){
               console.log("接收到offer消息" , result.msgBody);
               // 创建
               const rtcPeerConnection = createRTCPeerConnection(result.msgBody.userName, createRemoteVideo(result.msgBody.userName));
               rtcPeerConnection.setRemoteDescription(JSON.parse(msgBody.sdp)).catch((error)=>{
                   console.log(result.msgBody.userName + ">>> setRemoteDesc error" , msgBody.sdp,error);
               });
               // 应答
               rtcPeerConnection.createAnswer().catch((error)=>{
                   console.log(result.msgBody.userName + ">>> createAnswer error" , error);
               }).then(answer=>{
                   rtcPeerConnection.setLocalDescription(answer).catch(()=>{
                       console.log(result.msgBody.userName + ">>> setLocalDesc error" , answer);
                   });
                   // 响应answer
                   ws.send(JSON.stringify({
                       msgType: requestType.SDP_ANSWER,
                       msgBody: {
                           userName:msgBody.userName,
                           sdp: answer
                       }
                   }));
               });
               // 发送创建多个请求消息
               console.log("发送创建多个请求消息...");
               ws.send(JSON.stringify({
                   msgType: requestType.CLIENT_MULTIPLY_CONNECTION_CREATEQUE,
                   msgBody: user
               }));
           }


5. 客户端收到单个answer消息时，放入对应用户连接的desc中

   // 接收到answer消息时
           if(result.msgType === requestType.SDP_ANSWER){
               console.log("接收到answer消息...");
               pcs.forEach(function (pcc) {
                  if(pcc.userName === msgBody.userName){
                      pcc.pc.setRemoteDescription(JSON.parse(msgBody.sdp)).catch(()=>{
                          console.log(msgBody.userName + ">>> setRemoteDesc error" + msgBody.sdp);
                      });
                  }
               });
           }


6. 客户端设置发送candidate（包含用户信息和candidate）

   async function onIceCandidate(event,username) {
       try {
           console.log(username+">>> event.candidate..." + event.candidate);
           ws.send(JSON.stringify(
               {
                   msgType: requestType.SDP_CANDIDATE,
                   msgBody: {
                       userName: username,
                       sdp: event.candidate
                   }
               }
           ));
           console.log(username+">>> send candidate msg success");
       } catch (e) {
           onAddIceCandidateError(pc, e);
       }
   }


7. 客户端收到单个candidate消息时，添加到对应用户连接的IceCandidate中

   // 接收到candidate消息时
           if(result.msgType === requestType.SDP_CANDIDATE){
               console.log("接收到candidate消息...");
               pcs.forEach(function (pcc) {
                   console.log(pcc.userName + "----" + msgBody.userName);
                   if(pcc.userName === msgBody.userName){
                       pcc.pc.addIceCandidate(JSON.parse(msgBody.sdp)).catch((error)=>{
                           console.log(msgBody.userName + ">>> addIceCandidate error" , msgBody.sdp,error);
                       });
                       console.log(`${pcc.pc} addIceCandidate success`);
                   }
               });
           }
