python练手项目-截图工具(轻量化)

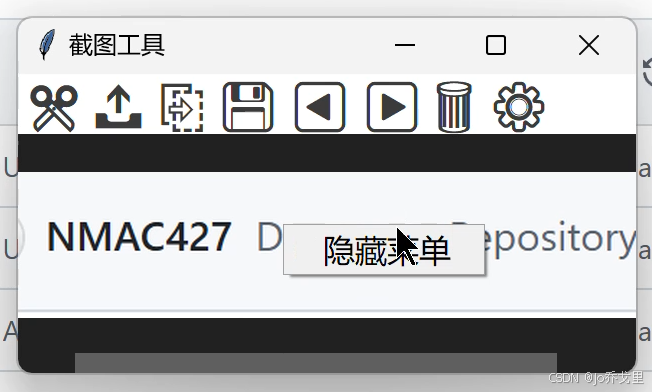

效果展示

一、局限性

①兼容局限性

使用了ctypes调用了Windows的API, 同时访问了Windows中"C:/Windows/Cursors/"中的.cur光标样式文件, 这个工具只适用于Windows环境；

如果要提升其跨平台性的话，需要考虑替换ctypes的一些专属于Windows的API以及设置不同的.cur文件的访问方式；

②内存占用

此外，在截图时，移动框选区域会有很强烈的残影感（当然无卡顿哈）；在非截图时占用内存40MB， 截图时内存占用会飙升到140MB；内存上还有优化空间。

③无在线图像编辑能力

由于精力有限，目前整个展示图像画布（ShowImageCanvas）没有添加编辑功能。而且作者本人也不太打算继续添加编辑功能了（使用过别人截图工具后还是能感觉到差距很大，别人的功能还是全面得多，诶~）有兴趣的可以为其单独添加。

二、优势

①轻量化

该模块只使用了PIL、Keyborad和win32clipboard这三个第三方库，和别的使用pygame\pyautogui等模块不同，该工具着重强调轻量化，无关或没必要使用的库尽可能不使用。整个程序即便打包也只有20MB的大小。

②涵盖大部分基本功能

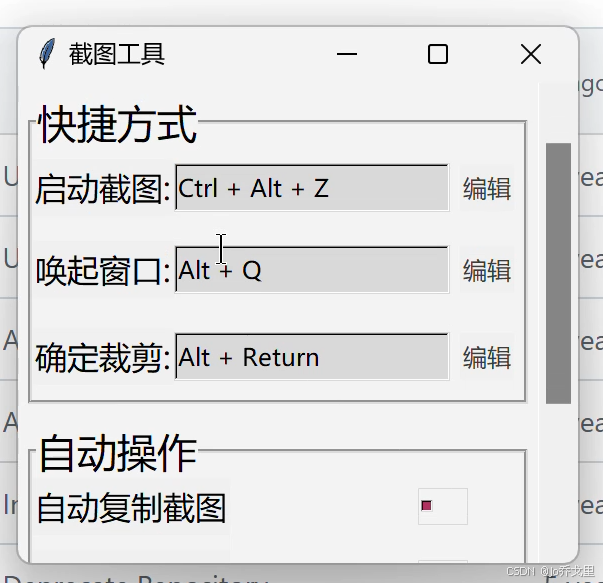

-- 涵盖基础设置，包含了截图的各种快捷键设定，如自动保存，自动复制到剪切板，当截图数量达到上限时自动删除第一张截图等。

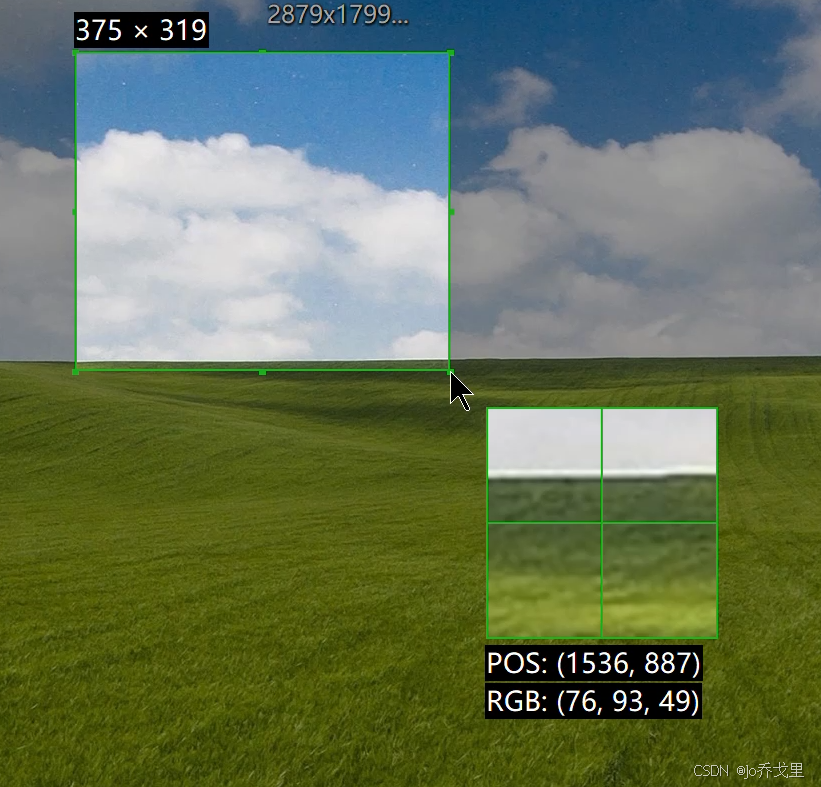

-- 在截图时还可以上下左右键微调选区；实现了截图框内外的亮暗色对比等等。截图时显示放大镜，显示POS和RGB值；

-- 截图后的图像显示：对于截图后的图像会立即显示在画布上。图像画布经过了优化，其在视图上放大图像的性能强悍，实现了类图形编辑器的放大效果。右键隐藏菜单栏后可以很方便的查看截图内容。窗口是保持置顶的，无需担心窗口会被遮挡，方便用于左右对照。

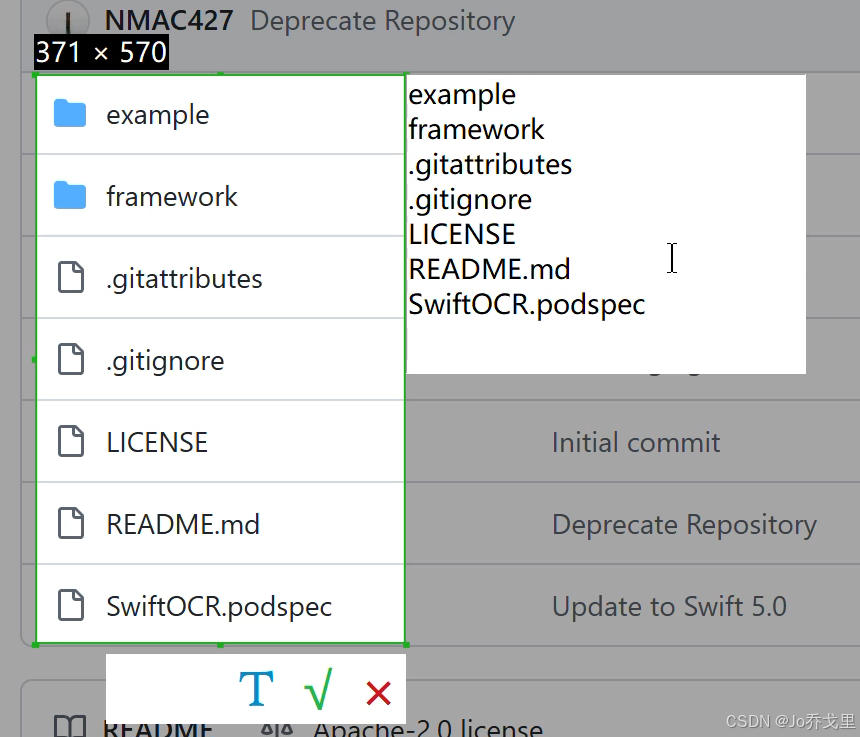

-- 额外的OCR功能，其是基于微信OCR, 因此对于使用者而言需要本身安装微信才可以使用。代码会自动查找用户微信安装路径，并找到其中的OCR部分进行调用。无需启动微信即可使用到微信的OCR功能。当然，如果希望完全脱离微信，有额外的微信OCR脱离版本可供下载使用，大小在60MB；（这里考虑过单独把OCR做成插件的形式，即用一个exe文件单独解析图片输出文字的形式，程序只负责调用这个exe文件。不过实际上由于懒还是把代码写死了......）

三、基础功能演示

第三代截图工具演示

四、第一代完整代码

因为展示空间有限，下面展示的代码仅仅是第一代的代码，功能还很简陋。而且后面代码经过了两三轮重构，尤其第三代代码和一代代码已经有了比较大的差别。

1.1版本的代码如下，单文件，仅使用的PIL模块。请自行安装PIL模块，确保在Windows环境上运行。该版本还相对简陋。。。

1.2版本代码丢失，此处只剩下第三代代码，全部代码大概历时3周编写，4-5个文件，约1700多行代码。

完整代码已上传github: LightScreenshot/ at main · Just-A-Freshman/LightScreenshot

import os
import ctypes
import subprocess as sp
import tkinter as tk
from threading import Thread
from tkinter import messagebox, filedialog
from PIL import Image, ImageGrab, ImageTk, UnidentifiedImageError



ScaleFactor = ctypes.windll.shcore.GetScaleFactorForDevice(0)
ctypes.windll.shcore.SetProcessDpiAwareness(1)
TEMP_FILE_PATH = os.path.join(os.getenv("TEMP"), "tempScreenshot")
os.makedirs(TEMP_FILE_PATH, exist_ok=True)


class FlatButton(tk.Label):
    def __init__(
            self, parent, command=None, enter_fg="#000000",
            click_color="#25C253", *args, **kwargs
        ):
        super().__init__(parent, *args, **kwargs)
        self.__fg = fg = kwargs.get("fg", "#3B3B3B")
        self.__enter_fg = enter_fg
        self.__click_fg = click_color
        self.command = command
        self.config(cursor="hand2", fg=fg)
        self.enable()
        if fg == enter_fg:
            raise ValueError("enter_fg must be different from fg")

    def enable(self):
        self.bind("<Enter>", lambda _: self.config(fg=self.__enter_fg))
        self.bind("<Leave>", lambda _: self.config(fg=self.__fg))
        self.bind("<Button-1>", lambda _: self.config(fg=self.__click_fg))
        self.bind("<ButtonRelease-1>", self.__command)

    def disable(self):
        for event in ("<Enter>", "<Leave>", "<Button-1>", "<ButtonRelease-1>"):
            self.unbind(event)

    def __command(self, event):
        try:
            if self.cget("fg") in (self.__enter_fg, self.__click_fg):
                self.command(event)
            self.config(fg=self.__fg)
        except tk.TclError:
            pass
        except TypeError:
            self.config(fg=self.__fg)


class AdjustableRect(object):
    """
    The judgement seq is so important that you must care about:
    (right, bottom), (left, top), (right, top), (left, bottom),
    (center_x, top), (center_x, bottom), (left, center_y, ), (right, center_y)
    """
    ANCHOR_SIZE = 3
    ANCHOR_HOVER_DISTANCE = 20
    CURSOR_FILES_NAME = ["aero_nwse_l.cur", "aero_nesw_l.cur", "aero_ns_l.cur", "aero_ew_l.cur"]
    CURSOR_FILES = [f"@C:/Windows/Cursors/{cursor_file}" for cursor_file in CURSOR_FILES_NAME]
    CURSORS = [
        CURSOR_FILES[0], CURSOR_FILES[0], CURSOR_FILES[1], CURSOR_FILES[1],
        CURSOR_FILES[2], CURSOR_FILES[2], CURSOR_FILES[3], CURSOR_FILES[3],
        "fleur", "arrow"
    ]

    def __init__(self, parent, screenshot):
        self.parent: tk.Canvas = parent
        self.screenshot: ScreenshotUtils = screenshot
        self.__rect: int = 0
        self.__anchors: list[int] = []
        self.anchor_id: int = 0

    def rect_coords(self) -> tuple[int, int, int, int]:
        return self.parent.coords(self.__rect)

    def anchor_coords(self) -> tuple[int, int, int, int]:
        left, top, right, bottom = self.rect_coords()
        horizontal_middle = (left + right) // 2
        vertical_middle = (top + bottom) // 2
        return (
            (left, top), (horizontal_middle, top), (right, top), (right, vertical_middle),
            (right, bottom), (horizontal_middle, bottom), (left, bottom), (left, vertical_middle)
        )

    def rect_width_height(self) -> tuple[int, int]:
        left, top, right, bottom = self.rect_coords()
        return int(right - left), int(bottom - top)

    def get_anchor(self, event) -> int:
        cls = self.__class__
        left, top, right, bottom = self.rect_coords()
        center_x, center_y = (left + right) // 2, (top + bottom) // 2
        def near(actual, target):
            return abs(actual - target) < cls.ANCHOR_HOVER_DISTANCE
        # 务必注意这个判断顺序，这与后面rect_adjust密切相关
        judgement_pos = (
            (right, bottom), (left, top), (right, top), (left, bottom),
            (center_x, top), (center_x, bottom), (left, center_y, ), (right, center_y)
        )
        for index, pos in enumerate(judgement_pos):
            if near(event.x, pos[0]) and near(event.y, pos[1]):
                return index
        if left < event.x < right and top < event.y < bottom:
            return 8
        return -1

    def create_anchors(self):
        cls = self.__class__
        for coord in self.anchor_coords():
            anchor = self.parent.create_rectangle(
                coord[0]-cls.ANCHOR_SIZE, coord[1]-cls.ANCHOR_SIZE,
                coord[0]+cls.ANCHOR_SIZE, coord[1]+cls.ANCHOR_SIZE,
                fill="#1AAE1A", outline="#1AAE1A"
            )
            self.__anchors.append(anchor)

    def create_rect(self) -> None:
        self.__rect= self.parent.create_rectangle(0, 0, SCREEN_WIDTH, SCREEN_HEIGHT, outline='#1AAE1A', width=2)
        self.create_anchors()

    def move_anchors(self):
        cls = self.__class__
        for anchor, coord in zip(self.__anchors, self.anchor_coords()):
            self.parent.coords(
                anchor, coord[0]-cls.ANCHOR_SIZE, coord[1]-2,
                coord[0]+cls.ANCHOR_SIZE, coord[1]+cls.ANCHOR_SIZE
            )

    def on_press(self, event):
        self.screenshot.start_x = event.x
        self.screenshot.start_y = event.y

    def on_release(self, _):
        self.screenshot.start_x, self.screenshot.start_y,\
        self.screenshot.end_x, self.screenshot.end_y = self.rect_coords()

    def on_hover(self, event):
        self.anchor_id = self.get_anchor(event)
        cursor = self.CURSORS[self.anchor_id]
        self.parent.config(cursor=cursor)

    def move_rect(self, event):
        offset_x = event.x - self.screenshot.move_start_x
        offset_y = event.y - self.screenshot.move_start_y
        if self.screenshot.start_x + offset_x > 0 and self.screenshot.end_x + offset_x < SCREEN_WIDTH:
            self.screenshot.start_x += offset_x
            self.screenshot.end_x += offset_x
        if  self.screenshot.start_y + offset_y > 0 and self.screenshot.end_y + offset_y < SCREEN_HEIGHT:
            self.screenshot.start_y += offset_y
            self.screenshot.end_y += offset_y
        self.screenshot.move_start_x = event.x
        self.screenshot.move_start_y = event.y
        self.parent.coords(self.__rect, self.screenshot.start_x, self.screenshot.start_y, self.screenshot.end_x, self.screenshot.end_y)
        self.move_anchors()

    def rect_adjust(self, event):
        if self.anchor_id == 8:
            return self.move_rect(event)
        if self.anchor_id == 0:
            self.screenshot.end_x, self.screenshot.end_y = event.x, event.y
        elif self.anchor_id == 1:
            self.screenshot.start_x, self.screenshot.start_y = event.x, event.y
        elif self.anchor_id == 2:
            self.screenshot.end_x, self.screenshot.start_y = event.x, event.y
        elif self.anchor_id == 3:
            self.screenshot.start_x, self.screenshot.end_y = event.x, event.y
        elif self.anchor_id == 4:
            self.screenshot.start_y = event.y
        elif self.anchor_id == 5:
            self.screenshot.end_y = event.y
        elif self.anchor_id == 6:
            self.screenshot.start_x = event.x
        elif self.anchor_id == 7:
            self.screenshot.end_x = event.x
        else:
            return
        self.parent.coords(self.__rect, self.screenshot.start_x, self.screenshot.start_y, self.screenshot.end_x, self.screenshot.end_y)
        self.move_anchors()


class ScreenshotUtils(object):
    """
    截图的关键是坐标；这个类管理着图片的引用和截图坐标；
    """
    def TkS(value) -> int:
        return int(ScaleFactor/100*value)

    ZOOM: int = 4
    ZOOM_WIDTH: float = TkS(28.75)
    ZOOM_SCREEN_SIZE: int = int(ZOOM_WIDTH*ZOOM)
    MAGNIFIER_OFFSET: int = 36
    WIDTH_HEIGHT_OFFSET = 40
    POS_TAG_GAP = 10
    RGB_TAG_GAP = 47
    MAGNIFIER_ADJUST = 70
    AJUST_BAR_WIDTH: int = TkS(100)

    def __init__(self):
        self.start_x = self.start_y = self.end_x = self.end_y = 0
        self.move_start_x = self.move_start_y = self.move_end_x = self.move_end_y = 0
        self.page_index: int = 0
        self.current_image: Image.Image = None
        self.pixel_reader = None
        self.final_images: list[Image.Image] = list()
        # 这种是只移动但不改变大小和内容的控件，只需移动无需重绘
        self.screenshot_move_widget = list()
        # 这种是移动和改变大小的控件，需要实时重绘
        self.screenshot_redraw_widget = list()

    @staticmethod
    def TkS(value) -> int:
        return int(ScaleFactor/100*value)

    @classmethod
    def move_widget_coords(cls, x, y) -> list[tuple[int, int, int, int]]:
        # 按照主框架，水平线，垂直线的顺序返回坐标
        main_frame_coord  = (x, y, x+cls.ZOOM_SCREEN_SIZE, y+cls.ZOOM_SCREEN_SIZE)
        horrontal_line_coord = (x, y+cls.ZOOM_SCREEN_SIZE // 2, x+cls.ZOOM_SCREEN_SIZE, y+cls.ZOOM_SCREEN_SIZE // 2)
        vertical_line_coord = (x+cls.ZOOM_SCREEN_SIZE // 2, y, x+cls.ZOOM_SCREEN_SIZE // 2, y+cls.ZOOM_SCREEN_SIZE)
        return [main_frame_coord, horrontal_line_coord, vertical_line_coord]

    def redraw_widget_coords(self, x, y) -> list[tuple]:
        # 按照"放大镜图像"、"长 × 宽"、"POS标签"、"RGB标签"的顺序返回坐标
        offset = self.__class__.MAGNIFIER_OFFSET
        zoom_size = self.__class__.ZOOM_SCREEN_SIZE
        if x + offset + zoom_size < SCREEN_WIDTH:
            x_offset = x + offset
        else:
            x_offset = x - offset - zoom_size
        if y + offset + zoom_size + self.__class__.MAGNIFIER_ADJUST < SCREEN_HEIGHT:
            y_offset = y + offset
        else:
            y_offset = y - offset - zoom_size - self.__class__.MAGNIFIER_ADJUST
        width_height_y = max(min(self.start_y, self.end_y) - self.__class__.WIDTH_HEIGHT_OFFSET, 0)
        width_height_info = (max(min(self.start_x, self.end_x), 0), width_height_y)
        magnifier_coord = (x_offset, y_offset)
        pos_info = (x_offset, y_offset + zoom_size + self.__class__.POS_TAG_GAP)
        rgb_info = (x_offset, y_offset + zoom_size + self.__class__.RGB_TAG_GAP)
        return [magnifier_coord, width_height_info, pos_info, rgb_info]


class MainUI(tk.Tk):
    def __init__(self):
        super().__init__()
        self.screenshot = ScreenshotUtils()
        self.set_window()
        self.menu_bar: tk.Frame = self.set_menubar()
        self.cut_btn: FlatButton = self.set_cut_btn()
        self.load_image_btn: FlatButton = self.set_load_image_btn()
        self.copy_btn: FlatButton = self.set_copy_btn()
        self.save_btn: FlatButton = self.set_save_btn()
        self.turn_left_btn: FlatButton = self.set_turn_left_btn()
        self.turn_right_btn: FlatButton = self.set_turn_right_btn()
        self.delete_btn: FlatButton = self.set_delete_btn()
        self.show_image_canvas: tk.Canvas = self.set_show_image_canvas()
        self.capture_win: tk.Toplevel = None
        self.full_screenshot_canvas: tk.Canvas = None
        self.adjust_rect: AdjustableRect = None
        self.adjust_bar: tk.Frame = None

    def set_window(self):
        self.title("截图工具")
        width, height = self.screenshot.TkS(255), self.screenshot.TkS(30)
        self.minsize(width=width, height=height)  # 这里可以根据需要调整最小宽高
        self.attributes("-topmost", True)
        self.geometry(f"{width}x{height}")

    def set_menubar(self) -> tk.Frame:
        menubar = tk.Frame(self, bg="#FFFFFF", height=ScreenshotUtils.TkS(30))
        menubar.pack(fill=tk.X)
        menubar.pack_propagate(False)  # 阻止内部组件改变框架大小
        return menubar

    def set_cut_btn(self) -> FlatButton:
        btn_cut = FlatButton(
            self.menu_bar, text="✂",
            bg="#FFFFFF", font=("Segoe UI Emoji", 18),
        )
        btn_cut.pack(side=tk.LEFT, ipadx=0.1)
        return btn_cut

    def set_load_image_btn(self) -> FlatButton:
        btn_load = FlatButton(
            self.menu_bar, text="📄", bg="#FFFFFF",
            font=("Segoe UI Emoji", 18, "bold")
        )
        btn_load.pack(side=tk.LEFT, ipadx=0.1)
        return btn_load

    def set_copy_btn(self) -> FlatButton:
        btn_copy = FlatButton(
            self.menu_bar, text="⎘", bg="#FFFFFF", font=("Segoe UI Symbol", 26),
        )
        btn_copy.pack(side=tk.LEFT, ipadx=0.1)
        return btn_copy

    def set_save_btn(self) -> FlatButton:
        btn_save = FlatButton(
            self.menu_bar, text="💾", bg="#FFFFFF", font=("Segoe UI Emoji", 18),
        )
        btn_save.pack(side=tk.LEFT, ipadx=0.1)
        return btn_save

    def set_turn_left_btn(self) -> FlatButton:
        turn_left_btn = FlatButton(
            self.menu_bar, text="\u25C0", bg="#FFFFFF", font=("Segoe UI Emoji", 18),
        )
        turn_left_btn.pack(side=tk.LEFT, ipadx=0.1)
        return turn_left_btn

    def set_turn_right_btn(self) -> FlatButton:
        turn_page_btn = FlatButton(
            self.menu_bar, text="\u25B6", bg="#FFFFFF", font=("Segoe UI Emoji", 18),
        )
        turn_page_btn.pack(side=tk.LEFT, ipadx=0.1)
        return turn_page_btn

    def set_delete_btn(self) -> FlatButton:
        delete_btn = FlatButton(
            self.menu_bar, text="🗑", bg="#FFFFFF", font=("Segoe UI Symbol", 26, "bold"),
        )
        delete_btn.pack(side=tk.LEFT, ipadx=0.1)
        return delete_btn

    def set_cancel_btn(self, parent) -> FlatButton:
        cancel_btn = FlatButton(
            parent, self.clear_capture_info, text="×", bg="#FFFFFF",
            enter_fg="#DB1A21",fg="#CC181F", font=("微软雅黑", 20)
        )
        cancel_btn.pack(side=tk.RIGHT, padx=5)
        return cancel_btn

    def set_confirm_btn(self, parent) -> FlatButton:
        confirm_btn = FlatButton(
            parent, self.confirm_capture, fg="#23B34C", text="√",
            enter_fg="#27C956", bg="#FFFFFF", font=("微软雅黑", 20)
        )
        confirm_btn.pack(side=tk.RIGHT, padx=10)
        return confirm_btn

    def set_show_image_canvas(self) -> tk.Canvas:
        canvas = tk.Canvas(self, bg="white")
        return canvas

    def set_adjust_bar(self) -> tk.Frame:
        self.adjust_bar = tk.Frame(self.full_screenshot_canvas, bg="#FFFFFF", height=50)
        cancel_btn = self.set_cancel_btn(self.adjust_bar)
        confirm_btn = self.set_confirm_btn(self.adjust_bar)
        cancel_btn.pack(side=tk.RIGHT, padx=5)
        confirm_btn.pack(side=tk.RIGHT, padx=10)

    def set_magnifier_frame(self, event) -> None:
        initial_coord = (0, 0, 0, 0)
        main_frame_id = self.full_screenshot_canvas.create_rectangle(*initial_coord, outline='#1AAE1A', width=1)
        horrontal_line = self.full_screenshot_canvas.create_line(*initial_coord, fill="#1AAE1A", width=2)
        vertical_line = self.full_screenshot_canvas.create_line(*initial_coord, fill="#1AAE1A", width=2)
        self.screenshot.screenshot_move_widget = [main_frame_id, horrontal_line, vertical_line]
        event.x = event.x + event.widget.winfo_rootx()
        event.y = event.y + event.widget.winfo_rooty()

    def set_full_screenshot_canvas(self, parent) -> tk.Canvas:
        img = ImageGrab.grab()
        self.screenshot.current_image = img
        self.screenshot.pixel_reader = img.convert("RGB")
        photo = ImageTk.PhotoImage(img)
        full_screenshot_canvas = tk.Canvas(parent, bg="white", highlightthickness=0)
        full_screenshot_canvas.create_image(0, 0, anchor=tk.NW, image=photo)
        full_screenshot_canvas.image = photo
        full_screenshot_canvas.pack(fill=tk.BOTH, expand=True)
        return full_screenshot_canvas

    def config_pos_rgb_info(
            self, parent: tk.Canvas, pos: str, rgb: str,
            pos_coord: tuple[int, int], rgb_coord: tuple[int, int]
        ) -> tuple[int]:
        style = {"anchor": tk.NW, "font": ("微软雅黑", 9), "fill": "#FFFFFF"}
        pos_info = parent.create_text(*pos_coord, text=pos, **style)
        rgb_info = parent.create_text(*rgb_coord, text=rgb, **style)
        pos_bg = parent.create_rectangle(*parent.bbox(pos_info), outline="#000000", fill="#000000")
        rgb_bg = parent.create_rectangle(*parent.bbox(rgb_info), outline="#000000", fill="#000000")
        parent.tag_raise(pos_info)
        parent.tag_raise(rgb_info)
        return pos_info, rgb_info, pos_bg, rgb_bg


class ScreenshotTool(MainUI):
    def __init__(self):
        super().__init__()
        self.add_command()

    def add_command(self):
        self.protocol("WM_DELETE_WINDOW", self.on_close)
        self.show_image_canvas.bind("<Configure>", self.auto_adjust_image_size)
        self.cut_btn.command = self.start_capture
        self.load_image_btn.command = self.load_image
        self.copy_btn.command = self.copy_image
        self.save_btn.command = self.save_image
        self.turn_left_btn.command = self.turn_page
        self.turn_right_btn.command = self.turn_page
        self.delete_btn.command = self.delete_image

    def initialize_screenshot_coords(self):
        self.is_drag = False
        self.screenshot.start_x = self.screenshot.start_y = 0
        self.screenshot.end_x = SCREEN_WIDTH
        self.screenshot.end_y = SCREEN_HEIGHT

    def start_capture(self, event):
        self.attributes('-alpha', 0)
        self.update()
        self.capture_win = tk.Toplevel()
        self.capture_win.geometry(f"{SCREEN_WIDTH}x{SCREEN_HEIGHT}+0+0")
        self.capture_win.overrideredirect(True)
        self.full_screenshot_canvas = self.set_full_screenshot_canvas(self.capture_win)
        self.adjust_rect = AdjustableRect(self.full_screenshot_canvas, self.screenshot)
        self.initialize_screenshot_coords()
        self.adjust_rect.create_rect()
        self.set_magnifier_frame(event)
        self.update_magnifier(event)
        self.set_adjust_bar()
        self.full_screenshot_canvas.bind("<Button-1>", self.on_press)
        self.full_screenshot_canvas.bind("<Motion>", self.update_magnifier)
        self.full_screenshot_canvas.bind("<ButtonRelease-1>", self.on_release)

    def on_press(self, event) -> None:
        self.adjust_rect.on_press(event)
        self.full_screenshot_canvas.unbind("<Motion>")
        self.full_screenshot_canvas.bind("<Motion>", self.on_drag)

    def on_drag(self, event) -> None:
        self.adjust_rect.rect_adjust(event)
        self.update_magnifier(event)

    def on_release(self, event, resize=True) -> None:
        self.unbind_all()
        self.adjust_rect.on_release(event)
        self.full_screenshot_canvas.bind("<Button-1>", self.enter_adjust_mode)
        self.full_screenshot_canvas.bind("<Motion>", self.adjust_rect.on_hover)
        self.adjust_bar.place(
            x=min(self.screenshot.end_x - 300, SCREEN_WIDTH - 300), width=300,
            y=max(min(self.screenshot.end_y + 10, SCREEN_HEIGHT - ScreenshotUtils.TkS(40)), 0),
        )
        if resize:
            self.screenshot.end_x, self.screenshot.end_y = event.x, event.y
        self.conceal_move_widget()
        self.update_width_height_info(event)

    def rect_adjust(self, event) -> None:
        self.adjust_rect.rect_adjust(event)
        if self.adjust_rect.anchor_id != 8 or self.adjust_rect.anchor_id == -1:
            self.update_magnifier(event)

    def unbind_all(self):
        events = ("<Button-1>", "<Motion>", "<ButtonRelease-1>")
        for event in events:
            self.full_screenshot_canvas.unbind(event)

    def clear_redraw_widget(self) -> None:
        for redraw_widget in self.screenshot.screenshot_redraw_widget:
            self.full_screenshot_canvas.delete(redraw_widget)
        self.screenshot.screenshot_redraw_widget.clear()

    def conceal_move_widget(self):
        for widget in self.screenshot.screenshot_move_widget:
            self.full_screenshot_canvas.tag_lower(widget)

    def update_width_height_info(self, event) -> None:
        self.clear_redraw_widget()
        w, h = self.adjust_rect.rect_width_height()
        coord = self.screenshot.redraw_widget_coords(event.x, event.y)[1]
        wh_info_widget = self.full_screenshot_canvas.create_text(*coord, anchor=tk.NW, fill="white", text=f"{w} × {h}")
        self.screenshot.screenshot_redraw_widget = [wh_info_widget]

    def update_magnifier(self, event, ) -> None:
        x, y = event.x, event.y
        size = ScreenshotUtils.ZOOM_WIDTH
        img = self.screenshot.current_image.crop((x - size//2, y - size//2, x + size//2, y + size//2))
        img = img.resize((ScreenshotUtils.ZOOM_SCREEN_SIZE, ScreenshotUtils.ZOOM_SCREEN_SIZE))
        photo = ImageTk.PhotoImage(img)
        self.full_screenshot_canvas.image2 = photo
        w, h = self.adjust_rect.rect_width_height()
        self.clear_redraw_widget()
        redraw_widget_coords = self.screenshot.redraw_widget_coords(x, y)
        magnifier_coord, width_height_info, pos_coord, rgb_coord = redraw_widget_coords
        zoom_img = self.full_screenshot_canvas.create_image(*magnifier_coord, anchor=tk.NW, image=photo)
        wh_info_widget = self.full_screenshot_canvas.create_text(
            *width_height_info, anchor=tk.NW, fill="white", text=f"{w} × {h}"
        )
        pos_rgb_info = self.config_pos_rgb_info(
            self.full_screenshot_canvas, f"POS: ({x}, {y})",
            f"RGB: {self.screenshot.pixel_reader.getpixel((x, y))}", pos_coord, rgb_coord
        )
        self.screenshot.screenshot_redraw_widget = [zoom_img, wh_info_widget, *pos_rgb_info]
        self.update_magnifier_frame(*self.full_screenshot_canvas.coords(zoom_img))

    def update_magnifier_frame(self, x, y) -> None:
        coords = self.screenshot.move_widget_coords(x, y)
        for widget, coord in zip(self.screenshot.screenshot_move_widget, coords):
            self.full_screenshot_canvas.coords(widget, *coord)
            self.full_screenshot_canvas.tag_raise(widget)

    def enter_adjust_mode(self, event) -> None:
        self.screenshot.move_start_x = event.x
        self.screenshot.move_start_y = event.y
        self.adjust_bar.place_forget()
        for widget in self.screenshot.screenshot_redraw_widget:
            self.full_screenshot_canvas.delete(widget)
        for widget in self.screenshot.screenshot_move_widget:
            self.full_screenshot_canvas.tag_lower(widget)
        self.full_screenshot_canvas.bind("<B1-Motion>", self.rect_adjust)
        self.full_screenshot_canvas.bind("<ButtonRelease-1>", lambda e: self.on_release(e, False))

    def clear_capture_info(self, _) -> None:
        self.capture_win.destroy()
        self.full_screenshot_canvas.destroy()
        self.attributes('-alpha', 1)
        self.screenshot.screenshot_move_widget.clear()

    def check_capture_screenshot(self) -> None:
        if self.screenshot.start_x == self.screenshot.end_x or \
        self.screenshot.start_y == self.screenshot.end_y:
            self.initialize_screenshot_coords()

    def confirm_capture(self, event) -> None:
        x1, y1, x2, y2 = self.adjust_rect.rect_coords()
        self.clear_capture_info(event)
        image = self.screenshot.current_image.crop((x1, y1, x2, y2))
        result = self.show_image(image)
        self.screenshot.final_images.append(result)
        self.screenshot.page_index = len(self.screenshot.final_images) - 1
        self.attributes('-topmost', 1)

    def show_image(self, image: Image.Image, window_resize=True) -> None:
        if window_resize:
            self.geometry(f"{image.width}x{image.height+self.menu_bar.winfo_height()}")
        photo = ImageTk.PhotoImage(image)
        self.show_image_canvas.delete("all")
        self.show_image_canvas.create_image(0, 0, anchor=tk.NW, image=photo)
        self.show_image_canvas.image = photo
        self.show_image_canvas.pack(fill=tk.BOTH, expand=True)
        return image

    def current_limiting(self, canvas_w, canvas_h) -> bool:
        if not self.screenshot.final_images:
            return True
        try:
            coords = self.show_image_canvas.bbox("all")
            img_view_w, img_view_h = coords[2], coords[3]
        except TypeError:
            return True
        if (img_view_w == canvas_w and img_view_h < canvas_h) or \
        (img_view_h == canvas_h and img_view_w < canvas_w):
            return True
        return False

    def auto_adjust_image_size(self, _) -> None:
        canvas_w = self.show_image_canvas.winfo_width()
        canvas_h = self.show_image_canvas.winfo_height()
        if self.current_limiting(canvas_w, canvas_h):
            return
        image = self.screenshot.final_images[self.screenshot.page_index]
        width_ratio = canvas_w / image.width
        height_ratio = canvas_h / image.height
        ratio = min(width_ratio, height_ratio)
        new_width = int(image.width * ratio)
        new_height = int(image.height * ratio)
        resized_image = image.resize((new_width, new_height), Image.LANCZOS)
        self.show_image(resized_image, False)

    def load_image(self, _) -> None:
        file_types = (("Image files", "*.jpg *.png *.jpeg"),)
        img_path = filedialog.askopenfilename(filetypes=file_types)
        if not img_path:
            return
        try:
            image = Image.open(img_path)
        except UnidentifiedImageError:
            return messagebox.showerror("错误", "无法识别该图片文件!")
        self.show_image(image)
        self.screenshot.final_images.append(image)
        self.screenshot.page_index = len(self.screenshot.final_images) - 1

    def copy_image(self, _) -> None:
        def __copy_image():
            self.copy_btn.disable()
            self.copy_btn.config(fg="#25C253")
            image = self.screenshot.final_images[self.screenshot.page_index]
            temp_name = f"{int.from_bytes(os.urandom(4), byteorder='big')}.png"
            temp_file = os.path.join(TEMP_FILE_PATH, temp_name)
            image.save(temp_file)
            startupinfo = sp.STARTUPINFO()
            startupinfo.dwFlags |= sp.STARTF_USESHOWWINDOW
            args = ['powershell', f'Get-Item {temp_file} | Set-Clipboard']
            process = sp.Popen(args=args, startupinfo=startupinfo)
            process.wait()
            self.title("截图工具")
            self.copy_btn.enable()
            self.copy_btn.config(fg="#3B3B3B")
        if len(self.screenshot.final_images) == 0:
            return messagebox.showerror("复制失败", "未检测到截取图像")
        self.title("复制成功!")
        Thread(target=__copy_image, daemon=True).start()

    def save_image(self, _) -> None:
        try:
            image = self.screenshot.final_images[self.screenshot.page_index]
            filename = filedialog.asksaveasfilename(
                defaultextension=".png",
                filetypes=[("PNG files", "*.png"), ("JPEG files", "*.jpg")],
                initialfile=f"{image.width}x{image.height}.png"
            )
            if not filename:
                return
            image.save(filename)
        except IndexError:
            messagebox.showerror("保存失败", "未检测到截取图像")

    def turn_page(self, event) -> None:
        if len(self.screenshot.final_images) == 0:
            return messagebox.showinfo("提示", "暂无图片可切换!")
        if event.widget == self.turn_left_btn:
            if self.screenshot.page_index == 0:
                return messagebox.showinfo("提示", "已经是第一张图片!")
            self.screenshot.page_index -= 1
        else:
            if self.screenshot.page_index == len(self.screenshot.final_images) - 1:
                return messagebox.showinfo("提示", "已经是最后一张图片!")
            self.screenshot.page_index += 1
        self.show_image(self.screenshot.final_images[self.screenshot.page_index])

    def delete_image(self, _) -> None:
        if len(self.screenshot.final_images) == 0:
            return messagebox.showinfo("提示", "暂无图片可删除!")
        if not messagebox.askokcancel("提示", "确认删除当前图片?"):
            return
        self.screenshot.final_images.pop(self.screenshot.page_index)
        if self.screenshot.page_index == len(self.screenshot.final_images):
            self.screenshot.page_index -= 1
        if len(self.screenshot.final_images) == 0:
            self.show_image_canvas.delete("all")
            self.geometry(f"{self.screenshot.TkS(255)}x{self.screenshot.TkS(30)}")
        else:
            self.show_image(self.screenshot.final_images[self.screenshot.page_index])

    def on_close(self):
        def delete_tmp_files():
            for file in os.scandir(TEMP_FILE_PATH):
                os.remove(file)
        self.destroy()
        Thread(target=delete_tmp_files).start()


if __name__ == "__main__":
    app = ScreenshotTool()
    SCREEN_WIDTH = app.winfo_screenwidth()
    SCREEN_HEIGHT = app.winfo_screenheight()
    app.mainloop()

五、打包程序

如无Python环境，可以通过以下链接下载：

注意这里面同时下载的东西包含了多个版本的可执行程序，因为懒得分开了（三个版本的可执行程序加起来有94MB了）。第一代，第二代，第三代可执行程序都在里面。最新版就是version-3里面的，实际整个文件夹大小在20.4MB。

通过百度网盘分享的文件：多版本截图工具.zip
链接: https://pan.baidu.com/s/1vP3rn85IVBIf1kvoReld4w?pwd=h5yx

提取码: h5yx
