开发环境
- JDK1.8
- 数据库mysql 5.7
- 开发工具 idea 2018.1
- maven版本3.5.2
搭建一个父工程,两个子模块.

新建项目

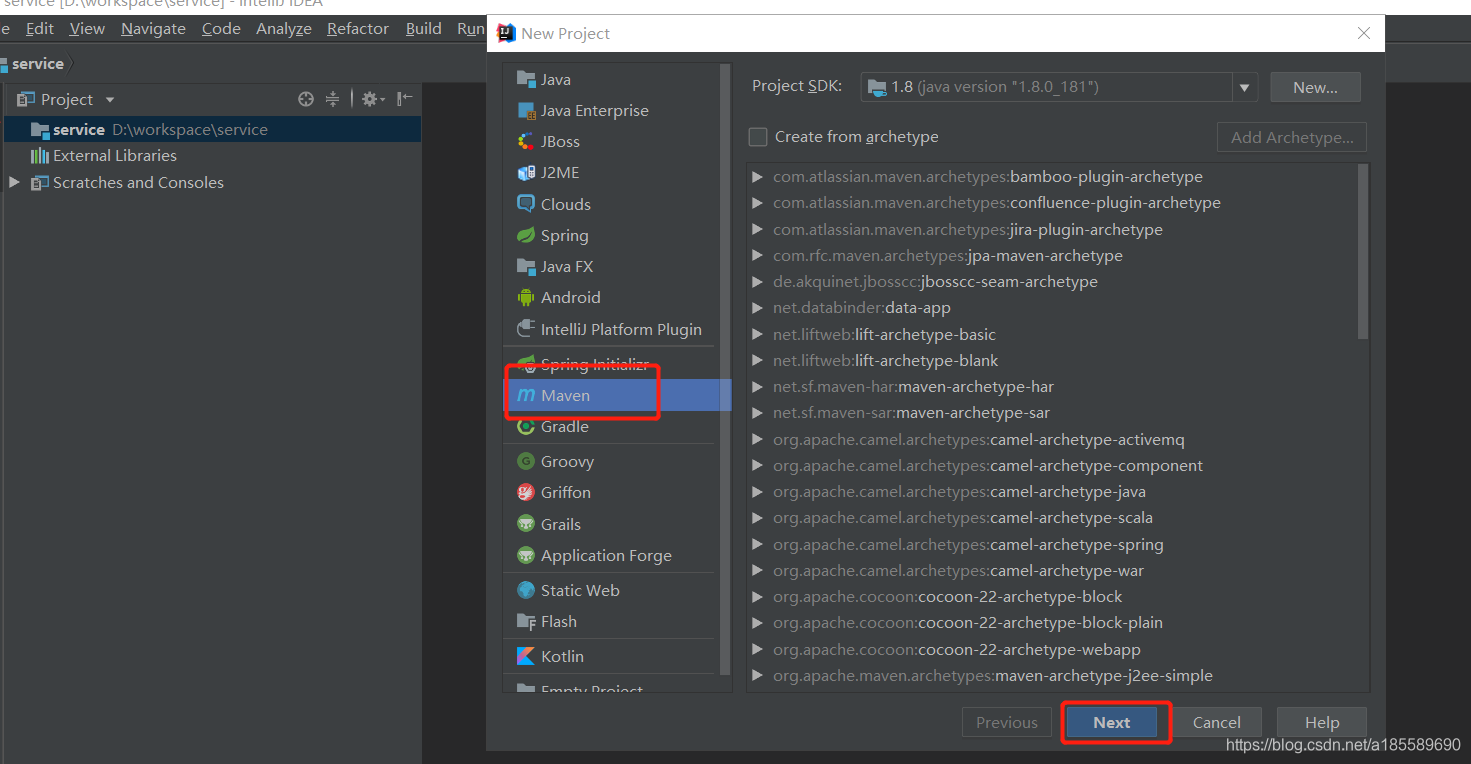

点击file-->new-->project-->maven-->next

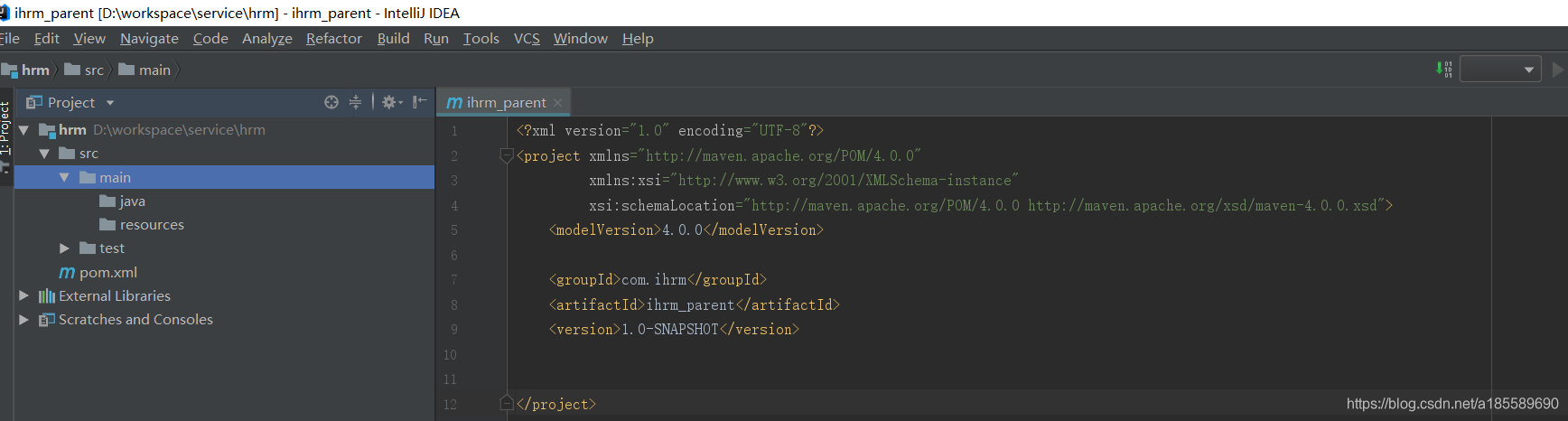

然后修改项目文件路径,生成项目.

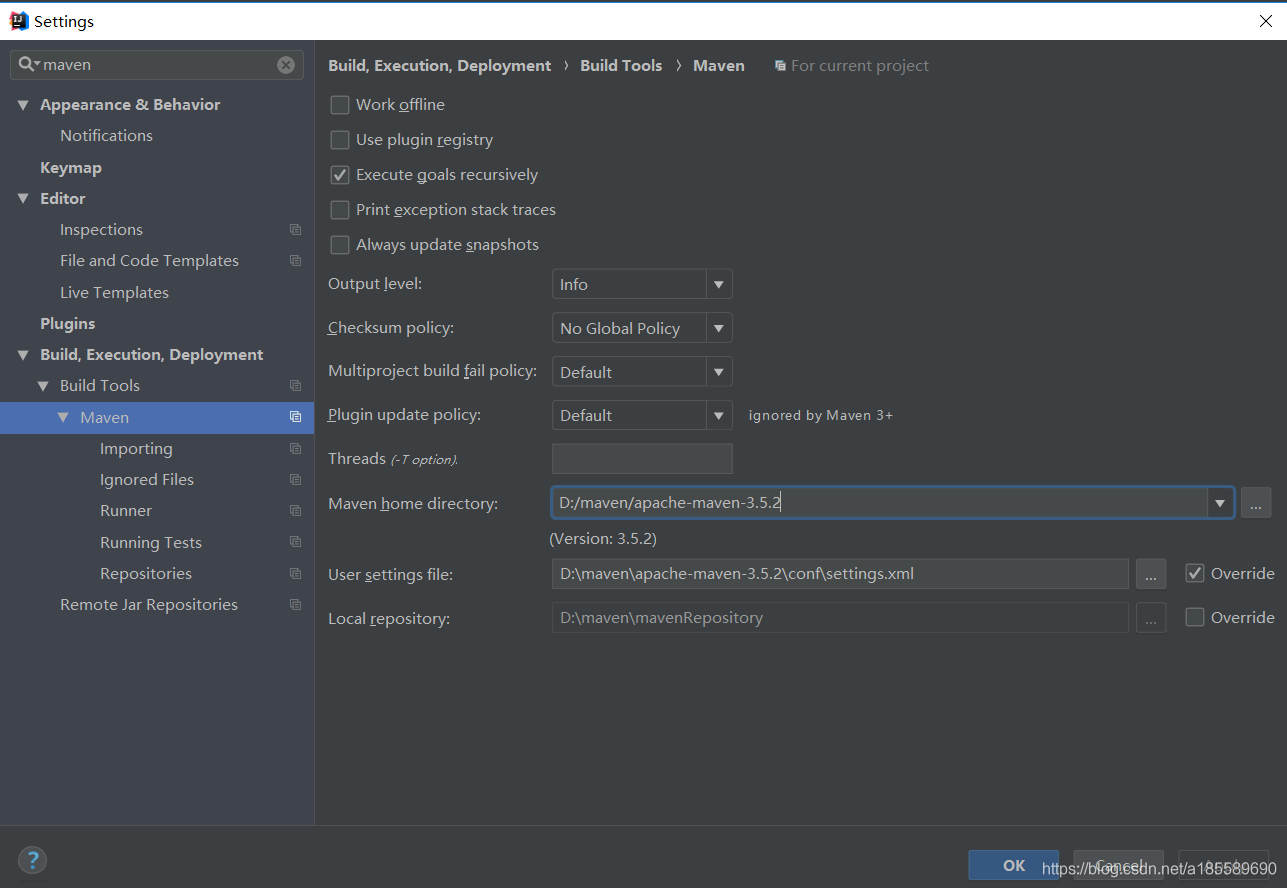

修改项目的maven配置
因为是父工程并不会有具体的代码,所以可以吧src文件夹删掉.
pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.ihrm</groupId>
    <artifactId>ihrm_parent</artifactId>
    <version>1.0-SNAPSHOT</version>

    <packaging>pom</packaging>
    <name>ihrm_parent</name>
    <description>IHRM-父工程</description>

    <parent>
        <!--springboot的maven配置-->
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.5.RELEASE</version>
        <relativePath/>
    </parent>

    <properties>
        <!--项目工程的基本配置-->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <fastjson.version>1.2.47</fastjson.version>
    </properties>

    <dependencies>
        <dependency>
            <!--web环境-->
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-logging</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <!--阿里提供的json转化-->
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>${fastjson.version}</version>
        </dependency>
        <dependency>
            <!--lombok插件-->
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.16</version>
        </dependency>
    </dependencies>

    <repositories>
        <repository>
            <id>spring-snapshots</id>
            <name>Spring Snapshots</name>
            <url>https://repo.spring.io/snapshot</url>
            <snapshots>
                <enabled>true</enabled>
            </snapshots>
        </repository>
        <repository>
            <id>spring-milestones</id>
            <name>Spring Milestones</name>
            <url>https://repo.spring.io/milestone</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </repository>
    </repositories>

    <pluginRepositories>
        <pluginRepository>
            <id>spring-snapshots</id>
            <name>Spring Snapshots</name>
            <url>https://repo.spring.io/snapshot</url>
            <snapshots>
                <enabled>true</enabled>
            </snapshots>
        </pluginRepository>
        <pluginRepository>
            <id>spring-milestones</id>
            <name>Spring Milestones</name>
            <url>https://repo.spring.io/milestone</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </pluginRepository>
    </pluginRepositories>
    <build>
        <plugins>
            <!--编译插件-->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.1</version>
                <configuration>
                    <source>${java.version}</source>
                    <target>${java.version}</target>
                </configuration>
            </plugin>

            <!--单元测试插件-->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.12.4</version>
                <configuration>
                    <skipTests>true</skipTests>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

构建公共的子模块

就是公用交互的实体类,或者dto,公共的Utils工具类等等.

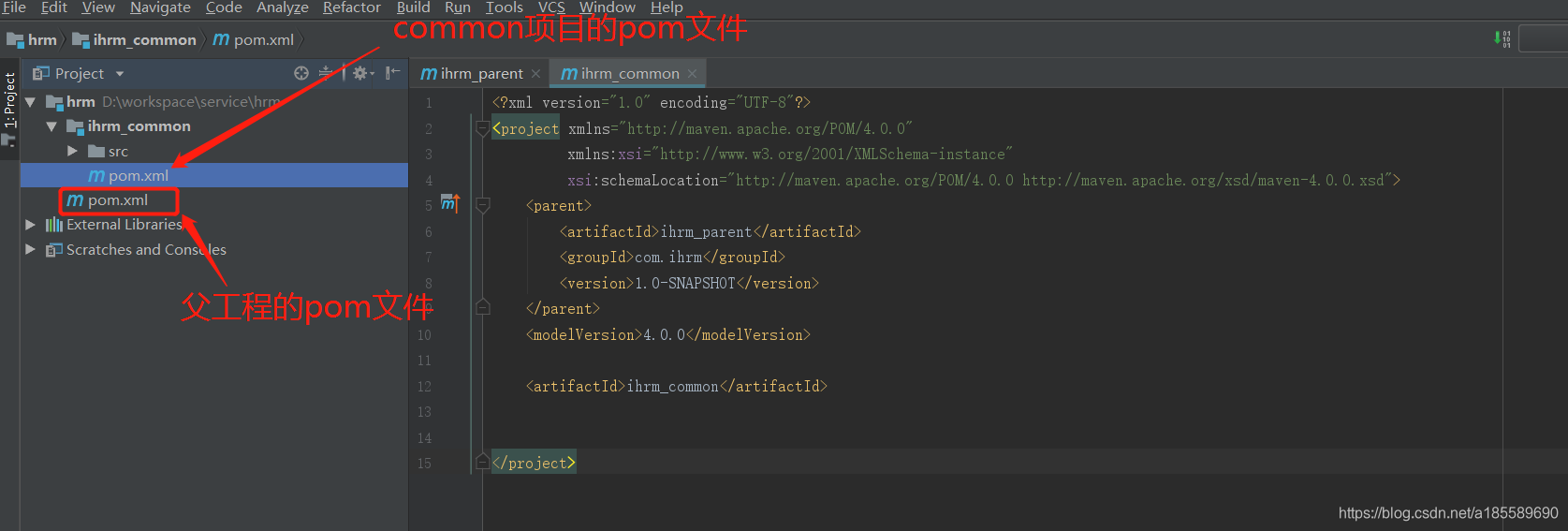

点击hrm项目,选择new-->module-->maven-->填写文件名:ihrm_common
写ResultCode公共的返回对象，

package com.ihrm.common.entity;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.util.List;

/**
 * 分页对象
 * @param <T>
 */
@Data
@AllArgsConstructor
@NoArgsConstructorpackage com.ihrm.common.entity;

/**
 * 公共的返回代码
 */
public enum ResultCode {

    SUCCESS(true,200,"操作成功！"),
    //---系统错误返回码-----
    FAIL(false,999,"操作失败"),


    //操作是否成功
    boolean success;
    //操作代码
    int code;
    //提示信息
    String message;

    ResultCode(boolean success,int code, String message){
        this.success = success;
        this.code = code;
        this.message = message;
    }

    public boolean success() {
        return success;
    }

    public int code() {
        return code;
    }

    public String message() {
        return message;
    }

}

public class PageResult<T> {
    private Long total;
    private List<T> rows;
}

Result返回的结果集

package com.ihrm.common.entity;

import com.fasterxml.jackson.annotation.JsonInclude;
import com.fasterxml.jackson.databind.annotation.JsonSerialize;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;


/**
 * 封装的数据相应对象
 */
@Data
@NoArgsConstructor
public class Result {

    private boolean success;//是否成功
    private Integer code;// 返回码
    private String message;//返回信息
    private Object data;// 返回数据

    public Result(ResultCode code) {
        this.success = code.success;
        this.code = code.code;
        this.message = code.message;
    }

    public Result(ResultCode code,Object data) {
        this.success = code.success;
        this.code = code.code;
        this.message = code.message;
        this.data = data;
    }

    public Result(Integer code,String message,boolean success) {
        this.code = code;
        this.message = message;
        this.success = success;
    }

    public static Result SUCCESS(){
        return new Result(ResultCode.SUCCESS);
    }

    public static Result ERROR(){
        return new Result(ResultCode.SERVER_ERROR);
    }

    public static Result FAIL(){
        return new Result(ResultCode.FAIL);
    }
}

PageResult分页返回的结果集

package com.ihrm.common.entity;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.util.List;

/**
 * 分页对象
 * @param <T>
 */
@Data
@AllArgsConstructor
@NoArgsConstructor
public class PageResult<T> {
    private Long total;
    private List<T> rows;
}

微服务架构id的生成

常用的主键生成方式
- 主键自增-->多家公司共用一张表.
- uuid-->太长了.数据量大
- 借助全局的redis. 每次都访问同一个redis. 但是对于网络的开销太大了.
微服务的主键生成方式: 雪花算法:
- 目前微服务架构盛行，在分布式系统中的操作中都会有一些全局性ID的需求,所以我们不能使用数据库本身的自增功能来产生主键值，只能由程序来生成唯一的主键值。我们采用的是开源的twitter( 非官方中文惯称：推特.是国外的一个网站，是一个社交网络及微博客服务) 的snowflake （雪花）算法。
- 第一位不用,后面是时间戳的毫秒数加上工作机器的id加上系列号最大支持4096个id
  - 如果你在同一毫秒同一个机器上,瞬间进入10000个,多余的它就会等到下一毫秒在进行处理.

网上找到的生成的工具类

package com.ihrm.common.utils;

import java.lang.management.ManagementFactory;
import java.net.InetAddress;
import java.net.NetworkInterface;

//雪花算法代码实现
public class IdWorker {
    // 时间起始标记点，作为基准，一般取系统的最近时间（一旦确定不能变动）
    private final static long twepoch = 1288834974657L;
    // 机器标识位数
    private final static long workerIdBits = 5L;
    // 数据中心标识位数
    private final static long datacenterIdBits = 5L;
    // 机器ID最大值
    private final static long maxWorkerId = -1L ^ (-1L << workerIdBits);
    // 数据中心ID最大值
    private final static long maxDatacenterId = -1L ^ (-1L << datacenterIdBits);
    // 毫秒内自增位
    private final static long sequenceBits = 12L;
    // 机器ID偏左移12位
    private final static long workerIdShift = sequenceBits;
    // 数据中心ID左移17位
    private final static long datacenterIdShift = sequenceBits + workerIdBits;
    // 时间毫秒左移22位
    private final static long timestampLeftShift = sequenceBits + workerIdBits + datacenterIdBits;

    private final static long sequenceMask = -1L ^ (-1L << sequenceBits);
    /* 上次生产id时间戳 */
    private static long lastTimestamp = -1L;
    // 0，并发控制
    private long sequence = 0L;

    private final long workerId;
    // 数据标识id部分
    private final long datacenterId;

    public IdWorker(){
        this.datacenterId = getDatacenterId(maxDatacenterId);
        this.workerId = getMaxWorkerId(datacenterId, maxWorkerId);
    }
    /**
     * @param workerId
     *            工作机器ID
     * @param datacenterId
     *            序列号
     */
    public IdWorker(long workerId, long datacenterId) {
        if (workerId > maxWorkerId || workerId < 0) {
            throw new IllegalArgumentException(String.format("worker Id can't be greater than %d or less than 0", maxWorkerId));
        }
        if (datacenterId > maxDatacenterId || datacenterId < 0) {
            throw new IllegalArgumentException(String.format("datacenter Id can't be greater than %d or less than 0", maxDatacenterId));
        }
        this.workerId = workerId;
        this.datacenterId = datacenterId;
    }
    /**
     * 获取下一个ID
     *
     * @return
     */
    public synchronized long nextId() {
        long timestamp = timeGen();
        if (timestamp < lastTimestamp) {
            throw new RuntimeException(String.format("Clock moved backwards.  Refusing to generate id for %d milliseconds", lastTimestamp - timestamp));
        }

        if (lastTimestamp == timestamp) {
            // 当前毫秒内，则+1
            sequence = (sequence + 1) & sequenceMask;
            if (sequence == 0) {
                // 当前毫秒内计数满了，则等待下一秒
                timestamp = tilNextMillis(lastTimestamp);
            }
        } else {
            sequence = 0L;
        }
        lastTimestamp = timestamp;
        // ID偏移组合生成最终的ID，并返回ID
        long nextId = ((timestamp - twepoch) << timestampLeftShift)
                | (datacenterId << datacenterIdShift)
                | (workerId << workerIdShift) | sequence;

        return nextId;
    }

    private long tilNextMillis(final long lastTimestamp) {
        long timestamp = this.timeGen();
        while (timestamp <= lastTimestamp) {
            timestamp = this.timeGen();
        }
        return timestamp;
    }

    private long timeGen() {
        return System.currentTimeMillis();
    }

    /**
     * <p>
     * 获取 maxWorkerId
     * </p>
     */
    protected static long getMaxWorkerId(long datacenterId, long maxWorkerId) {
        StringBuffer mpid = new StringBuffer();
        mpid.append(datacenterId);
        String name = ManagementFactory.getRuntimeMXBean().getName();
        if (!name.isEmpty()) {
            /*
             * GET jvmPid
             */
            mpid.append(name.split("@")[0]);
        }
        /*
         * MAC + PID 的 hashcode 获取16个低位
         */
        return (mpid.toString().hashCode() & 0xffff) % (maxWorkerId + 1);
    }

    /**
     * <p>
     * 数据标识id部分
     * </p>
     */
    protected static long getDatacenterId(long maxDatacenterId) {
        long id = 0L;
        try {
            InetAddress ip = InetAddress.getLocalHost();
            NetworkInterface network = NetworkInterface.getByInetAddress(ip);
            if (network == null) {
                id = 1L;
            } else {
                byte[] mac = network.getHardwareAddress();
                id = ((0x000000FF & (long) mac[mac.length - 1])
                        | (0x0000FF00 & (((long) mac[mac.length - 2]) << 8))) >> 6;
                id = id % (maxDatacenterId + 1);
            }
        } catch (Exception e) {
            System.out.println(" getDatacenterId: " + e.getMessage());
        }
        return id;
    }
}

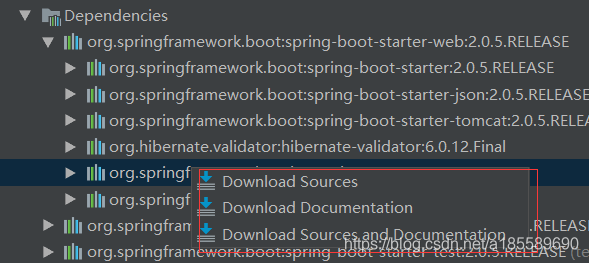

如果maven加载完报错,就把报错的maven注释掉,重新加载就可以了.或者

把dao需要的实体类都放到一个项目中,这样方便管理.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>ihrm_parent</artifactId>
        <groupId>com.ihrm</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>ihrm_commom_model</artifactId>

    <dependencies>
        <!--springData_jpa的依赖-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <!--commom项目的依赖-->
        <dependency>
            <groupId>com.ihrm</groupId>
            <artifactId>ihrm_common</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

</project>

然后model项目下的java包和resource包设置为sources root 和 resource root

新建一个ihrm_company项目引入对common和model项目的以来，然后增加springboot的启动类和jpa的依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>ihrm_parent</artifactId>
        <groupId>com.ihrm</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>ihrm_company</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>com.ihrm</groupId>
            <artifactId>ihrm_common</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>com.ihrm</groupId>
            <artifactId>ihrm_commom_model</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

</project>

在添加好后刷新maven,然后在resource目录下,新建springboot的启动配置文件application.yml

直接new file就可以了.

配置启动文件

springboot的配置文件在服务器上不支持tab键.所以就手敲空格吧.

#服务配置
server:
  port: 9001
#spring配置
spring:
  application:
    name: ihrm-company
#数据库连接
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/ihrm?useUnicode=true&characterEncoding=utf8&useSSL=false
    username: root
    password: 123456
#jap的配置
  jpa:
    database: MySQL
    show-sql: true
    open-in-view: true

创建当前项目的启动类

/**
 * 启动类
 */
//配置springboot的包扫描
@SpringBootApplication(scanBasePackages = "com.ihrm.**")
//配置jsp注解的扫描 就是扫描model项目的
@EntityScan(value = "com.ihrm.domain.**")
@Slf4j
@RestController
public class CompanyApplication {

    /**
     * 启动方法
     *
     * @param args
     */
    public static void main(String[] args) throws UnknownHostException {
        ConfigurableApplicationContext application = SpringApplication.run(CompanyApplication.class, args);
        Environment env = application.getEnvironment();
        log.info("\n--------------------------------------------------------------------------------------------------------------------\n\t" +
                        "CompanyApplication '{}' is running! Access URLs:\n\t" +
                        "Local: \t\thttp://localhost:{}/\n\t" +
                        "External: \thttp://{}:{}/\n\t" +
                        "docs: \thttp://{}:{}/docs.html" +
                        "\n--------------------------------------------------------------------------------------------------------------------",
                "CompanyApplication Server Application v1.0",
                env.getProperty("server.port"),
                InetAddress.getLocalHost().getHostAddress(),
                env.getProperty("server.port"));
    }

    @GetMapping("/")
    public String index() {
        return "CompanyApplication Server is running";
    }


    @RequestMapping("/hello")
    @ResponseBody
    String home() {
        return "Hello ,spring boot!";
    }

mysql安装:

https://www.cnblogs.com/ixan/p/7341637.html

创建数据库表

CREATE TABLE `co_company` (
 `id` varchar(40) NOT NULL COMMENT 'ID',
 `name` varchar(255) NOT NULL COMMENT '公司名称',
 `manager_id` varchar(255) NOT NULL COMMENT '企业登录账号ID',
 `version` varchar(255) DEFAULT NULL COMMENT '当前版本',
 `renewal_date` datetime DEFAULT NULL COMMENT '续期时间',
 `expiration_date` datetime DEFAULT NULL COMMENT '到期时间',
 `company_area` varchar(255) DEFAULT NULL COMMENT '公司地区',
 `company_address` text COMMENT '公司地址',
 `business_license_id` varchar(255) DEFAULT NULL COMMENT '营业执照-图片ID',
 `legal_representative` varchar(255) DEFAULT NULL COMMENT '法人代表',
 `company_phone` varchar(255) DEFAULT NULL COMMENT '公司电话',
 `mailbox` varchar(255) DEFAULT NULL COMMENT '邮箱',
 `company_size` varchar(255) DEFAULT NULL COMMENT '公司规模',
 `industry` varchar(255) DEFAULT NULL COMMENT '所属行业',
 `remarks` text COMMENT '备注',
 `audit_state` varchar(255) DEFAULT NULL COMMENT '审核状态',
 `state` tinyint(2) NOT NULL DEFAULT '1' COMMENT '状态',
 `balance` double NOT NULL COMMENT '当前余额',
 `create_time` datetime NOT NULL COMMENT '创建时间'
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

生成实体类.
- 因为使用jpa操作数据,使用jpa注解
  - 实体类和表的映射关系
  - 字段和属性的映射关系
- 用@Entity表示实体类.@Table(name = "co_company")写对应的映射表名.
  - @id或者@Column(name= "数据对应的字段")
- 数据库连接的版本和本地数据库的版本不匹配.
  - 要不然就改数据库,要不然就该驱动..建议还是降低数据库吧.然后一系列的maven配置都要改.

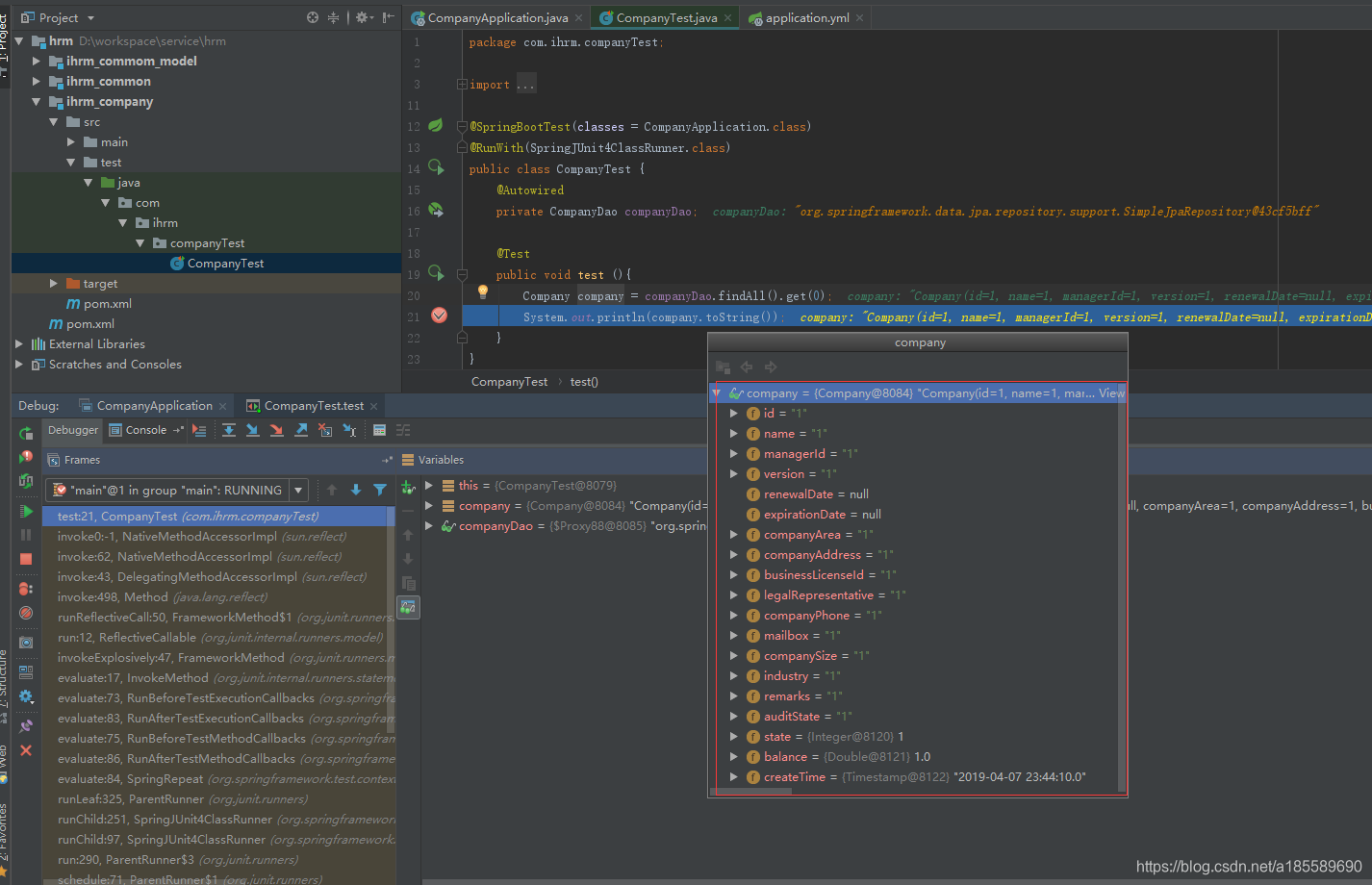

- 然后写一个test类.这样数据库就连接成功了.

我用的软件百度网盘下载地址:

链接：https://pan.baidu.com/s/1Q4guTqX21zRf2rWyscg6xw
提取码：gyod
