Java jdk动态代理 源码 debug

大体流程：

1. 在public static Object newProxyInstance(ClassLoader loader, Class<?>[] interfaces,InvocationHandler h)方法中
  1.1 通过getProxyClass0()方法生成并获得.class文件，加载至内存
  1.2 通过newInstance()方法生成代理对象
2. 调用需要执行的方法，途中会调用InvocationHandler的invoke()方法(这里的invoke()方法会调用UserDaoImpl的query()方法)

基本配置：

UserDao.java

public interface UserDao {
    public void query();
}

UserDaoImpl.java

@Component("dao")
public class UserDaoImpl implements UserDao {
    @Override
    public void query() {
        System.out.println("I want to ask you a question!");
    }
}

InvocationHandler接口的实现类

public class MyInvocationHandler implements InvocationHandler {

    private UserDao userDao;

    public MyInvocationHandler(UserDao userDao) {
        this.userDao = userDao;
    }

    public UserDao getProxy() {
        return (UserDao) Proxy.newProxyInstance(userDao.getClass().getClassLoader(),
                userDao.getClass().getInterfaces(), this);
    }

    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        System.out.println("before");
        Object invoke = method.invoke(userDao, args);
        System.out.println("after");
        return invoke;
    }
}

main方法

@RunWith(SpringRunner.class)
@SpringBootTest
@ComponentScan("com.example.demo")
public class DemoApplicationTests {


    @Test
    public static void main(String[] args) {
        AnnotationConfigApplicationContext annotationConfigApplicationContext = new AnnotationConfigApplicationContext(DemoApplicationTests.class);
//        UserDao dao = (UserDaoImpl) annotationConfigApplicationContext.getBean("dao");
//        dao.query();
        UserDao userDao = new UserDaoImpl();
        MyInvocationHandler handler = new MyInvocationHandler(userDao);
        UserDao proxy = handler.getProxy();
        proxy.query();
    }

}

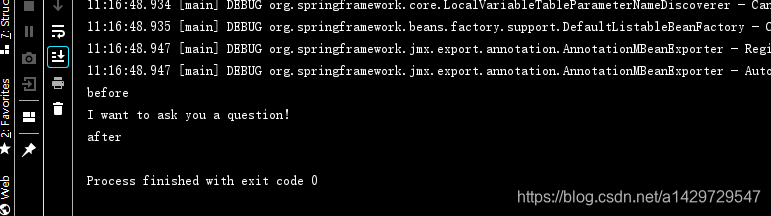

实现效果

Debug过程

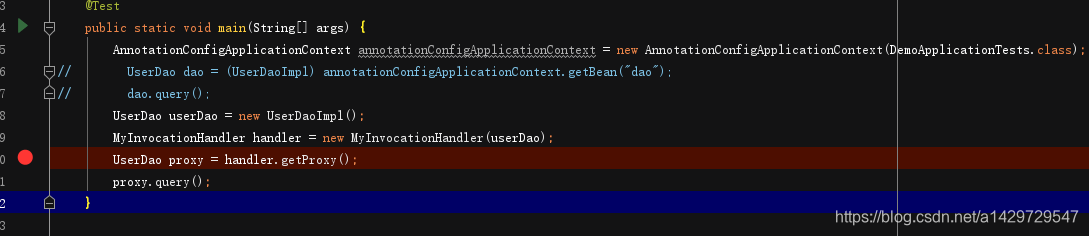

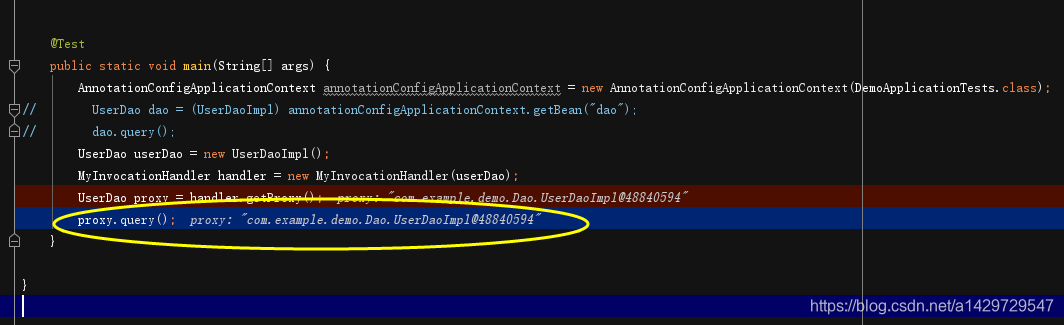

1. main方法打断点，进入

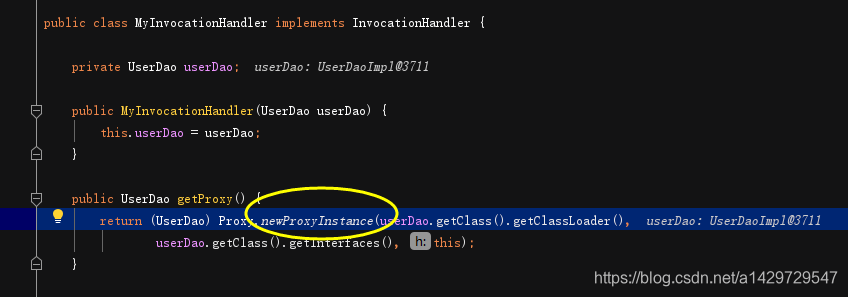

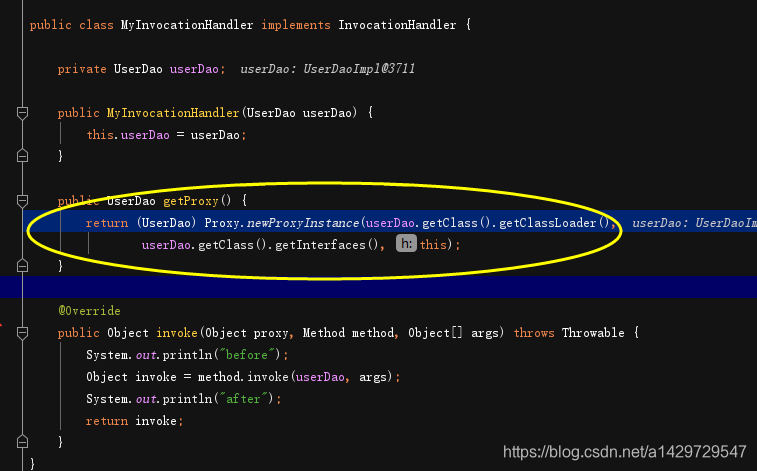

2. 在newProxyInstance方法内部打断点，并“F9”（跳到下一个断点）进入

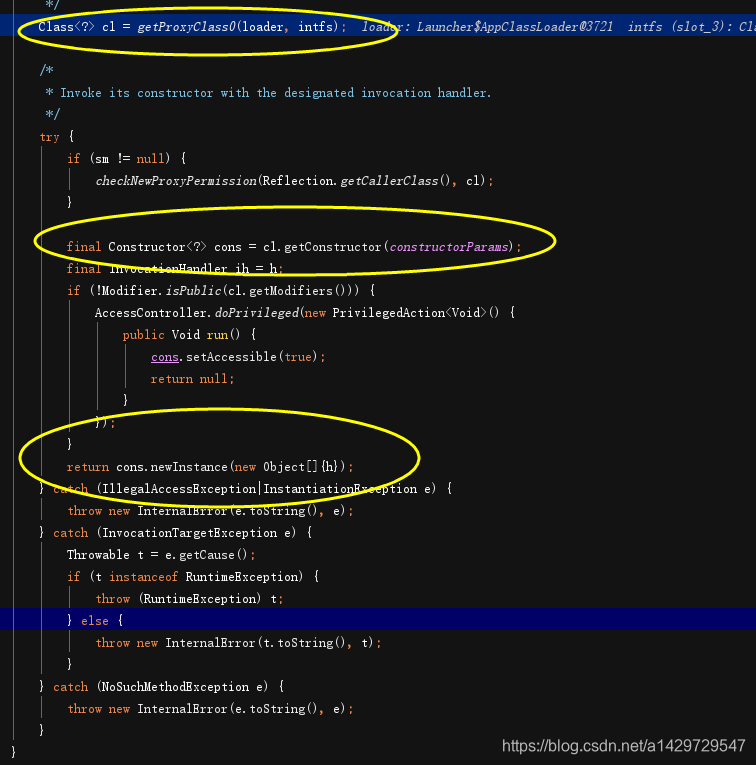

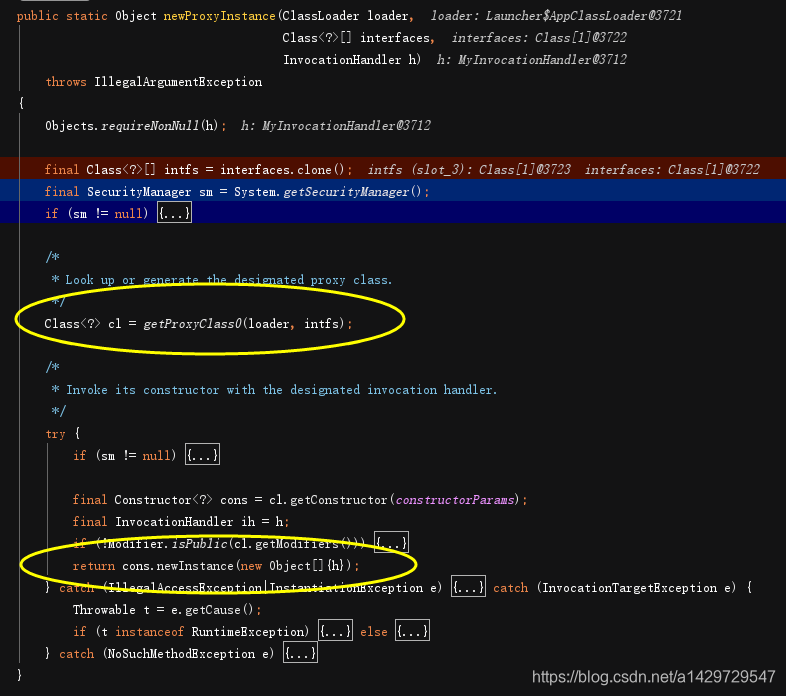

**3.newProxyInstance()方法 **
重点就是getProxyClass0()方法和newInstance()方法

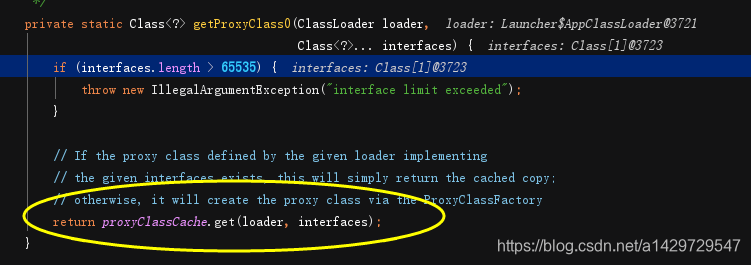

4. 进入getProxyClass0()方法

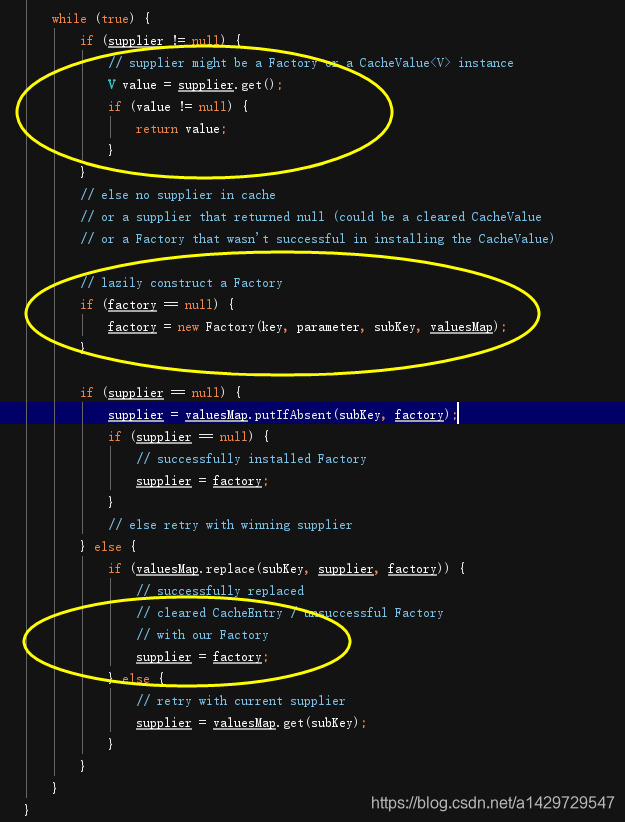

5. 进入proxyClassCache.get()方法

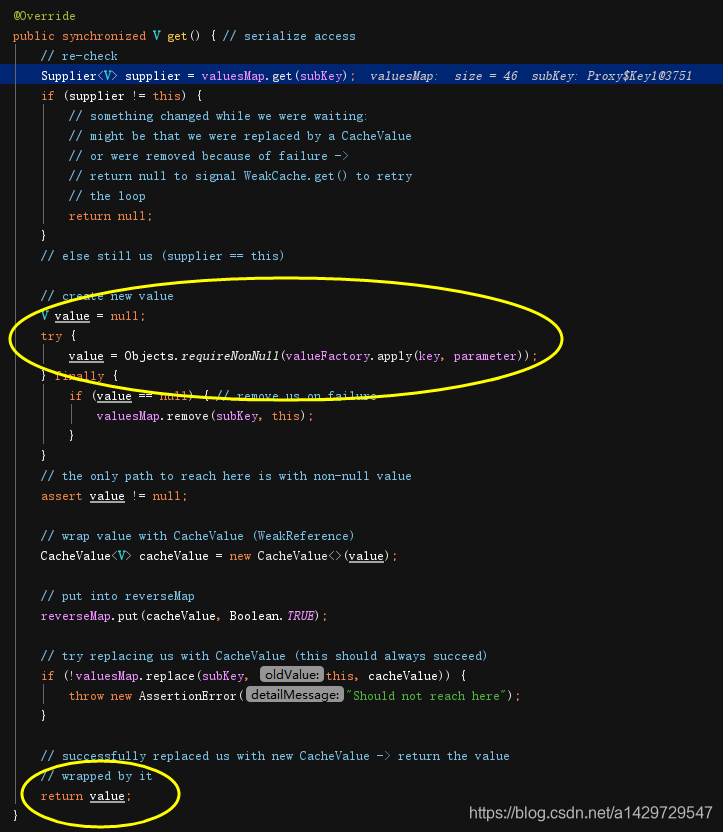

如果缓存中没有目标对象，则创建，并第二次循环时返回6. 进入supplier.get()方法
由返回值可知进入valueFactory.apply()方法
private final BiFunction<K, P, V> valueFactory;
7. 进入valueFactory.apply()方法
这就是重点方法了
大概的意思就是生成代理类的字节码文件，加载至内存。

public Class<?> apply(ClassLoader loader, Class<?>[] interfaces) {

    Map<Class<?>, Boolean> interfaceSet = new IdentityHashMap<>(interfaces.length);
    for (Class<?> intf : interfaces) {
        /*
         * Verify that the class loader resolves the name of this
         * interface to the same Class object.
         */
        Class<?> interfaceClass = null;
        try {
            interfaceClass = Class.forName(intf.getName(), false, loader);
        } catch (ClassNotFoundException e) {
        }
        if (interfaceClass != intf) {
            throw new IllegalArgumentException(
                intf + " is not visible from class loader");
        }
        /*
         * Verify that the Class object actually represents an
         * interface.
         */
        if (!interfaceClass.isInterface()) {
            throw new IllegalArgumentException(
                interfaceClass.getName() + " is not an interface");
        }
        /*
         * Verify that this interface is not a duplicate.
         */
        if (interfaceSet.put(interfaceClass, Boolean.TRUE) != null) {
            throw new IllegalArgumentException(
                "repeated interface: " + interfaceClass.getName());
        }
    }

    String proxyPkg = null;     // package to define proxy class in
    int accessFlags = Modifier.PUBLIC | Modifier.FINAL;

    /*
     * Record the package of a non-public proxy interface so that the
     * proxy class will be defined in the same package.  Verify that
     * all non-public proxy interfaces are in the same package.
     */
    for (Class<?> intf : interfaces) {
        int flags = intf.getModifiers();
        if (!Modifier.isPublic(flags)) {
            accessFlags = Modifier.FINAL;
            String name = intf.getName();
            int n = name.lastIndexOf('.');
            String pkg = ((n == -1) ? "" : name.substring(0, n + 1));
            if (proxyPkg == null) {
                proxyPkg = pkg;
            } else if (!pkg.equals(proxyPkg)) {
                throw new IllegalArgumentException(
                    "non-public interfaces from different packages");
            }
        }
    }

    if (proxyPkg == null) {
        // if no non-public proxy interfaces, use com.sun.proxy package
        proxyPkg = ReflectUtil.PROXY_PACKAGE + ".";
    }

    /*
     * Choose a name for the proxy class to generate.
     */
    long num = nextUniqueNumber.getAndIncrement();
    String proxyName = proxyPkg + proxyClassNamePrefix + num;

    /*
     * Generate the specified proxy class.
     */
    byte[] proxyClassFile = ProxyGenerator.generateProxyClass(
        proxyName, interfaces, accessFlags);
    try {
        return defineClass0(loader, proxyName,
                            proxyClassFile, 0, proxyClassFile.length);
    } catch (ClassFormatError e) {
        /*
         * A ClassFormatError here means that (barring bugs in the
         * proxy class generation code) there was some other
         * invalid aspect of the arguments supplied to the proxy
         * class creation (such as virtual machine limitations
         * exceeded).
         */
        throw new IllegalArgumentException(e.toString());
    }
}

8. 得到.class文件后，获得构造方法，执行newInstance()方法，生成代理对象，再返回

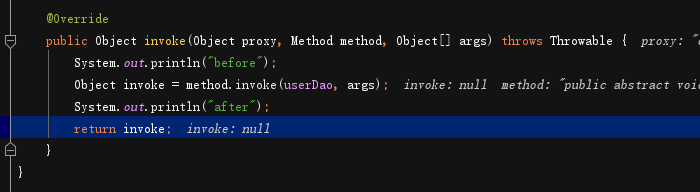

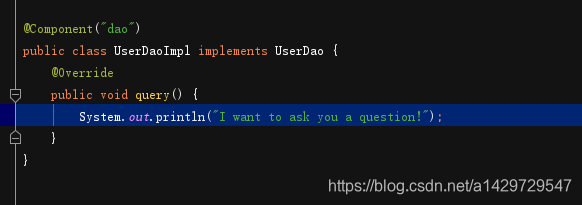

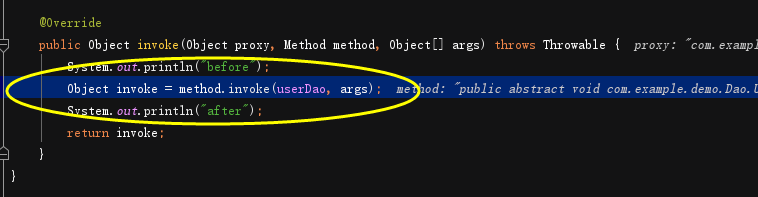

9. 执行代理对象的方法，途中会调用InvocationHandler的invoke()方法(即这里的UserDaoImpl的query()方法)




讲述完毕
