Android之SparseArray源码学习

SparseArray

sparseArray的主要作用是将Integers映射到Objects，相当于Map<Integer, Object>。当需要将Integers映射到Objects时,SparseArray比HashMap更高效。因为SparseArray避免自动装箱keys,并且它的数据结构不依赖于外部的Entry。 SparseArray是在一个数组结构中维护它的映射关系,通过二分查找来查找key。SparseArray不适合包含大量数据（数百以上）的场景,因为添加和删除一个元素时,需要先二分查找,找到key所对应的索引index,然后在数组中插入和删除一个value。

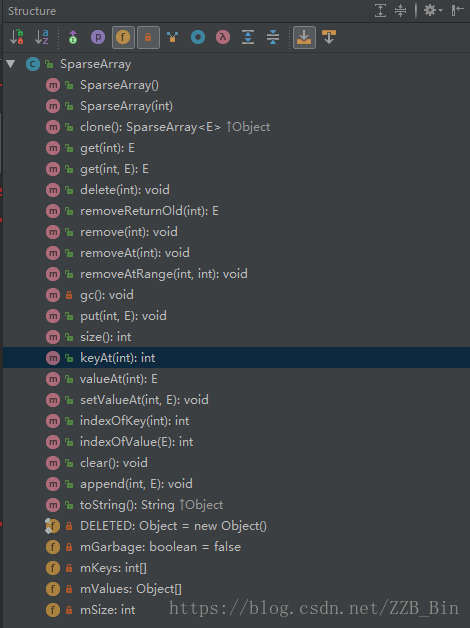

先看构造函数，然后直接看put()方法实现。

/**
 * SparseArrays map integers to Objects.  Unlike a normal array of Objects,
 * there can be gaps in the indices.  It is intended to be more memory efficient
 * than using a HashMap to map Integers to Objects, both because it avoids
 * auto-boxing keys and its data structure doesn't rely on an extra entry object
 * for each mapping.
 * SparseArray用于映射integers到object。但不像普通数组那样，它的元素间没有无用元素。由于采用避免自动装箱的keys和
 * 它的数据结构不依赖额外的对象（类似Entry）来存储映射关系的实现，因此它比hashMap的内存使用更高效一些。
 *
 * <p>Note that this container keeps its mappings in an array data structure,
 * using a binary search to find keys.  The implementation is not intended to be appropriate for
 * data structures
 * that may contain large numbers of items.  It is generally slower than a traditional
 * HashMap, since lookups require a binary search and adds and removes require inserting
 * and deleting entries in the array.  For containers holding up to hundreds of items,
 * the performance difference is not significant, less than 50%.</p>
 * SparseArray在查找keys的过程中采用了二分查找， 这种实现不适合数据量大的情况。由于查找时要用到二分查找，添加删除时
 * 涉及到数组其他元素的挪动，因此通常SparseArray会比hashMap慢。当处理上百的数据量，性能差异不超过50%。
 *
 * <p>To help with performance, the container includes an optimization when removing
 * keys: instead of compacting its array immediately, it leaves the removed entry marked
 * as deleted.  The entry can then be re-used for the same key, or compacted later in
 * a single garbage collection step of all removed entries.  This garbage collection will
 * need to be performed at any time the array needs to be grown or the the map size or
 * entry values are retrieved.</p>
 * 为了优化性能，SparseArray针对remove case作了优化，remove时它不是立即挤压数组空间，而是标记为delete。
 * 这个被标记的元素要么被重复利用，要么在多次remove之后通过一次gc操作中被挤压出去。
 * gc需要在下列情况之前被执行：数组要扩容；获取SparseArray容量；get values（更详细的见代码注释）；
 *
 * <p>It is possible to iterate over the items in this container using
 * {@link #keyAt(int)} and {@link #valueAt(int)}. Iterating over the keys using
 * <code>keyAt(int)</code> with ascending values of the index will return the
 * keys in ascending order, or the values corresponding to the keys in ascending
 * order in the case of <code>valueAt(int)</code>.</p>
 */
public class SparseArray<E> implements Cloneable {
    //用来标记values数组中被删除的位置
    private static final Object DELETED = new Object();
    //用来优化删除性能，标记是否需要垃圾回收GC
    private boolean mGarbage = false;

    //key数组
    private int[] mKeys;
     //存储value 的数组
    private Object[] mValues;
    //集合大小
    private int mSize;

    /**
     * Creates a new SparseArray containing no mappings.
     */
    public SparseArray() {
        //默认容量是10个元素
        this(10);
    }

    /**
     * Creates a new SparseArray containing no mappings that will not
     * require any additional memory allocation to store the specified
     * number of mappings.  If you supply an initial capacity of 0, the
     * sparse array will be initialized with a light-weight representation
     * not requiring any additional array allocations.
     */
    public SparseArray(int initialCapacity) {
        if (initialCapacity == 0) {
            //看EmptyArray的实现便知，mKeys的初值等于new int[0], 其他同理
            mKeys = EmptyArray.INT;
            mValues = EmptyArray.OBJECT;
        } else {
            //newUnpaddedObjectArray最后指向了VMRuntime的一个native方法,返回一个至少长initialCapacity的数组，
            mValues = ArrayUtils.newUnpaddedObjectArray(initialCapacity);
            //同时新建一个同样长度的key数组
            mKeys = new int[mValues.length];
        }
        mSize = 0;
    }
}

构造函数中的两个类EmptyArray 和ArrayUtils ，具体实现如下:

public final class EmptyArray {
    public static final int[] INT = new int[0];
    public static final Object[] OBJECT = new Object[0];
}

public class ArrayUtils {
    private static final int CACHE_SIZE = 73;
    private static Object[] sCache = new Object[CACHE_SIZE];

     public static Object[] newUnpaddedObjectArray(int minLen) {
        return (Object[])VMRuntime.getRuntime().newUnpaddedArray(Object.class, minLen);
    }
}

put

 /**
     * Adds a mapping from the specified key to the specified value,
     * replacing the previous mapping from the specified key if there
     * was one.
     * 添加一个指定key到指定object的映射，如果之前有一个指定key的映射则直接替换掉原映射object。注意gc。
     */
    public void put(int key, E value) {
        //先二分查找，确定插入位置，保证了key数组的有序性
        int i = ContainerHelpers.binarySearch(mKeys, mSize, key);

        if (i >= 0) {
            //如果返回的index是正数，说明之前这个key存在，直接覆盖value即可
            mValues[i] = value;
        } else {
            //若返回的i是负数，说明 key不存在.
            //根据返回值的正负，可以判断是否找到index。对负index取反，即可得到应该插入的位置。
            i = ~i;

            //若i在size范围内，且刚好对应位置标记为delete了，则复用这个空间
            if (i < mSize && mValues[i] == DELETED) {
                mKeys[i] = key;
                mValues[i] = value;
                return;
            }

            if (mGarbage && mSize >= mKeys.length) {
                gc();

                // Search again because indices may have changed.
                i = ~ContainerHelpers.binarySearch(mKeys, mSize, key);
            }

            mKeys = GrowingArrayUtils.insert(mKeys, mSize, i, key);
            mValues = GrowingArrayUtils.insert(mValues, mSize, i, value);
            mSize++;
        }
    }

/**
     * Puts a key/value pair into the array, optimizing for the case where
     * the key is greater than all existing keys in the array.
     */
    //往SparseArray加入键值对key/value
    public void append(int key, E value) {
        //若key小于等于已有的最大key，直接Put
        if (mSize != 0 && key <= mKeys[mSize - 1]) {
            put(key, value);
            return;
        }

        if (mGarbage && mSize >= mKeys.length) {
            gc();
        }
        //若key大于了现有的所有key，就不用走put的二分查找过程了，直接append
        mKeys = GrowingArrayUtils.append(mKeys, mSize, key);
        mValues = GrowingArrayUtils.append(mValues, mSize, value);
        mSize++;
    }

在put方法中，调用了二分查找，判断是否在数组中存在。当查找不到指定值时，返回的是lo的按位取反值，为负数。

    //二分查找
    static int binarySearch(int[] array, int size, int value) {
        int lo = 0;
        int hi = size - 1;

        while (lo <= hi) {
            //无符号右移运算，相当于除以2，左边补0
            final int mid = (lo + hi) >>> 1;
            final int midVal = array[mid];

            if (midVal < value) {
                lo = mid + 1;
            } else if (midVal > value) {
                hi = mid - 1;
            } else {
                return mid;  // value found
            }
        }
        //若没找到，则lo是value应该插入的位置，是一个正数。对这个正数去反，返回负数回去
        return ~lo;  // value not present
    }

GrowingArrayUtils工具类:

public static int[] insert(int[] array, int currentSize, int index, int element) {
        //断言 确认 当前集合长度 小于等于 array数组长度
        assert currentSize <= array.length;
        //如果不需要扩容
        if (currentSize + 1 <= array.length) {
            //将array数组内元素，从index开始 后移一位，保证从小到大排列
            System.arraycopy(array, index, array, index + 1, currentSize - index);
            //在index处赋值
            array[index] = element;
            //返回
            return array;
        }
        //需要扩容
        //构建新的数组
        int[] newArray = new int[growSize(currentSize)];
        //将原数组中index之前的数据复制到新数组中
        System.arraycopy(array, 0, newArray, 0, index);
        //在index处赋值
        newArray[index] = element;
        //将原数组中index及其之后的数据赋值到新数组中
        System.arraycopy(array, index, newArray, index + 1, array.length - index);
        //返回
        return newArray;
    }
    /**
    *根据现在的size 返回合适的扩容后的容量
    *扩容时，当前容量小于等于4，则扩容后容量为8.否则为当前容量的两倍。
    *和ArrayList,ArrayMap不同(扩容一半)，和Vector相同(扩容一倍)。
    *扩容操作依然是用数组的复制、覆盖完成。类似ArrayList.
    */
    public static int growSize(int currentSize) {
        //如果当前size 小于等于4，则返回8， 否则返回当前size的两倍
        return currentSize <= 4 ? 8 : currentSize * 2;
    }

    final class GrowingArrayUtils{
        //对现有数组的扩容
        public static int[] append(int[] array, int currentSize, int element) {
            assert currentSize <= array.length;

            if (currentSize + 1 > array.length) {
                int[] newArray = ArrayUtils.newUnpaddedIntArray(growSize(currentSize));
                System.arraycopy(array, 0, newArray, 0, currentSize);
                array = newArray;
            }
            array[currentSize] = element;
            return array;
    }

remove

    /**
     * Removes the mapping from the specified key, if there was any.
     */
    public void delete(int key) {
        //二分查找得到要删除的key所在index
        int i = ContainerHelpers.binarySearch(mKeys, mSize, key);
        //如果i>=0,表示存在,注意：这里delete只操作了values数组，并没有去操作key数组;
        if (i >= 0) {
            if (mValues[i] != DELETED) {
                mValues[i] = DELETED;
                mGarbage = true;//标记 可以GC
            }
        }
    }

    /**
     * @hide
     * Removes the mapping from the specified key, if there was any, returning the old value.
     * 带返回值的删除
     */
    public E removeReturnOld(int key) {
        int i = ContainerHelpers.binarySearch(mKeys, mSize, key);

        if (i >= 0) {
            if (mValues[i] != DELETED) {
                final E old = (E) mValues[i];
                mValues[i] = DELETED;
                mGarbage = true;
                return old;
            }
        }
        return null;
    }

    /**
     * Alias for {@link #delete(int)}.
     */
    public void remove(int key) {
        delete(key);
    }

    /**
     * Removes the mapping at the specified index.
     *
     * <p>For indices outside of the range <code>0...size()-1</code>,
     * the behavior is undefined.</p>
     * 根据index直接索引到对应位置 执行删除操作
     */
    public void removeAt(int index) {
        if (mValues[index] != DELETED) {
            mValues[index] = DELETED;
            mGarbage = true;
        }
    }

    /**
     * Remove a range of mappings as a batch.
     *
     * @param index Index to begin at
     * @param size Number of mappings to remove
     *
     * <p>For indices outside of the range <code>0...size()-1</code>,
     * the behavior is undefined.</p>
     */
    public void removeAtRange(int index, int size) {
        final int end = Math.min(mSize, index + size);
        for (int i = index; i < end; i++) {
            removeAt(i);
        }
    }

get

/**
     * Gets the Object mapped from the specified key, or <code>null</code>
     * if no such mapping has been made.
     */
    public E get(int key) {
        return get(key, null);
    }

    /**
     * Gets the Object mapped from the specified key, or the specified Object
     * if no such mapping has been made.
     */
    @SuppressWarnings("unchecked")
    public E get(int key, E valueIfKeyNotFound) {
        int i = ContainerHelpers.binarySearch(mKeys, mSize, key);
        // 如果没找到或者该value已经被标记删除,则返回默认值
        if (i < 0 || mValues[i] == DELETED) {
            return valueIfKeyNotFound;
        } else {
            return (E) mValues[i];
        }
    }

    //返回索引为index的mKeys值，注意gc。
    public int keyAt(int index) {
        if (mGarbage) {
            gc();
        }

        return mKeys[index];
    }

    @SuppressWarnings("unchecked")
    public E valueAt(int index) {
        if (mGarbage) {
            gc();
        }

        return (E) mValues[index];
    }

gc

    private void gc() {
        // Log.e("SparseArray", "gc start with " + mSize);

        int n = mSize;
        int o = 0;
        int[] keys = mKeys;
        Object[] values = mValues;

        for (int i = 0; i < n; i++) {
            Object val = values[i];

            if (val != DELETED) {
                if (i != o) {
                    keys[o] = keys[i];
                    values[o] = val;
                    values[i] = null;
                }

                o++;
            }
        }

        mGarbage = false;
        //得到最新的大小
        mSize = o;

        // Log.e("SparseArray", "gc end with " + mSize);
    }

总结

1.在remove和get操作时，是不会调用gc，这就是针对remove作了优化，将可能的多次gc操作变为一次完成。以下是会发生gc的操作。

2. 调用remove移除数据时，没有立即回收内存，会设置标志位mGarbage为true，而且将对应的value[index]=DELETED。表明value[]数组 是可以被复用和回收的，当有新数据put时，优先使用复用被设置成value[index]=DELETED的位置。多次remove仅多次设置了标志，在gc触发时，仅一次循环就压缩完空间。
3.gc操作，将无效的value值设置为null，将Key[]数组压缩，设置mSize变量为实际大小。
