Canal 数据同步(了解)

网关


API 网关介绍

API 网关出现的原因是微服务架构的出现,不同的微服务一般会有不同的网络地址,而外部客户端可能 需要调用多个服务的接口才能完成一个业务需求,如果让客户端直接与各个微服务通信,会有以下的问题:
(1)客户端会多次请求不同的微服务,增加了客户端的复杂性。
(2)存在跨域请求,在一定场景下处理相对复杂。
(3)认证复杂,每个服务都需要独立认证。
(4)难以重构,随着项目的迭代,可能需要重新划分微服务。例如,可能将多个服务合并成一个或者将 一个服务拆分成多个。如果客户端直接与微服务通信,那么重构将会很难实施。
(5)某些微服务可能使用了防火墙 / 浏览器不友好的协议,直接访问会有一定的困难。

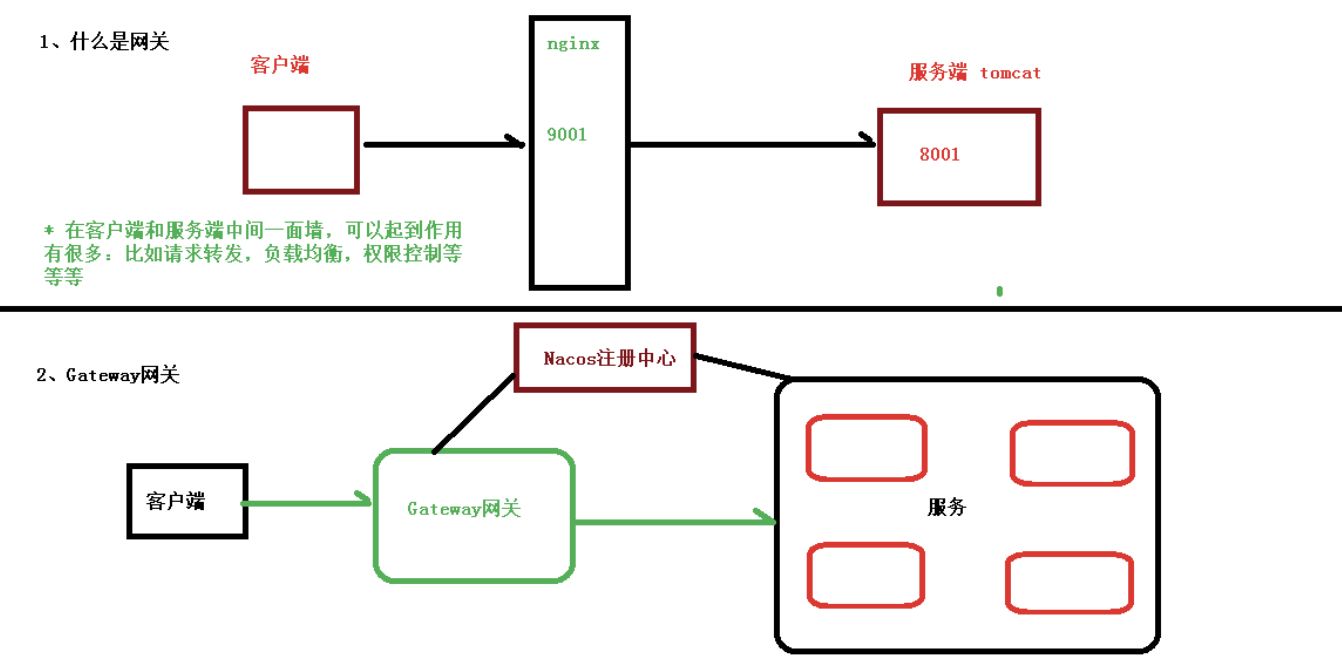

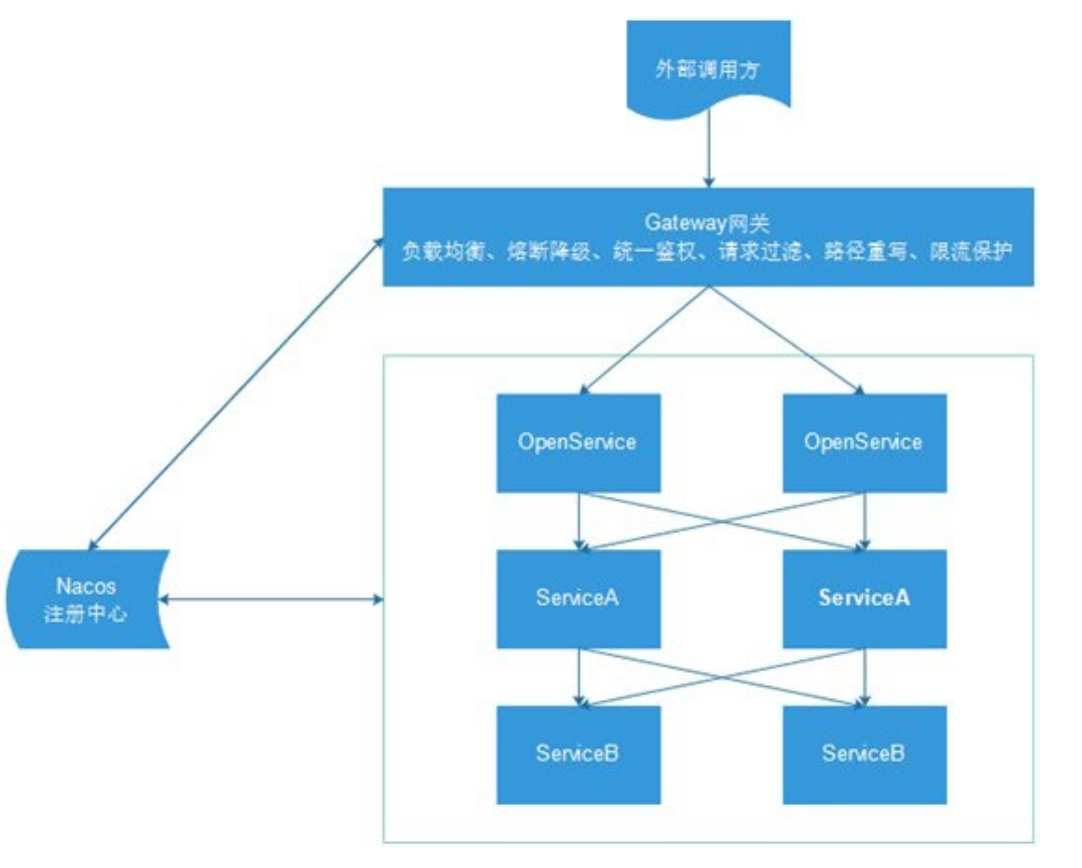

以上这些问题可以借助 API 网关解决。API 网关是介于客户端和服务器端之间的中间层,所有的外部请 求都会先经过 API 网关这一层。也就是说,API 的实现方面更多的考虑业务逻辑,而安全、性能、监控 可以交由 API 网关来做,这样既提高业务灵活性又不缺安全性。

Spring Cloud Gateway

Spring cloud gateway是spring官方基于Spring 5.0、Spring Boot2.0和Project Reactor等技术开发的 网关,Spring Cloud Gateway旨在为微服务架构提供简单、有效和统一的API路由管理方式,Spring Cloud Gateway作为Spring Cloud生态系统中的网关,目标是替代Netflix Zuul,其不仅提供统一的路由 方式,并且还基于Filer链的方式提供了网关基本的功能,例如:安全、监控/埋点、限流等。
网关提供API全托管服务,丰富的API管理功能,辅助企业管理大规模的API,以降低管理成本和安全风 险,包括协议适配、协议转发、安全策略、防刷、流量、监控日志等贡呢。一般来说网关对外暴露 的URL或者接口信息,我们统称为路由信息。如果研发过网关中间件或者使用过Zuul的人,会知道网关的 核心是Filter以及Filter Chain(Filter责任链)。Sprig Cloud Gateway也具有路由和Filter的概念。 下面介绍一下Spring Cloud Gateway中几个重要的概念。
(1)路由。路由是网关最基础的部分,路由信息有一个ID、一个目的URL、一组断言和一组Filter组 成。如果断言路由为真,则说明请求的URL和配置匹配
(2)断言。Java8中的断言函数。Spring Cloud Gateway中的断言函数输入类型是Spring5.0框架中 的ServerWebExchange。Spring Cloud Gateway中的断言函数允许开发者去定义匹配来自于http request中的任何信息,比如请求头和参数等。
(3)过滤器。一个标准的Spring webFilter。Spring cloud gateway中的filter分为两种类型 的Filter,分别是Gateway Filter和Global Filter。过滤器Filter将会对请求和响应进行修改处理

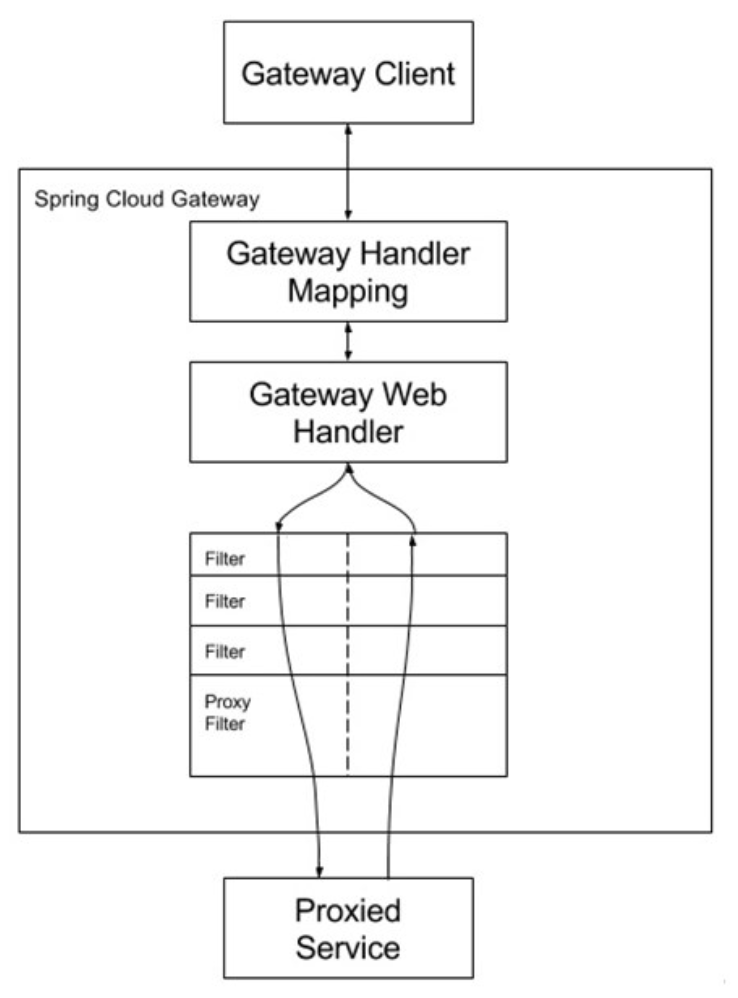

如上图所示,Spring cloud Gateway发出请求。然后再由Gateway Handler Mapping中找到与请求相匹配 的路由,将其发送到Gateway web handler。Handler再通过指定的过滤器链将请求发送到我们实际的服 务执行业务逻辑,然后返回。

创建模块(网关服务)

之后删除src文件,然后设置pom打包方式

引入依赖

<dependencies>
  <dependency>
    <groupId>org.jyunkai</groupId>
    <artifactId>common_utils</artifactId>
    <version>0.0.1-SNAPSHOT</version>
  </dependency>
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-gateway</artifactId>
  </dependency>
  <!--gson-->
  <dependency>
    <groupId>com.google.code.gson</groupId>
    <artifactId>gson</artifactId>
  </dependency>
  <!--服务调用-->
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
  </dependency>
</dependencies>

启动类

@SpringBootApplication
@EnableDiscoveryClient
public class ApiGatewayApplication {
    public static void main(String[] args) {
        SpringApplication.run(ApiGatewayApplication.class, args);
    }
}

配置文件

# 服务端口
server.port=8222
# 服务名
spring.application.name=service-gateway
# nacos服务地址
spring.cloud.nacos.discovery.server-addr=127.0.0.1:8848
#开启从注册中心动态创建路由的功能,利用微服务名进行路由
spring.cloud.gateway.discovery.locator.enabled=true

#设置路由id
spring.cloud.gateway.routes[0].id=service-acl
#设置路由的uri   lb://nacos注册服务名称
spring.cloud.gateway.routes[0].uri=lb://service-acl
#设置路由断言,代理servicerId为auth-service的/auth/路径
spring.cloud.gateway.routes[0].predicates=Path=/*/acl/**

#配置service-edu服务
spring.cloud.gateway.routes[1].id=service-edu
spring.cloud.gateway.routes[1].uri=lb://service-edu
spring.cloud.gateway.routes[1].predicates=Path=/eduservice/**

#配置service-edu服务
spring.cloud.gateway.routes[2].id=service-msm
spring.cloud.gateway.routes[2].uri=lb://service-msm
spring.cloud.gateway.routes[2].predicates=Path=/edumsm/**

基本配置

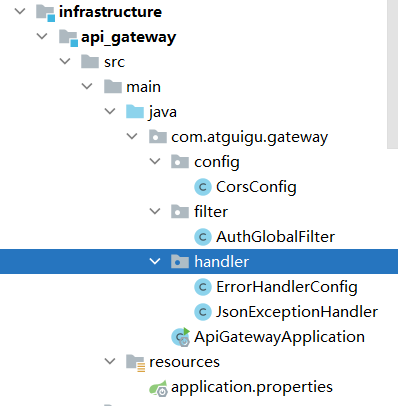

直接复制资料里面的三个包

config

⚠️注意:配置下面这个类以后,所有的 controller 上面不能再加 **@CrossOrigin** 注解

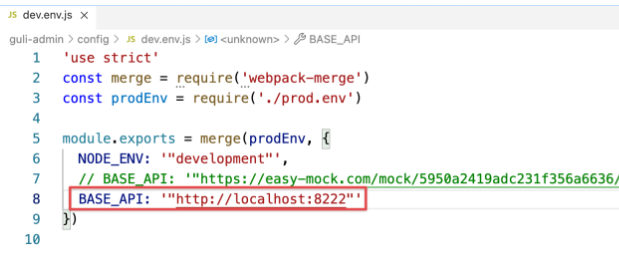

前端端口号也要从 9001 改为 8222!

/**
 * 处理跨域问题
 */
@Configuration
public class CorsConfig {
    @Bean
    public CorsWebFilter corsFilter() {
        CorsConfiguration config = new CorsConfiguration();
        config.addAllowedMethod("*");
        config.addAllowedOrigin("*");
        config.addAllowedHeader("*");

        UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource(new PathPatternParser());
        source.registerCorsConfiguration("/**", config);

        return new CorsWebFilter(source);
    }
}


filter

/**
 * 全局Filter,统一处理会员登录与外部不允许访问的服务
 */
@Component
public class AuthGlobalFilter implements GlobalFilter, Ordered {

    private AntPathMatcher antPathMatcher = new AntPathMatcher();

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        ServerHttpRequest request = exchange.getRequest();
        String path = request.getURI().getPath();
        //谷粒学院api接口,校验用户必须登录
        if(antPathMatcher.match("/api/**/auth/**", path)) {
            List<String> tokenList = request.getHeaders().get("token");
            if(null == tokenList) {
                ServerHttpResponse response = exchange.getResponse();
                return out(response);
            } else {
//                Boolean isCheck = JwtUtils.checkToken(tokenList.get(0));
//                if(!isCheck) {
                    ServerHttpResponse response = exchange.getResponse();
                    return out(response);
//                }
            }
        }
        //内部服务接口,不允许外部访问
        if(antPathMatcher.match("/**/inner/**", path)) {
            ServerHttpResponse response = exchange.getResponse();
            return out(response);
        }
        return chain.filter(exchange);
    }

    @Override
    public int getOrder() {
        return 0;
    }

    private Mono<Void> out(ServerHttpResponse response) {
        JsonObject message = new JsonObject();
        message.addProperty("success", false);
        message.addProperty("code", 28004);
        message.addProperty("data", "鉴权失败");
        byte[] bits = message.toString().getBytes(StandardCharsets.UTF_8);
        DataBuffer buffer = response.bufferFactory().wrap(bits);
        //response.setStatusCode(HttpStatus.UNAUTHORIZED);
        //指定编码,否则在浏览器中会中文乱码
        response.getHeaders().add("Content-Type", "application/json;charset=UTF-8");
        return response.writeWith(Mono.just(buffer));
    }
}

handler

ErrorHandlerConfig

/**
 * 覆盖默认的异常处理
 */
@Configuration
@EnableConfigurationProperties({ServerProperties.class, ResourceProperties.class})
public class ErrorHandlerConfig {

    private final ServerProperties serverProperties;

    private final ApplicationContext applicationContext;

    private final ResourceProperties resourceProperties;

    private final List<ViewResolver> viewResolvers;

    private final ServerCodecConfigurer serverCodecConfigurer;

    public ErrorHandlerConfig(ServerProperties serverProperties,
                                     ResourceProperties resourceProperties,
                                     ObjectProvider<List<ViewResolver>> viewResolversProvider,
                                        ServerCodecConfigurer serverCodecConfigurer,
                                     ApplicationContext applicationContext) {
        this.serverProperties = serverProperties;
        this.applicationContext = applicationContext;
        this.resourceProperties = resourceProperties;
        this.viewResolvers = viewResolversProvider.getIfAvailable(Collections::emptyList);
        this.serverCodecConfigurer = serverCodecConfigurer;
    }

    @Bean
    @Order(Ordered.HIGHEST_PRECEDENCE)
    public ErrorWebExceptionHandler errorWebExceptionHandler(ErrorAttributes errorAttributes) {
        JsonExceptionHandler exceptionHandler = new JsonExceptionHandler(
                errorAttributes,
                this.resourceProperties,
                this.serverProperties.getError(),
                this.applicationContext);
        exceptionHandler.setViewResolvers(this.viewResolvers);
        exceptionHandler.setMessageWriters(this.serverCodecConfigurer.getWriters());
        exceptionHandler.setMessageReaders(this.serverCodecConfigurer.getReaders());
        return exceptionHandler;
    }
}

JsonExceptionHandler

/**
 * 自定义异常处理
 */
public class JsonExceptionHandler extends DefaultErrorWebExceptionHandler {

    public JsonExceptionHandler(ErrorAttributes errorAttributes, ResourceProperties resourceProperties,
                                ErrorProperties errorProperties, ApplicationContext applicationContext) {
        super(errorAttributes, resourceProperties, errorProperties, applicationContext);
    }

    /**
     * 获取异常属性
     */
    @Override
    protected Map<String, Object> getErrorAttributes(ServerRequest request, boolean includeStackTrace) {
        Map<String, Object> map = new HashMap<>();
        map.put("success", false);
        map.put("code", 20005);
        map.put("message", "网关失败");
        map.put("data", null);
        return map;
    }

    /**
     * 指定响应处理方法为JSON处理的方法
     * @param errorAttributes
     */
    @Override
    protected RouterFunction<ServerResponse> getRoutingFunction(ErrorAttributes errorAttributes) {
        return RouterFunctions.route(RequestPredicates.all(), this::renderErrorResponse);
    }

    /**
     * 根据code获取对应的HttpStatus
     * @param errorAttributes
     */
    @Override
    protected int getHttpStatus(Map<String, Object> errorAttributes) {
        return 200;
    }
}
