一个简单的web项目,网站文章管理(一)

本文介绍了一个基于SpringMVC、MyBatis和MySQL的文章管理系统项目,实现了文章的审核、发布及权限控制功能,支持管理员和写手角色,详细描述了项目结构、技术栈及遇到的挑战。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

本人是自学Java的小菜鸟,前一段时间接了一个简单的项目,拿出来跟大家交流一下,也是我自己做个笔记回顾一下这次碰到的一些问题。自知还有很多问题没有发现,请大家多多指正,望大神轻喷。

主要的需求是:

一、实现对文章进行各种操作
  1. 所有文章分为三个状态:未审核(写手写作完成,提交管理员审核)、已审核未发布(管理员通过审核等待发布)、已发布(管理员确认文章无误,发布文章至网站前端展现);
  2. 当文章为未审核状态时,管理员账号具有:审核、编辑、删除权限;写手账号只有:编辑和删除权限;
  3. 当文章为已审核未发布状态时,只有管理员账号能查看,权限为:发布、编辑和删除;
  4. 当文章为已发布状态时,只有管理员账号能查看,权限为:下架、删除;
二、登录用户权限分离
  1. 除现有管理员之外,增加文章写手账号,且每个写手登录自己账后后只能看到自己所写未通过审核的文章;
  2. 管理员可以看到所有状态的文章(未审核、已审核未发布、已发布),同时要能统计已发布文章中各个写手的文章数量;

由于本项目为现有网站的附属项目,说明一下目前网站项目的情况:

一、 网站为php项目,本人完全不懂,所以部分功能只能通过一些笨办法解决,有一个问题到目前还未解决;
二、数据库的问题
  1. 现有储存文章数据的表为:article(不是真正表名),该表储存的文章会被直接展现至前端,所以为了实现审核、发布等功能,只能新增2张表article_1(已审核未发布)和article_2(未审核);
  2. 现有user表中只有id、name、pwd字段,所以添加一个mark字段用来管理账户权限;
  3. 在article表中增加字段"zuozhe"用于管理员账号查询和统计每个写手的文章数量,同时article_1和article_2表中也有此字段;

本项目中用到的技术有:

基本框架:springMVC+spring+mybatis(本次使用mybatis逆向工程生产bean、dao、mapper包下的类)
数据库:mysql5.6
前端框架:H-ui.admin3.0
服务器:tomcat8.0

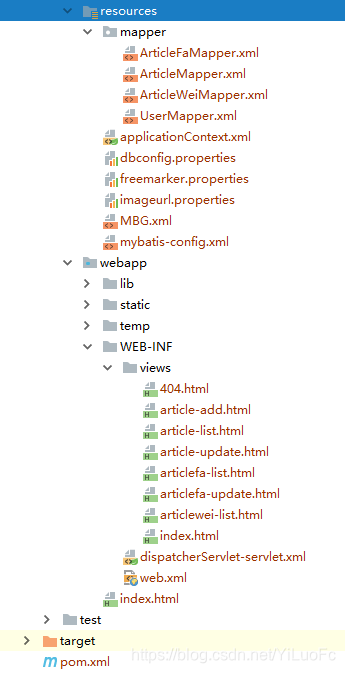

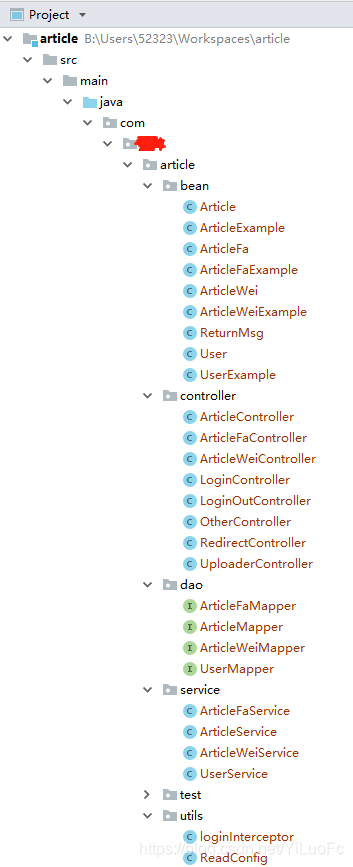

下面是本项目的所有目录结构

本项目的目录结构
在这里插入图片描述

然后是pom文件

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.xxxx</groupId>
  <artifactId>article</artifactId>
  <version>2.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>article Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
  </properties>

  <!-- 引入项目依赖的Jar包 -->
  <dependencies>
    <!-- springMVC和spring -->
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>4.3.7.RELEASE</version>
    </dependency>

    <!-- spring JDBC -->
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>4.3.7.RELEASE</version>
    </dependency>

    <!-- spring-test -->
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-test -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>4.3.7.RELEASE</version>
      <!-- <scope>test</scope> -->
    </dependency>

    <!-- spring aop -->
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-aspects -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>4.3.7.RELEASE</version>
    </dependency>

    <!-- mybatis -->
    <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.4.6</version>
    </dependency>

    <!-- mybatis整合spring适配包 -->
    <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.1</version>
    </dependency>

    <!-- mybatis逆向工程 -->
    <!-- https://mvnrepository.com/artifact/org.mybatis.generator/mybatis-generator-core -->
    <dependency>
      <groupId>org.mybatis.generator</groupId>
      <artifactId>mybatis-generator-core</artifactId>
      <version>1.3.5</version>
    </dependency>


    <!-- 数据库连接池和驱动 -->
    <!-- https://mvnrepository.com/artifact/com.mchange/c3p0 -->
    <dependency>
      <groupId>com.mchange</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.5.2</version>
    </dependency>


    <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.41</version>
    </dependency>

    <!-- jstl/servlet-api/junit -->
    <!-- https://mvnrepository.com/artifact/jstl/jstl -->
    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>

    <!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>3.0.1</version>
      <scope>provided</scope>
    </dependency>

    <!-- https://mvnrepository.com/artifact/junit/junit -->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
      <!-- <scope>test</scope> -->
    </dependency>

    <!-- 引入psgehelper分页插件 -->
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>5.0.0</version>
    </dependency>

    <!-- 返回数据转为json类型的支持 -->
    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.8.8</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-support</artifactId>
      <version>5.0.7.RELEASE</version>
    </dependency>

    <dependency>
      <groupId>org.freemarker</groupId>
      <artifactId>freemarker</artifactId>
      <version>2.3.28</version>
    </dependency>

    <!-- https://mvnrepository.com/artifact/commons-fileupload/commons-fileupload -->
    <dependency>
      <groupId>commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>1.3.1</version>
    </dependency>

  </dependencies>

  <build>
    <finalName>article</finalName>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
      </plugins>
    </pluginManagement>
  </build>
</project>

这次先写这么多,后续我慢慢更新,对了下面是最后的效果(涉及到版权的一些东西我做了马赛克处理请谅解)

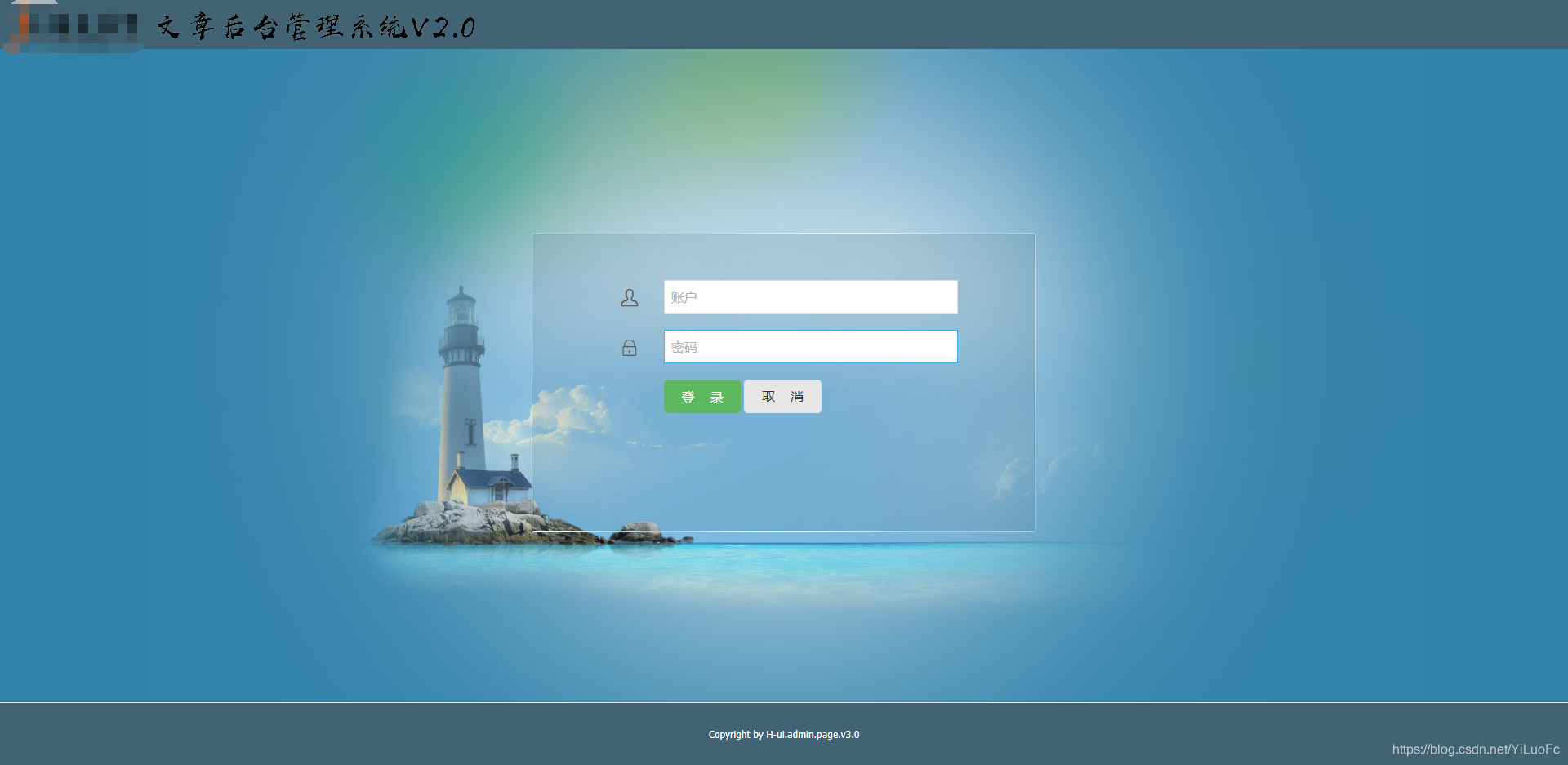

登录页面:

在这里插入图片描述

管理员页面:在这里插入图片描述

在这里插入图片描述
在这里插入图片描述

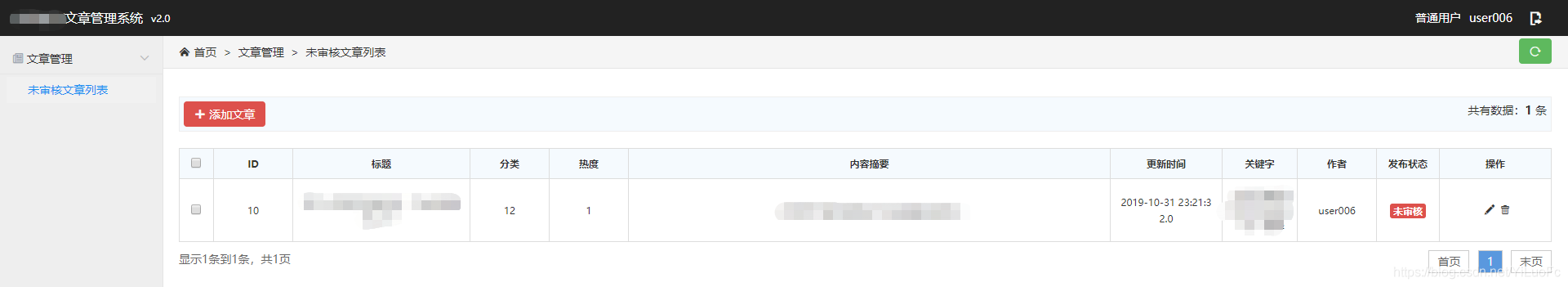

写手页面

在这里插入图片描述
