Spring Cloud 整合分布式事务Seata客户端启动过程源码分析

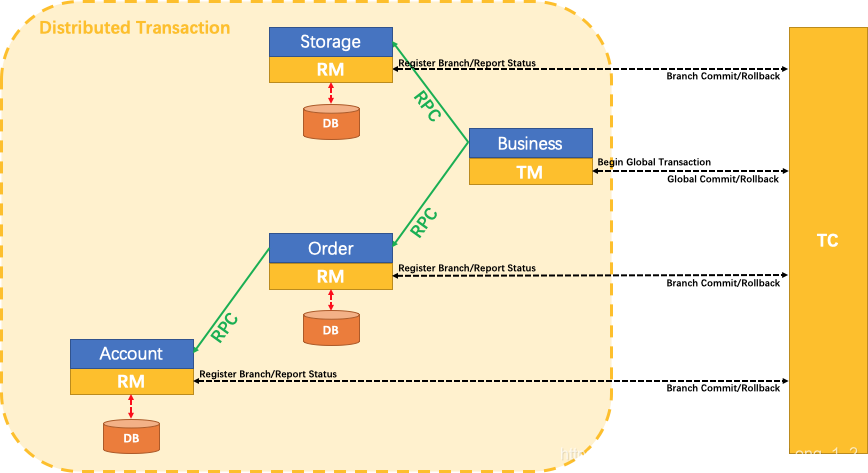

Seata的架构设计图如下

TC - 事务协调者(可以简单理解成一个Seata服务端)

维护全局和分支事务的状态，驱动全局事务提交或回滚。

TM（GlobalTransaction） - 事务管理器

定义全局事务的范围：开始全局事务、提交或回滚全局事务。

RM（ResourceManager） - 资源管理器

管理分支事务处理的资源，与TC交谈以注册分支事务和报告分支事务的状态，并驱动分支事务提交或回滚。

执行Seata服务端

具体IDEA启动可以参考之前

Spring cloud 整合分布式事务Seata客户端

Spring cloud 整合分布式事务Seata可以参考之前文章

@Configuration
public class DataSourceConfiguration {

    @Bean
    @ConfigurationProperties(prefix = "spring.datasource")
    public DataSource druidDataSource(){
        DruidDataSource druidDataSource = new DruidDataSource();
        return druidDataSource;
    }
    @Primary
    @Bean("dataSource")
    public DataSourceProxy dataSource(DataSource druidDataSource){
        return new DataSourceProxy(druidDataSource);
    }
    @Bean
    public SqlSessionFactory sqlSessionFactory(DataSourceProxy dataSourceProxy)throws Exception{
        SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
        sqlSessionFactoryBean.setDataSource(dataSourceProxy);
        sqlSessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver()
                .getResources("classpath*:/mapper/*.xml"));
        sqlSessionFactoryBean.setTransactionFactory(new SpringManagedTransactionFactory());
        return sqlSessionFactoryBean.getObject();
    }
}

DataSourceProxy这个类是Seata包下的数据源代理增强对象，在Spring Cloud启动过程当中是把这个对象放入到Spring容器当中

/**
 * The type Data source proxy.
 *  数据源代理对象,实现增加,可用于增加原Seata分布式事务功能
 * @author sharajava
 */
public class DataSourceProxy extends AbstractDataSourceProxy implements Resource {

    private String resourceGroupId;

    private static final String DEFAULT_RESOURCE_GROUP_ID = "DEFAULT";

    private String jdbcUrl;

    private String dbType;

    /**
     * Enable the table meta checker
     */
    private static boolean ENABLE_TABLE_META_CHECKER_ENABLE = ConfigurationFactory.getInstance().getBoolean(
        ConfigurationKeys.CLIENT_TABLE_META_CHECK_ENABLE, false);

    /**
     * Table meta checker interval
     */
    private static final long TABLE_META_CHECKER_INTERVAL = 60000L;

    private final ScheduledExecutorService tableMetaExcutor = new ScheduledThreadPoolExecutor(1,
        new NamedThreadFactory("tableMetaChecker", 1, true));

    /**
     * Instantiates a new Data source proxy.
     *  调用这个方法
     * @param targetDataSource the target data source
     */
    public DataSourceProxy(DataSource targetDataSource) {
        this(targetDataSource, DEFAULT_RESOURCE_GROUP_ID);
    }

    /**
     * Instantiates a new Data source proxy.
     *
     * @param targetDataSource the target data source
     * @param resourceGroupId  the resource group id
     */
    public DataSourceProxy(DataSource targetDataSource, String resourceGroupId) {
        super(targetDataSource);
        init(targetDataSource, resourceGroupId);
    }

    /**
     * RM的具体初始化访求，主要是这个方法
     * @param dataSource
     * @param resourceGroupId
     */
    private void init(DataSource dataSource, String resourceGroupId) {
        this.resourceGroupId = resourceGroupId;
        try (Connection connection = dataSource.getConnection()) {
            jdbcUrl = connection.getMetaData().getURL();
            dbType = JdbcUtils.getDbType(jdbcUrl, null);
        } catch (SQLException e) {
            throw new IllegalStateException("can not init dataSource", e);
        }
        //RM主要初始化方法，这里初始化三种RM对象
        DefaultResourceManager.get().registerResource(this);
        if (ENABLE_TABLE_META_CHECKER_ENABLE) {
            tableMetaExcutor.scheduleAtFixedRate(() -> {
                try (Connection connection = dataSource.getConnection()) {
                    TableMetaCacheFactory.getTableMetaCache(DataSourceProxy.this.getDbType())
                        .refresh(connection, DataSourceProxy.this.getResourceId());
                } catch (Exception e) {
                }
            }, 0, TABLE_META_CHECKER_INTERVAL, TimeUnit.MILLISECONDS);
        }
    }

    /**
     * Gets plain connection.
     *
     * @return the plain connection
     * @throws SQLException the sql exception
     */
    public Connection getPlainConnection() throws SQLException {
        return targetDataSource.getConnection();
    }

    /**
     * Gets db type.
     *
     * @return the db type
     */
    public String getDbType() {
        return dbType;
    }

    @Override
    public ConnectionProxy getConnection() throws SQLException {
        Connection targetConnection = targetDataSource.getConnection();
        return new ConnectionProxy(this, targetConnection);
    }

    @Override
    public ConnectionProxy getConnection(String username, String password) throws SQLException {
        Connection targetConnection = targetDataSource.getConnection(username, password);
        return new ConnectionProxy(this, targetConnection);
    }

    @Override
    public String getResourceGroupId() {
        return resourceGroupId;
    }

    @Override
    public String getResourceId() {
        if (jdbcUrl.contains("?")) {
            return jdbcUrl.substring(0, jdbcUrl.indexOf("?"));
        } else {
            return jdbcUrl;
        }
    }

    @Override
    public BranchType getBranchType() {
        return BranchType.AT;
    }
}

DefaultResourceManager 类封装了RM的核心业务逻辑代码，比如初始化三种类型 RM对象，向TC(Seata的服务端)发送相关的请求，如向AT发送注册RM请求、向AT报告RM的状态、向AT发送分支事务的提交请求、向AT发送分支事务的回滚请求等

/**
 * default resource manager, adapt all resource managers
 *  默认的RM
 * @author zhangsen
 */
public class DefaultResourceManager implements ResourceManager {

    /**
     * all resource managers
     */
    protected static Map<BranchType, ResourceManager> resourceManagers
        = new ConcurrentHashMap<>();

    /**
     * 初始化相关的分支事务
     */
    private DefaultResourceManager() {
        initResourceManagers();
    }

    /**
     * Get resource manager.
     *
     * @return the resource manager
     */
    public static DefaultResourceManager get() {
        return SingletonHolder.INSTANCE;
    }

    /**
     * only for mock
     *
     * @param branchType
     * @param rm
     */
    public static void mockResourceManager(BranchType branchType, ResourceManager rm) {
        //维护所有的RM资源
        resourceManagers.put(branchType, rm);
    }

    /**
     * 初始公相关的分支事务
     */
    protected void initResourceManagers() {
        //init all resource managers
        //初始化所有的RM管理器，通过报名加相关的文件前缀去读取这个文件的内容，最新去通过反射来实例化类，最后放入到容器在当中
        //有三个  一个DBRM 、TCCRM 、SaGaRM
        List<ResourceManager> allResourceManagers = EnhancedServiceLoader.loadAll(ResourceManager.class);
        if (CollectionUtils.isNotEmpty(allResourceManagers)) {
            for (ResourceManager rm : allResourceManagers) {
                resourceManagers.put(rm.getBranchType(), rm);
            }
        }
    }

    /**
     * RM分支事务提交方法
     * @param branchType      the branch type
     * @param xid             Transaction id.
     * @param branchId        Branch id.
     * @param resourceId      Resource id.
     * @param applicationData Application data bind with this branch.
     * @return
     * @throws TransactionException
     */
    @Override
    public BranchStatus branchCommit(BranchType branchType, String xid, long branchId,
                                     String resourceId, String applicationData)
        throws TransactionException {
        return getResourceManager(branchType).branchCommit(branchType, xid, branchId, resourceId, applicationData);
    }


    /**
     * 分支事务回滚方法
     * @param branchType      the branch type
     * @param xid             Transaction id.
     * @param branchId        Branch id.
     * @param resourceId      Resource id.
     * @param applicationData Application data bind with this branch.
     * @return
     * @throws TransactionException
     */
    @Override
    public BranchStatus branchRollback(BranchType branchType, String xid, long branchId,
                                       String resourceId, String applicationData)
        throws TransactionException {
        return getResourceManager(branchType).branchRollback(branchType, xid, branchId, resourceId, applicationData);
    }


    /**
     * 分支注册方法
     * @param branchType the branch type
     * @param resourceId the resource id
     * @param clientId   the client id
     * @param xid        the xid
     * @param applicationData the context
     * @param lockKeys   the lock keys
     * @return
     * @throws TransactionException
     */
    @Override
    public Long branchRegister(BranchType branchType, String resourceId,
                               String clientId, String xid, String applicationData, String lockKeys)
        throws TransactionException {
        return getResourceManager(branchType).branchRegister(branchType, resourceId, clientId, xid, applicationData,
            lockKeys);
    }

    /**
     * 分支心跳报告
     * @param branchType      the branch type
     * @param xid             the xid
     * @param branchId        the branch id
     * @param status          the status
     * @param applicationData the application data
     * @throws TransactionException
     */
    @Override
    public void branchReport(BranchType branchType, String xid, long branchId, BranchStatus status,
                             String applicationData) throws TransactionException {
        getResourceManager(branchType).branchReport(branchType, xid, branchId, status, applicationData);
    }

    @Override
    public boolean lockQuery(BranchType branchType, String resourceId,
                             String xid, String lockKeys) throws TransactionException {
        return getResourceManager(branchType).lockQuery(branchType, resourceId, xid, lockKeys);
    }

    @Override
    public void registerResource(Resource resource) {
        getResourceManager(resource.getBranchType()).registerResource(resource);
    }

    /**
     * 解除注册
     * @param resource The resource to be removed.
     */
    @Override
    public void unregisterResource(Resource resource) {
        getResourceManager(resource.getBranchType()).unregisterResource(resource);
    }

    @Override
    public Map<String, Resource> getManagedResources() {
        Map<String, Resource> allResource = new HashMap<>();
        for (ResourceManager rm : resourceManagers.values()) {
            Map<String, Resource> tempResources = rm.getManagedResources();
            if (tempResources != null) {
                allResource.putAll(tempResources);
            }
        }
        return allResource;
    }

    /**
     * get ResourceManager by Resource Type
     *
     * @param branchType
     * @return
     */
    public ResourceManager getResourceManager(BranchType branchType) {
        ResourceManager rm = resourceManagers.get(branchType);
        if (rm == null) {
            throw new FrameworkException("No ResourceManager for BranchType:" + branchType.name());
        }
        return rm;
    }

    @Override
    public BranchType getBranchType() {
        throw new FrameworkException("DefaultResourceManager isn't a real ResourceManager");
    }

    //数据源代理对象初始化的时候，会调用到这个方法
    private static class SingletonHolder {
        //会初始化三种RM 分别是
        /*
        AT –> DatasourceRourceManager
        TCC->TCCRourceManager
        SAGA->SagaResoutceMnager
        分别放入到resourceManagers容器当中
         */
        private static DefaultResourceManager INSTANCE = new DefaultResourceManager();
    }

}

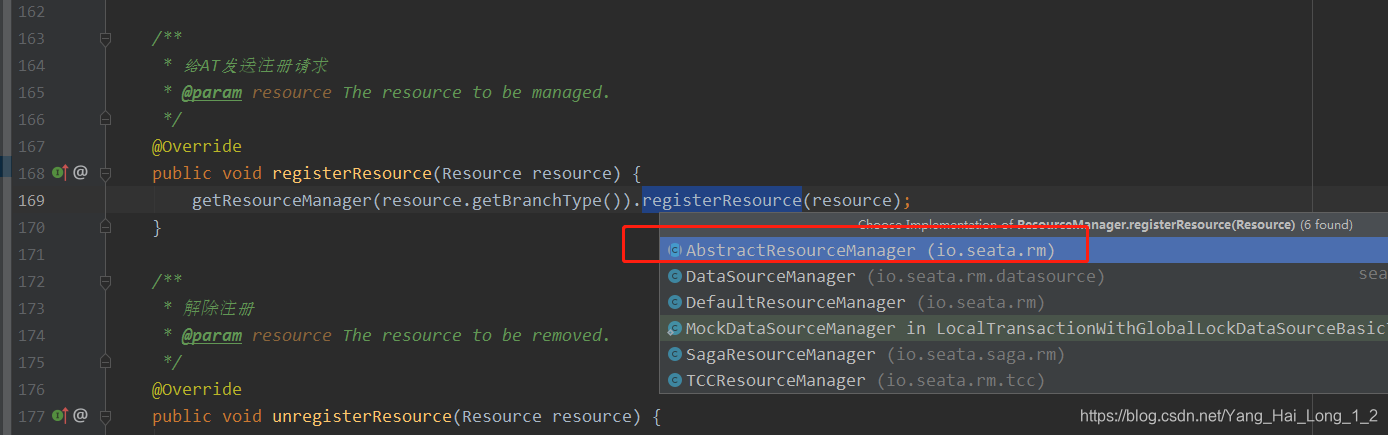

在DefaultResourceManager#registerResource方法当中调用了AbstractResourceManager类当中的方法

AbstractResourceManager类的内容如下，它的registerResource方法当中封装了向AT发送注册请求的具体代码

/**
 * abstract ResourceManager
 * 抽象的分支事务管理器 RM
 * @author zhangsen
 */
public abstract class AbstractResourceManager implements ResourceManager {

    protected static final Logger LOGGER = LoggerFactory.getLogger(AbstractResourceManager.class);

    /**
     * 注册分支信息
     * registry branch record
     * @param branchType the branch type
     * @param resourceId the resource id
     * @param clientId   the client id
     * @param xid        the xid
     * @param lockKeys   the lock keys
     * @return
     * @throws TransactionException
     */
    @Override
    public Long branchRegister(BranchType branchType, String resourceId, String clientId, String xid, String applicationData, String lockKeys) throws TransactionException {
        try {
            //封装RM注册请求实体类
            BranchRegisterRequest request = new BranchRegisterRequest();
            request.setXid(xid);
            request.setLockKey(lockKeys);
            request.setResourceId(resourceId);
            request.setBranchType(branchType);
            request.setApplicationData(applicationData);
            //向TC发送分支事务注册请求
            BranchRegisterResponse response = (BranchRegisterResponse) RmRpcClient.getInstance().sendMsgWithResponse(request);
            if (response.getResultCode() == ResultCode.Failed) {
                throw new RmTransactionException(response.getTransactionExceptionCode(), String.format("Response[ %s ]", response.getMsg()));
            }
            return response.getBranchId();
        } catch (TimeoutException toe) {
            throw new RmTransactionException(TransactionExceptionCode.IO, "RPC Timeout", toe);
        } catch (RuntimeException rex) {
            throw new RmTransactionException(TransactionExceptionCode.BranchRegisterFailed, "Runtime", rex);
        }
    }

    /**
     * 向Seata服务端 报告分支事务的状态
     * report branch status
     * @param branchType      the branch type
     * @param xid             the xid
     * @param branchId        the branch id
     * @param status          the status
     * @param applicationData the application data
     * @throws TransactionException
     */
    @Override
    public void branchReport(BranchType branchType, String xid, long branchId, BranchStatus status, String applicationData) throws TransactionException {
        try {
            //封装分支事务的状态请求实体
            BranchReportRequest request = new BranchReportRequest();
            request.setXid(xid);
            request.setBranchId(branchId);
            request.setStatus(status);
            request.setApplicationData(applicationData);

            //向TC发送分支事务状态请求
            BranchReportResponse response = (BranchReportResponse) RmRpcClient.getInstance().sendMsgWithResponse(request);
            if (response.getResultCode() == ResultCode.Failed) {
                throw new RmTransactionException(response.getTransactionExceptionCode(), String.format("Response[ %s ]", response.getMsg()));
            }
        } catch (TimeoutException toe) {
            throw new RmTransactionException(TransactionExceptionCode.IO, "RPC Timeout", toe);
        } catch (RuntimeException rex) {
            throw new RmTransactionException(TransactionExceptionCode.BranchReportFailed, "Runtime", rex);
        }
    }

    @Override
    public boolean lockQuery(BranchType branchType, String resourceId, String xid, String lockKeys) throws TransactionException {
        return false;
    }

    @Override
    public void unregisterResource(Resource resource) {
        throw new NotSupportYetException("unregister a resource");
    }

    /**
     * 向TC(Seata 服务端) 发送信息 注册RM
     * @param resource The resource to be managed.
     */
    @Override
    public void registerResource(Resource resource) {
        //Netty的客户端,发送请求
        //RmRpcClient.getInstance() 获取到Netty客户的 RmRpcClient
        RmRpcClient.getInstance().registerResource(resource.getResourceGroupId(), resource.getResourceId());
    }
}

RmRpcClient类的具体内容如下:
这个类主要是封装了和Netty Server（AT）端通信的相关的业务代码，这个类还不是最新的请求对象

/**
 * The type Rm rpc client.
 *  Netty客户端具体的实现实现类
 * @author slievrly
 * @author zhaojun
 */
@Sharable
public final class RmRpcClient extends AbstractRpcRemotingClient {

    private static final Logger LOGGER = LoggerFactory.getLogger(RmRpcClient.class);
    private ResourceManager resourceManager;
    //客户端实例
    private static volatile RmRpcClient instance;
    private final AtomicBoolean initialized = new AtomicBoolean(false);
    private static final long KEEP_ALIVE_TIME = Integer.MAX_VALUE;
    private static final int MAX_QUEUE_SIZE = 20000;
    private String applicationId;
    private String transactionServiceGroup;

    private RmRpcClient(NettyClientConfig nettyClientConfig, EventExecutorGroup eventExecutorGroup,
                        ThreadPoolExecutor messageExecutor) {
        super(nettyClientConfig, eventExecutorGroup, messageExecutor, TransactionRole.RMROLE);
    }

    /**
     * Gets instance.
     *
     * @param applicationId           the application id
     * @param transactionServiceGroup the transaction service group
     * @return the instance
     */
    public static RmRpcClient getInstance(String applicationId, String transactionServiceGroup) {
        RmRpcClient rmRpcClient = getInstance();
        rmRpcClient.setApplicationId(applicationId);
        rmRpcClient.setTransactionServiceGroup(transactionServiceGroup);
        return rmRpcClient;
    }

    /**
     * Gets instance.
     *  获取Netyy RPC客户端
     * @return the instance
     */
    public static RmRpcClient getInstance() {
        if (null == instance) {
            synchronized (RmRpcClient.class) {
                if (null == instance) {
                    NettyClientConfig nettyClientConfig = new NettyClientConfig();
                    final ThreadPoolExecutor messageExecutor = new ThreadPoolExecutor(
                        nettyClientConfig.getClientWorkerThreads(), nettyClientConfig.getClientWorkerThreads(),
                        KEEP_ALIVE_TIME, TimeUnit.SECONDS, new LinkedBlockingQueue<>(MAX_QUEUE_SIZE),
                        new NamedThreadFactory(nettyClientConfig.getRmDispatchThreadPrefix(),
                            nettyClientConfig.getClientWorkerThreads()), new ThreadPoolExecutor.CallerRunsPolicy());
                    instance = new RmRpcClient(nettyClientConfig, null, messageExecutor);
                }
            }
        }
        return instance;
    }

    /**
     * Sets application id.
     *
     * @param applicationId the application id
     */
    public void setApplicationId(String applicationId) {
        this.applicationId = applicationId;
    }

    /**
     * Sets transaction service group.
     *
     * @param transactionServiceGroup the transaction service group
     */
    public void setTransactionServiceGroup(String transactionServiceGroup) {
        this.transactionServiceGroup = transactionServiceGroup;
    }

    /**
     * Sets resource manager.
     *
     * @param resourceManager the resource manager
     */
    public void setResourceManager(ResourceManager resourceManager) {
        this.resourceManager = resourceManager;
    }

    /**
     * 这个方法在一启动的时候会调用到,可以查看Spring boot 客户端启动的控制台,有看到具体的启动过程,调用的方法
     * Netty客户初始化方法,启动Netty客户端,向Netty服务端(AT) 连接
     */
    @Override
    public void init() {
        if (initialized.compareAndSet(false, true)) {
            //
            super.init();
        }
    }

    @Override
    public void destroy() {
        super.destroy();
        initialized.getAndSet(false);
        instance = null;
    }

    @Override
    protected Function<String, NettyPoolKey> getPoolKeyFunction() {
        return (serverAddress) -> {
            String resourceIds = getMergedResourceKeys();
            if (null != resourceIds && LOGGER.isInfoEnabled()) {
                LOGGER.info("RM will register :{}", resourceIds);
            }
            RegisterRMRequest message = new RegisterRMRequest(applicationId, transactionServiceGroup);
            message.setResourceIds(resourceIds);
            return new NettyPoolKey(NettyPoolKey.TransactionRole.RMROLE, serverAddress, message);
        };
    }


    @Override
    protected String getTransactionServiceGroup() {
        return transactionServiceGroup;
    }


    /**
     * 注册成功的回调方法
     * @param serverAddress  the server address
     * @param channel        the channel
     * @param response       the response
     * @param requestMessage the request message
     */
    @Override
    public void onRegisterMsgSuccess(String serverAddress, Channel channel, Object response,
                                     AbstractMessage requestMessage) {
        if (LOGGER.isInfoEnabled()) {
            LOGGER.info("register RM success. server version:{},channel:{}", ((RegisterRMResponse)response).getVersion(), channel);
        }
        getClientChannelManager().registerChannel(serverAddress, channel);
        String dbKey = getMergedResourceKeys();
        RegisterRMRequest message = (RegisterRMRequest)requestMessage;
        if (message.getResourceIds() != null) {
            if (!message.getResourceIds().equals(dbKey)) {
                sendRegisterMessage(serverAddress, channel, dbKey);
            }
        }

    }

    /**
     * 注册失败的回调方法
     * @param serverAddress  the server address
     * @param channel        the channel
     * @param response       the response
     * @param requestMessage the request message
     */
    @Override
    public void onRegisterMsgFail(String serverAddress, Channel channel, Object response,
                                  AbstractMessage requestMessage) {

        if (response instanceof RegisterRMResponse && LOGGER.isInfoEnabled()) {
            LOGGER.info("register RM failed. server version:{}", ((RegisterRMResponse)response).getVersion());
        }
        throw new FrameworkException("register RM failed, channel:" + channel);
    }

    /**
     * Register new db key.
     *  注册请求
     * @param resourceGroupId the resource group id
     * @param resourceId      the db key
     */
    public void registerResource(String resourceGroupId, String resourceId) {
        if (getClientChannelManager().getChannels().isEmpty()) {
            //重新请求Seata服务端
            getClientChannelManager().reconnect(transactionServiceGroup);
            return;
        }
        synchronized (getClientChannelManager().getChannels()) {
            for (Map.Entry<String, Channel> entry : getClientChannelManager().getChannels().entrySet()) {
                String serverAddress = entry.getKey();
                Channel rmChannel = entry.getValue();
                if (LOGGER.isInfoEnabled()) {
                    LOGGER.info("will register resourceId:{}", resourceId);
                }
                //发送请求
                sendRegisterMessage(serverAddress, rmChannel, resourceId);
            }
        }
    }

    /**
     * 向AT发送注册消息
     * @param serverAddress
     * @param channel
     * @param resourceId
     */
    private void sendRegisterMessage(String serverAddress, Channel channel, String resourceId) {
        //注册消息请求封装对象
        RegisterRMRequest message = new RegisterRMRequest(applicationId, transactionServiceGroup);
        message.setResourceIds(resourceId);
        try {
            super.sendAsyncRequestWithoutResponse(channel, message);
        } catch (FrameworkException e) {
            if (e.getErrcode() == FrameworkErrorCode.ChannelIsNotWritable && serverAddress != null) {
                getClientChannelManager().releaseChannel(channel, serverAddress);
                if (LOGGER.isInfoEnabled()) {
                    LOGGER.info("remove not writable channel:{}", channel);
                }
            } else {
                LOGGER.error("register resource failed, channel:{},resourceId:{}", channel, resourceId, e);
            }
        } catch (TimeoutException e) {
            LOGGER.error(e.getMessage());
        }
    }

    private String getMergedResourceKeys() {
        Map<String, Resource> managedResources = resourceManager.getManagedResources();
        Set<String> resourceIds = managedResources.keySet();
        if (!resourceIds.isEmpty()) {
            StringBuilder sb = new StringBuilder();
            boolean first = true;
            for (String resourceId : resourceIds) {
                if (first) {
                    first = false;
                } else {
                    sb.append(DBKEYS_SPLIT_CHAR);
                }
                sb.append(resourceId);
            }
            return sb.toString();
        }
        return null;
    }
}
