封装一个可拖拽移动、可拖拽调整容器大小的组件

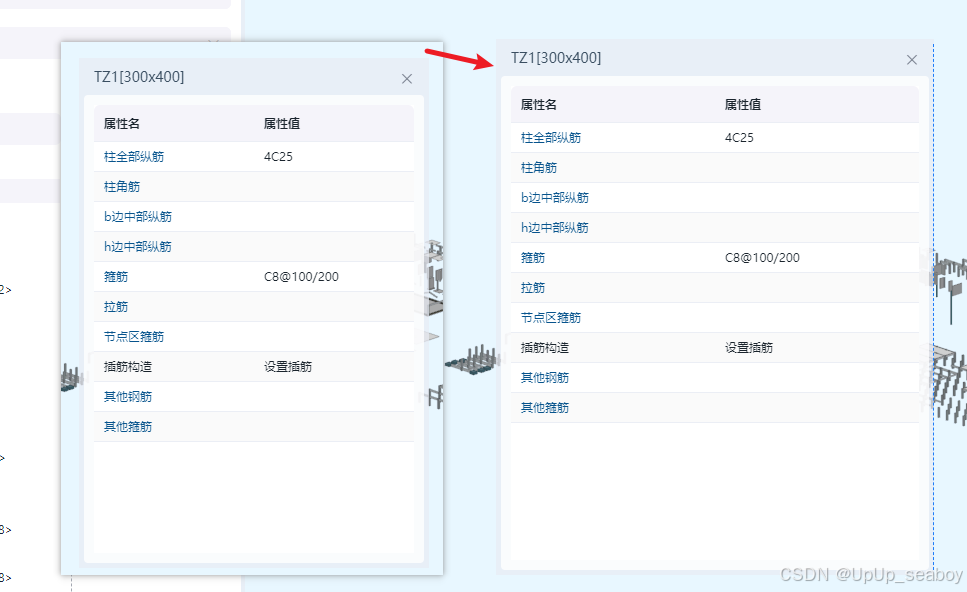

效果示例在这里插入图片描述

DragResizeContainer组件

<!--可拖拽移动、可通过拖拽调整容器大小的组件-->
<template>
    <div ref="dragBox" class="main" :style="{ zIndex: zIndex }" v-change-z-index>
        <div :ref="DARG_LINE.T_LINE" class="resize-y border-t"></div>
        <div class="g-flex">
            <div :ref="DARG_LINE.L_LINE" class="resize-x border-l"></div>
            <div ref="dragBoxContent" :style="{ width: width + 'px', height: height + 'px' }">
                <slot name="content"></slot>
            </div>
            <div :ref="DARG_LINE.R_LINE" class="resize-x border-r"></div>
        </div>
        <div :ref="DARG_LINE.B_LINE" class="resize-y border-b"></div>
        <div ref="resizeXYRef" class="resize-xy"></div>
    </div>
</template>
<script>
const DARG_LINE = {
    T_LINE: 'topLine',
    B_LINE: 'bottomLine',
    R_LINE: 'rightLine',
    L_LINE: 'leftLine',
}
export default {
    name: 'DragResizeContainer',
    props: {
        parentDom: {
            type: HTMLElement,
            default: null,
        }, //父节点
        positionConfig: {
            type: Object,
            default: () => {
                return {}
            },
        }, //默认定位配置
        zIndex: {
            type: String,
            default: '100',
        }, //容器层级
        height: {
            type: [String, Number],
            default: '0',
        }, //内容高度
        width: {
            type: [String, Number],
            default: '0',
        }, //内容宽度
        safeDistance: {
            type: Object,
            default: () => {
                return {
                    top: 0,
                    left: 0,
                    right: 0,
                    bottom: 0,
                }
            },
        }, //安全距离
        minHeight: {
            type: [String, Number],
            default: 10,
        }, //最小高度
        maxHeight: {
            type: [String, Number],
            default: 800,
        }, //最大高度
        minWidth: {
            type: [String, Number],
            default: 10,
        }, //最小宽度
        maxWidth: {
            type: [String, Number],
            default: 1200,
        }, //最大宽度
        canDrag: {
            type: Boolean,
            default: false,
        }, //是否支持拖拽
        horizontalMove: {
            type: Boolean,
            default: true,
        }, //是否支持横向拖拽
        verticalMove: {
            type: Boolean,
            default: true,
        }, //是否支持纵向拖拽
        leftLine: {
            type: Boolean,
            default: true,
        }, //是否支持左侧拖拽
        rightLine: {
            type: Boolean,
            default: true,
        }, //是否支持右侧拖拽
        topLine: {
            type: Boolean,
            default: true,
        }, //是否支持顶部拖拽
        bottomLine: {
            type: Boolean,
            default: true,
        }, //是否支持底部拖拽
        rightBottomLine: {
            type: Boolean,
            default: true,
        },//是否支持右下角拖拽
        disableUserSelect: {
            type: Boolean,
            default: true,
        }, //是否禁用用户选择文本
    },
    data() {
        return {
            DARG_LINE,
            startResize: false,
            RESIZE_LINE_ARR: [
                DARG_LINE.B_LINE,
                DARG_LINE.L_LINE,
                DARG_LINE.R_LINE,
                DARG_LINE.T_LINE,
            ],
            tempUserSelect: '',
        }
    },
    mounted() {
        this.$nextTick(() => {
            //如果通过:style 动态绑定到根元素上,发现通过js style.left修改样式不生效,这样写只在初始绑定一次
            Object.keys(this.positionConfig).forEach(key => {
                const dragBox = this.$refs.dragBox
                dragBox.style[key] = this.positionConfig[key]
            })
            this.resizeLineInit()
            this.resizeXYInit()
            this.dragInit()
            this.setZIndexTopFn(this.$refs.dragBox)
        })
    },
    methods: {
        /**
         * 修改弹窗层级
         * @param dom
         */
        setZIndexTopFn(dom) {
            if (dom) {
                this.$utils.setZIndexTop(dom)
            }
        },
        dragInit() {
            const parentDom = this.parentDom
            const dragBoxContent = this.$refs.dragBoxContent
            const dragBox = this.$refs.dragBox
            let startX, startY, initialLeft, initialTop
            dragBoxContent.addEventListener('mousedown', (event) => {
                if (!this.canDrag) return
                if (this.disableUserSelect) {
                    this.tempUserSelect = document.body.style.userSelect
                    document.body.style.userSelect = 'none'
                }
                startX = event.clientX
                startY = event.clientY
                const {left, top} = dragBoxContent.getBoundingClientRect()
                initialLeft = left
                initialTop = top
                document.addEventListener('mousemove', onMouseMove)
                document.addEventListener('mouseup', onMouseUp, {once: true})
            })
            const onMouseMove = (event) => {
                const offsetX = event.clientX - startX
                const offsetY = event.clientY - startY
                const newLeft = initialLeft + offsetX
                const newTop = initialTop + offsetY
                const newRight = newLeft + dragBox.getBoundingClientRect().width
                const newBottom = newTop + dragBox.getBoundingClientRect().height
                if (
                    newLeft >=
                    parentDom.getBoundingClientRect().left + (this.safeDistance.left || 0) &&
                    newRight <=
                    parentDom.getBoundingClientRect().right - (this.safeDistance.right || 0) &&
                    this.horizontalMove
                ) {
                    dragBox.style.left = `${newLeft - parentDom.getBoundingClientRect().left}px`
                }
                if (
                    newTop >=
                    parentDom.getBoundingClientRect().top + (this.safeDistance.top || 0) &&
                    newBottom <=
                    parentDom.getBoundingClientRect().bottom -
                    (this.safeDistance.bottom || 0) &&
                    this.verticalMove
                ) {
                    dragBox.style.top = `${newTop - parentDom.getBoundingClientRect().top}px`
                }
            }
            const onMouseUp = (_event) => {
                if (this.disableUserSelect) document.body.style.userSelect = this.tempUserSelect
                document.removeEventListener('mousemove', onMouseMove)
            }
        },
        /**
         * 右下角拖拽事件
         */
        resizeXYInit() {
            const dragXYRef = this.$refs.resizeXYRef
            const dragBox = this.$refs.dragBox
            let isResizing = false;
            let prevX = 0;
            let prevY = 0;
            let prevWidth = 0;
            let prevHeight = 0;
            dragXYRef.addEventListener('mousedown', (event) => {
                if (!this.rightBottomLine) return
                if (this.disableUserSelect) {
                    this.tempUserSelect = document.body.style.userSelect
                    document.body.style.userSelect = 'none'
                }
                isResizing = true
                prevX = event.clientX
                prevY = event.clientY
                prevWidth = dragBox.getBoundingClientRect().width
                prevHeight = dragBox.getBoundingClientRect().height
                document.addEventListener('mousemove', onMouseMoveXY)
                document.addEventListener('mouseup', onMouseUpXY, {once: true})
            })
            const onMouseMoveXY = (event) => {
                if (isResizing) {
                    const newWidth = prevWidth + (event.clientX - prevX)
                    const newHeight = prevHeight + (event.clientY - prevY)
                    const width = Math.max(this.minWidth, Math.min(this.maxWidth, newWidth))
                    const height = Math.max(this.minHeight, Math.min(this.maxHeight, newHeight))
                    requestAnimationFrame(() => {
                        this.$emit('update:width', width - 10)
                        this.$emit('update:height', height - 10)
                    })
                }
            }

            const onMouseUpXY = (event) => {
                isResizing = false
                if (this.disableUserSelect) document.body.style.userSelect = this.tempUserSelect
                document.removeEventListener('mousemove', onMouseMoveXY)
            }
        },

        resizeLineInit() {
            const dragBox = this.$refs.dragBox
            this.RESIZE_LINE_ARR.forEach((item) => {
                this.lineInit(this.$refs[item], dragBox, item)
            })
        },

        lineInit(line, dragBox, lineKey) {
            let width, height, left, top
            // 起始位置
            let startCoord = 0
            let isResizing = false
            // 父节点
            const parentDom = this.parentDom
            // 是否操作垂直方向
            const isVertical = [DARG_LINE.T_LINE, DARG_LINE.B_LINE].includes(lineKey)
            line.addEventListener('mousedown', (event) => {
                if (!this[lineKey]) return
                if (this.disableUserSelect) {
                    this.tempUserSelect = document.body.style.userSelect
                    document.body.style.userSelect = 'none'
                }
                isResizing = true
                width = dragBox.getBoundingClientRect().width
                height = dragBox.getBoundingClientRect().height
                if (lineKey === DARG_LINE.T_LINE) startCoord = event.clientY + height
                if (lineKey === DARG_LINE.B_LINE) startCoord = event.clientY - height
                if (lineKey === DARG_LINE.L_LINE) startCoord = event.clientX + width
                if (lineKey === DARG_LINE.R_LINE) startCoord = event.clientX - width
                left =
                    width +
                    dragBox.getBoundingClientRect().left -
                    parentDom.getBoundingClientRect().left
                top =
                    height +
                    dragBox.getBoundingClientRect().top -
                    parentDom.getBoundingClientRect().top
                document.addEventListener('mousemove', onMouseMove)
                document.addEventListener('mouseup', onMouseUp, {once: true})
            })

            const onMouseMove = (event) => {
                if (isResizing) {
                    let curSize
                    // 获取垂直方向或水平方向,最大最小值
                    const sizeLimit = isVertical
                        ? [this.minHeight, this.maxHeight]
                        : [this.minWidth, this.maxWidth]
                    if (lineKey === DARG_LINE.T_LINE) curSize = startCoord - event.clientY
                    if (lineKey === DARG_LINE.B_LINE) curSize = event.clientY - startCoord
                    if (lineKey === DARG_LINE.L_LINE) curSize = startCoord - event.clientX
                    if (lineKey === DARG_LINE.R_LINE) curSize = event.clientX - startCoord
                    if (
                        this.lineEdgeCheck({
                            curSize,
                            sizeLimit,
                            lineKey,
                            parentDom,
                            clientY: event.clientY,
                            clientX: event.clientX,
                        })
                    ) {
                        requestAnimationFrame(() => {
                            if (lineKey === DARG_LINE.R_LINE)
                                this.$emit('update:width', curSize - 10)
                            if (lineKey === DARG_LINE.B_LINE)
                                this.$emit('update:height', curSize - 10)
                            if (lineKey === DARG_LINE.T_LINE) {
                                dragBox.style.top = top - curSize + 'px' // 更新坐标
                                this.$emit('update:height', curSize - 10)
                            }
                            if (lineKey === DARG_LINE.L_LINE) {
                                dragBox.style.left = left - curSize + 'px' // 更新坐标
                                this.$emit('update:width', curSize - 10)
                            }
                        })
                    }
                }
            }

            const onMouseUp = () => {
                isResizing = false
                if (this.disableUserSelect) document.body.style.userSelect = this.tempUserSelect
                document.removeEventListener('mousemove', onMouseMove)
            }
        },

        lineEdgeCheck(obj) {
            // 判断是否超过边界
            let isEdge = false
            const parentDomPosition = obj.parentDom.getBoundingClientRect()
            if (obj.lineKey === DARG_LINE.T_LINE)
                isEdge = obj.clientY >= parentDomPosition.top + (this.safeDistance.top || 0)
            if (obj.lineKey === DARG_LINE.B_LINE)
                isEdge = obj.clientY <= parentDomPosition.bottom - (this.safeDistance.bottom || 0)
            if (obj.lineKey === DARG_LINE.L_LINE)
                isEdge = obj.clientX >= parentDomPosition.left + (this.safeDistance.left || 0)
            if (obj.lineKey === DARG_LINE.R_LINE)
                isEdge = obj.clientX <= parentDomPosition.right - (this.safeDistance.right || 0)
            // 判断是否在最大最小区间中
            const isInRange =
                (obj.sizeLimit[0] ? obj.curSize > obj.sizeLimit[0] : true) &&
                (obj.sizeLimit[1] ? obj.curSize < obj.sizeLimit[1] : true)
            return isInRange && isEdge
        },
    },
}
</script>

<style scoped lang="scss">
$hoverColor: #1d7dfa;
@mixin hoverBorder($property, $direction) {
    &.border#{$direction} {
        &:hover {
            border-#{$property}: 1px dashed $hoverColor;
        }
    }
}

.main {
    position: absolute;
    width: fit-content;
    height: fit-content;

    .g-flex {
        display: flex;
    }

    .resize-xy {
        position: absolute;
        right: 0;
        bottom: 0;
        z-index: 9;
        width: 5px;
        height: 5px;
        cursor: se-resize; //光标样式为东南角调整大小
    }
}

.border-t {
    @include hoverBorder(top, -t);
}

.border-b {
    @include hoverBorder(bottom, -b);
}

.border-l {
    @include hoverBorder(left, -l);
}

.border-r {
    @include hoverBorder(right, -r);
}

.resize-x {
    width: 5px;
    cursor: e-resize;
}

.resize-y {
    height: 5px;
    cursor: s-resize;
}
</style>

使用示例

            <!--            竖表相关-->
            <drag-resize-container
                v-if="pillarDialogConfig.visible"
                :parent-dom="dragParentDom"
                :position-config="{left:'410px',top:0}"
                style="background-color: rgba(232, 235, 244, 0.7);"
                :max-width="900"
                :min-height="300"
                :width.sync="pillarDialogConfig.width"
                :height.sync="pillarDialogConfig.height">
                <template #content>
                    <PillarTable
                        :pillarRebarData="pillarRebarData"
                        :pillarRebarLoading="pillarRebarLoading"
                        :pillarTableTips="pillarTableTips"
                        :pillarTitle="pillarTitle"
                        @editPillarTableValue="editPillarTableValue"
                        @closePillarTable="pillarDialogConfig.visible = false"
                    ></PillarTable>
                </template>
            </drag-resize-container>
