https://gitee.com/hffs/poi-tl
官网:http://deepoove.com/poi-tl/
依赖
poi-tl需要poi版本高于4.1.1,但是poi版本4.1.1没有XWPFTemplate,所以这里用的poi版本是4.1.2
poi-tl版本1.0.0 不能new PictureRenderData获取图片,所以这里用的1.8.2
<!-- excel工具 -->
<poi.version>4.1.2</poi.version>
<poi-tl.version>1.8.2</poi-tl.version>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml</artifactId>
<version>${poi.version}</version>
</dependency>
<!-- world工具 -->
<dependency>
<groupId>com.deepoove</groupId>
<artifactId>poi-tl</artifactId>
<version>${poi-tl.version}</version>
</dependency>
FileUtil
public class FileUtil {
/**
* 下载文件到浏览器
* @param request
* @param response
* @param filename 要下载的文件名
* @param file 需要下载的文件对象
* @throws IOException
*/
public static void downFile(HttpServletRequest request, HttpServletResponse response, String filename, File file) throws IOException {
// 文件存在才下载
if (file.exists()) {
OutputStream out = null;
FileInputStream in = null;
try {
// 1.读取要下载的内容
in = new FileInputStream(file);
// 2. 告诉浏览器下载的方式以及一些设置
// 解决文件名乱码问题,获取浏览器类型,转换对应文件名编码格式,IE要求文件名必须是utf-8, firefo要求是iso-8859-1编码
String agent = request.getHeader("user-agent");
if (agent.contains("FireFox")) {
filename = new String(filename.getBytes("UTF-8"), "iso-8859-1");
} else {
filename = URLEncoder.encode(filename, "UTF-8");
}
// 设置下载文件的mineType,告诉浏览器下载文件类型
String mineType = request.getServletContext().getMimeType(filename);
response.setContentType(mineType);
// 设置一个响应头,无论是否被浏览器解析,都下载
response.setHeader("Content-disposition", "attachment; filename=" + filename);
// 将要下载的文件内容通过输出流写到浏览器
out = response.getOutputStream();
int len = 0;
byte[] buffer = new byte[1024];
while ((len = in.read(buffer)) > 0) {
out.write(buffer, 0, len);
}
} catch (IOException e) {
e.printStackTrace();
} finally {
if (out != null) {
out.close();
}
if (in != null) {
in.close();
}
}
}
}
/**
* 递归删除目录下的所有文件及子目录下所有文件
*
* @param filePath 将要删除的文件目录路径
* @return boolean Returns "true" if all deletions were successful.
* If a deletion fails, the method stops attempting to
* delete and returns "false".
*/
public static boolean deleteDir(String filePath) {
File dir = new File(filePath);
if (dir.isDirectory()) {
String[] children = dir.list();
//递归删除目录中的子目录下
for (int i = 0; i < children.length; i++) {
boolean success = deleteDir(filePath + File.separator + children[i]);
if (!success) {
return false;
}
}
}
// 目录此时为空,可以删除
return dir.delete();
}
}
测试

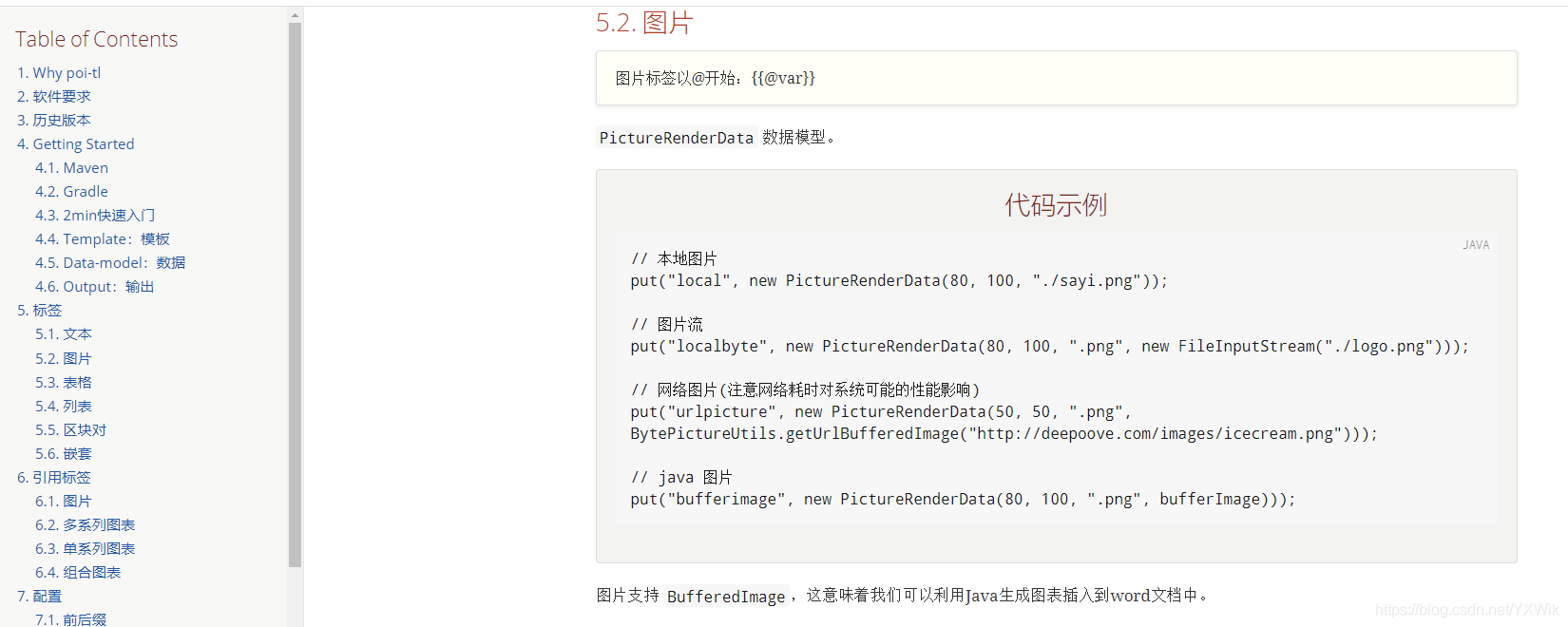

图片格式(最上面官网中)如下:

Map<String, Object> data = new HashMap<String, Object>();
// 安检人员
data.put("execUser", "值");
// 安检结果
data.put("status", "值");
// gasStoveUrl 为图片的地址
data.put("gasStoveUrl", new PictureRenderData(125, 125, ".png", BytePictureUtils.getUrlBufferedImage(gasStoveUrl)))
// 其他属性代码都省略
// 写入word输出
try {
//模板位置
ClassPathResource template = new ClassPathResource("模板文件.docx");
String filePath = template.getFile().getPath();
XWPFTemplate xwpfTemplate = XWPFTemplate.compile(filePath)
.render(data);
//文件名
String docName = DateUtil.DateToString(new Date(), DateStyle.YYYYMMDDHHMMSS) + ".docx"; File targetFile = new File(docName);
FileOutputStream out = new FileOutputStream(targetFile);
xwpfTemplate.write(out);
out.flush();
out.close();
xwpfTemplate.close();
// 下载输出到浏览器
FileUtil.downFile(request,response,docName,targetFile);
FileUtil.deleteDir(targetFile.getPath());
} catch (Exception e) {
log.info("文件生成失败:"+e.getMessage());
throw new DataNotFoundException("文件生成失败:"+e.getMessage());
}
以上在本地没问题,打成jar包在服务器上就找不到模板
本来以为是路径的问题,但是测试后发现绝对路径和相对路径都访问不到模板
原来是使用ClassPathResource获取classpath下文件失败了
返回的是一个Jar协议地址:jar:file:/xxx/xx.jar!/xxxx。
参考自:https://www.renfei.net/posts/1003293

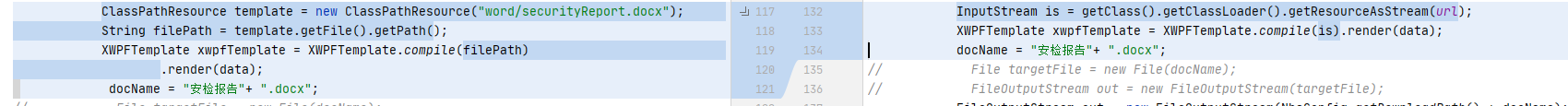

解决方案如下图
昨边为之前的只能在本地的
右边为更改后

InputStream is = getClass().getClassLoader().getResourceAsStream(url);
XWPFTemplate xwpfTemplate = XWPFTemplate.compile(is).render(data);
博客介绍了poi-tl的官网及依赖版本,指出poi需高于4.1.1,这里用4.1.2,poi-tl用1.8.2。还提到图片格式,重点说明在本地使用正常,但打成jar包在服务器上找不到模板,原因是使用ClassPathResource获取classpath下文件失败,最后给出解决方案。
