C++ pointer-like class

本文介绍C++2.0之前的智能指针auto_ptr,并通过代码示例展示了shared_ptr的实现方式及其如何使用。同时探讨了迭代器作为智能指针的一种形式。

C++2.0之前,有个智能指针叫auto_ptr

->符号作用下去之后,会一直作用下去。

sp->已经作用完了,还能px->吗? 可以的,会一直作用下去,这样子这个设计才有意义。

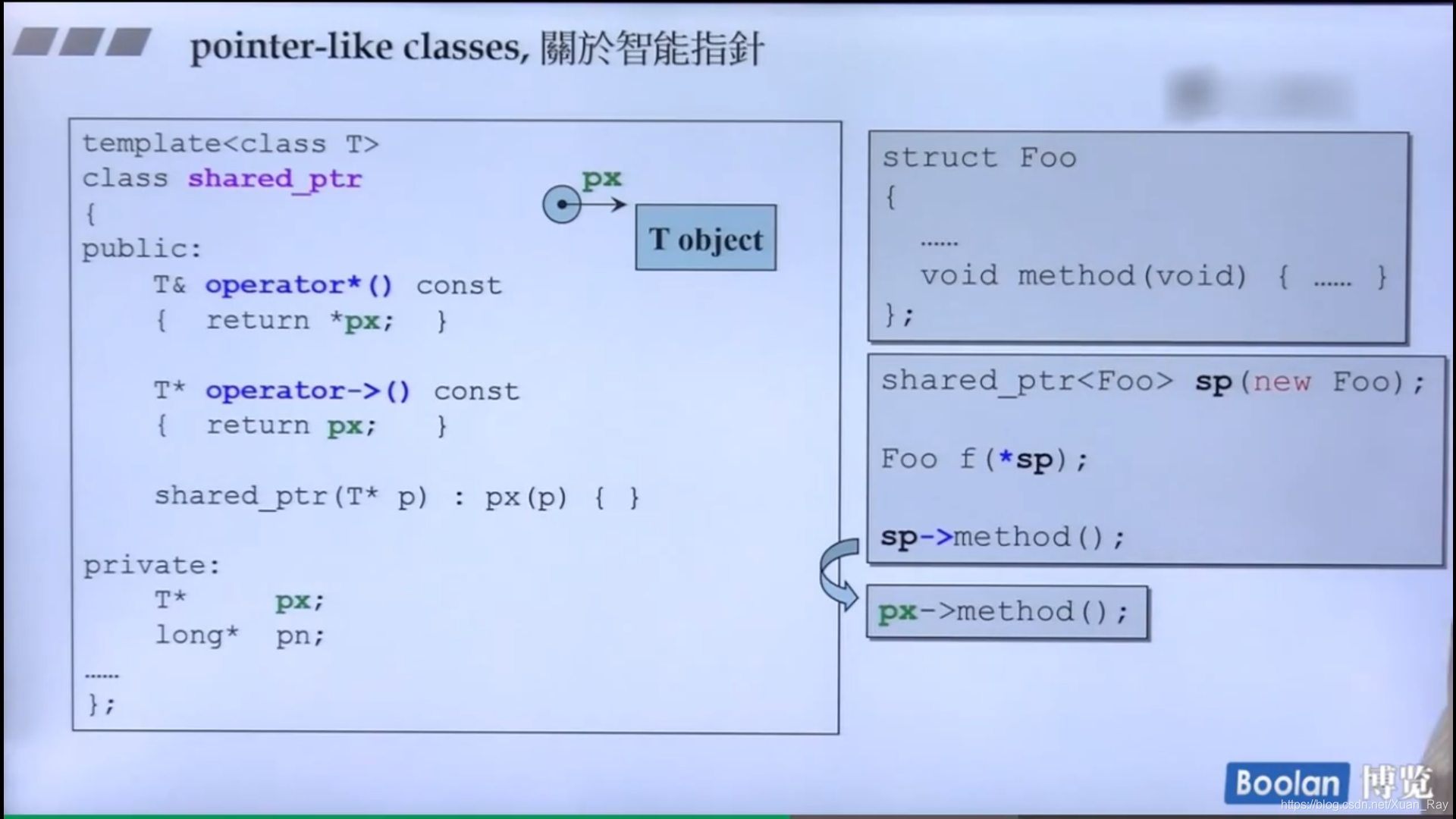

pic
代码:

template<typename T>
class shared_ptr {
public:
	shared_ptr(T* p) : px(p) {}

	// 智能指针一定是这种写法,重载 * 和 ->
	T& operator*() const{
		return *px;
	}

	T* operator->() const{
		return px;
	}

private:
	T* px;
};

struct Foo {
	void method() {
		cout << "This is a test." << "\n";
	}
};

int main(int argc, char** argv) {
	shared_ptr<Foo> sp(new Foo);
	sp->method();

	system("pause");
	return 0;
}

智能指针 C++11 以后有几种,具体需要去查,并且具体用法需要去了解,同时需要去看源码。

迭代器

迭代器也是指针的包装,也可认为是一种智能指针。
