IPQ9574 and IPQ9570 facilitate the implementation of WiFi 7 applications

As Wi-Fi 7 technology continues to evolve, selecting the right platform becomes a key decision for device manufacturers and solution integrators. Among Qualcomm’s flagship Wi-Fi 7 SoCs, the IPQ9574 and IPQ9570 stand out with similar architectures but serve slightly different application needs. This article provides a detailed overview of both chips to help guide optimal product planning and development.

---

✅ 1. Positioning and Target Applications

Chip Model	Positioning	Typical Use Cases
IPQ9574	Enterprise / Carrier Grade	Tri-band routers, Wi-Fi mesh, 5G CPE, wireless backhaul
IPQ9570	Commercial / Mid-High End	Dual-band home routers, enterprise APs, IoT gateways

• IPQ9574 supports full tri-band (2.4G / 5G / 6G) operations, ideal for high-performance wireless networking such as mesh or CPEs with backhaul.
• IPQ9570 focuses on dual-band support, offering cost-effective Wi-Fi 7 solutions for commercial and consumer markets.

---

⚙️ 2. Key Specification Overview

Feature	IPQ9574	IPQ9570
CPU	Quad-core ARM Cortex-A73 @ 2.2GHz	Quad-core ARM Cortex-A73 @ 2.2GHz
Process Technology	14nm FinFET	14nm FinFET
Wireless Bands	2.4GHz / 5GHz / 6GHz (tri-band)	2.4GHz / 5GHz (6G optional)
MIMO Support	Up to 4x4 MIMO per band	2x2 or 4x4 depending on design
Ethernet Support	Up to 10GbE + multiple GbE ports	1GbE / 2.5GbE
Storage Interfaces	NAND, NOR, eMMC	NAND, NOR, eMMC
Wi-Fi Standard	IEEE 802.11be (Wi-Fi 7)	IEEE 802.11be (Wi-Fi 7)
Acceleration Engines	HW NAT, Crypto, QoS, IPSec	HW NAT, Crypto, QoS, IPSec
Software Support	OpenWRT / Qualcomm SDK	OpenWRT / Qualcomm SDK

---

📌 3. Shared Advantages

• Wi-Fi 7 Support:
  Both platforms support 802.11be, including:

  • 320MHz channel width

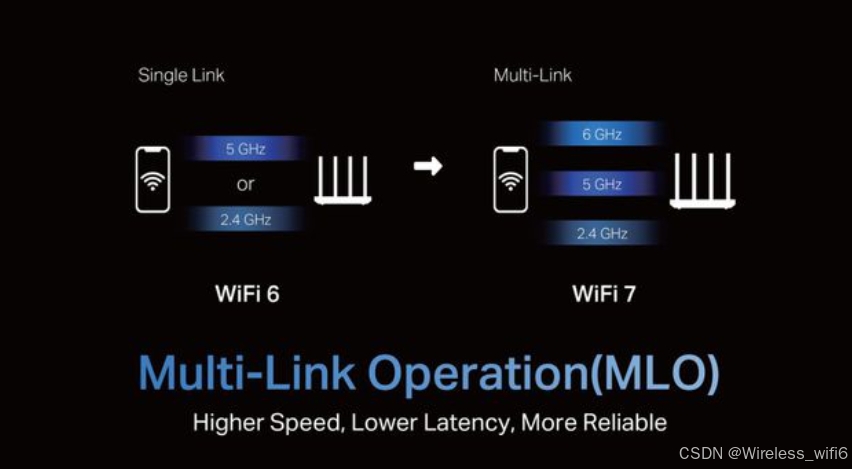

  • Multi-Link Operation (MLO)
  • 4096-QAM modulation

• High-performance ARM Architecture:
  The quad-core Cortex-A73 offers enough processing power for advanced networking, VPN, mesh coordination, or edge computing.

• Developer-Friendly Platforms:
  Fully compatible with OpenWRT, enabling rapid software development, UI customization, remote management, and OTA updates.

---

🧠 4. Recommended Application Scenarios

Application Scenario	Recommended Chip	Reason
Tri-band mesh routers	IPQ9574	Full tri-band + high computing power for AP coordination
Wireless backhaul APs	IPQ9574	6GHz for backhaul, 5G for access – optimal isolation
Industrial IoT gateways	IPQ9570	Lower cost, sufficient performance, stable connectivity
Home Wi-Fi 7 routers	IPQ9570	Affordable dual-band Wi-Fi 7 solution
Carrier-grade CPE/ONU	IPQ9574	Supports high-throughput scenarios with 10G support

---

🔩 5. Position Within Qualcomm’s SoC Portfolio

Chipset	Wi-Fi Version	Market Tier	Notes
IPQ5018	Wi-Fi 6	Entry-Level	For lightweight gateways and IoT
IPQ6018	Wi-Fi 6	Mid-Tier	Common in dual-band routers/APs
IPQ9570	Wi-Fi 7	Mid-to-High Dual-Band	Balanced cost and performance
IPQ9574	Wi-Fi 7	Flagship Tri-Band	Ideal for enterprise mesh, 10GbE CPEs

---

✅ Conclusion

If your project requires Wi-Fi 7 tri-band performance, wireless backhaul, or enterprise-level throughput, the IPQ9574 is your go-to solution.
For dual-band applications focused on cost-efficiency and deployment flexibility—while still benefiting from Wi-Fi 7 core advantages—IPQ9570 is the right choice.

Both chipsets integrate seamlessly with Qualcomm’s QCN series (e.g., QCN9274, QCN6274, QCN9024), forming a complete and scalable Wi-Fi 7 platform. ODMs like WallysTech have released commercial modules and boards based on these platforms, allowing faster time-to-market for Wi-Fi 7 products.
