前言

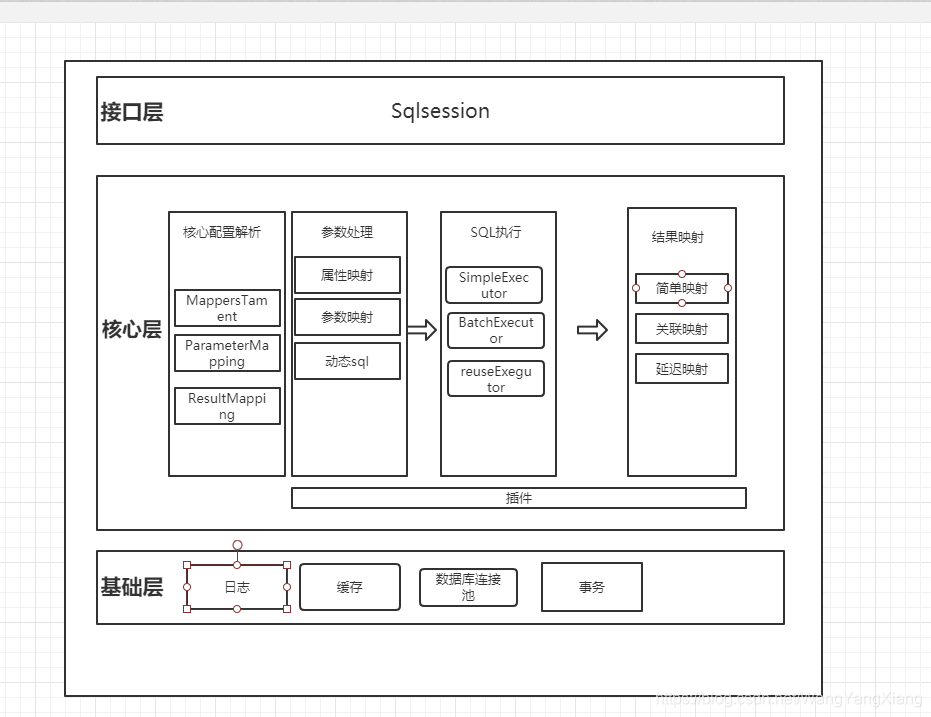

Mybatis整体架构图

这里对Mybatis的主要包含两部分 一部分是对 mapper-config.xml 的解析一部分是Mybatis的运行过程。

解析Mapper-config.xml

通过XMLConfigBuilder解析主配置文件中配置的各种属性，插件

private void parseConfiguration(XNode root) {
  try {
    //issue #117 read properties first
    //解析properties标签
    propertiesElement(root.evalNode("properties"));
    Properties settings = settingsAsProperties(root.evalNode("settings"));
    //加载Vfs
    loadCustomVfs(settings);
    //处理参数别名
    typeAliasesElement(root.evalNode("typeAliases"));
    //加载插件
    pluginElement(root.evalNode("plugins"));
    //处理对象工厂生成方式
    objectFactoryElement(root.evalNode("objectFactory"));
    objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
    reflectorFactoryElement(root.evalNode("reflectorFactory"));
    //加载解析settings
    settingsElement(settings);
    // read it after objectFactory and objectWrapperFactory issue #631
    //加载环境变量
    environmentsElement(root.evalNode("environments"));
    databaseIdProviderElement(root.evalNode("databaseIdProvider"));
    //加载自定义参数类型转换器
    typeHandlerElement(root.evalNode("typeHandlers"));
    //加载解析mapper.xml
    mapperElement(root.evalNode("mappers"));
  } catch (Exception e) {
    throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
  }
}

解析mapper.xml

private void mapperElement(XNode parent) throws Exception {
  if (parent != null) {
    for (XNode child : parent.getChildren()) {
        //解析基于注解的
      if ("package".equals(child.getName())) {
        String mapperPackage = child.getStringAttribute("name");
        //解析mapper接口 并将接口类进行存储
        configuration.addMappers(mapperPackage);
      } else {
        String resource = child.getStringAttribute("resource");
        String url = child.getStringAttribute("url");
        String mapperClass = child.getStringAttribute("class");
        if (resource != null && url == null && mapperClass == null) {
          ErrorContext.instance().resource(resource);
          InputStream inputStream = Resources.getResourceAsStream(resource);
            //解析mapper文件内容
          XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
          mapperParser.parse();

        } else if (resource == null && url != null && mapperClass == null) {
          ErrorContext.instance().resource(url);
          InputStream inputStream = Resources.getUrlAsStream(url);
          XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url, configuration.getSqlFragments());
          mapperParser.parse();
        } else if (resource == null && url == null && mapperClass != null) {
          Class<?> mapperInterface = Resources.classForName(mapperClass);
          //保存mapper接口
          configuration.addMapper(mapperInterface);
        } else {
          throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
        }
      }
    }
  }
}

通过XMLMapperBuilder 解析mapper.xml

private void configurationElement(XNode context) {
  try {
    String namespace = context.getStringAttribute("namespace");
    if (namespace == null || namespace.equals("")) {
      throw new BuilderException("Mapper's namespace cannot be empty");
    }
    builderAssistant.setCurrentNamespace(namespace);
    //解析cache
    cacheRefElement(context.evalNode("cache-ref"));
    cacheElement(context.evalNode("cache"));
    //解析参数映射
    parameterMapElement(context.evalNodes("/mapper/parameterMap"));
    //解析结果映射
    resultMapElements(context.evalNodes("/mapper/resultMap"));
    //处理复用sql（<sql）
    sqlElement(context.evalNodes("/mapper/sql"));
    //解析增删改查
    buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
  } catch (Exception e) {
    throw new BuilderException("Error parsing Mapper XML. The XML location is '" + resource + "'. Cause: " + e, e);
  }
}

通过 XMLStatementBuilder解析增删改查 并将解析信息保存在MappedStatement类中

public void parseStatementNode() {
  String id = context.getStringAttribute("id");
  String databaseId = context.getStringAttribute("databaseId");

  if (!databaseIdMatchesCurrent(id, databaseId, this.requiredDatabaseId)) {
    return;
  }

  Integer fetchSize = context.getIntAttribute("fetchSize");
  Integer timeout = context.getIntAttribute("timeout");
  String parameterMap = context.getStringAttribute("parameterMap");
  String parameterType = context.getStringAttribute("parameterType");
  Class<?> parameterTypeClass = resolveClass(parameterType);
  String resultMap = context.getStringAttribute("resultMap");
  String resultType = context.getStringAttribute("resultType");
  String lang = context.getStringAttribute("lang");
  LanguageDriver langDriver = getLanguageDriver(lang);

  Class<?> resultTypeClass = resolveClass(resultType);
  String resultSetType = context.getStringAttribute("resultSetType");
  StatementType statementType = StatementType.valueOf(context.getStringAttribute("statementType", StatementType.PREPARED.toString()));
  ResultSetType resultSetTypeEnum = resolveResultSetType(resultSetType);

  String nodeName = context.getNode().getNodeName();
  SqlCommandType sqlCommandType = SqlCommandType.valueOf(nodeName.toUpperCase(Locale.ENGLISH));
  boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
  boolean flushCache = context.getBooleanAttribute("flushCache", !isSelect);
  boolean useCache = context.getBooleanAttribute("useCache", isSelect);
  boolean resultOrdered = context.getBooleanAttribute("resultOrdered", false);

  // Include Fragments before parsing
  XMLIncludeTransformer includeParser = new XMLIncludeTransformer(configuration, builderAssistant);
  includeParser.applyIncludes(context.getNode());

  // Parse selectKey after includes and remove them.
  processSelectKeyNodes(id, parameterTypeClass, langDriver);

  // Parse the SQL (pre: <selectKey> and <include> were parsed and removed)
  SqlSource sqlSource = langDriver.createSqlSource(configuration, context, parameterTypeClass);
  String resultSets = context.getStringAttribute("resultSets");
  String keyProperty = context.getStringAttribute("keyProperty");
  String keyColumn = context.getStringAttribute("keyColumn");
  KeyGenerator keyGenerator;
  String keyStatementId = id + SelectKeyGenerator.SELECT_KEY_SUFFIX;
  keyStatementId = builderAssistant.applyCurrentNamespace(keyStatementId, true);
  if (configuration.hasKeyGenerator(keyStatementId)) {
    keyGenerator = configuration.getKeyGenerator(keyStatementId);
  } else {
    keyGenerator = context.getBooleanAttribute("useGeneratedKeys",
        configuration.isUseGeneratedKeys() && SqlCommandType.INSERT.equals(sqlCommandType))
        ? Jdbc3KeyGenerator.INSTANCE : NoKeyGenerator.INSTANCE;
  }

  builderAssistant.addMappedStatement(id, sqlSource, statementType, sqlCommandType,
      fetchSize, timeout, parameterMap, parameterTypeClass, resultMap, resultTypeClass,
      resultSetTypeEnum, flushCache, useCache, resultOrdered,
      keyGenerator, keyProperty, keyColumn, databaseId, langDriver, resultSets);
}

解析mapper接口

在解析mapper.xml 时会将对应的mapper接口进行保存 并对接口进行封装 最后生成的实例实际时MapperProxy。

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-FRkus4JU-1597822936812)(C:\Users\ksun\AppData\Roaming\Typora\typora-user-images\image-20200819151011473.png)]

public <T> void addMapper(Class<T> type) {

  if (type.isInterface()) {
    //这就是为啥一个接口不能对应多个xml因为mybatis是先解析xml再去对应接口
    if (hasMapper(type)) {
      throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
    }
    boolean loadCompleted = false;
    try {
      //保存对应的接口的反射
      knownMappers.put(type, new MapperProxyFactory<T>(type));
      // It's important that the type is added before the parser is run
      // otherwise the binding may automatically be attempted by the
      // mapper parser. If the type is already known, it won't try.
        解析对应的注解
      MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);
      parser.parse();
      loadCompleted = true;
    } finally {
      if (!loadCompleted) {
        knownMappers.remove(type);
      }
    }
  }
}

获取接口

@SuppressWarnings("unchecked")
public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
  final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
  if (mapperProxyFactory == null) {
    throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
  }
  try {
    return mapperProxyFactory.newInstance(sqlSession);
  } catch (Exception e) {
    throw new BindingException("Error getting mapper instance. Cause: " + e, e);
  }
}

小结

到此Mybatis的各种配置文件已经解析完毕，并将所有的解析的信息存储到Configuration中

下面是Configuration中主要的属性的说明

//存储mapper接口信息
protected final MapperRegistry mapperRegistry = new MapperRegistry(this);
//存储插件
protected final InterceptorChain interceptorChain = new InterceptorChain();
//存储参数类型解析
protected final TypeHandlerRegistry typeHandlerRegistry = new TypeHandlerRegistry();
//存储类别名信息
protected final TypeAliasRegistry typeAliasRegistry = new TypeAliasRegistry();
//国际化相关
protected final LanguageDriverRegistry languageRegistry = new LanguageDriverRegistry();

//存储mappedStatement相关 就是mapper.xml中增删改查标签
protected final Map<String, MappedStatement> mappedStatements = new StrictMap<MappedStatement>("Mapped Statements collection");
//存储cache相关（二级缓存）
protected final Map<String, Cache> caches = new StrictMap<Cache>("Caches collection");
//存储结果映射器
protected final Map<String, ResultMap> resultMaps = new StrictMap<ResultMap>("Result Maps collection");
//存储参数映射器
protected final Map<String, ParameterMap> parameterMaps = new StrictMap<ParameterMap>("Parameter Maps collection");

Mybatis运行过程分析

这里直接从DefaultSqlSessionFactory.openSession开始

@Override
public SqlSession openSession() {
  return openSessionFromDataSource(configuration.getDefaultExecutorType(), null, false);
}

生成DefaultSqlSession

private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
  Transaction tx = null;
  try {
    final Environment environment = configuration.getEnvironment();
    // 获取事务处理器
    final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
    tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);
   //获取执行器默认为SimpleExecutor 并使用自定义的插件对Executor 进行包装
    final Executor executor = configuration.newExecutor(tx, execType);

    return new DefaultSqlSession(configuration, executor, autoCommit);
  } catch (Exception e) {
    closeTransaction(tx); // may have fetched a connection so lets call close()
    throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
  } finally {
    ErrorContext.instance().reset();
  }
}

final Executor executor = configuration.newExecutor(tx, execType)

该方法完成对Executor 插件的包装

 public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
    executorType = executorType == null ? defaultExecutorType : executorType;
    executorType = executorType == null ? ExecutorType.SIMPLE : executorType;
    Executor executor;
    if (ExecutorType.BATCH == executorType) {
      executor = new BatchExecutor(this, transaction);
    } else if (ExecutorType.REUSE == executorType) {
      executor = new ReuseExecutor(this, transaction);
    } else {
      executor = new SimpleExecutor(this, transaction);
    }
    //判断是否开启二级缓存缓存
    if (cacheEnabled) {
      executor = new CachingExecutor(executor);
    }
    //添加Executor插件
    executor = (Executor) interceptorChain.pluginAll(executor);
    return executor;
  }

Mybatis 主要是通过mapper接口反射得到MapperProxy来进行和Mapper.xml中的信息进行关联。

所以这里的分析应该从MapperProxy中的invoke方法开始

@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
  try {
    //判断是不是Object的方法
    if (Object.class.equals(method.getDeclaringClass())) {
      return method.invoke(this, args);
      //判断是不是接口默认方法（jdk1.8）
    } else if (isDefaultMethod(method)) {
      return invokeDefaultMethod(proxy, method, args);
    }
  } catch (Throwable t) {
    throw ExceptionUtil.unwrapThrowable(t);
  }
  //获取MapperMethod
  final MapperMethod mapperMethod = cachedMapperMethod(method);

  //执行
  return mapperMethod.execute(sqlSession, args);
}

MapperMethod中判断执行的是增删改查的哪一种判断完成后回到sqlsession执行对应方法。（这里分析的是查询结果只有一条）

public Object execute(SqlSession sqlSession, Object[] args) {
  Object result;
  switch (command.getType()) {
    case INSERT: {
    Object param = method.convertArgsToSqlCommandParam(args);
      result = rowCountResult(sqlSession.insert(command.getName(), param));
      break;
    }
    case UPDATE: {
      Object param = method.convertArgsToSqlCommandParam(args);
      result = rowCountResult(sqlSession.update(command.getName(), param));
      break;
    }
    case DELETE: {
      Object param = method.convertArgsToSqlCommandParam(args);
      result = rowCountResult(sqlSession.delete(command.getName(), param));
      break;
    }
    case SELECT:
      if (method.returnsVoid() && method.hasResultHandler()) {
        executeWithResultHandler(sqlSession, args);
        result = null;
      } else if (method.returnsMany()) {
        result = executeForMany(sqlSession, args);
      } else if (method.returnsMap()) {
        result = executeForMap(sqlSession, args);
      } else if (method.returnsCursor()) {
        result = executeForCursor(sqlSession, args);
      } else {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = sqlSession.selectOne(command.getName(), param);
      }
      break;
    case FLUSH:
      result = sqlSession.flushStatements();
      break;
    default:
      throw new BindingException("Unknown execution method for: " + command.getName());
  }
  if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
    throw new BindingException("Mapper method '" + command.getName()
        + " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
  }
  return result;
}

sqlsession中执行

@Override
public <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds) {
  try {
    MappedStatement ms = configuration.getMappedStatement(statement);
    //通过执行器执行sql，但是最后还是会回到sqlsession来进行执行
    return executor.query(ms, wrapCollection(parameter), rowBounds, Executor.NO_RESULT_HANDLER);
  } catch (Exception e) {
    throw ExceptionFactory.wrapException("Error querying database.  Cause: " + e, e);
  } finally {
    ErrorContext.instance().reset();
  }
}

执行器Executor 中执行（这里使用了模板方法，先执行BaseExecutor,后执行SimpleExecutor 只能够的doQuery）

@SuppressWarnings("unchecked")
@Override
public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
  ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());
  if (closed) {
    throw new ExecutorException("Executor was closed.");
  }
  if (queryStack == 0 && ms.isFlushCacheRequired()) {
    clearLocalCache();
  }
  List<E> list;
  try {
    queryStack++;
    //这里是Mybatis的一级缓存localCache的使用 一级缓存默认开启
    list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
    if (list != null) {
      handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
    } else {
      list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
    }
  } finally {
    queryStack--;
  }
  if (queryStack == 0) {
    for (DeferredLoad deferredLoad : deferredLoads) {
      deferredLoad.load();
    }
    // issue #601
    deferredLoads.clear();
    if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {
      // issue #482
      clearLocalCache();
    }
  }
  return list;
}

生成PreparedStatement 处理参数，准备执行

@Override
public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
  Statement stmt = null;
  try {
    Configuration configuration = ms.getConfiguration();
    //生成Statement 并生成参数处理器，以及结果处理器 以及将对参数处理器和结果处理器进行包装
    StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
    stmt = prepareStatement(handler, ms.getStatementLog());
    return handler.<E>query(stmt, resultHandler);
  } finally {
    closeStatement(stmt);
  }
}

newStatementHandler

public StatementHandler newStatementHandler(Executor executor, MappedStatement mappedStatement, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
  //生成执行器并且生成参数处理器和结果处理
  StatementHandler statementHandler = new RoutingStatementHandler(executor, mappedStatement, parameterObject, rowBounds, resultHandler, boundSql);
  //将statement插件插入(包装器模式)
  statementHandler = (StatementHandler) interceptorChain.pluginAll(statementHandler);
  return statementHandler;
}

new RoutingStatementHandler（）

protected BaseStatementHandler(Executor executor, MappedStatement mappedStatement, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
  this.configuration = mappedStatement.getConfiguration();
  this.executor = executor;
  this.mappedStatement = mappedStatement;
  this.rowBounds = rowBounds;

  this.typeHandlerRegistry = configuration.getTypeHandlerRegistry();
  this.objectFactory = configuration.getObjectFactory();

  if (boundSql == null) { // issue #435, get the key before calculating the statement
    generateKeys(parameterObject);
    boundSql = mappedStatement.getBoundSql(parameterObject);
  }

  this.boundSql = boundSql;

  //完成对参数处理器插件的处理
  this.parameterHandler = configuration.newParameterHandler(mappedStatement, parameterObject, boundSql);
  //完成对结果处理映射器的处理
  this.resultSetHandler = configuration.newResultSetHandler(executor, mappedStatement, rowBounds, parameterHandler, resultHandler, boundSql);
}

到此已经到java jdbc执行了，也就到此结束了，最后一步就是对结果进行处理。

@Override
public <E> List<E> query(Statement statement, ResultHandler resultHandler) throws SQLException {
  PreparedStatement ps = (PreparedStatement) statement;
  ps.execute();
  return resultSetHandler.<E> handleResultSets(ps);
}
