Router Wallys//DR40X9& DR4019S&DR40X8H QCN90X4 WIFI5G WIFI6E

Here is Wallys Communications (SuZhou) Co.,

We can design special products based on Qualcomm chipset such as down- conversion 900M ,WFC900, high power 5w, 5.8GHz wifi products and etc

Our software is also innovative. For example, based on 4.9 GHz, 6 GHz TDMA protocol, we can add special algorithms to improve the anti-interference capability of the products.Based on our innovation ,we can provide customer -specific solution .Wecan provide one-stop service for our customers, from idea, design ,manufacture to put the product into market.

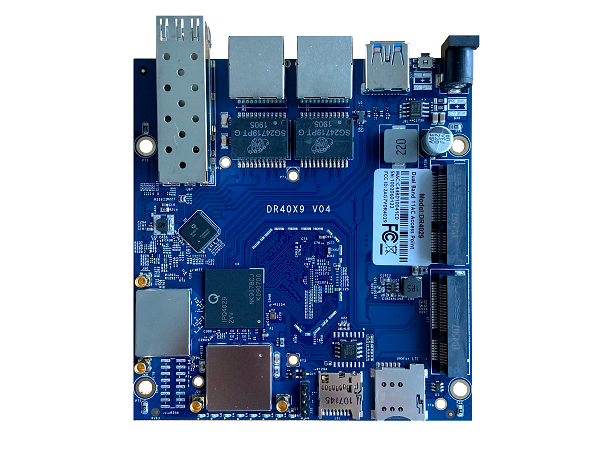

1.DR40X9

Link here get more information:

https://www.wallystech.com/Routerboard/DR40X9-Qualcomm-IPQ-4019-4029-DUAL-BAND-802.11AC-WAVE2-MU-MIMO-ONBOARD-WIFI-RADIO-EMBEDDED-BOARD-supporting-LTE.html

Featuring with industrial-grade IPQ4019/IPQ4029 chipset

Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module

Support 4.940GHz to 5.825GHz Frequency Range

Support 2.400GHz to 2.482GHz

Support 2 x 5G MMCX Connectors and 2x2.4G MMCX

Support 5MHz/10MHz/20MHz/40MHz/80MHz Bandwidth

Support 11ABGN/AC

Support fixed data rate

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

Our Firmware supports all the modules of Quectel

Absolute Maximum Rating

Parameter Rating Unit

Supply Voltage 24V~48 V

Operating Temperature Range -40 to +70 ºC

Storage Temperature Range -45 to +105 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Storage Humidity Range 0 to +90 (non-condensing) %

Hardware Specifications

Symbol Parameter

CPU IPQ4029（Quad core ARM Cortex A7 at 716.8 MHz）

Antenna Connector 2 x 5G MMCX connectors;2x2.4G MMCX10/100/1000Mbps Gigabit Ethernet 2xRJ45

SFP connector 1xSFP fiber module connector (optional)3G/4G connector 1xminipcie 3G/4G connector support with two sim card

USB connector 1xUSB 3.0 connector

POE 24V~48V passive POE

DC Jack24V~48V power supply

ROHS Compliance YES

Dimension 115mm x 105mm x 16mm

Max Power 48.1V x 0.180A= 8.658W

Nor Flash 2MB~32MB

Nand Flash128MB

DDR 256MB~512MB

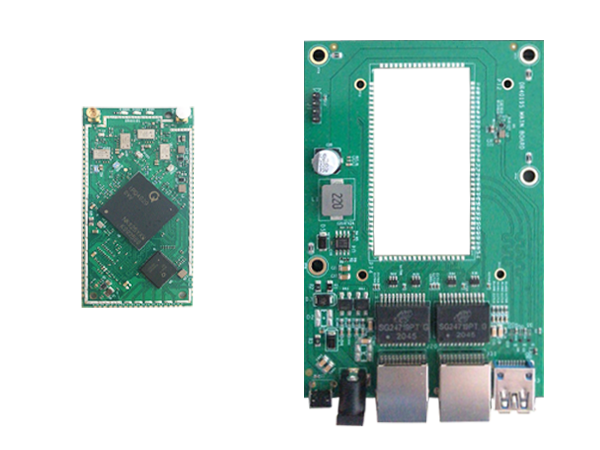

2.DR4019S

Link here get more information:

https://www.wallystech.com/Routerboard/DR4019S-Qualcomm-IPQ4019-2T2R-Dual-Band-2-4GHz-5GHz-support-OpenWRT-802.11ac-Wave-2.html

Featuring withindustrial-grade IPQ4019 chipset

Integrated with 2x 2 5G high power

Radio module and 2x2 2.4G high power Radio module

Support 5.180GHz to5.825GHz Frequency Range;

Support 2.412GHz to 2.482GHz

Support 2 x 5G MMCX Connectors and 2x2.4G MMCX

20MHz/40MHz/80MHz Bandwidth

Support 11ABGN/802.11AC

RoHS compliance ensure a high level

protection of human health and the environment from risks that can be posed by

Absolute Maximum Rating

Parameter Rating Unit

Supply Voltage 24V~48 V

Operating Temperature Range -40 to +70 ºC

Storage Temperature Range -45 to +105 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Storage Humidity Range 0 to +90 (non-condensing)%

Hardware Specifications

Symbol Parameter

CPU IPQ4019（Quad core ARM Cortex A7 at 716.8 MHz）

Antenna Connector 2 x 5G MMCX connectors;2x2.4G MMCX10/100/1000Mbps

Gigabit Ethernet 2xRJ45

DC Jack 12 power supply

ROHS Compliance YES

Dimension 65mmx35mm x 16mm

Max Power 12V x 0.8A= 9.6W

Nor Flash 32MB

DDR 256MB

3.DR40X8H

Link here get more information:

https://www.wallystech.com/Routerboard/DR40X8H-Qualcomm-IPQ4018-IPQ4028-2T2R-Dual-Band-2-4GHz-5GHz-high-power-support-MU-MIMO-802.11ac-Wave-2.html

Featuring with industrial-grade IPQ4018/IPQ4028 chipset

Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module

Support 4.940GHz to 5.825GHz Frequency Range;

Support 2.400GHz to 2.482GHz

Support 2 x 5G MMCX Connectors and 2x2.4G MMCX

20MHz/40MHz/80MHz Bandwidth

Support 11ABGN/AC

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

Absolute Maximum Rating

Parameter Rating Unit

Supply Voltage 24V~48V V

Operating Temperature Range -40 to +60 ºC

Storage Temperature Range -65 to +105 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Storage Humidity Range 0 to +90 (non-condensing) %

Hardware Specifications

Symbol Parameter

CPU IPQ4018 (Quad core ARM Cortex A7 at 710 MHz)

Antenna Connector 2 x 5G MMCX connectors;2x2.4G MMCX10/100/1000Mbps Gigabit Ethernet 2xRJ45

SFP connector1xSFP fiber module connector (optional)3G/4G connector1xminipcie 3G/4G connector support with two sim card

USB connector 1xUSB 3.0 connector

POE 24V~48V passive POE

DC Jack 24V~48V power supply

ROHS Compliance YES

Dimension 115mm x 105mm x 16mm

Nor Flash 2MB~32MB

Nand Flash 128MB

DDR 256MB
