SpringBoot 整合 Quartz 动态定时任务

关注

原创最新推荐文章于 2026-03-21 01:27:59 发布 734 阅读 AI 写同款· GEO 优化 ›

springboot+quartz实现动态任务管理,携带参数. 使用druid连接mysql数据库持久化.完整代码,有问题留言一起探讨 1.添加依赖  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-quartz</artif... 阅读详情

简介

Quartz是一款功能强大的任务调度器，可以实现较为复杂的调度功能，如每月一号执行、每天凌晨执行、每周五执行等等，还支持分布式调度。本文使用Springboot+Mybatis-plus+Quartz实现对定时任务的增、删、改、查、启用、停用等功能。并把定时任务持久化到数据库，并且还实现动态编译运行Java，动态执行字符串代码模板。

为什么要使用Quartz

多任务情况下，quartz更容易管理，可以实现动态配置

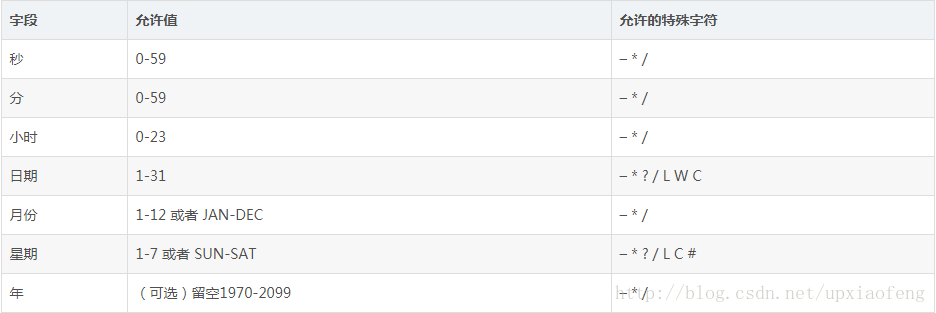

执行时间表达式：
这里写图片描述

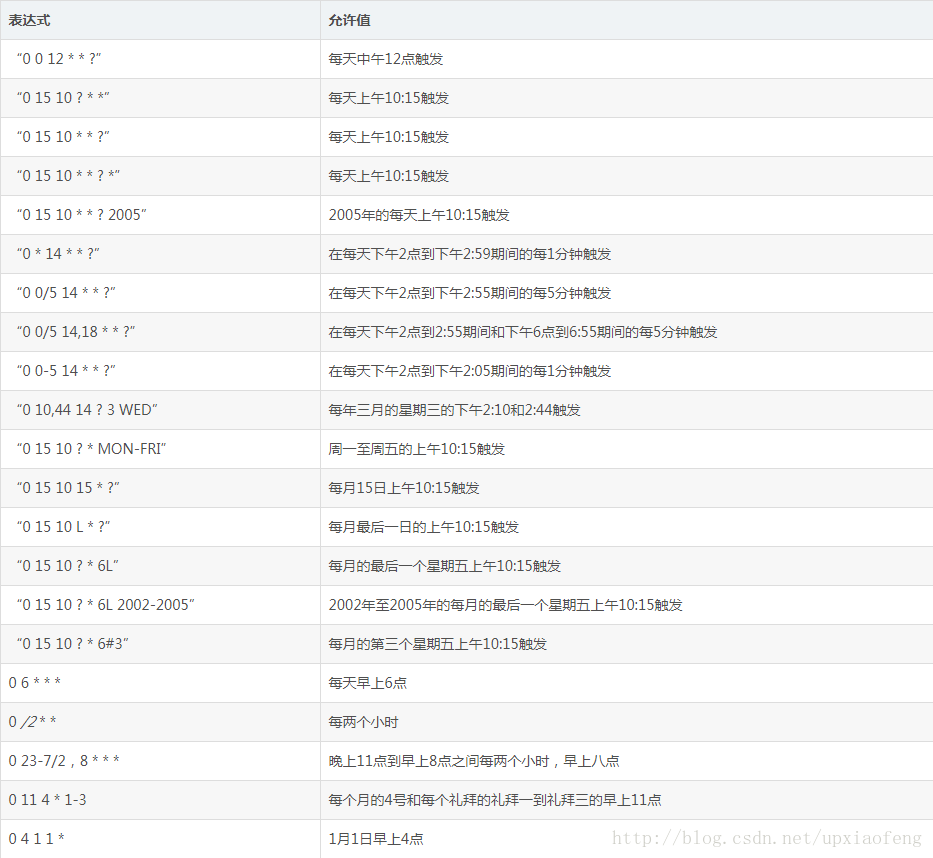

表达式示例：

Quartz的3个基本要素

Scheduler：调度器。所有的调度都是由它控制。
Trigger：触发器。决定什么时候来执行任务。
JobDetail & Job： JobDetail定义的是任务数据，而真正的执行逻辑是在Job中。使用JobDetail + Job而不是Job，这是因为任务是有可能并发执行，如果Scheduler直接使用Job，就会存在对同一个Job实例并发访问的问题。而JobDetail & Job 方式，sheduler每次执行，都会根据JobDetail创建一个新的Job实例，这样就可以规避并发访问的问题。

集成Quartz

maven依赖：

<dependency>
     <groupId>org.quartz-scheduler</groupId>
     <artifactId>quartz</artifactId>
     <version>2.3.2</version>
</dependency>

具体实现

1.定时任务处理

package com.example.quartz.component;

import com.example.quartz.constant.QuartzConstants;
import com.example.quartz.module.sms.QuartzTask;
import com.example.quartz.module.sms.QuartzTaskLog;
import com.example.quartz.provider.sms.mapper.QuartzTaskLogMapper;
import lombok.extern.slf4j.Slf4j;
import org.quartz.JobExecutionContext;
import org.springframework.scheduling.quartz.QuartzJobBean;
import org.springframework.stereotype.Component;

import javax.annotation.Resource;
import java.util.Date;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.Future;

/**
 * @author: wlp
 * @description: 描述：定时任务处理
 * @projectName: ScheduleJob
 * @date: 2019/10/12
 * @version: V1.0.0
 */
@Slf4j
@Component
public class MyScheduleJob extends QuartzJobBean {

    private final ThreadLocal<ExecutorService> service = ThreadLocal.withInitial(Executors::newSingleThreadExecutor);

    @Resource
    private QuartzTaskLogMapper quartzTaskLogMapper;

    @Override
    protected void executeInternal(JobExecutionContext context) {
        QuartzTask quartzTask = (QuartzTask) context.getMergedJobDataMap().get(QuartzConstants.QUARTZ_PARAM_KEY);
        //任务开始时间
        long startTime = System.currentTimeMillis();
        QuartzTaskLog quartzTaskLog = QuartzTaskLog.builder()
                .quartzId(quartzTask.getId())
                .targetBean(quartzTask.getTargetBean())
                .targetMethod(quartzTask.getTargetMethod())
                .params(quartzTask.getParams())
                .quartzName("执行定时任务【" + quartzTask.getQuartzName() + "】")
                .quartzStatus(0)
                .build();
        quartzTaskLog.setCreateUserId(1L);
        quartzTaskLog.setCreateTime(new Date());
        try {
            ScheduleRunnable task = new ScheduleRunnable(quartzTask.getTargetBean(), quartzTask.getTargetMethod(), quartzTask.getParams(), quartzTask.getQuartzType(), quartzTask.getTargetContent());
            Future<?> future = service.get().submit(task);
            future.get();
            long times = System.currentTimeMillis() - startTime;
            quartzTaskLog.setExecutionTime(times);
        } catch (Exception e) {
            log.error("任务执行失败，任务ID：" + quartzTask.getId(), e);
            long times = System.currentTimeMillis() - startTime;
            quartzTaskLog.setExecutionTime(times);
            quartzTaskLog.setErrorInfo("任务执行完毕，任务ID：" + quartzTask.getId() + "， 总共耗时：" + times + "毫秒");
            quartzTaskLog.setQuartzStatus(1);
            quartzTaskLog.setErrorInfo("任务执行失败，任务ID：" + quartzTask.getId() + "===>>" + e.getMessage());
        } finally {
            quartzTaskLogMapper.insert(quartzTaskLog);
        }
    }
}

2.执行定时任务

package com.example.quartz.component;

import com.example.quartz.utils.DynamicCompilerJavaUtil;
import lombok.Data;
import org.apache.commons.lang3.StringUtils;
import org.springframework.util.ReflectionUtils;

import java.lang.reflect.Method;

/**
 * @author: wlp
 * @description: 描述：执行定时任务
 * @projectName: ScheduleRunnable
 * @date: 2019/10/12
 * @version: V1.0.0
 */
@Data
public class ScheduleRunnable implements Runnable {

    private Object targetBean;
    private Method method;
    private String methodParams;
    private Integer quartzType;
    private String targetContent;
    private String methodName;
    private String className;

    ScheduleRunnable(String beanName, String methodName, String methodParams, Integer quartzType, String targetContent) throws NoSuchMethodException, SecurityException {
        this.className = beanName;
        this.methodName = methodName;
        this.quartzType = quartzType;
        this.targetContent = targetContent;
        this.targetBean = SpringContextHandler.getBean(beanName);
        this.methodParams = methodParams;
        if (StringUtils.isNotBlank(methodParams)) {
            this.method = targetBean.getClass().getDeclaredMethod(methodName, String.class);
        } else {
            this.method = targetBean.getClass().getDeclaredMethod(methodName);
        }
    }

    @Override
    public void run() {
        try {
            if (quartzType.equals(1)) {
                ReflectionUtils.makeAccessible(method);
                if (StringUtils.isNotBlank(methodParams)) {
                    method.invoke(targetBean, methodParams);
                } else {
                    method.invoke(targetBean);
                }
            } else {
                DynamicCompilerJavaUtil.run(targetContent, methodName, className, methodParams);
            }
        } catch (Exception e) {
            throw new RuntimeException("执行定时任务失败", e);
        }
    }
}

3.动态Java编译

package com.example.quartz.utils;

import lombok.extern.slf4j.Slf4j;

import javax.tools.JavaCompiler;
import javax.tools.ToolProvider;
import java.io.File;
import java.io.FileOutputStream;
import java.io.PrintWriter;
import java.lang.reflect.Method;

import static com.example.quartz.constant.JavaFileConstant.*;

/**
 * @description: 动态Java编译
 * @author: wlp
 * @createDate: 2020-01-06
 * @version: 1.0
 */
@Slf4j
public class DynamicCompilerJavaUtil {

    private synchronized static void compile(String javaSourceCode, String className) throws Exception {
        File file = new File(BASE_DIR + className + JAVA_SUFFIX);
        boolean newFile = file.createNewFile();
        if (newFile) {
            file.deleteOnExit();
            // 将代码输出到文件
            PrintWriter out = new PrintWriter(new FileOutputStream(file));
            out.println(javaSourceCode);
            out.close();
            //动态编译
            JavaCompiler javac = ToolProvider.getSystemJavaCompiler();
            int status = javac.run(null, null, null, "-d", BASE_DIR, BASE_DIR + file.getName());
            if (status != 0) {
                throw new Exception("语法错误！");
            }
        } else {
            throw new Exception("创建文件失败！");
        }
    }

    public static synchronized void run(String javaSourceCode, String methodName, String className, Object... params) throws Exception {
        compile(javaSourceCode, className);
        new File(BASE_DIR + className + SUFFIX).deleteOnExit();
        try {
            MyClassLoader loader = new MyClassLoader();
            Class cls = loader.findClass(className);
            if (null != params) {
                Method main = cls.getMethod(methodName, params.getClass().getComponentType());
                main.invoke(cls, params);
            } else {
                Method main = cls.getMethod(methodName, null);
                main.invoke(cls, null);
            }
        } catch (Exception se) {
            se.printStackTrace();
            log.error("编译运行失败==》", se);
        }
    }

    public static void main(String[] args) {
        String str = "import com.baomidou.mybatisplus.core.toolkit.IdWorker;" +
                "public class TestJava{\n" +
                " public static void method(Object name){\n" +
                "         for (int i = 0; i < 10; i++) {\n" +
                "            String uuid = IdWorker.get32UUID();\n" +
                "            System.out.println(uuid);\n" +
                "            System.out.println(name);\n" +
                "        }\n" +
                "\n" +
                " }\n" +
                "}";
        try {
            run(str, "method", "TestJava", "大吉大利");
        } catch (Exception e) {
            e.printStackTrace();
            log.error("代码编译运行出错");
        }
    }
}

4.定时任务工具类

package com.example.quartz.utils;

import com.example.quartz.component.MyScheduleJob;
import com.example.quartz.constant.QuartzConstants;
import com.example.quartz.module.sms.QuartzTask;
import org.quartz.*;

/**
 * @author: wlp
 * @description: 描述：定时任务工具类
 * @projectName: ScheduleUtils
 * @date: 2019/10/12
 * @version: V1.0.0
 */
public class SchedulerUtils {

    /**
     * 获取触发器key
     */
    public static TriggerKey getTriggerKey(Long quartzId) {
        return TriggerKey.triggerKey(QuartzConstants.TRIGGER_NAME + quartzId);
    }

    /**
     * 获取jobKey
     */
    public static JobKey getJobKey(Long quartzId) {
        return JobKey.jobKey(QuartzConstants.QUARTZ_NAME + quartzId);
    }

    /**
     * 获取表达式触发器
     */
    public static CronTrigger getCronTrigger(Scheduler scheduler, Long quartzId) {
        try {
            return (CronTrigger) scheduler.getTrigger(getTriggerKey(quartzId));
        } catch (SchedulerException e) {
            throw new RuntimeException("获取定时任务CronTrigger出现异常", e);
        }
    }

    /**
     * 创建定时任务
     */
    public static void createScheduleJob(Scheduler scheduler, QuartzTask quartzTask) {
        try {
            //构建job信息
            JobDetail jobDetail = JobBuilder.newJob(MyScheduleJob.class).withIdentity(getJobKey(quartzTask.getId())).build();
            //表达式调度构建器
            CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(quartzTask.getQuartzCron())
                    .withMisfireHandlingInstructionDoNothing();

            //按新的cronExpression表达式构建一个新的trigger
            CronTrigger trigger = TriggerBuilder.newTrigger().withIdentity(getTriggerKey(quartzTask.getId())).withSchedule(scheduleBuilder).build();
            //放入参数，运行时的方法可以获取
            jobDetail.getJobDataMap().put(QuartzConstants.QUARTZ_PARAM_KEY, quartzTask);
            scheduler.scheduleJob(jobDetail, trigger);
            //暂停任务
            if (quartzTask.getQuartzStatus() == QuartzConstants.QUARTZ_STATUS_PUSH) {
                pauseJob(scheduler, quartzTask.getId());
            }
        } catch (SchedulerException e) {
            throw new RuntimeException("创建定时任务失败", e);
        }
    }

    /**
     * 更新定时任务
     */
    public static void updateScheduleJob(Scheduler scheduler, QuartzTask quartzTask) {
        try {
            TriggerKey triggerKey = getTriggerKey(quartzTask.getId());
            //表达式调度构建器
            CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(quartzTask.getQuartzCron())
                    .withMisfireHandlingInstructionDoNothing();
            CronTrigger trigger = getCronTrigger(scheduler, quartzTask.getId());
            //按新的cronExpression表达式重新构建trigger
            trigger = trigger.getTriggerBuilder().withIdentity(triggerKey).withSchedule(scheduleBuilder).build();
            //参数
            trigger.getJobDataMap().put(QuartzConstants.QUARTZ_PARAM_KEY, quartzTask);
            scheduler.rescheduleJob(triggerKey, trigger);
            //暂停任务
            if (quartzTask.getQuartzStatus() == QuartzConstants.QUARTZ_STATUS_PUSH) {
                pauseJob(scheduler, quartzTask.getId());
            }
        } catch (SchedulerException e) {
            throw new RuntimeException("更新定时任务失败", e);
        }
    }

    /**
     * 立即执行任务
     */
    public static void run(Scheduler scheduler, QuartzTask quartzTask) {
        try {
            //参数
            JobDataMap dataMap = new JobDataMap();
            dataMap.put(QuartzConstants.QUARTZ_PARAM_KEY, quartzTask);
            scheduler.triggerJob(getJobKey(quartzTask.getId()), dataMap);
        } catch (SchedulerException e) {
            throw new RuntimeException("立即执行定时任务失败", e);
        }
    }

    /**
     * 暂停任务
     */
    public static void pauseJob(Scheduler scheduler, Long quartzId) {
        try {
            scheduler.pauseJob(getJobKey(quartzId));
        } catch (SchedulerException e) {
            throw new RuntimeException("暂停定时任务失败", e);
        }
    }

    /**
     * 恢复任务
     */
    public static void resumeJob(Scheduler scheduler, Long quartzId) {
        try {
            scheduler.resumeJob(getJobKey(quartzId));
        } catch (SchedulerException e) {
            throw new RuntimeException("暂停定时任务失败", e);
        }
    }

    /**
     * 删除定时任务
     */
    public static void deleteScheduleJob(Scheduler scheduler, Long quartzId) {
        try {
            scheduler.deleteJob(getJobKey(quartzId));
        } catch (SchedulerException e) {
            throw new RuntimeException("删除定时任务失败", e);
        }
    }
}
