华为设备配置VRRP负载分担

最新推荐文章于 2025-04-20 14:00:00 发布

原创最新推荐文章于 2025-04-20 14:00:00 发布 · 448 阅读

1 ·

CC 4.0 BY-SA版权

文章标签：

#华为 #网络

网络设计与配置专栏收录该内容

382 篇文章

订阅专栏

本文详细记录了配置过程，包括设置设备接口IP地址、划分VLAN、启用OSPF协议实现网络互联，并配置VRRP备份组，最后进行验证。适合理解三层网络配置的读者。

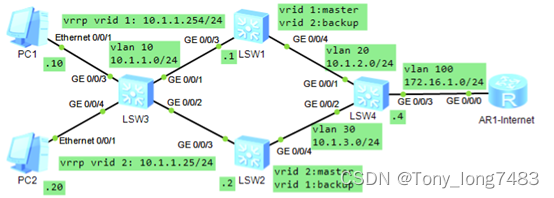

在这里插入图片描述

配置设备各接口的IP地址
[LSW1]vlan batch 10 20
[LSW1-GigabitEthernet0/0/3]port link-type hybrid
[LSW1-GigabitEthernet0/0/3]port hybrid pvid vlan 10
[LSW1-GigabitEthernet0/0/3]port hybrid untagged vlan 10
[LSW1-GigabitEthernet0/0/4]port link-type hybrid
[LSW1-GigabitEthernet0/0/4]port hybrid untagged vlan 20
[LSW1-GigabitEthernet0/0/4]port hybrid pvid vlan 20
[LSW1-Vlanif10]ip add 10.1.1.1 24
[LSW1-Vlanif20]ip add 10.1.2.1 24
[LSW2]vlan batch 10 30
[LSW2-GigabitEthernet0/0/3]port link-type hybrid
[LSW2-GigabitEthernet0/0/3]port hybrid untagged vlan 10
[LSW2-GigabitEthernet0/0/3]port hybrid pvid vlan 10
[LSW2-GigabitEthernet0/0/4]port link-type hybrid
[LSW2-GigabitEthernet0/0/4]port hybrid pvid vlan 30
[LSW2-GigabitEthernet0/0/4]port hybrid untagged vlan 30
[LSW2-Vlanif10]ip add 10.1.1.2 24
[LSW2-Vlanif30]ip add 10.1.3.2 24
[LSW4]vlan batch 20 30 100
[LSW4-GigabitEthernet0/0/1]port link-type hybrid
[LSW4-GigabitEthernet0/0/1]port hybrid untagged vlan 20
[LSW4-GigabitEthernet0/0/1]port hybrid pvid vlan 20
[LSW4-GigabitEthernet0/0/2]port link-type hybrid
[LSW4-GigabitEthernet0/0/2]port hybrid pvid vlan 30
[LSW4-GigabitEthernet0/0/2]port hybrid untagged vlan 30
[LSW4-GigabitEthernet0/0/3]port link-type hybrid
[LSW4-GigabitEthernet0/0/3]port hybrid untagged vlan 100
[LSW4-GigabitEthernet0/0/3]port hybrid pvid vlan 100
[LSW4-Vlanif20]ip add 10.1.2.4 24
[LSW4-Vlanif30]ip add 10.1.3.4 24
[LSW4-Vlanif100]ip add 172.16.1.4 24
配置LSW3的二层转发功能
[LSW3]vlan batch 10
[LSW3-GigabitEthernet0/0/1]port link-type hybrid
[LSW3-GigabitEthernet0/0/1]port hybrid untagged vlan 10
[LSW3-GigabitEthernet0/0/1]port hybrid pvid vlan 10
[LSW3-GigabitEthernet0/0/2]port link-type hybrid
[LSW3-GigabitEthernet0/0/2]port hybrid untagged vlan 10
[LSW3-GigabitEthernet0/0/2]port hybrid pvid vlan 10
配置OSPF协议进行互联
[LSW1]ospf 1
[LSW1-ospf-1]area 0
[LSW1-ospf-1-area-0.0.0.0]network 10.1.1.0 0.0.0.255
[LSW1-ospf-1-area-0.0.0.0]network 10.1.2.0 0.0.0.255
[LSW2]ospf 1
[LSW2-ospf-1]area 0
[LSW2-ospf-1-area-0.0.0.0]network 10.1.1.0 0.0.0.255
[LSW2-ospf-1-area-0.0.0.0]network 10.1.3.0 0.0.0.255
[LSW4]ospf 1
[LSW4-ospf-1]area 0
[LSW4-ospf-1-area-0.0.0.0]network 172.16.1.0 0.0.0.255
[LSW4-ospf-1-area-0.0.0.0]network 10.1.2.0 0.0.0.255
[LSW4-ospf-1-area-0.0.0.0]network 10.1.3.0 0.0.0.255
配置VRRP备份组
[LSW1]int Vlanif 10
[LSW1-Vlanif10]vrrp vrid 1 virtual-ip 10.1.1.254
[LSW1-Vlanif10]vrrp vrid 1 priority 120
[LSW1-Vlanif10]vrrp vrid 1 preempt-mode timer delay 20
[LSW1-Vlanif10]vrrp vrid 2 virtual-ip 10.1.1.253
[LSW2]int Vlanif 10
[LSW2-Vlanif10]vrrp vrid 2 virtual-ip 10.1.1.253
[LSW2-Vlanif10]vrrp vrid 2 priority 120
[LSW2-Vlanif10]vrrp vrid 2 preempt-mode timer delay 20
[LSW2-Vlanif10]vrrp vrid 1 virtual-ip 10.1.1.254

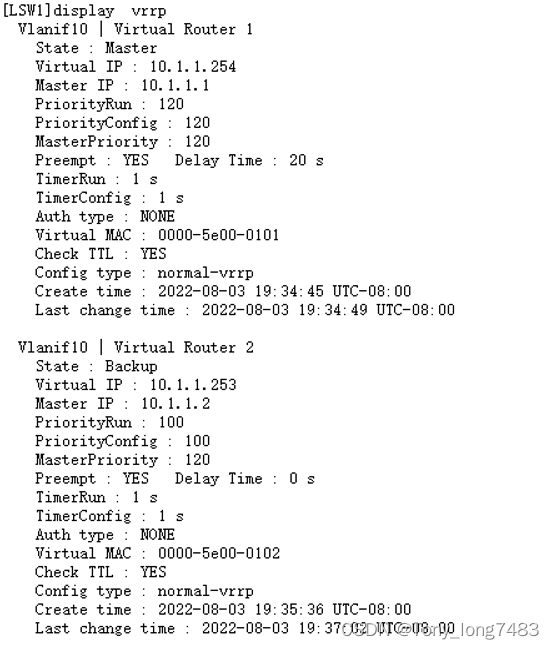

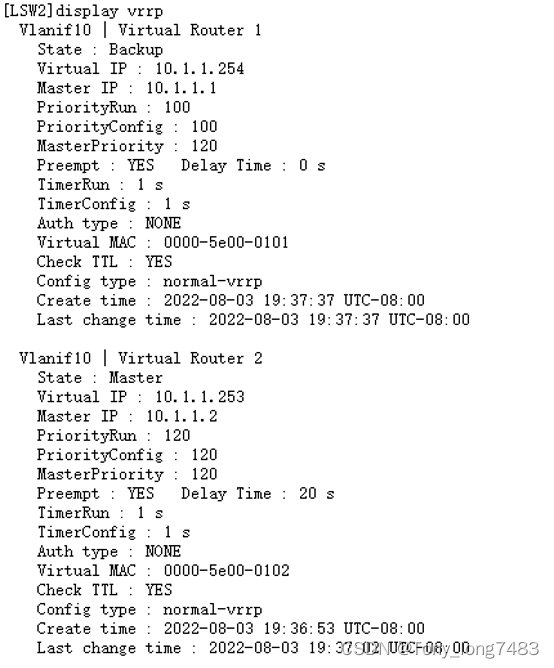

验证配置
