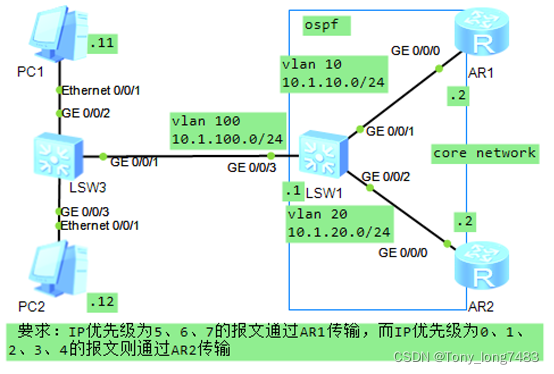

华为设备配置策略路由

1. 创建VLAN并配置各接口
   [LSW1]vlan batch 10 20 100
   [LSW1-GigabitEthernet0/0/2]port link-type trunk
   [LSW1-GigabitEthernet0/0/1]port trunk allow-pass vlan 10
   [LSW1-GigabitEthernet0/0/1]port trunk pvid vlan 10
   [LSW1-GigabitEthernet0/0/2]port link-type trunk
   [LSW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 20
   [LSW1-GigabitEthernet0/0/2]port trunk pvid vlan 20
   [LSW1-GigabitEthernet0/0/3]port link-type trunk
   [LSW1-GigabitEthernet0/0/3]port trunk allow-pass vlan 100
   [LSW1-GigabitEthernet0/0/3]port trunk pvid vlan 100

2. 配置各接口IP地址
   [LSW1-Vlanif10]ip add 10.1.10.1 24
   [LSW1-Vlanif20]ip add 10.1.20.1 24
   [LSW1-Vlanif100]ip add 10.1.100.1 24
   [AR1-GigabitEthernet0/0/0]ip add 10.1.10.2 24
   [AR2-GigabitEthernet0/0/0]ip add 10.1.20.2 24



3. 配置连通性
   [LSW1]ospf 1
   [LSW1-ospf-1]area 0
   [LSW1-ospf-1-area-0.0.0.0]network 10.1.10.0 0.0.0.255
   [LSW1-ospf-1-area-0.0.0.0]network 10.1.20.0 0.0.0.255
   [LSW1-ospf-1-area-0.0.0.0]network 10.1.100.0 0.0.0.255
   [AR1]ospf 1
   [AR1-ospf-1]area 0
   [AR1-ospf-1-area-0.0.0.0]network 10.1.10.0 0.0.0.255
   [AR2]ospf 1
   [AR2-ospf-1]area 0
   [AR2-ospf-1-area-0.0.0.0]network 10.1.20.0 0.0.0.255

4. 配置ACL规则
   [LSW1]acl 3001
   [LSW1-acl-adv-3001]rule permit ip precedence 0
   [LSW1-acl-adv-3001]rule permit ip precedence 1
   [LSW1-acl-adv-3001]rule permit ip precedence 2
   [LSW1-acl-adv-3001]rule permit ip precedence 3
   [LSW1-acl-adv-3001]rule permit ip precedence 4
   [LSW1]acl 3002
   [LSW1-acl-adv-3002]rule permit ip precedence 5
   [LSW1-acl-adv-3002]rule permit ip precedence 6
   [LSW1-acl-adv-3002]rule permit ip precedence 7

5. 配置流分类
   [LSW1]traffic classifier a1
   [LSW1-classifier-a1]if-match acl 3001
   [LSW1]traffic classifier a2
   [LSW1-classifier-a2]if-match acl 3002
   [LSW1]traffic behavior b1
   [LSW1-behavior-b1]redirect ip-nexthop 10.1.20.2
   [LSW1]traffic behavior b2
   [LSW1-behavior-b2]redirect ip-nexthop 10.1.10.2

6. 配置流行为
   [LSW1]traffic policy c1
   [LSW1-trafficpolicy-c1]classifier a1 behavior b1
   [LSW1-trafficpolicy-c1]classifier a2 behavior b2

7. 配置流策略并应用到接口上
   [LSW1-GigabitEthernet0/0/3]traffic-policy c1 inbound

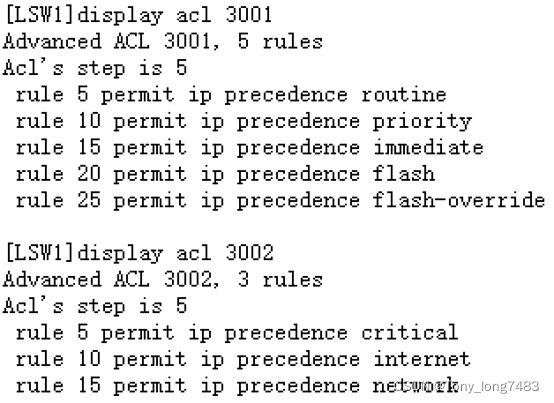

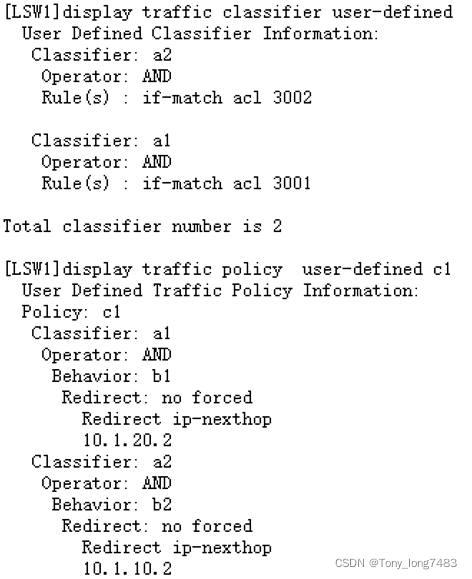

8. 验证配置
