spring amqp rabbitmq 学习(三) MessageConverter

spring amqp默认使用的是SimpleMessageConverter，使用的是UTF-8编码，官网原文是这样说的

It handles text-based content, serialized Java objects,and simple byte arrays.

当contentType是以text开头的时候，它会使用UTF-8编码将消息转换为String类型

当contentType是application/x-java-serialized-object时，它会将消息进行解序列化



JsonMessageConverter、Jackson2JsonMessageConverter将对象转换为json传递给rabbitmq



首先发送信息的applicationContext-send-messageConverter.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:rabbit="http://www.springframework.org/schema/rabbit"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans.xsd
      http://www.springframework.org/schema/context
      http://www.springframework.org/schema/context/spring-context.xsd
      http://www.springframework.org/schema/aop
      http://www.springframework.org/schema/aop/spring-aop.xsd
      http://www.springframework.org/schema/tx
      http://www.springframework.org/schema/tx/spring-tx.xsd
      http://www.springframework.org/schema/mvc
      http://www.springframework.org/schema/mvc/spring-mvc.xsd
      http://www.springframework.org/schema/rabbit
	  http://www.springframework.org/schema/rabbit/spring-rabbit-1.4.xsd">

	<rabbit:connection-factory id="connectionFactory" host="192.168.1.175" port="5672" channel-cache-size="25" />

	<rabbit:template id="amqpTemplate" connection-factory="connectionFactory" routing-key="simpleSend" message-converter="jackson2JsonMessageConverter"/>

	<rabbit:admin connection-factory="connectionFactory" />

	<rabbit:queue name="simpleSend"/>

	<bean id="jackson2JsonMessageConverter" class="org.springframework.amqp.support.converter.Jackson2JsonMessageConverter"/>

</beans>

 主要是增加了jackson2JsonMessageConverter



测试发送消息

@Test
	public void testSend() throws InterruptedException {

		rabbitTemplate.convertAndSend(new Order(1, "hello"));
	}

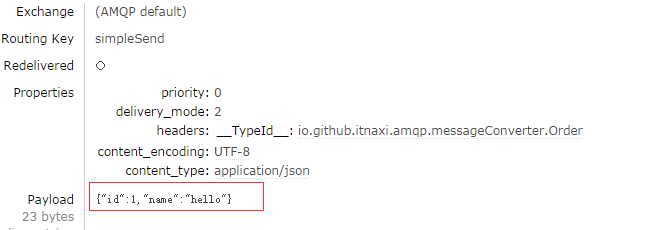

 打开rabbitmq管理界面，查看消息内容如下：

 证明发送成功，并且是以json的方式



接下来接收消息

applicationContext-receive-messageConverter.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:rabbit="http://www.springframework.org/schema/rabbit"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans.xsd
      http://www.springframework.org/schema/context
      http://www.springframework.org/schema/context/spring-context.xsd
      http://www.springframework.org/schema/aop
      http://www.springframework.org/schema/aop/spring-aop.xsd
      http://www.springframework.org/schema/tx
      http://www.springframework.org/schema/tx/spring-tx.xsd
      http://www.springframework.org/schema/mvc
      http://www.springframework.org/schema/mvc/spring-mvc.xsd
      http://www.springframework.org/schema/rabbit
	  http://www.springframework.org/schema/rabbit/spring-rabbit-1.4.xsd">

	<rabbit:connection-factory id="connectionFactory" host="192.168.1.175" port="5672" channel-cache-size="25" />

	<rabbit:template id="amqpTemplate" connection-factory="connectionFactory" queue="simpleSend" message-converter="jackson2JsonMessageConverter"/>

	<rabbit:admin connection-factory="connectionFactory" />

	<rabbit:queue name="simpleSend"/>

	<bean id="jackson2JsonMessageConverter" class="org.springframework.amqp.support.converter.Jackson2JsonMessageConverter"/>

</beans>



测试代码：

@Test
	public void testReceive() throws InterruptedException {
		Object object=rabbitTemplate.receiveAndConvert();
		if(object!=null){
			log.info(object.toString());
			Order order=(Order)object;
			log.info(order.getName());
		}else{
			log.info("no msg!");
		}
	}

 debug一下，成功了
