SpringBoot结合RabbitMQ详解（二）

一.Topic Exchange

Topic 是 RabbitMQ 中最灵活的一种方式，可以根据 routing_key 自由的绑定不同的队列。

1）首先添加交换机

首先对 Topic 规则配置，这里使用两个队列来测试。

注意：配置路由键的时候可以配置 *, # 来模糊匹配。以下配置是让 queueMessages 同时匹配两个队列，queueMessage 只匹               配“topic.message”队列

@Configuration
public class TopicRabbitConfig {
    final static String message = "topic.message";
    final static String messages = "topic.messages";

    //定义队列
    @Bean
    public Queue queueMessage() {
        return new Queue(TopicRabbitConfig.message);
    }
    @Bean
    public Queue queueMessages() {
        return new Queue(TopicRabbitConfig.messages);
    }
    //交换机
    @Bean
    TopicExchange exchange() {
        return new TopicExchange("exchange");
    }
    //将队列和交换机绑定
    @Bean
    Binding bindingExchangeMessage(Queue queueMessage, TopicExchange exchange) {
        return BindingBuilder.bind(queueMessage).to(exchange).with("topic.message");
    }
    @Bean
    Binding bindingExchangeMessages(Queue queueMessages, TopicExchange exchange) {
        return BindingBuilder.bind(queueMessages).to(exchange).with("topic.#");
    }
}

发送者代码：

@Component
public class TopicSender {
    @Autowired
    private AmqpTemplate rabbitTemplate;

    public void send1() {
        String context = "Topic Sender1 topic.message";
        System.out.println("Sender : " + context);
        this.rabbitTemplate.convertAndSend("exchange", "topic.message", context);
    }

    public void send2() {
        String context = "Topic Sender2 topic.messages";
        System.out.println("Sender : " + context);
        this.rabbitTemplate.convertAndSend("exchange", "topic.messages", context);
    }
}

定义接收者1(TopicReceiver) 和接收者2(TopicReceiver2)

@Component
@RabbitListener(queues = "topic.message")
public class TopicReceiver {
    @RabbitHandler
    public void process(String message) {
        System.out.println("Topic Receiver1  : " + message);
    }
}

@Component
@RabbitListener(queues = "topic.#")
public class TopicReceiver2 {
    @RabbitHandler
    public void process(String message) {
        System.out.println("Topic Receiver2  : " + message);
    }
}

测试seng1：

@Test
public void topicTest() throws Exception {
    topicSender.send1();
    Thread.sleep(1000l);
}

结果：（两个都接收到）

测试send2：

@Test
public void topic2() throws Exception {
    topicSender.send2();
    Thread.sleep(1000l);
}

结果：（）

发送 send1 会匹配到 topic.# 和 topic.message 两个 Receiver 都可以收到消息。

发送 send2 只有 topic.# 可以匹配，Receiver2 监听到了消息。

二.Fanout Exchange

Fanout 就是我们熟悉的广播模式或者订阅模式，给 Fanout 交换机发送消息，绑定了这个交换机的所有队列都收到这个消息。

新建type为Fanout的交换机，添加序列

配置FanoutRabbitConfig

@Configuration
public class FanoutRabbitConfig {

    //定义队列
    @Bean
    public Queue AMessage() {
        return new Queue("fanout.A");
    }

    @Bean
    public Queue BMessage() {
        return new Queue("fanout.B");
    }

    @Bean
    public Queue CMessage() {
        return new Queue("fanout.C");
    }

    //定义交换机
    @Bean
    FanoutExchange fanoutExchange() {
        return new FanoutExchange("fanoutExchange");
    }

    //分部进行绑定
    @Bean
    Binding bindingExchangeA(Queue AMessage, FanoutExchange fanoutExchange) {
        return BindingBuilder.bind(AMessage).to(fanoutExchange);
    }

    @Bean
    Binding bindingExchangeB(Queue BMessage, FanoutExchange fanoutExchange) {
        return BindingBuilder.bind(BMessage).to(fanoutExchange);
    }

    @Bean
    Binding bindingExchangeC(Queue CMessage, FanoutExchange fanoutExchange) {
        return BindingBuilder.bind(CMessage).to(fanoutExchange);
    }

}

新加发送者代码

@Component
public class FanoutSender {
    @Autowired
    private AmqpTemplate rabbitTemplate;

    public void send() {
        String context = "FanoutSender";
        System.out.println("Sender : " + context);
        this.rabbitTemplate.convertAndSend("fanoutExchange","", context);
    }
}

接收者代码A,B,C

@Component
@RabbitListener(queues = "fanout.A")
public class FanoutReceiverA {
    @RabbitHandler
    public void process(String message) {
        System.out.println("fanout Receiver A: " + message);
    }
}

@Component
@RabbitListener(queues = "fanout.B")
public class FanoutReceiverB {
    @RabbitHandler
    public void process(String message) {
        System.out.println("fanout Receiver B: " + message);
    }
}

@Component
@RabbitListener(queues = "fanout.C")
public class FanoutReceiverC {
    @RabbitHandler
    public void process(String message) {
        System.out.println("fanout Receiver C: " + message);
    }
}

测试send()

@Test
public void fanoutSender() throws Exception {
    fanoutSender.send();
    Thread.sleep(1000l);
}

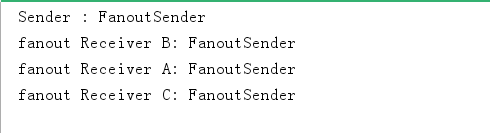

运行结果如下：

结果说明，绑定到 fanout 交换机上面的队列都收到了消息。
