JAVA导出pdf - 超高效

有小老弟网上扒的PDF导出，效率之低，给我惊讶到了…画Freemarker模板给我看的…

1、绘制导出模板

😺 打开WPS或者Word

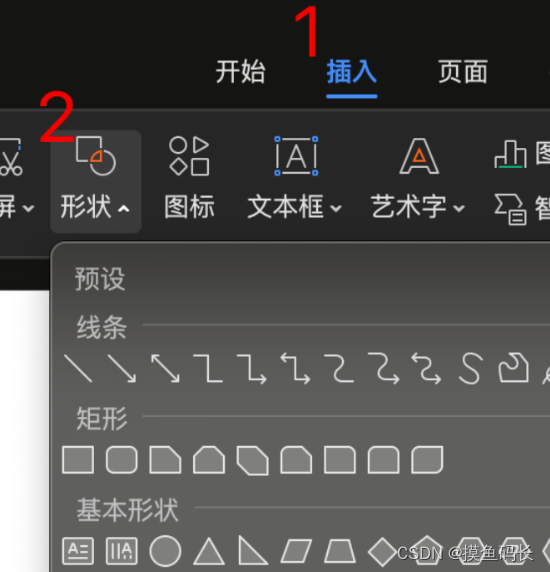

😺 1点击插入，2选择形状

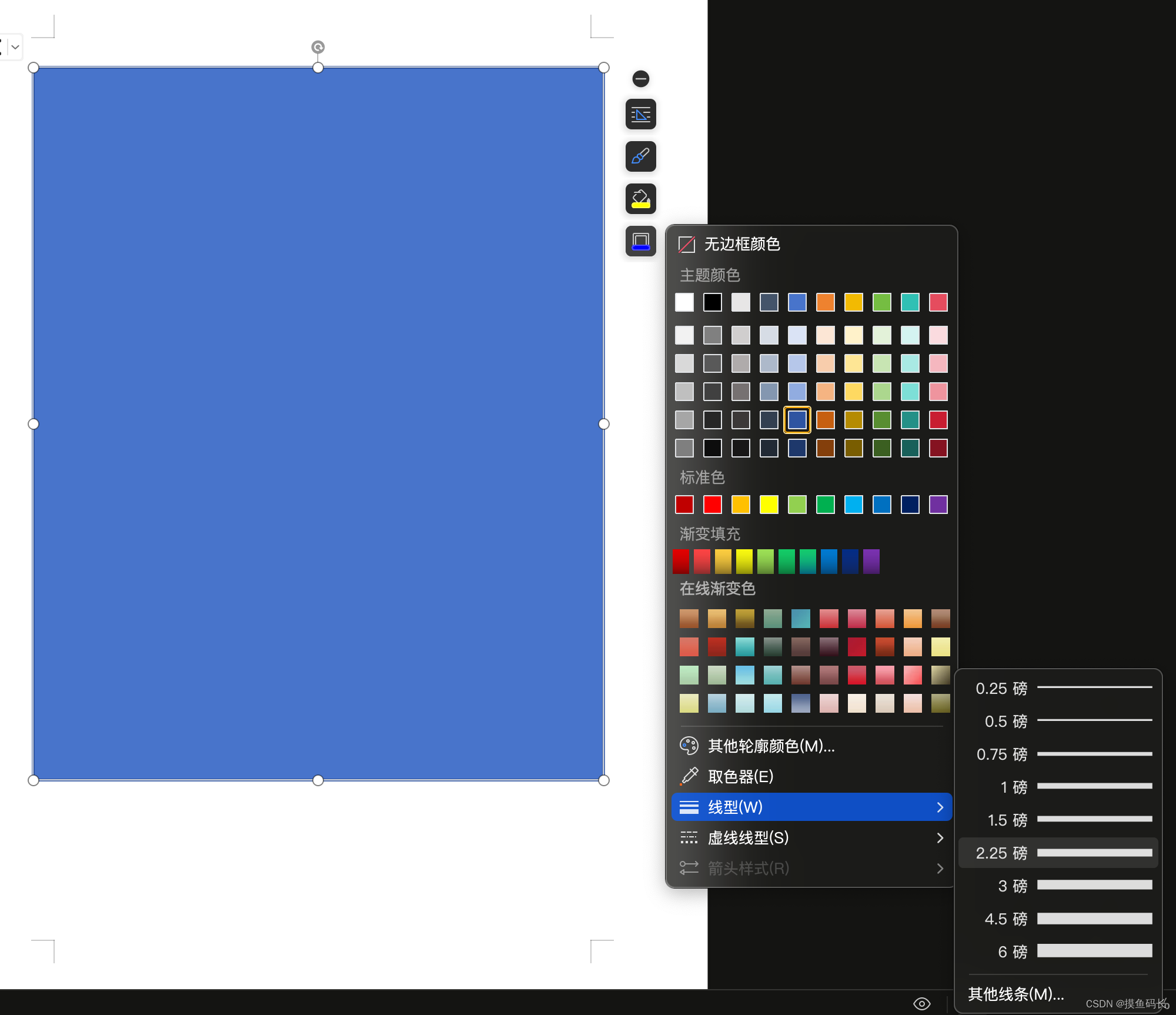

😺 选择矩形或者线条进行绘制，自由绘制线粗细及背景色

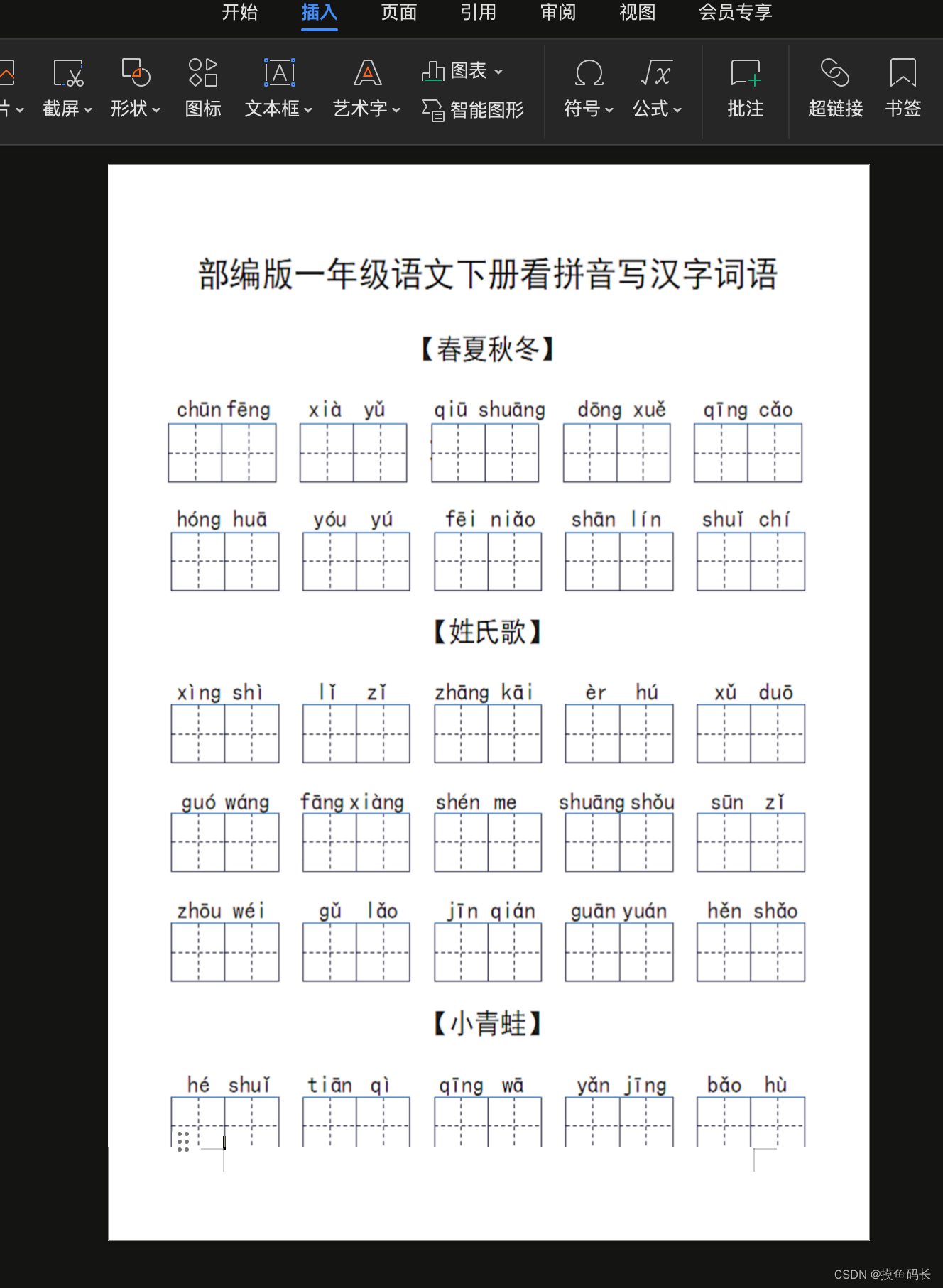

😺 以下为绘制好的示范模板：

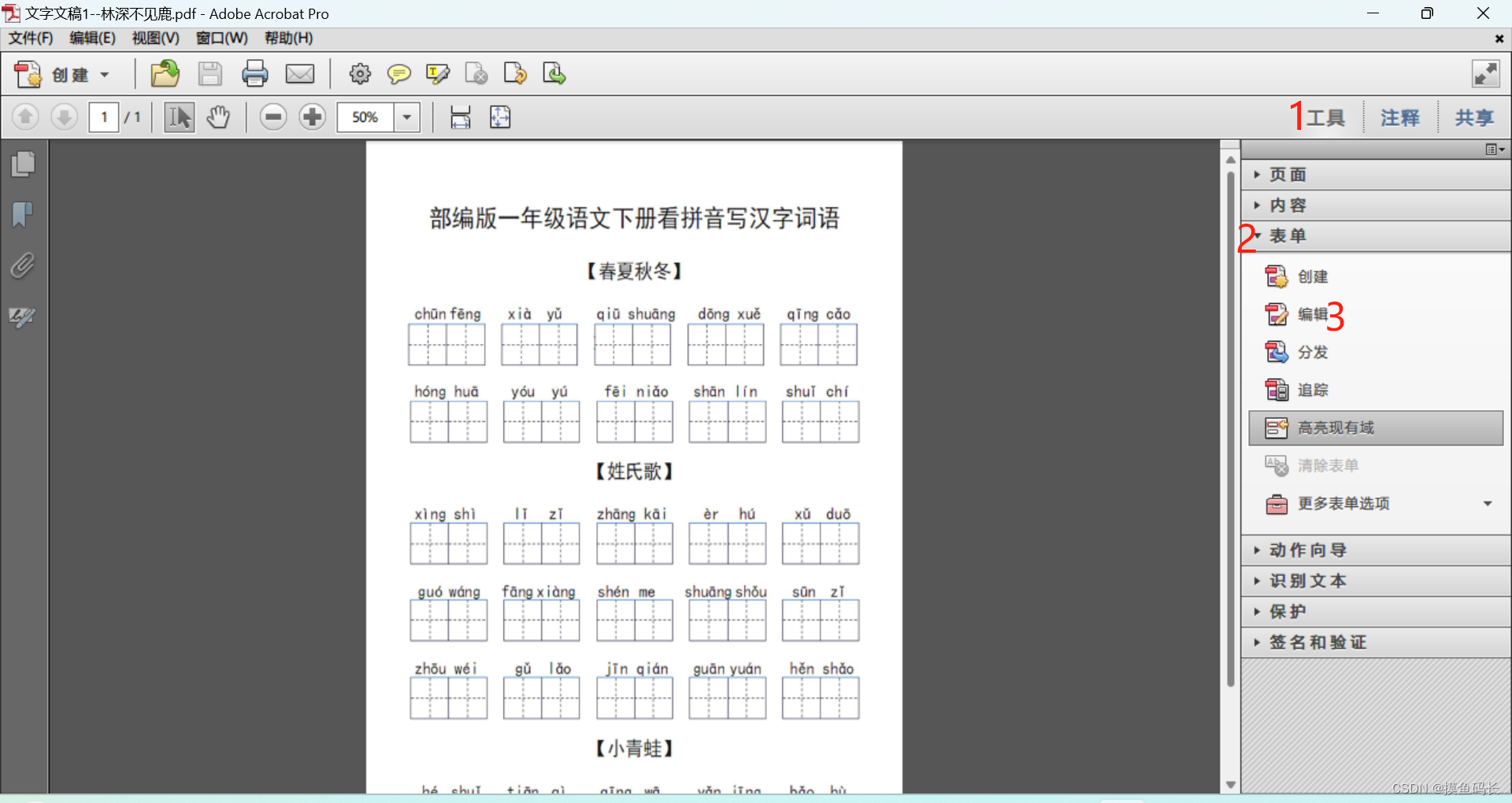

😺 把word转换为pdf再导入Adobe_Acrobat_X_Pro

😺 添加新域

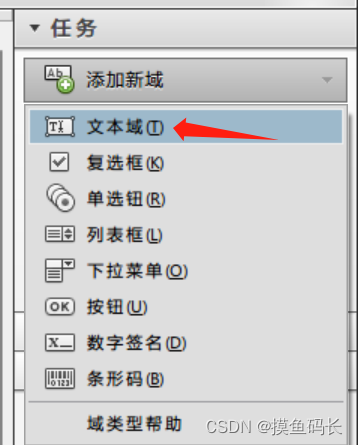

😺 选择文本域就能满足大多数情况，看具体模板需求

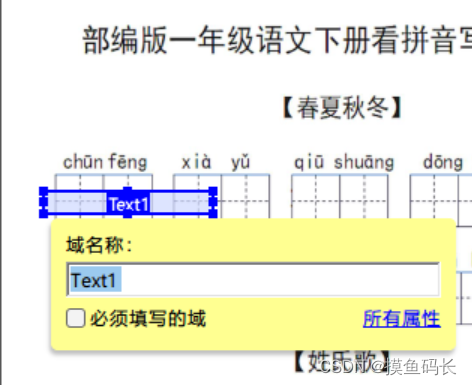

😺 直接把域放在模板对应位置即可

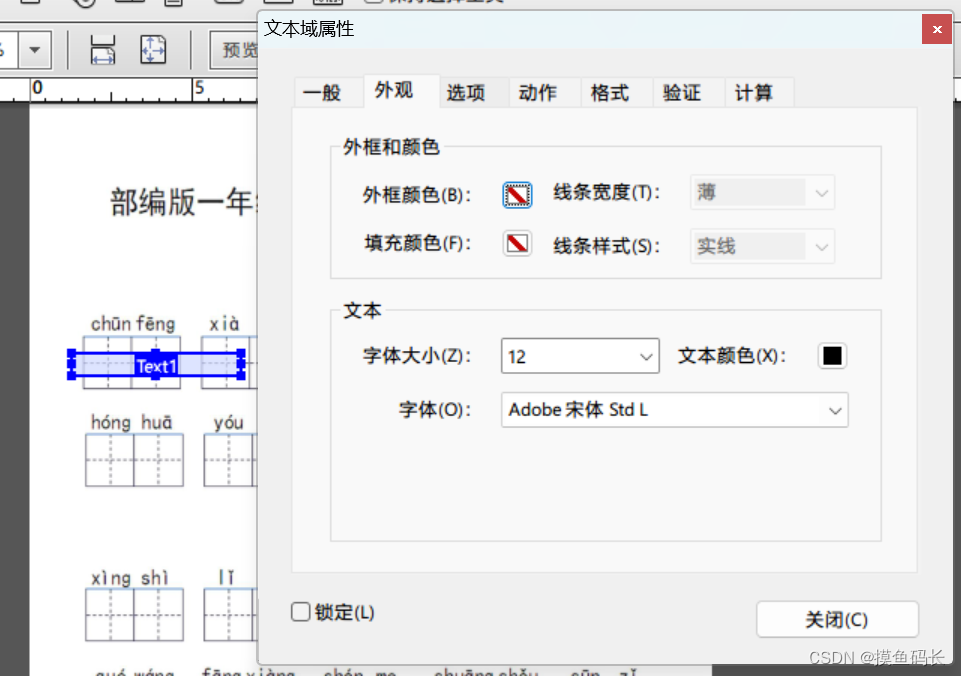

😺 文本域属性调整

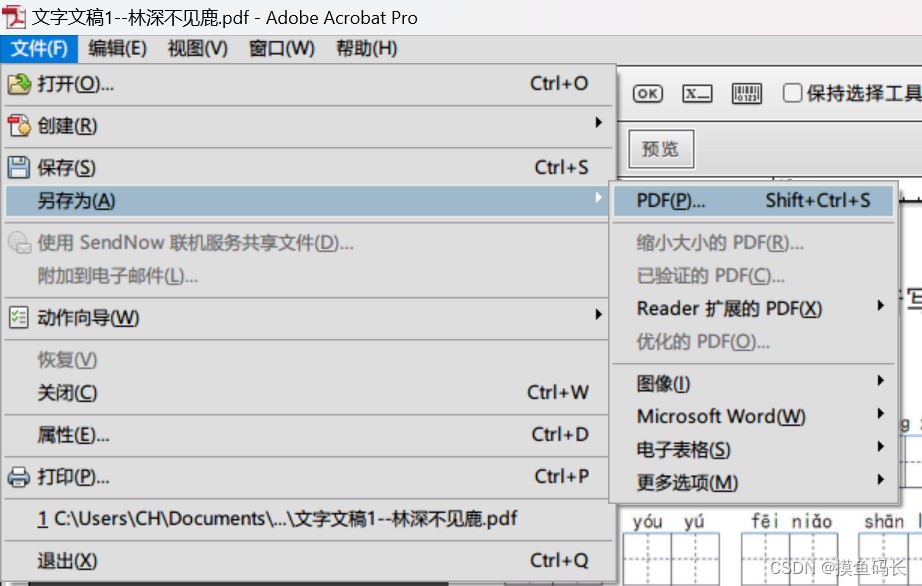

😺 域处理完毕之后，重新保存为PDF即可

代码处理

😺 依赖

<!-- pdf模板导出 -->
<dependency>
    <groupId>com.itextpdf</groupId>
    <artifactId>itextpdf</artifactId>
    <version>5.5.6</version>
</dependency>
<dependency>
    <groupId>com.itextpdf</groupId>
    <artifactId>itext-asian</artifactId>
    <version>5.2.0</version>
</dependency>

😺 控制层

/**
     * pdf导出
     *
     * @throws Exception
     * @author 摸鱼码长
     */
    @GetMapping("/pdf_export")
    @ApiOperation(value = "pdf导出")
    public void printPdf(HttpServletResponse response) throws Exception {

        // 获取数据源
        HashMap data = new HashMap<>();
        data.put("Text1", "value");

        String downloadName = "林深不见鹿.pdf";

        String templatePath = "/thisIsExUrl";

        OutputStream outputStream = null;

        try {
            response.setContentType("application/pdf");
            response.setCharacterEncoding("UTF-8");
            response.setHeader("Content-Disposition", "inline;fileName=" + URLEncoder.encode(downloadName, "UTF-8"));  // 预览
            // 获取outputStream
            outputStream = response.getOutputStream();
            // 生成pdf流输出到response
            ItextPdfUtil.generatePDF(templatePath, outputStream, data);
        } catch (Exception e) {
            log.error("-===== ::: something ERROR ", e);
            throw new RuntimeException("Buz log ..");
        } finally {
            if (outputStream != null) {
                outputStream.close();
            }
        }
    }

😺 核心方法

    /**
     * 生成pdf流输出到response
     *
     * @param templatePdfPath url
     * @param outputStream    outputStream
     * @param data            dataResource
     * @author 摸鱼码长
     */
    public static void generatePDF(String templatePdfPath, OutputStream outputStream, HashMap data) {
        ByteArrayOutputStream byteArrayOutputStream = null;
        PdfReader reader = null;
        try {
            PdfReader.unethicalreading = true;
            reader = new PdfReader(templatePdfPath);
            byteArrayOutputStream = new ByteArrayOutputStream();
            PdfStamper ps = new PdfStamper(reader, byteArrayOutputStream);

            ArrayList<BaseFont> fontList = new ArrayList<>();
            AcroFields fields = ps.getAcroFields();
            fields.setGenerateAppearances(true);
            fields.setSubstitutionFonts(fontList);
            transformRegular(ps, fields, data);
            ps.setFormFlattening(true);
            ps.close();
            reader.close();
            outputStream.write(byteArrayOutputStream.toByteArray());
            outputStream.flush();
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            if (reader != null) {
                try {
                    reader.close();
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }
            if (byteArrayOutputStream != null) {
                try {
                    byteArrayOutputStream.close();
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }
        }
    }

    /**
     * 表单域填充
     *
     * @param stamper
     * @param form
     * @param dataMap
     * @throws IOException
     * @throws DocumentException
     * @author 摸鱼码长
     */
    public static void transformRegular(PdfStamper stamper, AcroFields form, HashMap dataMap) throws IOException, DocumentException {
        if (dataMap == null || dataMap.size() == 0) {
            return;
        }
        // 设置中文显示
        BaseFont bfChinese = BaseFont.createFont("STSong-Light", "UniGB-UCS2-H", BaseFont.NOT_EMBEDDED);
        String key = "";
        form.addSubstitutionFont(bfChinese);
        Iterator ekey = dataMap.keySet().iterator();
        while (ekey.hasNext()) {
            key = ekey.next().toString();
            try {
                //非空放入
                if (dataMap.get(key) != null) {
                    if (dataMap.get(key) instanceof HashMap) {
                        HashMap<String, String> fieldMap = (HashMap<String, String>) dataMap.get(key);
                        if ("img".equals(fieldMap.get("type"))) {
                            String content = fieldMap.get("content");
                            //如果图片地址为空，或不存在则不填充
                            if (StringUtils.isBlank(content)) {
                                continue;
                            }
                            URL url = new URL(content);
                            if ("file".equals(url.getProtocol())) {
                                if (!new File(url.toURI()).exists()) {
                                    continue;
                                }
                            }
                            // 通过域名获取所在页和坐标，左下角为起点
                            int pageNo = form.getFieldPositions(key).get(0).page;
                            Rectangle signRect = form.getFieldPositions(key).get(0).position;
                            float x = signRect.getLeft();
                            float y = signRect.getBottom();
                            // 读图片
                            Image image = Image.getInstance(content);
                            // 获取操作的页面
                            PdfContentByte under = stamper.getOverContent(pageNo);
                            // 根据域的大小缩放图片
                            image.scaleToFit(signRect.getWidth(), signRect.getHeight());
                            // 添加图片
                            image.setAbsolutePosition(x, y);
                            under.addImage(image);
                        }
                    } else {
                        form.setField(key, dataMap.get(key).toString());
                    }

                }
            } catch (IOException e) {
                e.printStackTrace();
            } catch (DocumentException e) {
                e.printStackTrace();
            } catch (URISyntaxException e) {
                throw new RuntimeException(e);
            }
        }
    }
