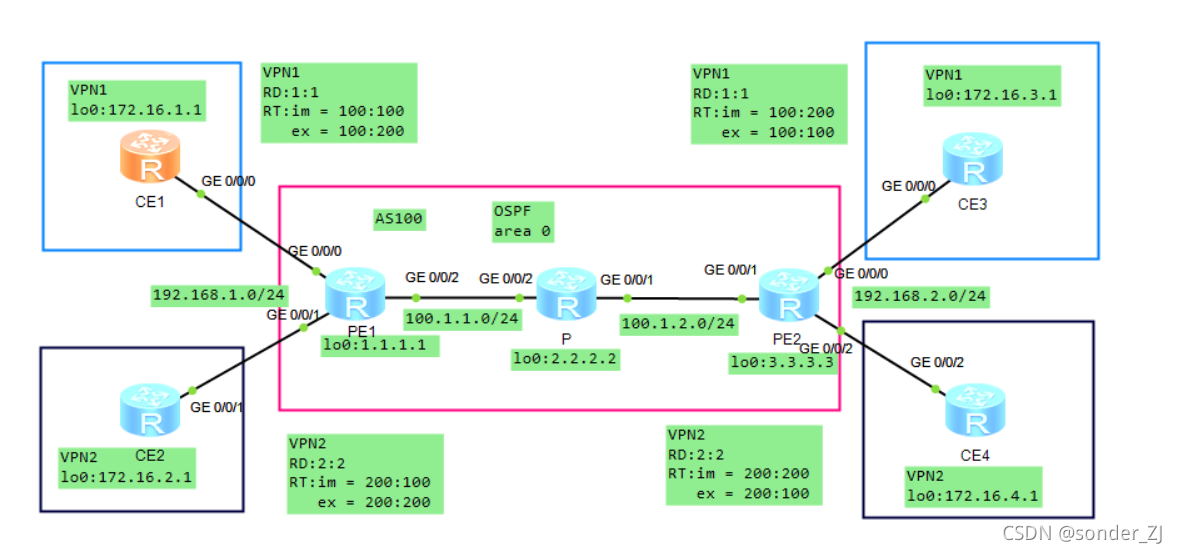

公网网络互通

PE1:

ospf 1 router-id 1.1.1.1
 area 0.0.0.0
  network 1.1.1.1 0.0.0.0
  network 100.1.1.1 0.0.0.0



P:

ospf 1 router-id 2.2.2.2
 area 0.0.0.0
  network 2.2.2.2 0.0.0.0
  network 100.1.1.2 0.0.0.0
  network 100.1.2.2 0.0.0.0



PE2:

ospf 1 router-id 3.3.3.3
 area 0.0.0.0
  network 3.3.3.3 0.0.0.0
  network 100.1.2.1 0.0.0.0

PE与CE之间IP配置，创建VPN

PE1:

ip vpn-instance 1
 ipv4-family
#
ip vpn-instance 2
 ipv4-family

interface GigabitEthernet0/0/0
 ip binding vpn-instance 1
 ip address 192.168.1.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip binding vpn-instance 2
 ip address 192.168.1.1 255.255.255.0



PE2:

ip vpn-instance 1
 ipv4-family
#
ip vp
