一、Disruptor的简介

Disruptor是基于事件异步驱动模型实现的，采用了RingBuffer数据结构，支持高并发、低延时、高吞吐量的高性能工作队列，它是由英国外汇交易公司LMAX开发的，研发的初衷是解决内存队列的延迟问题，不同于我们常用的分布式消息中间件RocketMQ、Kafaka，而Disruptor是单机的、本地内存队列，类似JDK的ArrayBlockingQueue等队列。

Disruptor的使用场景

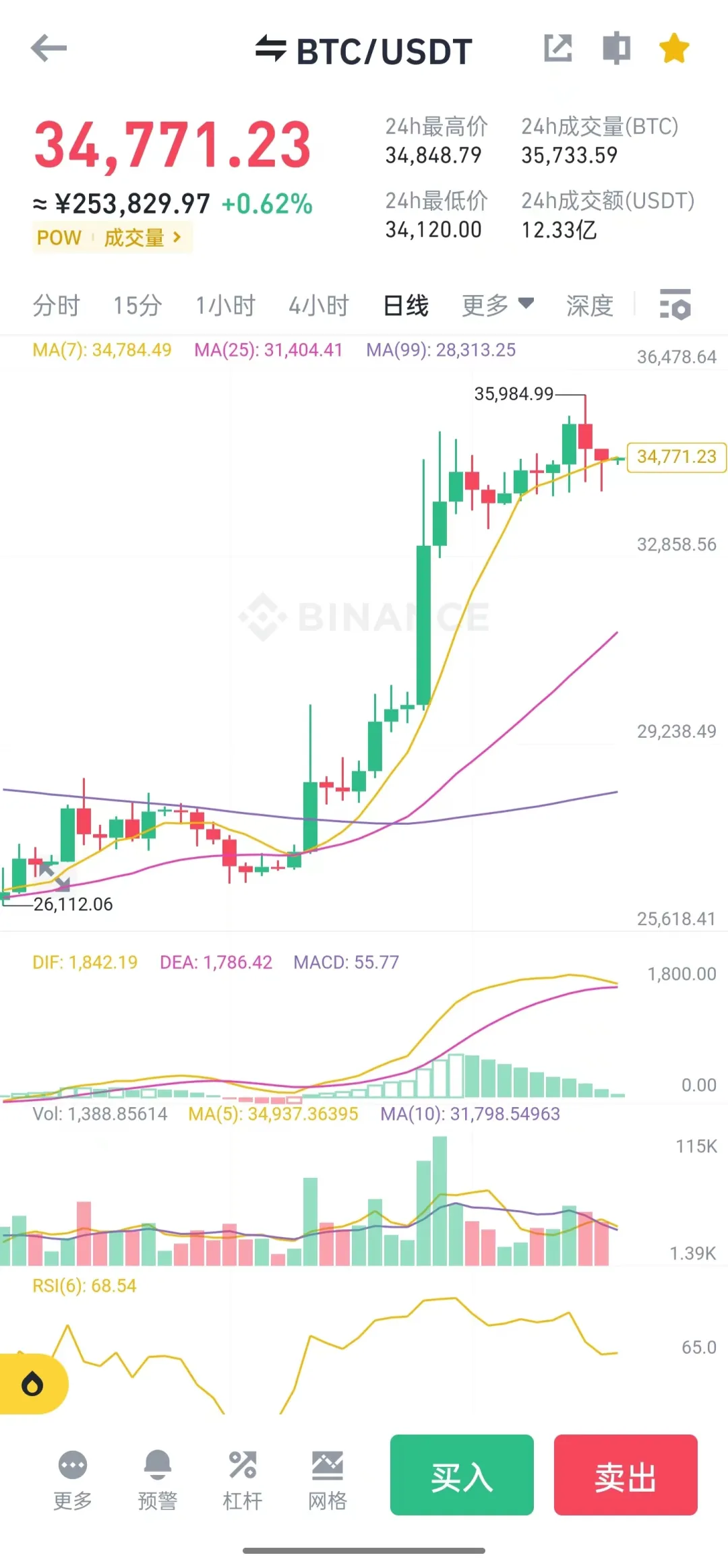

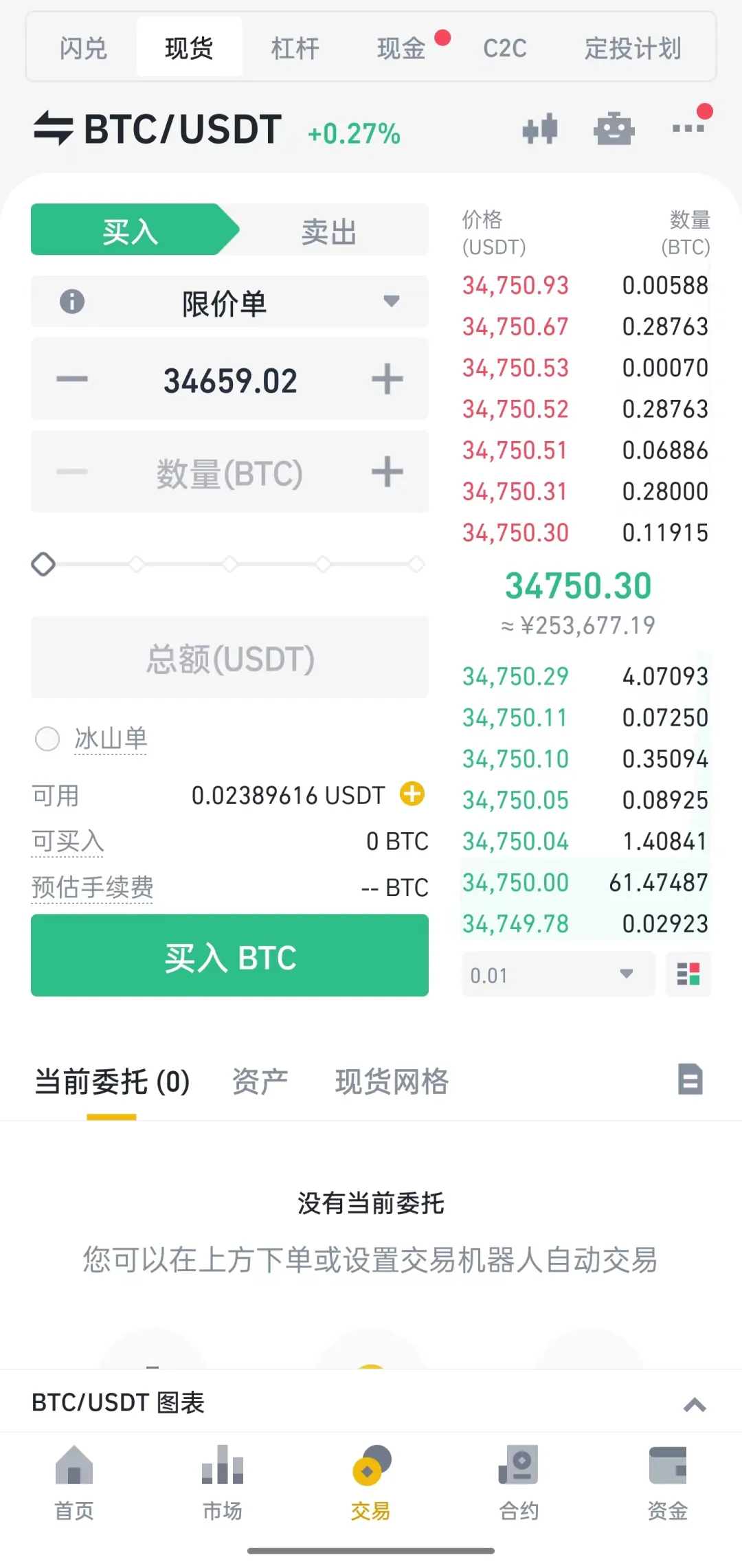

加密货币交易撮合引擎
Log4j2基于Disruptor实现的异步日志处理
Canal+Disruptor实现高效的数据同步
知名开源框架Apache Strom

2010年在QCon的演讲，介绍了基于Disruptor开发的系统单线程能支撑每秒600万订单，由此可见该组件可以大幅提升系统的TPS，所以对于一些需要大幅提升单机应用的吞吐量的场景可以考虑使用Disruptor。

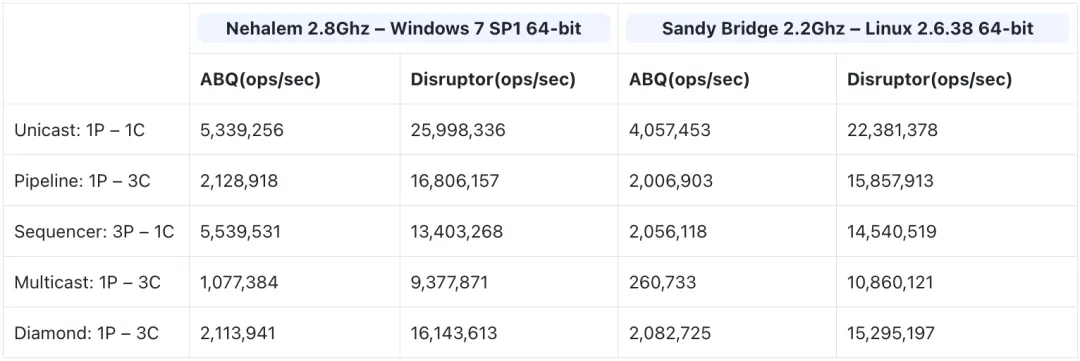

Disruptor和ArrayBlockingQueue性能对比

ArrayBlockingQueue是基于数组ArrayList实现的，通过ReentrantLock独占锁保证线程安全；
Disruptor是基于环形数组队列RingBuffer实现的，通过CAS乐观锁保证线程安全。在多种生产者-消费者模式下的性能对比。

Figure 1. Unicast: 1P–1C

Figure 2. Three Step Pipeline: 1P–3C

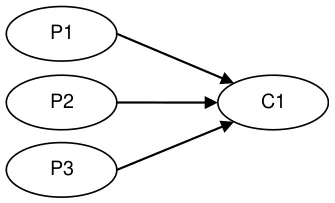

Figure 3. Sequencer: 3P–1C

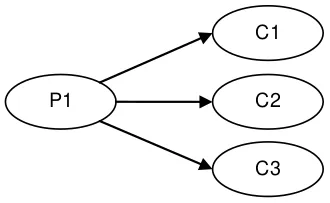

Figure 4. Multicast: 1P–3C

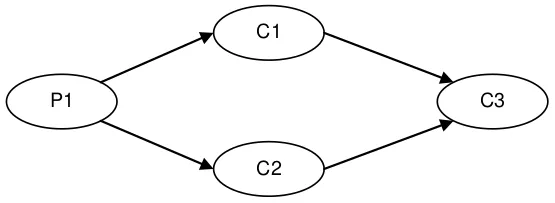

Figure 5. Diamond: 1P–3C

Disruptor快速接入指南

引入Maven依赖

<dependency>

    <groupld>com.lmax</groupld>

    <artifactld>disruptor</artifactld>

    <version>4.0.0</version>

</dependency>

自定义事件和事件工厂

public class LongEvent {
    private long value;

    public void set(long value) {
        this.value = value;
    }

    @Override
    public String toString() {
        return "LongEvent{" + "value=" + value + '}';
    }
}

public class LongEventFactory implements EventFactory<LongEvent> {
    @Override
    public LongEvent newInstance() {
        return new LongEvent();
    }
}

定义事件处理器，即消费者

public class LongEventHandler implements EventHandler<LongEvent> {
    @Override
    public void onEvent(LongEvent event, long sequence, boolean endOfBatch) {
        System.out.println("Event: " + event);
    }
}

定义事件生产者

import com.lmax.disruptor.RingBuffer;
import com.lmax.disruptor.examples.longevent.LongEvent;

import java.nio.ByteBuffer;

public class LongEventProducer {
    private final RingBuffer<LongEvent> ringBuffer;

    public LongEventProducer(RingBuffer<LongEvent> ringBuffer) {
        this.ringBuffer = ringBuffer;
    }

    public void onData(ByteBuffer bb) {
        long sequence = ringBuffer.next();
        try {
            LongEvent event = ringBuffer.get(sequence);
            event.set(bb.getLong(0));
        }
        finally {
            ringBuffer.publish(sequence);
        }
    }
}

编写启动类

public class LongEventMain {
    public static void main(String[] args) throws InterruptedException {
        // 消费者线程池
        Executor executor = Executors.newCachedThreadPool();
        // 事件工厂
        LongEventFactory eventFactory = new LongEventFactory();
        // 指定RingBuffer大小
        int bufferSize = 1024;
        // 构造事件分发器
        Disruptor<LongEvent> disruptor = new Disruptor<>(eventFactory
                , bufferSize
                , executor
                , ProducerType.SINGLE // 1.ProducerType.SINGLE 单生产者模式 2.ProducerType.MULTI 多生产者模式

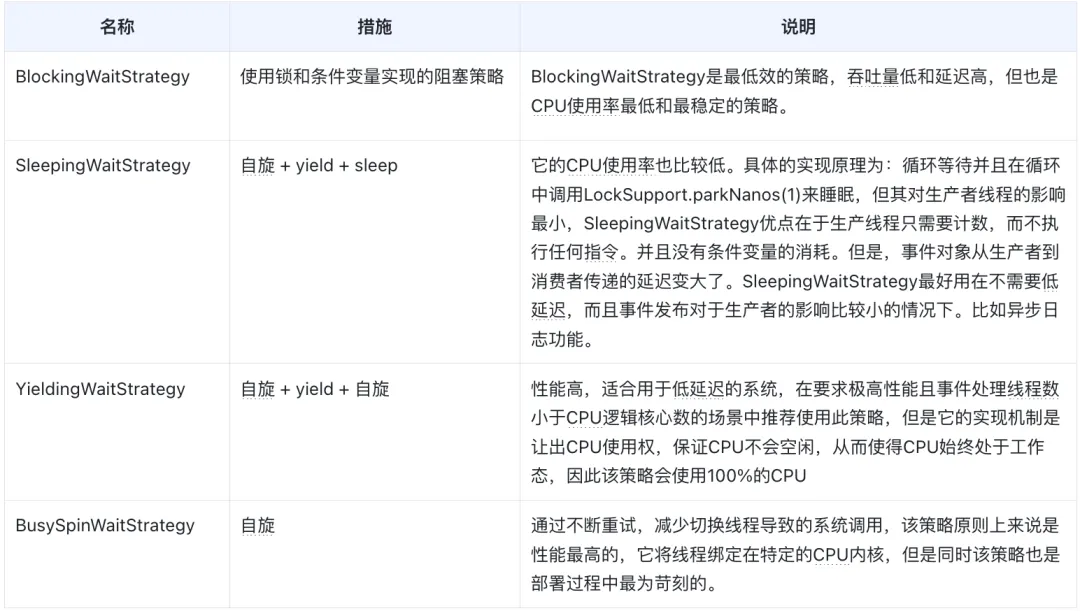

                , new YieldingWaitStrategy());//消费者等待策略
        // 注册消费者
        disruptor.handleEventsWith(new LongEventHandler());
        // 启动事件分发
        disruptor.start();
        // 获取RingBuffer 用于生产事件
        RingBuffer<LongEvent> ringBuffer = disruptor.getRingBuffer();
        LongEventProducer producer = new LongEventProducer(ringBuffer);
        ByteBuffer bb = ByteBuffer.allocate(8);
        for (long i=0;true; i++) {
            bb.putLong(0, i);
            // 发送事件
            producer.onData(bb);
            Thread.sleep(1000);
        }
    }
}
