 1、下载Seata

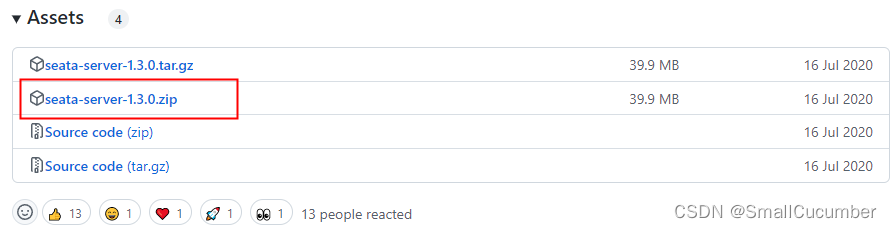

 下载Seata1.3.0服务端Releases · seata/seata · GitHub

​

2、创建数据库。

创建 seata130数据库存储Seata服务表数据。在Nacos上面创建seata130命令空间。

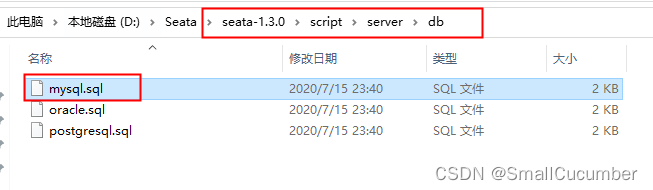

GitHub - seata/seata at 1.3.0将seata1.3.0下载下来。进入seata-1.3.0\script\server\db目录。

在  seata130数据库执行mysql.sql脚本。

3、Seata配置Nacos

修改conf/file.conf

## transaction log store, only used in seata-server
store {
  ## store mode: file、db、redis
  mode = "db"

  db {
    ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp)/HikariDataSource(hikari) etc.
    datasource = "druid"
    ## mysql/oracle/postgresql/h2/oceanbase etc.
    dbType = "mysql"
    driverClassName = "com.mysql.jdbc.Driver"
    url = "jdbc:mysql://127.0.0.1:3306/seata130"
    user = "root"
    password = "root123"
    minConn = 5
    maxConn = 30
    globalTable = "global_table"
    branchTable = "branch_table"
    lockTable = "lock_table"
    queryLimit = 100
    maxWait = 5000
  }

}

修改conf/registry.conf

registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  type = "nacos"

  nacos {
    application = "seata-server"
    serverAddr = "127.0.0.1:8848"
    group = "SEATA_GROUP"
    namespace = "seata130"
    cluster = "default"
    username = "nacos"
    password = "nacos"
  }
}

config {
  # file、nacos 、apollo、zk、consul、etcd3
  type = "nacos"

  nacos {
    serverAddr = "127.0.0.1:8848"
    namespace = "seata130"
    group = "SEATA_GROUP"
    username = "nacos"
    password = "nacos"
  }

}

4、导入Seata服务配置

进入seata-1.3.0\script\config-center目录修改config.txt中的部门数据，在讲config.txt中的数据通过nacos-config.sh推送都Nacos上面去。

#事务分组可以看官网。default必须和registry.conf里面的cluster的值一致
service.vgroupMapping.my_test_tx_group=default
store.mode=db
store.db.datasource=druid
store.db.dbType=mysql
#mysql8需用用com.mysql.cj.jdbc.Driver,在url后面需要serverTimezone=UTC
store.db.driverClassName=com.mysql.cj.jdbc.Driver
store.db.url=jdbc:mysql://127.0.0.1:3306/seata130?useUnicode=true&serverTimezone=UTC
store.db.user=root
store.db.password=root123
store.db.minConn=5
store.db.maxConn=30
store.db.globalTable=global_table
store.db.branchTable=branch_table
store.db.queryLimit=100
store.db.lockTable=lock_table
store.db.maxWait=5000

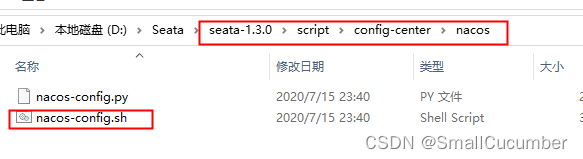

修改好后进入seata-1.3.0\script\config-center\nacos。如果安装了Git可以通过Git去执行nacos-config.sh。

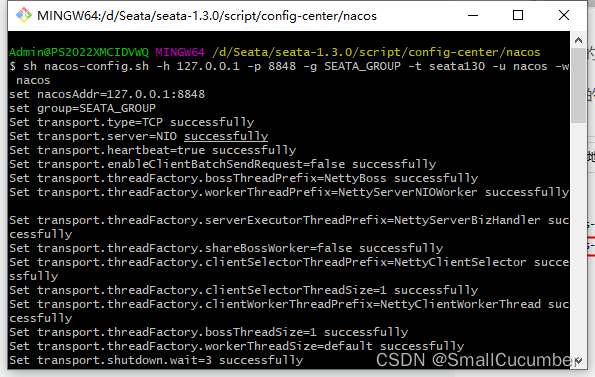

sh nacos-config.sh -h 127.0.0.1 -p 8848 -g SEATA_GROUP -t seata130 -u nacos -w nacos

-h Nacos的IP。  -p  Nacos的端口。 -g Nacos的分组。 -t Nacos的命令空间 -u Nacos的账号。

-w Nacos的密码。



 将数据推送到Nacos后接下来创建Seata Client。

5、创建seata-account-service服务。

创建130_db_account数据库，执行下面的SQL创建表。

CREATE TABLE `t_account` (
  `id` bigint NOT NULL AUTO_INCREMENT COMMENT 'id',
  `user_id` bigint DEFAULT NULL COMMENT '用户id',
  `total` decimal(10,0) DEFAULT NULL COMMENT '总额度',
  `used` decimal(10,0) DEFAULT NULL COMMENT '已用余额',
  `residue` decimal(10,0) DEFAULT '0' COMMENT '剩余可用额度',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8mb3;

INSERT INTO `t_account` VALUES ('1', '1', '1000', '0', '1000');

CREATE TABLE `undo_log` (
  `branch_id` bigint NOT NULL COMMENT 'branch transaction id',
  `xid` varchar(100) NOT NULL COMMENT 'global transaction id',
  `context` varchar(128) NOT NULL COMMENT 'undo_log context,such as serialization',
  `rollback_info` longblob NOT NULL COMMENT 'rollback info',
  `log_status` int NOT NULL COMMENT '0:normal status,1:defense status',
  `log_created` datetime(6) NOT NULL COMMENT 'create datetime',
  `log_modified` datetime(6) NOT NULL COMMENT 'modify datetime',
  UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3 COMMENT='AT transaction mode undo table';

添加pom.xml依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>111-springcloud-alibaba-seate130</artifactId>
        <groupId>com.zmm</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>seata-account-com.zmm.service-8502-130</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <!--nacos-config-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <!--nacos-discovery-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <!--seata-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
            <exclusions>
                <exclusion>
                    <artifactId>seata-spring-boot-starter</artifactId>
                    <groupId>io.seata</groupId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-spring-boot-starter</artifactId>
            <version>1.3.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bootstrap</artifactId>
        </dependency>
        <!--feign-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.0.0</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.20</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

创建bootstrap.yml文件

# Tomcat
server:
  port: 8502

# Spring
spring:
  application:
    # 应用名称
    name: seata-account-service
  profiles:
    # 环境配置
    active: dev
  main:
    allow-circular-references: true
    allow-bean-definition-overriding: true
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
        #分组需要和Seata的配置保持一致
        group: SEATA_GROUP
        namespace: seata130
      config:
        server-addr: 127.0.0.1:8848
        #分组需要和Seata的配置保持一致
        group: SEATA_GROUP
        namespace: seata130
        file-extension: yml
        # 共享配置
        #shared-configs:
        #  - application-${spring.profiles.active}.${spring.cloud.nacos.config.file-extension}
    alibaba:
      seata:
        #自定义服务群组，该值必须与 Nacos 配置中的 service.vgroupMapping.{my-service-group}=default 中的 {my-service-group}相同
        tx-service-group: my_test_tx_group

  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    name: defaultDataSource
    url: jdbc:mysql://127.0.0.1:3306/130_db_account?serverTimezone=UTC
    username: root
    password: root123

seata:
  config:
    type: nacos
    nacos:
      server-addr: 127.0.0.1:8848
      group: SEATA_GROUP
      namespace: seata130
      username: nacos
      password: nacos
  registry:
    type: nacos
    nacos:
      application: seata-server
      server-addr: 127.0.0.1:8848
      group: SEATA_GROUP
      namespace: seata130
      username: nacos
      password: nacos

###################################### MyBatis 配置 ######################################
mybatis:
  # 指定 mapper.xml 的位置
  mapper-locations: classpath:mapper/*.xml
  #扫描实体类的位置,在此处指明扫描实体类的包，在 mapper.xml 中就可以不写实体类的全路径名
  type-aliases-package: com.zmm.entity
  configuration:
    #默认开启驼峰命名法，可以不用设置该属性
    map-underscore-to-camel-case: true

management:
  endpoints:
    web:
      exposure:
        include: "*"   # * 在yaml 文件属于关键字，所以需要加引号

创建AccountMapper

@Mapper
public interface AccountMapper {

    Account selectByUserId(Long userId);

    int decrease(Long userId, BigDecimal money);
}

创建AccountMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.zmm.mapper.AccountMapper">
    <resultMap id="BaseResultMap" type="com.zmm.entity.Account">
        <id column="id" jdbcType="BIGINT" property="id"/>
        <result column="user_id" jdbcType="BIGINT" property="userId"/>
        <result column="total" jdbcType="DECIMAL" property="total"/>
        <result column="used" jdbcType="DECIMAL" property="used"/>
        <result column="residue" jdbcType="DECIMAL" property="residue"/>
    </resultMap>
    <sql id="Base_Column_List">
        id
        , user_id, total, used, residue
    </sql>
    <select id="selectByUserId" resultType="com.zmm.entity.Account">
        select
        <include refid="Base_Column_List"/>
        from t_account
        where user_id = #{userId,jdbcType=BIGINT}
    </select>
    <update id="decrease">
        UPDATE t_account
        SET residue = residue - #{money},
            used    = used + #{money}
        WHERE user_id = #{userId};
    </update>
</mapper>

创建Account

@Data
public class Account {

    private Long id;
    private Long userId;
    private BigDecimal total;
    private BigDecimal used;
    private BigDecimal residue;
}
@AllArgsConstructor
@NoArgsConstructor
@Data
public class CommonResult<T>{
    private Integer code;
    private String message;
    private T data;
    public CommonResult(Integer code, String message) {
        this(code, message, null);
    }

}

创建AccountService

public interface AccountService {

    int decrease(Long userId, BigDecimal money) ;
}

@Service
@Slf4j
public class AccountServiceImpl implements AccountService{

    @Resource
    AccountMapper accountMapper;

    @Override
    public int decrease(Long userId, BigDecimal money) {
        log.info("Seata全局事务id=================>{}", RootContext.getXID());

        log.info("------->account-com.zmm.service 开始查询账户余额");
        Account account = accountMapper.selectByUserId(userId);
        log.info("------->account-com.zmm.service 账户余额查询完成，" + account);
        if (account != null && account.getResidue().intValue() >= money.intValue()) {
            log.info("------->account-com.zmm.service 开始从账户余额中扣钱！");
            int decrease = accountMapper.decrease(userId, money);
            log.info("------->account-com.zmm.service 从账户余额中扣钱完成");
            return decrease;
        } else {
            log.info("账户余额不足，开始回滚！");
            throw new RuntimeException("账户余额不足！");
        }
    }
}

创建AccountController

@RestController
@Slf4j
public class AccountController {

    @Resource
    AccountServiceImpl accountService;

    @PostMapping(value = "/account/decrease")
    CommonResult decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money){

        int decrease=accountService.decrease(userId,money);

        return new CommonResult(200, "扣款成功",decrease);
    }
}

创建Seata130Application8502

@SpringBootApplication
@EnableDiscoveryClient
@RefreshScope
public class Seata130Application8502 {

    public static void main(String[] args) {
        SpringApplication.run(Seata130Application8502.class,args);
    }
}

6、创建seata-order-service服务。

创建130_db_order数据库，执行下面的SQL创建表。

CREATE TABLE `t_order` (
  `id` bigint NOT NULL AUTO_INCREMENT,
  `user_id` bigint DEFAULT NULL COMMENT '用户id',
  `product_id` bigint DEFAULT NULL COMMENT '产品id',
  `count` int DEFAULT NULL COMMENT '数量',
  `money` decimal(11,0) DEFAULT NULL COMMENT '金额',
  `status` int DEFAULT NULL COMMENT '订单状态：0：未完成；1：已完结',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=39 DEFAULT CHARSET=utf8mb3;

CREATE TABLE `undo_log` (
  `branch_id` bigint NOT NULL COMMENT 'branch transaction id',
  `xid` varchar(100) NOT NULL COMMENT 'global transaction id',
  `context` varchar(128) NOT NULL COMMENT 'undo_log context,such as serialization',
  `rollback_info` longblob NOT NULL COMMENT 'rollback info',
  `log_status` int NOT NULL COMMENT '0:normal status,1:defense status',
  `log_created` datetime(6) NOT NULL COMMENT 'create datetime',
  `log_modified` datetime(6) NOT NULL COMMENT 'modify datetime',
  UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3 COMMENT='AT transaction mode undo table';

添加pom.xml依赖。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>111-springcloud-alibaba-seate130</artifactId>
        <groupId>com.zmm</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>seata-order-com.zmm.service-8501-130</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <!--nacos-config-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <!--nacos-discovery-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.cloud</groupId>
                    <artifactId>spring-cloud-starter-netflix-ribbon</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <!--seata-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
            <exclusions>
                <exclusion>
                    <artifactId>seata-spring-boot-starter</artifactId>
                    <groupId>io.seata</groupId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-spring-boot-starter</artifactId>
            <version>1.3.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bootstrap</artifactId>
        </dependency>
        <!--feign-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-loadbalancer</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.0.0</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.20</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

创建bootstrap.yml文件

# Tomcat
server:
  port: 8501

# Spring
spring:
  application:
    # 应用名称
    name: seata-order-service
  profiles:
    # 环境配置
    active: dev
  main:
    allow-circular-references: true
    allow-bean-definition-overriding: true
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
        group: SEATA_GROUP
        namespace: seata130
      config:
        server-addr: 127.0.0.1:8848
        group: SEATA_GROUP
        namespace: seata130
        file-extension: yml
        # 共享配置
        #shared-configs:
        #  - application-${spring.profiles.active}.${spring.cloud.nacos.config.file-extension}
    alibaba:
      seata:
        #自定义服务群组，该值必须与 Nacos 配置中的 service.vgroupMapping.{my-service-group}=default 中的 {my-service-group}相同
        tx-service-group: my_test_tx_group

  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    name: defaultDataSource
    url: jdbc:mysql://127.0.0.1:3306/130_db_order?serverTimezone=UTC
    username: root
    password: root123

seata:
  config:
    type: nacos
    nacos:
      server-addr: 127.0.0.1:8848
      group: SEATA_GROUP
      namespace: seata130
      username: nacos
      password: nacos
  registry:
    type: nacos
    nacos:
      application: seata-server
      server-addr: 127.0.0.1:8848
      group: SEATA_GROUP
      namespace: seata130
      username: nacos
      password: nacos

###################################### MyBatis 配置 ######################################
mybatis:
  # 指定 mapper.xml 的位置
  mapper-locations: classpath:mapper/*.xml
  #扫描实体类的位置,在此处指明扫描实体类的包，在 mapper.xml 中就可以不写实体类的全路径名
  type-aliases-package: com.zmm.entity
  configuration:
    #默认开启驼峰命名法，可以不用设置该属性
    map-underscore-to-camel-case: true


management:
  endpoints:
    web:
      exposure:
        include: "*"   # * 在yaml 文件属于关键字，所以需要加引号

创建CommonResult

@AllArgsConstructor
@NoArgsConstructor
@Data
public class CommonResult<T>{
    private Integer code;
    private String message;
    private T data;
    public CommonResult(Integer code, String message) {
        this(code, message, null);
    }

}
@Data
public class Order {

    private Long id;
    private Long userId;
    private Long productId;
    private Integer count;
    private BigDecimal money;
    private Integer status;
}

创建OrderMapper

@Mapper
public interface OrderMapper {


    int create(Order order);

    //2 修改订单状态，从零改为1
    void update(@Param("userId") Long userId, @Param("status") Integer status);

}

创建OrderMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.zmm.mapper.OrderMapper">
    <resultMap id="BaseResultMap" type="com.zmm.entity.Order">
        <id column="id" jdbcType="BIGINT" property="id"/>
        <result column="user_id" jdbcType="BIGINT" property="userId"/>
        <result column="product_id" jdbcType="BIGINT" property="productId"/>
        <result column="count" jdbcType="INTEGER" property="count"/>
        <result column="money" jdbcType="DECIMAL" property="money"/>
        <result column="status" jdbcType="INTEGER" property="status"/>
    </resultMap>
    <sql id="Base_Column_List">
        id
        , user_id, product_id, count, money, status
    </sql>

    <insert id="create" parameterType="com.zmm.entity.Order">
        insert into t_order (user_id, product_id,
                             count, money, status)
        values (#{userId,jdbcType=BIGINT}, #{productId,jdbcType=BIGINT},
                #{count,jdbcType=INTEGER}, #{money,jdbcType=DECIMAL}, #{status,jdbcType=INTEGER})

    </insert>

    <update id="update">
        update t_order
        set status = 1
        where user_id = #{userId}
          and status = #{status};
    </update>
</mapper>

创建OrderService

public interface OrderService {

    /**
     * 创建订单数据
     * @param order
     */
    CommonResult create(Order order);
}

创建OrderServiceImpl 实现OrderService

@Service
@Slf4j
public class OrderServiceImpl implements OrderService {

    @Resource
    private OrderMapper orderMapper;
    @Resource
    private StorageService storageService;
    @Resource
    private AccountService accountService;
    /**
     * 创建订单->调用库存服务扣减库存->调用账户服务扣减账户余额->修改订单状态
     * 简单说：下订单->扣库存->减余额->改订单状态
     */
    @GlobalTransactional(rollbackFor = Exception.class)
    @Transactional
    @Override
    public CommonResult create(Order order) {
        log.info("Seata全局事务id=================>{}", RootContext.getXID());

        log.info("----->开始新建订单");
        //1 新建订单
        order.setUserId(new Long(1));
        order.setStatus(0);
        orderMapper.create(order);
        //2 扣减库存
        log.info("----->订单服务开始调用库存服务，开始扣减库存");
        storageService.decrease(order.getProductId(), order.getCount());
        log.info("----->订单微服务开始调用库存，扣减库存结束");
        //3 扣减账户
        log.info("----->订单服务开始调用账户服务，开始从账户扣减商品金额");
        accountService.decrease(order.getUserId(), order.getMoney());
        log.info("----->订单微服务开始调用账户，账户扣减商品金额结束");
        //4 修改订单状态，从零到1,1代表已经完成
        log.info("----->修改订单状态开始");
        orderMapper.update(order.getUserId(), 0);
        log.info("----->修改订单状态结束");
        log.info("----->下订单结束了------->");
        return new CommonResult(200, "订单创建成功");
    }
}

创建AccountService 远程调用

@FeignClient(value = "seata-account-service")
public interface AccountService {

    @PostMapping(value = "/account/decrease")
    CommonResult decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money);
}

创建StorageService 远程调用

@FeignClient(value = "seata-storage-service")
public interface StorageService {
    @PostMapping(value = "/storage/decrease")
    CommonResult decrease(@RequestParam("productId") Long productId, @RequestParam("count") Integer count);
}

创建OrderController

@RestController
public class OrderController {

    @Autowired
    private OrderServiceImpl orderService;
    @GetMapping("/order/create/{productId}/{count}/{money}")
    public CommonResult create(@PathVariable("productId") Integer productId, @PathVariable("count") Integer count
            , @PathVariable("money") BigDecimal money) {
        Order order = new Order();
        order.setProductId(Integer.valueOf(productId).longValue());
        order.setCount(count);
        order.setMoney(money);
        return orderService.create(order);
    }
}

创建Seata130Application8501 启动类

@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
@RefreshScope
public class Seata130Application8501 {

    public static void main(String[] args) {
        SpringApplication.run(Seata130Application8501.class,args);
    }
}

7、创建seata-storage-service服务。

创建130_db_storage数据库，执行下面的SQL创建表。

CREATE TABLE `t_storage` (
  `id` bigint NOT NULL AUTO_INCREMENT,
  `product_id` bigint DEFAULT NULL COMMENT '产品id',
  `total` int DEFAULT NULL COMMENT '总库存',
  `used` int DEFAULT NULL COMMENT '已用库存',
  `residue` int DEFAULT NULL COMMENT '剩余库存',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8mb3;

INSERT INTO `130_db_storage`.`t_storage` (`id`, `product_id`, `total`, `used`, `residue`) VALUES (1, 1, 100, 0, 100);


CREATE TABLE `undo_log` (
  `branch_id` bigint NOT NULL COMMENT 'branch transaction id',
  `xid` varchar(100) NOT NULL COMMENT 'global transaction id',
  `context` varchar(128) NOT NULL COMMENT 'undo_log context,such as serialization',
  `rollback_info` longblob NOT NULL COMMENT 'rollback info',
  `log_status` int NOT NULL COMMENT '0:normal status,1:defense status',
  `log_created` datetime(6) NOT NULL COMMENT 'create datetime',
  `log_modified` datetime(6) NOT NULL COMMENT 'modify datetime',
  UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3 COMMENT='AT transaction mode undo table';

添加pom.xml依赖。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>111-springcloud-alibaba-seate130</artifactId>
        <groupId>com.zmm</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>seata-storage-service-8500-130</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <!--nacos-config-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <!--nacos-discovery-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <!--seata-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
            <exclusions>
                <exclusion>
                    <artifactId>seata-spring-boot-starter</artifactId>
                    <groupId>io.seata</groupId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-spring-boot-starter</artifactId>
            <version>1.3.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bootstrap</artifactId>
        </dependency>
        <!--feign-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.0.0</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.20</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

创建bootstrap.yml文件

# Tomcat
server:
  port: 8500

# Spring
spring:
  application:
    # 应用名称
    name: seata-storage-service
  profiles:
    # 环境配置
    active: dev
  main:
    allow-circular-references: true
    allow-bean-definition-overriding: true
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
        group: SEATA_GROUP
        namespace: seata130
      config:
        server-addr: 127.0.0.1:8848
        group: SEATA_GROUP
        namespace: seata130
        file-extension: yml
        # 共享配置
        #shared-configs:
        #  - application-${spring.profiles.active}.${spring.cloud.nacos.config.file-extension}
    alibaba:
      seata:
        #自定义服务群组，该值必须与 Nacos 配置中的 service.vgroupMapping.{my-service-group}=default 中的 {my-service-group}相同
        tx-service-group: my_test_tx_group

  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    name: defaultDataSource
    url: jdbc:mysql://127.0.0.1:3306/130_db_storage?serverTimezone=UTC
    username: root
    password: root123

seata:
  config:
    type: nacos
    nacos:
      server-addr: 127.0.0.1:8848
      group: SEATA_GROUP
      namespace: seata130
      username: nacos
      password: nacos
  registry:
    type: nacos
    nacos:
      application: seata-server
      server-addr: 127.0.0.1:8848
      group: SEATA_GROUP
      namespace: seata130
      username: nacos
      password: nacos

###################################### MyBatis 配置 ######################################
mybatis:
  # 指定 mapper.xml 的位置
  mapper-locations: classpath:mapper/*.xml
  #扫描实体类的位置,在此处指明扫描实体类的包，在 mapper.xml 中就可以不写实体类的全路径名
  type-aliases-package: com.zmm.entity
  configuration:
    #默认开启驼峰命名法，可以不用设置该属性
    map-underscore-to-camel-case: true

management:
  endpoints:
    web:
      exposure:
        include: "*"   # * 在yaml 文件属于关键字，所以需要加引号

创建实体

@AllArgsConstructor
@NoArgsConstructor
@Data
public class CommonResult<T>{
    private Integer code;
    private String message;
    private T data;
    public CommonResult(Integer code, String message) {
        this(code, message, null);
    }

}
@Data
public class Storage {

    private Long id;
    private Long productId;
    private Integer total;
    private Integer used;
    private Integer residue;
}

创建StorageMapper

@Mapper
public interface StorageMapper {

    Storage selectByProductId(Long productId);


    int decrease(Storage record);
}

创建StorageMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.zmm.mapper.StorageMapper">
    <resultMap id="BaseResultMap" type="com.zmm.entity.Storage">
        <id column="id" jdbcType="BIGINT" property="id"/>
        <result column="product_id" jdbcType="BIGINT" property="productId"/>
        <result column="total" jdbcType="INTEGER" property="total"/>
        <result column="used" jdbcType="INTEGER" property="used"/>
        <result column="residue" jdbcType="INTEGER" property="residue"/>
    </resultMap>
    <sql id="Base_Column_List">
        id
        , product_id, total, used, residue
    </sql>
    <update id="decrease" parameterType="com.zmm.entity.Storage">
        update t_storage
        <set>
            <if test="total != null">
                total = #{total,jdbcType=INTEGER},
            </if>
            <if test="used != null">
                used = #{used,jdbcType=INTEGER},
            </if>
            <if test="residue != null">
                residue = #{residue,jdbcType=INTEGER},
            </if>
        </set>
        where product_id = #{productId,jdbcType=BIGINT}
    </update>

    <select id="selectByProductId" parameterType="java.lang.Long" resultMap="BaseResultMap">
        select
        <include refid="Base_Column_List"/>
        from t_storage
        where product_id = #{productId,jdbcType=BIGINT}
    </select>
</mapper>

创建StorageService

public interface StorageService {

    int decrease(Long productId, Integer count) ;
}

创建StorageServiceImpl 实现StorageService

@Service
@Slf4j
public class StorageServiceImpl implements StorageService{

    @Resource
    StorageMapper storageMapper;

    @Override
    public int decrease(Long productId, Integer count) {
        log.info("Seata全局事务id=================>{}", RootContext.getXID());

        log.info("------->storage-service中扣减库存开始");
        log.info("------->storage-com.zmm.service 开始查询商品是否存在");
        Storage storage = storageMapper.selectByProductId(productId);
        if (storage != null && storage.getResidue().intValue() >= count.intValue()) {
            Storage storage2 = new Storage();
            storage2.setProductId(productId);
            storage.setUsed(storage.getUsed() + count);
            storage.setResidue(storage.getTotal().intValue() - storage.getUsed());
            int decrease = storageMapper.decrease(storage);
            log.info("------->storage-com.zmm.service 扣减库存成功");
            return decrease;
        } else {
            log.info("------->storage-com.zmm.service 库存不足，开始回滚！");
            throw new RuntimeException("库存不足，扣减库存失败！");
        }
    }
}

创建StorageController

@RestController
@Slf4j
public class StorageController {

    @Resource
    private StorageServiceImpl storageService;

    @Value("${server.port}")
    private String serverPort;

    @PostMapping(value = "/storage/decrease")
    CommonResult decrease(@RequestParam("productId") Long productId, @RequestParam("count") Integer count) {
        int decrease = storageService.decrease(productId, count);
        CommonResult result;
        if (decrease > 0) {
            result = new CommonResult(200, "from mysql,serverPort:  " + serverPort, decrease);
        } else {
            result = new CommonResult(505, "from mysql,serverPort:  " + serverPort, "库存扣减失败");
        }
        return result;
    }
}

创建Seata130Application8500 启动类

@SpringBootApplication
@EnableDiscoveryClient
@RefreshScope
public class Seata130Application8500 {

    public static void main(String[] args) {
        SpringApplication.run(Seata130Application8500.class,args);
    }
}

8、测试

创建玩三个服务后分别启动来。

看到这个说明已经注册完成。

 用浏览器调用http://127.0.0.1:8501/order/create/1/2/50

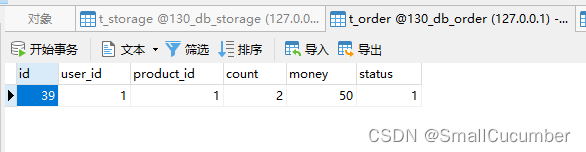

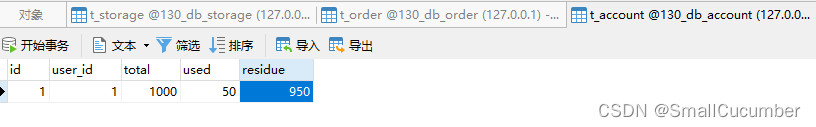

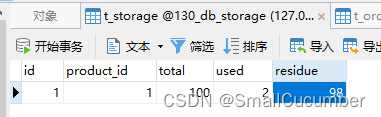

在分别看三个数据库数据。







可以看到订单已经完成了。数据也都记录下来。

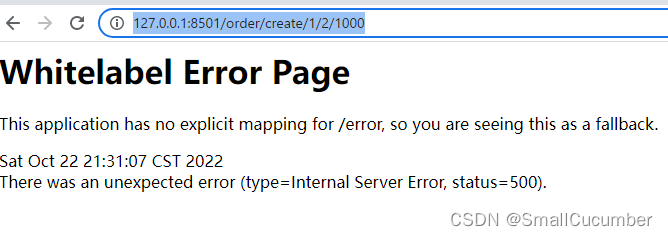

在调用 http://127.0.0.1:8501/order/create/1/2/1000

可以看到后端服务已经报错。在看下三个数据库数据



报错后没有参数脏数据。说明分布式事务已经生效了。

分布式事务框架Seata 1.6.1安装
Bulut0907
03-24 1062
script/server/db/mysql.sql脚本，提供了创建global_table、branch_table、lock_table、distributed_lock表，和向distributed_lock表写入数据的sql语句。这里我们事务日志使用db进行储存(可选参数：file、db、redis，默认为file)。配置session和lock的事务日志使用db进行储存，和mysql的连接。先运行script/server/db/mysql.sql脚本，进行建表和插入数据。
seata 1.3.0 本地安装步骤
最新发布
dubhe_zhao的博客
02-05 838
源码包incubator-seata-1.3.0.zip服务端seata-server-1.3.0.zip1）启动nacos2) 启动服务端 bin/seata-server.bat 或 bin/seata-server.sh3) 启动客户端 即 spring项目
seata-2.0.0
05-22
seata-server-2.0.0版本，
seata的win版1.8版本
09-03
seata的win版1.8版本1111111
seata-server-1.3.0.zip
07-16
因在github下载seata太慢，上传zip包资源，供大家学习分布式事务，项目版本是1.3.0最新版，有问题可以私信哈！
最新版windows seata-server-1.3.0.zip
07-17
最新版windows seata-server-1.3.0.zip
精选资源
seata 1.3.0 包带源码 。 官网难下的一批
03-14
seata 1.3.0 包带源码 。 官网难下的一批
seata1.3.0.txt
03-23
seata1.3.0
seata1.3.0.zip
07-23
该问题在1.3.0版本中解决，解决方式是seata支持序列化方式配置，支持自定义序列化方式，同时提供默认序列化实现类DefaultZkSerializer，反序列化实现为new String()。 到此处，1.2.0版本无法进行下去，由于目前...
精选资源
seata-1.3.0 源码包
03-05
Seata 是一款开源的分布式事务解决方案，全称为 Simple Extreme Transaction Architecture...源码包中的`incubator-seata-1.3.0`目录包含了所有源代码、测试用例、文档以及构建脚本，是深入学习和研究Seata的理想起点。
seata-server1.3.0.rar
07-23
seata-server1.3.0seata-server1.3.0
seata-1.3.0.zip
08-24
Seata 是一款开源的分布式事务解决方案，致力于提供高性能和简单易用的分布式事务服务。Seata 将为用户提供了 AT、TCC、SAGA 和 XA 事务模式，为用户打造一站式的分布式解决方案。
seata-server-1.3.0
06-17
seata-server-1.3.0
seata-server-1.3.0.tar.gz
Keep learning
02-27 1097
从GitHub下载 seata-server 太慢了，十几二十K每秒。 突发奇想放到手机上下载，没想到进度条我都没来得及看到就下完了。。。 开启了5G，用夸克打开的GitHub链接，也没空去验证是5G的功劳还是夸克的功劳，总之下载好了。 分享给大家，给你们省点事。本来想传到csdn的，没想到提示文件已存在，就先放到百度网盘吧。 链接：https://pan.baidu.com/s/1AGbm9vSY1gVrGuiBv9Oiaw 提取码：ow3c 复制这段内容后打开百度网盘手机App，操作更方便哦 – 这段话
windows、linux部署seata1.3.0
lanren312的博客
07-04 1215
seata1.3.0下载地址：windows、linux下载各自的包，如果在浏览器下载很慢，也可以丢到服务器上下载。
最新版linux seata-server-1.3.0.tar.gz
07-17
最新版linux seata-server-1.3.0.tar.gz
Seata 1.3.0 分布式事务完整示例教程
资源摘要信息:"seata1.3.0完整demo" 分布式事务与Seata 1.3.0 在现代微服务架构中，分布式事务管理是一个关键问题，因为服务之间可能存在复杂的依赖关系，需要保证数据的一致性。Seata（Simple Extensible ...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
