SpringAMQP 发布订阅模型（Fanout Exchange、Direct Exchange、Topic Exchange）解决反序列化

1.Fanout Exchange

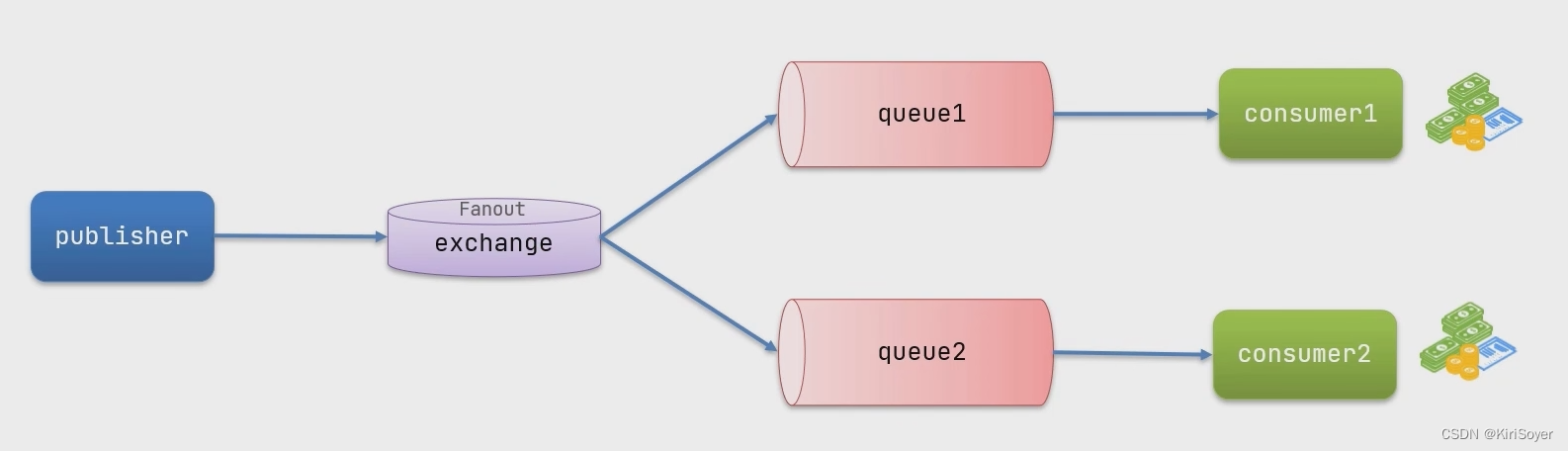

Fanout Exchange会将接收到的消息路由到每一个跟其绑定的queue

FanoutConfig

package cn.shryu.mq.config;

import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.FanoutExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class FanoutConfig {
    // shryu.fanout
    @Bean
    public FanoutExchange fanoutExchange(){
        return new FanoutExchange("shryu.fanout");
    }

    // fanout.queue1
    @Bean
    public Queue fanoutQueue1(){
        return new Queue("fanout.queue1");
    }

    // 绑定队列1到交换机
    @Bean
    public Binding fanoutBinding1(Queue fanoutQueue1, FanoutExchange fanoutExchange){
        return BindingBuilder
                .bind(fanoutQueue1)
                .to(fanoutExchange);
    }

    // fanout.queue2
    @Bean
    public Queue fanoutQueue2(){
        return new Queue("fanout.queue2");
    }

    // 绑定队列2到交换机
    @Bean
    public Binding fanoutBinding2(Queue fanoutQueue2, FanoutExchange fanoutExchange){
        return BindingBuilder
                .bind(fanoutQueue2)
                .to(fanoutExchange);
    }

}

SpringRabbitListener

package cn.shryu.mq.listener;

import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

import java.time.LocalTime;

@Component
public class SpringRabbitListener {

    @RabbitListener(queues = "fanout.queue1")
    public void listenFanoutQueue1(String msg){
        System.out.println("消费者接收到fanout.queue1的消息：【" + msg + "】");
    }

    @RabbitListener(queues = "fanout.queue2")
    public void listenFanoutQueue2(String msg){
        System.out.println("消费者接收到fanout.queue2的消息：【" + msg + "】");
    }
}

SpringAmqpTest

package cn.shryu.mq.spring;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.amqp.rabbit.annotation.EnableRabbit;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

@RunWith(SpringRunner.class)
@SpringBootTest
@EnableRabbit
public class SpringAmqpTest {

    @Autowired
    private RabbitTemplate rabbitTemplate;

    @Test
    public void testSendFanoutExchange(){
        // 交换机名称
        String exchangeName = "shryu.fanout";
        // 消息
        String message = "hello, every one!";
        // 发送消息
        rabbitTemplate.convertAndSend(exchangeName,"",message);
    }
}

2.Direct Exchange

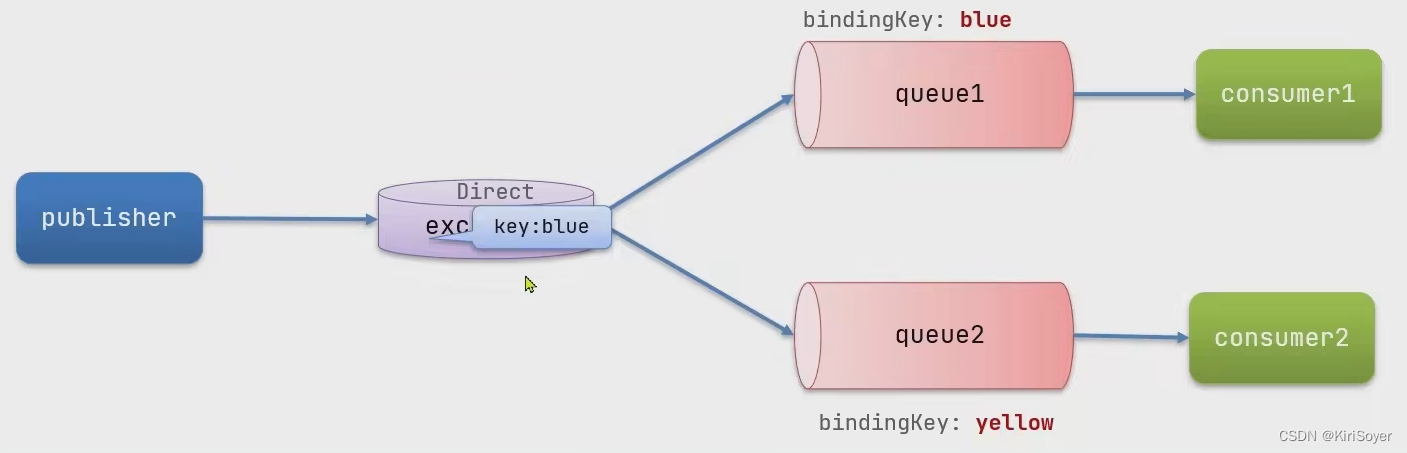

Direct Exchange 会将接收到的消息根据规则路由到指定的Queue，因此称为路由模式（routes)

• 每一个Queue都与Exchange设置一个BindingKey
• 发布者发送消息时，指定消息的RoutingKey
• Exchange将消息路由到BindingKey与消息RoutingKey一致的队列


SpringRabbitListener

package cn.shryu.mq.listener;

import org.springframework.amqp.core.ExchangeTypes;
import org.springframework.amqp.rabbit.annotation.Exchange;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.QueueBinding;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

import java.time.LocalTime;

@Component
public class SpringRabbitListener {

    @RabbitListener(bindings = @QueueBinding(
            value = @Queue(name = "direct.queue1"),
            exchange = @Exchange(name = "shryu.direct",type = ExchangeTypes.DIRECT),
            key = {"red","blue"}
    ))
    public void ListenDirectQueue1(String msg){
        System.out.println("消费者接收到direct.queue1的消息：【" + msg + "】");
    }

    @RabbitListener(bindings = @QueueBinding(
            value = @Queue(name = "direct.queue2"),
            exchange = @Exchange(name = "shryu.direct",type = ExchangeTypes.DIRECT),
            key = {"red","yellow"}
    ))
    public void ListenDirectQueue2(String msg){
        System.out.println("消费者接收到direct.queue2的消息：【" + msg + "】");
    }
}

package cn.shryu.mq.spring;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.amqp.rabbit.annotation.EnableRabbit;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

@RunWith(SpringRunner.class)
@SpringBootTest
@EnableRabbit
public class SpringAmqpTest {

    @Autowired
    private RabbitTemplate rabbitTemplate;

    @Test
    public void testSendDirectExchange(){
        // 交换机名称
        String exchangeName = "shryu.direct";
        // 消息
        String message = "hello, blue!";
        // 发送消息
        rabbitTemplate.convertAndSend(exchangeName,"blue",message);
    }
}

3.Topic Exchange

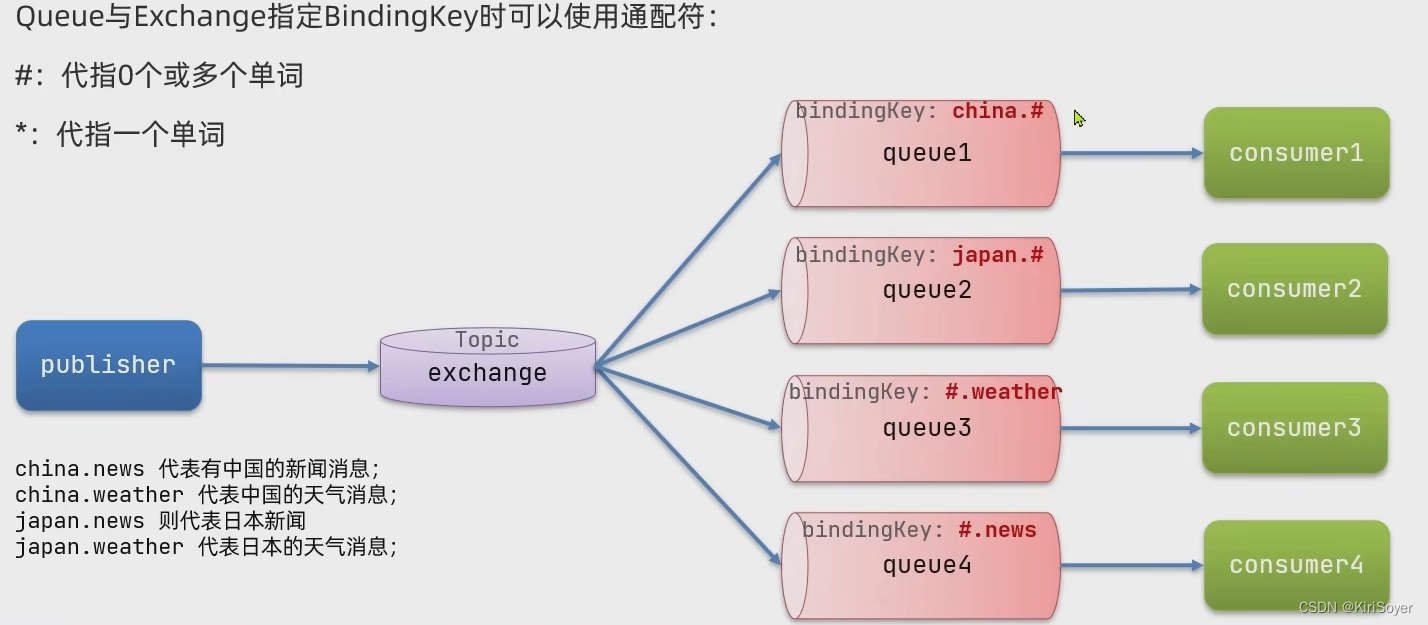

TopicExchange与DirectExchange类似，区别在于routingKey必须是多个单词的列表，并且以.分割

SpringRabbitListener

package cn.shryu.mq.listener;

import org.springframework.amqp.core.ExchangeTypes;
import org.springframework.amqp.rabbit.annotation.Exchange;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.QueueBinding;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

import java.time.LocalTime;

@Component
public class SpringRabbitListener {

    @RabbitListener(bindings = @QueueBinding(
            value = @Queue(name = "topic.queue1"),
            exchange = @Exchange(name = "shryu.topic", type = ExchangeTypes.TOPIC),
            key = "china.#"
    ))
    public void ListenTopicQueueq(String msg){
        System.out.println("消费者接收到topic.queue1的消息：【" + msg + "】");
    }

    @RabbitListener(bindings = @QueueBinding(
            value = @Queue(name = "topic.queue2"),
            exchange = @Exchange(name = "shryu.topic", type = ExchangeTypes.TOPIC),
            key = "#.news"
    ))
    public void ListenTopicQueue2(String msg){
        System.out.println("消费者接收到topic.queue2的消息：【" + msg + "】");
    }
}

SpringAmqpTest

package cn.shryu.mq.spring;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.amqp.rabbit.annotation.EnableRabbit;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

@RunWith(SpringRunner.class)
@SpringBootTest
@EnableRabbit
public class SpringAmqpTest {

    @Autowired
    private RabbitTemplate rabbitTemplate;

    @Test
    public void testSendTopicExchange(){
        // 交换机名称
        String exchangeName = "shryu.topic";
        // 消息
        String message = "TestMsgNP!";
        // 发送消息
        rabbitTemplate.convertAndSend(exchangeName,"china.news",message);
    }
}

4.消息转换器（解决反序列化问题）

导入依赖

<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-databind</artifactId>
</dependency>

注入Bean

import org.springframework.amqp.support.converter.Jackson2JsonMessageConverter;
import org.springframework.amqp.support.converter.MessageConverter;

@Bean
public MessageConverter messageConverter(){
    return new Jackson2JsonMessageConverter();
}
