第4章 Netty核心模块组件

第4章 Netty核心模块组件

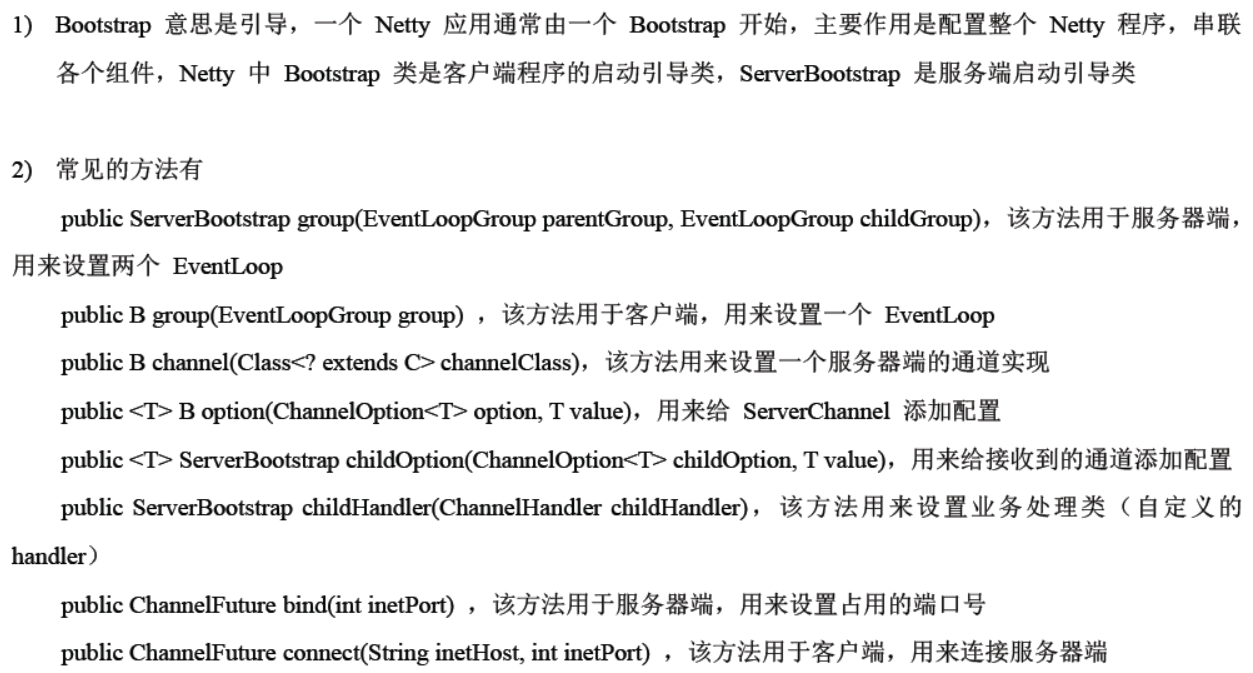

1 Bootstrap&ServerBootstrap

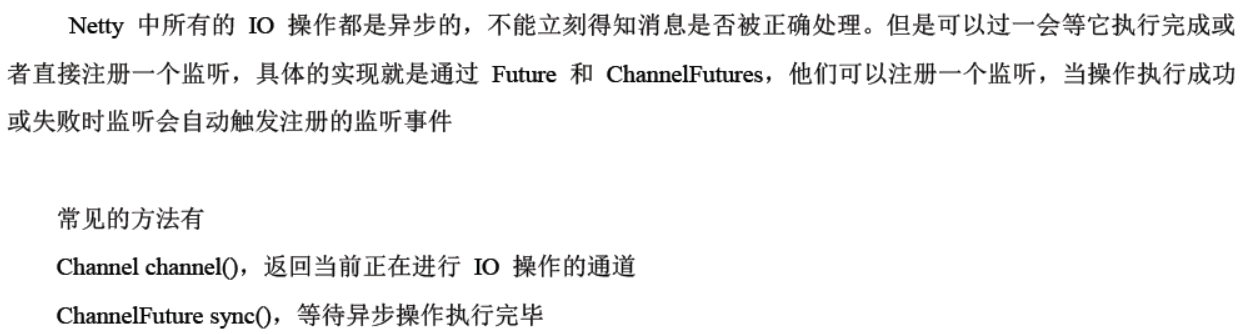

2 Future&ChannelFuture

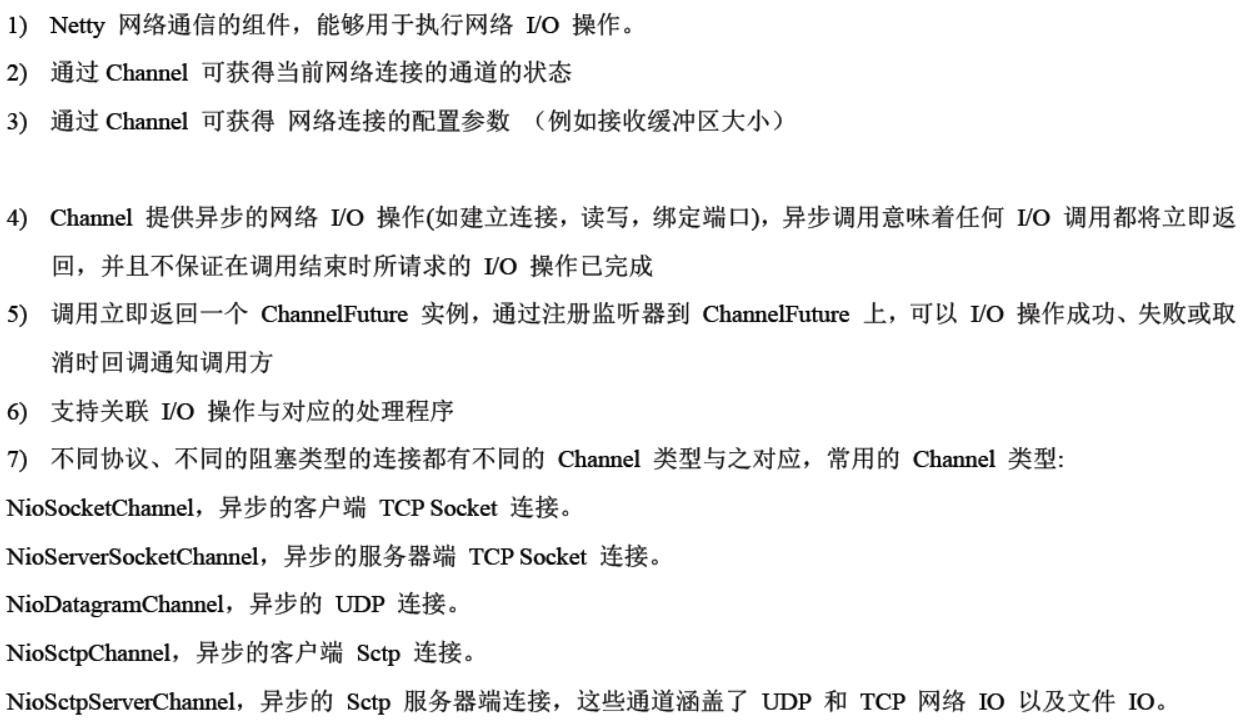

3 Channel

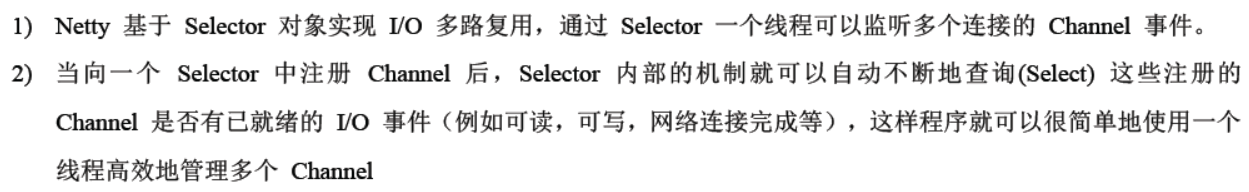

4 Selector

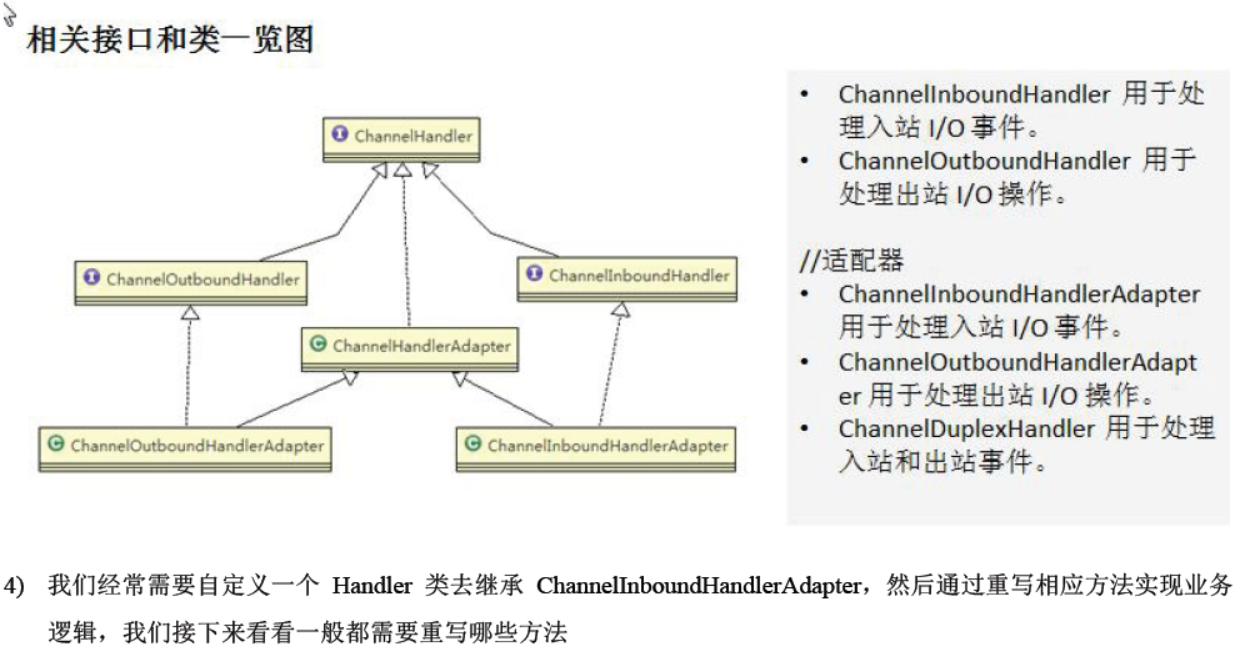

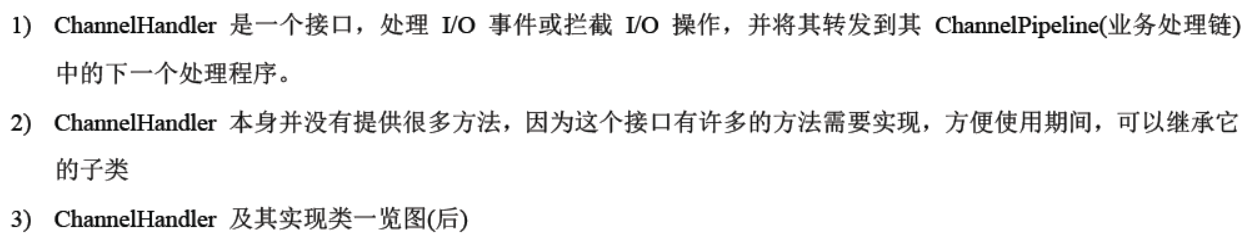

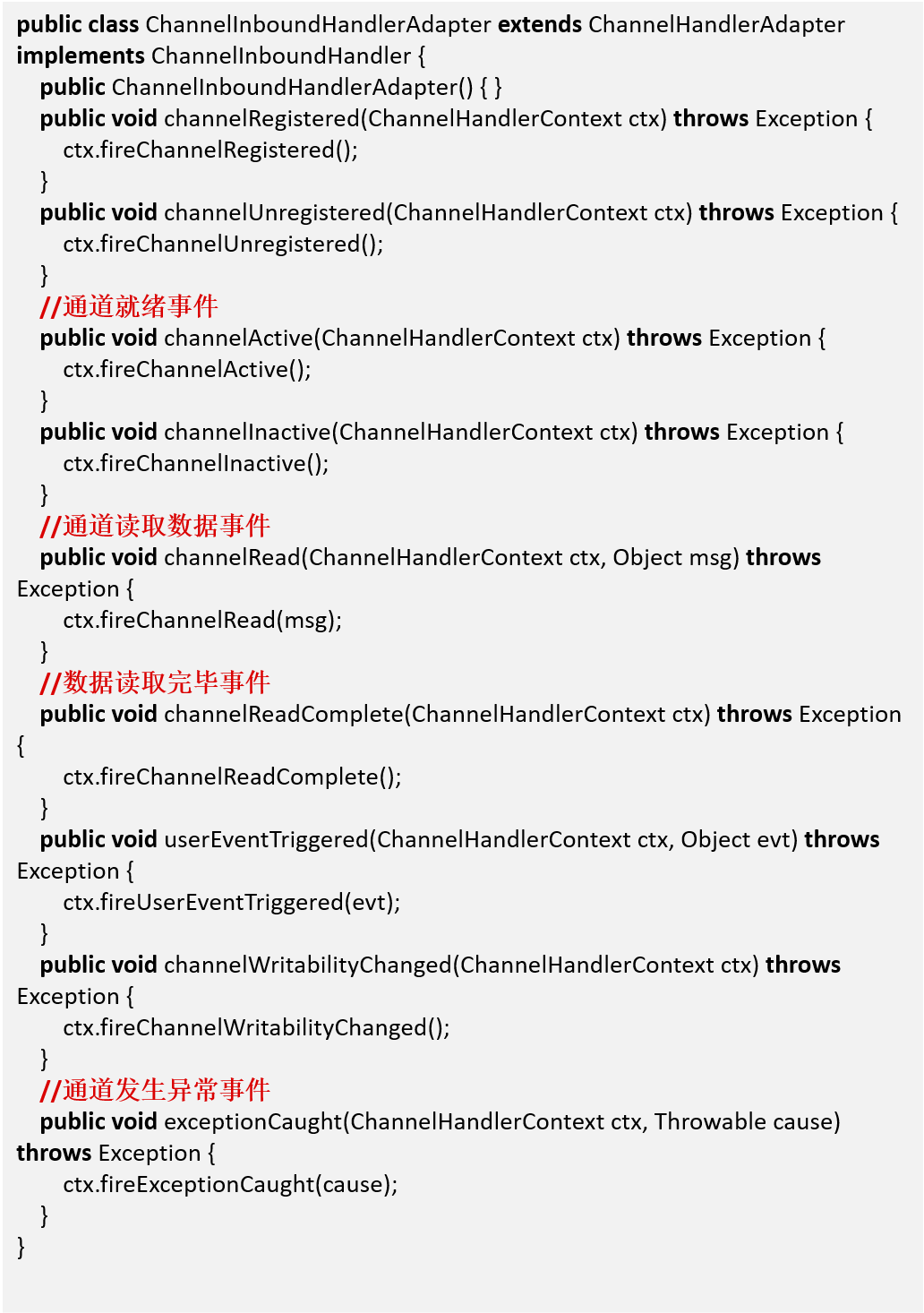

5 ChannelHandler及其实现类

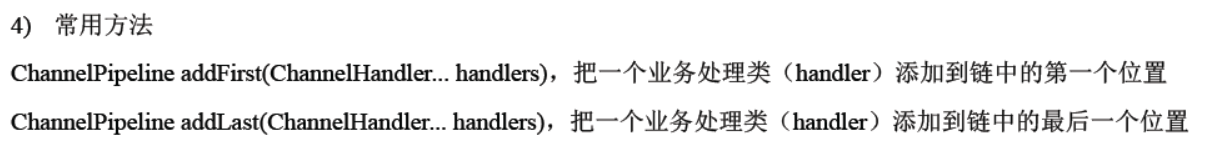

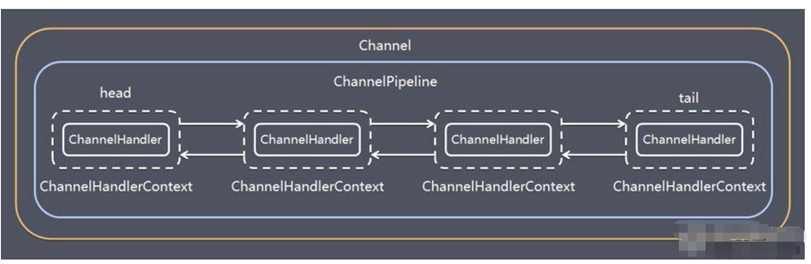

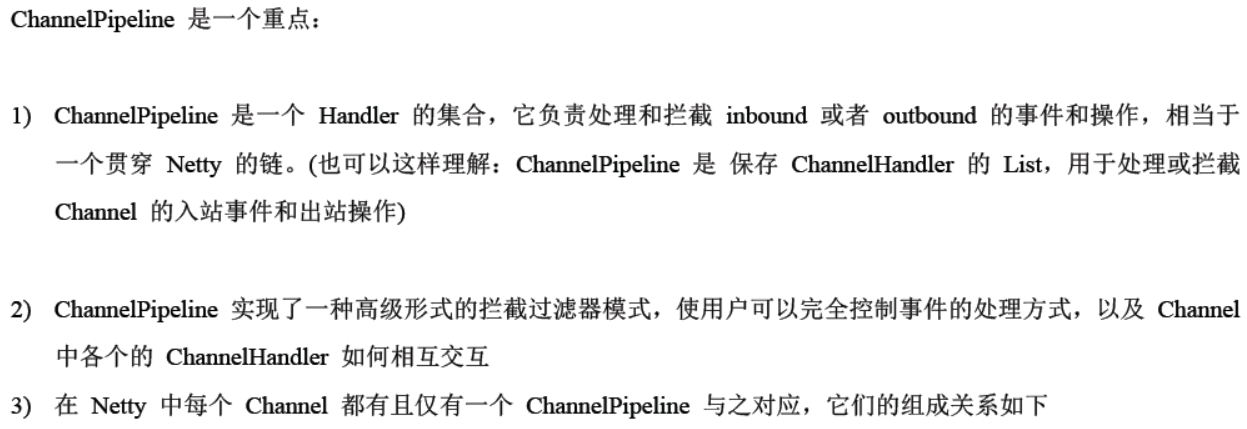

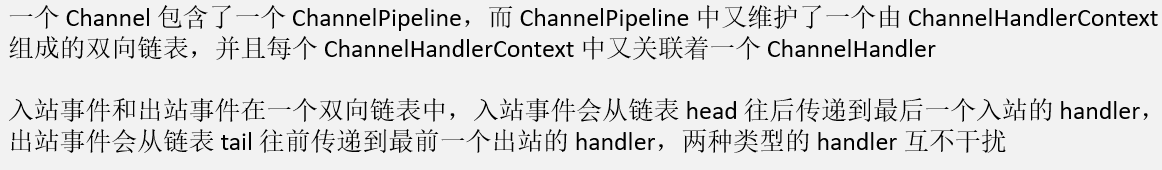

6 Pipeline和ChannelPipeline

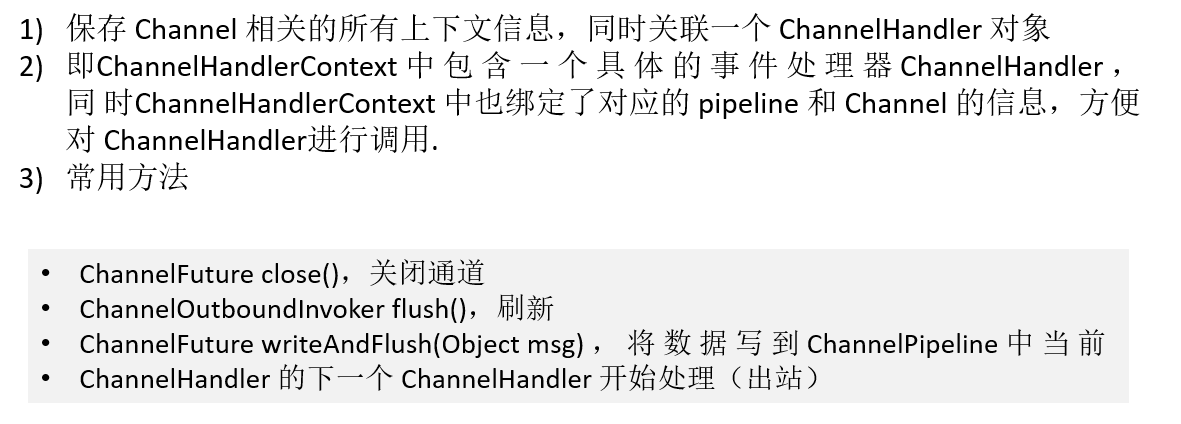

7 ChannelHandlerContext

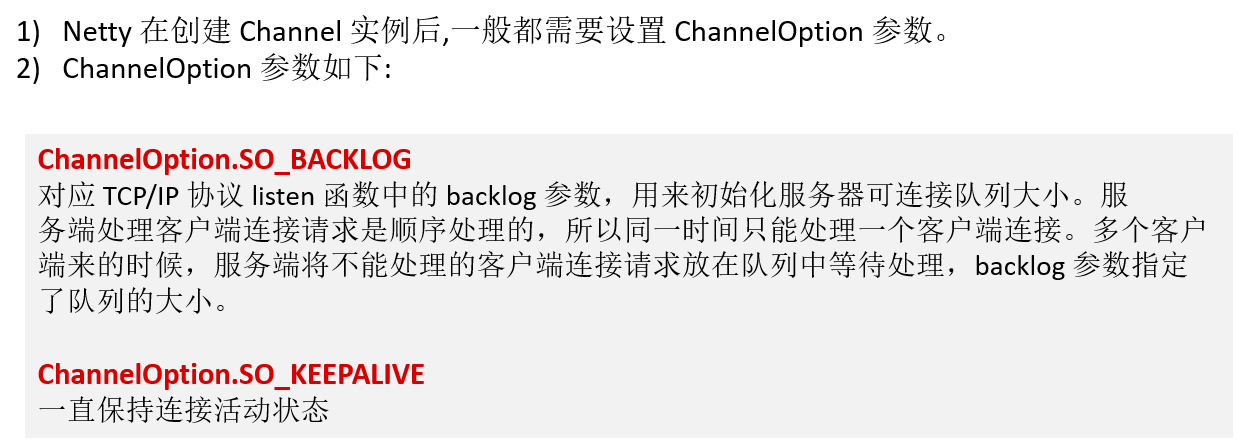

8 ChannelOption

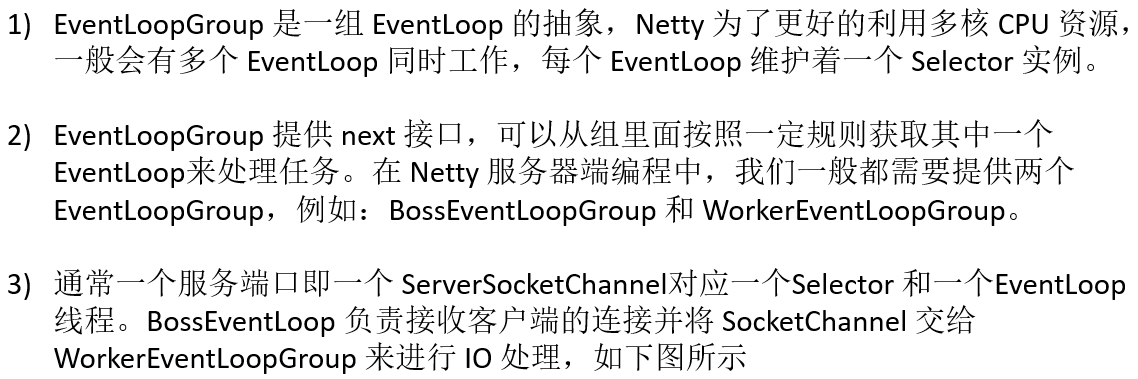

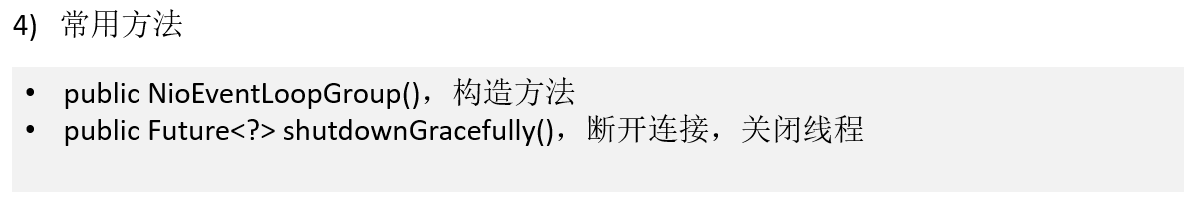

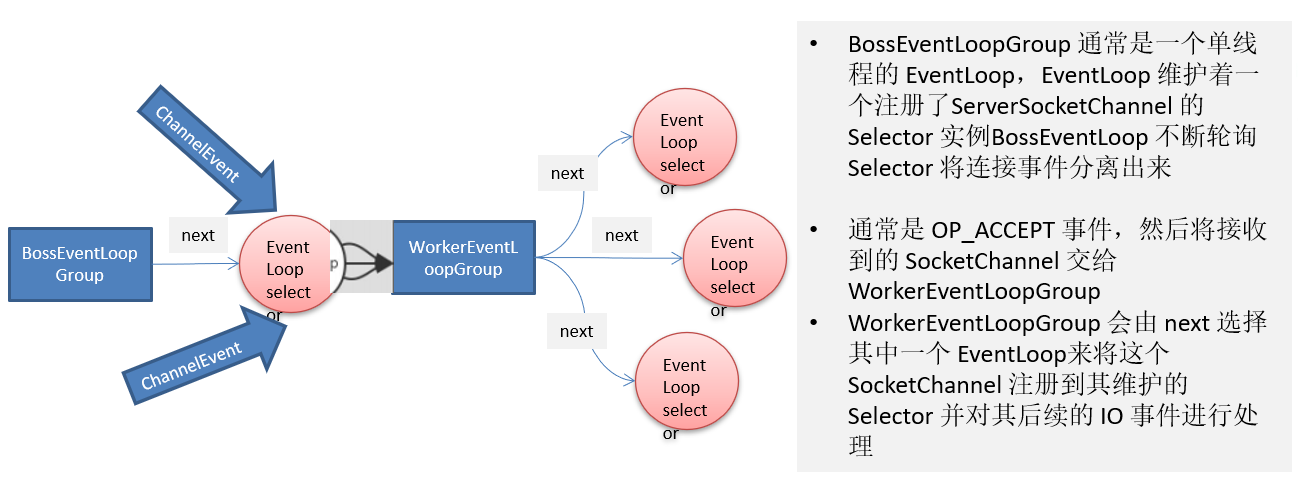

9 EventLoopGroup及其实现类NioEventLoopGroup

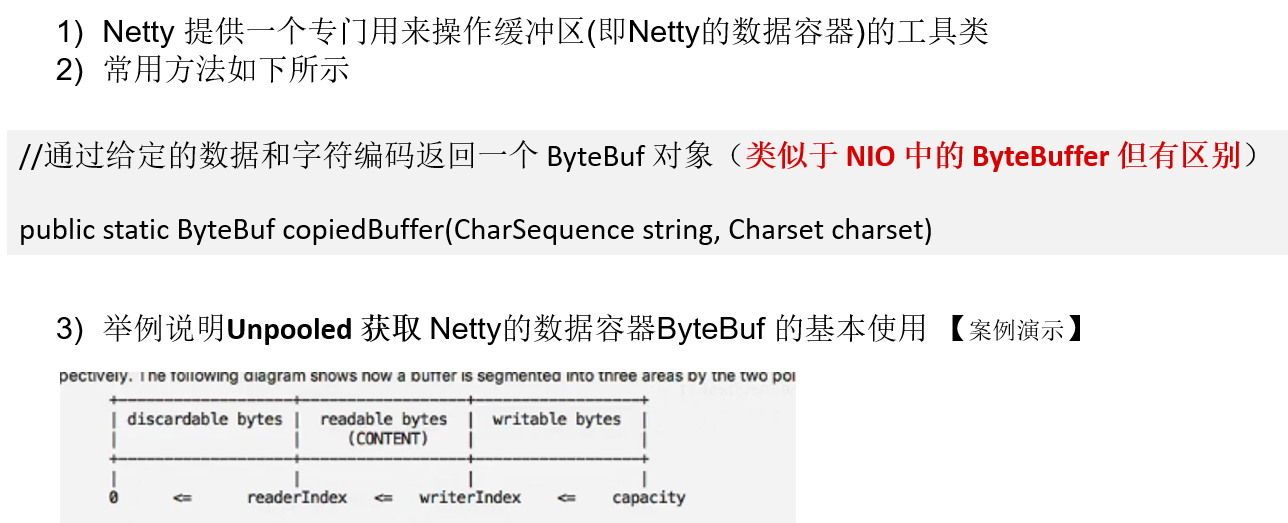

10 Unpooled类

public class NettyByteBuf01 {
    public static void main(String[] args) {
        /*
        创建一个ByteBuf
        1、船舰对象，该对象包含一个数组arr，是一个byte[10]
        2、在Netty的buffer中，不需要使用flip进行反转
        3、底层维护了readerindex和writerindex和capacity，将buffer分成三个区域
           0--readerindex  已经读取的区域
           readerindex-writerindex 可读的区域
           writerindex-capacity 可写的区域
         */
        ByteBuf buffer = Unpooled.buffer(10);
        for (int i = 0; i < 10; i++) {
            buffer.writeByte(i);
        }

        System.out.println("capacity=" + buffer.capacity());
        for (int i = 0; i < buffer.capacity(); i++) {
            System.out.println(buffer.getByte(i));
        }

        for (int i = 0; i < buffer.capacity(); i++) {
            System.out.println(buffer.readByte());
        }
    }
}

public class NettyByteBuf02 {
    public static void main(String[] args) {
        //创建ByteBuf
        ByteBuf byteBuf = Unpooled.copiedBuffer("hello,world!", CharsetUtil.UTF_8);
        //使用相关的方法
        if (byteBuf.hasArray()) {
            byte[] content = byteBuf.array();
            //将content转成字符串
            System.out.println(new String(content, Charset.forName("utf-8")));
            System.out.println("byteBuf=" + byteBuf);
            System.out.println(byteBuf.arrayOffset());//0
            System.out.println(byteBuf.readerIndex());//0
            System.out.println(byteBuf.writerIndex());//12
            System.out.println(byteBuf.capacity());//36
            System.out.println(byteBuf.readableBytes());//12 可读的字节数
            //使用for循环读取各个字节
            for (int i = 0; i < byteBuf.readableBytes(); i++) {
                System.out.println((char) byteBuf.getByte(i));
            }

            //按照某个范围读取
            System.out.println(byteBuf.getCharSequence(0,4,Charset.forName("utf-8")));//hell
            System.out.println(byteBuf.getCharSequence(4,6,Charset.forName("utf-8")));//o,worl


        }
    }
}

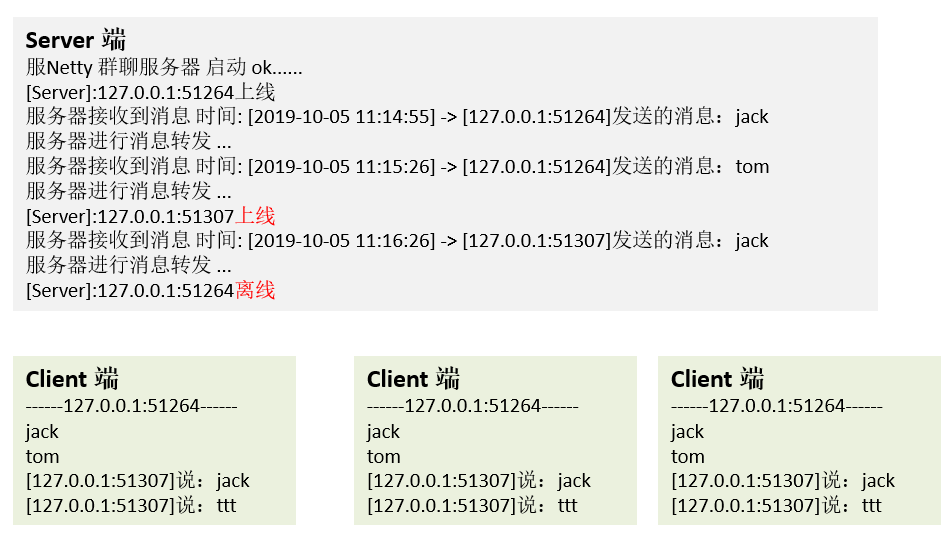

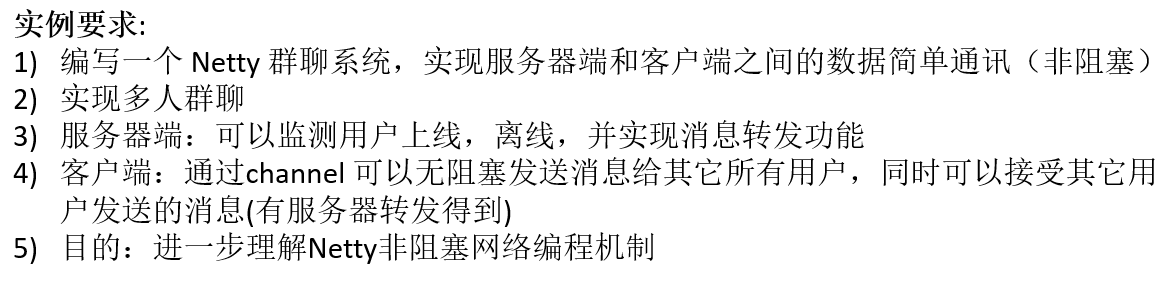

11 Netty应用实例—群聊系统

public class GroupChatServer {
    private int port;

    public GroupChatServer(int port) {
        this.port = port;
    }

    /**
     * 处理客户端的请求
     */
    public void run() throws InterruptedException {
        //创建两个线程组
        NioEventLoopGroup bossGroup = new NioEventLoopGroup(1);
        NioEventLoopGroup workerGroup = new NioEventLoopGroup();
        try {
            ServerBootstrap serverBootstrap = new ServerBootstrap();
            serverBootstrap.group(bossGroup,workerGroup)
                    .channel(NioServerSocketChannel.class)
                    .option(ChannelOption.SO_BACKLOG,128)
                    .childOption(ChannelOption.SO_KEEPALIVE,true)
                    .childHandler(new ChannelInitializer<SocketChannel>() {
                        @Override
                        protected void initChannel(SocketChannel socketChannel) throws Exception {
                            //获取到pipeline
                            ChannelPipeline pipeline = socketChannel.pipeline();
                            //向pipeline加入解码器
                            pipeline.addLast("decoder",new StringDecoder());
                            //向pipeline加入编码器
                            pipeline.addLast("encoder",new StringEncoder());
                            //加入自己的业务处理handler
                            pipeline.addLast(new GroupChatServerHandler());
                        }
                    });
            System.out.println("netty 服务器启动");
            ChannelFuture channelFuture = serverBootstrap.bind(port).sync();
            //监听关闭
            channelFuture.channel().closeFuture().sync();
        }finally {
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }
    }

    public static void main(String[] args) throws InterruptedException {
        new GroupChatServer(7000).run();
    }
}

public class GroupChatServerHandler extends SimpleChannelInboundHandler<String> {

    //定义一个channel组，管理所有的channel
    //GlobalEventExecutor.INSTANCE是全局的事件执行器，是一个单例
    private static ChannelGroup channelGroup = new DefaultChannelGroup(GlobalEventExecutor.INSTANCE);
    SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");

    /**
     * 表示连接建立，一旦连接第一个被执行，将当前channel加入到channerGroup
     *
     * @param ctx
     * @throws Exception
     */
    @Override
    public void handlerAdded(ChannelHandlerContext ctx) throws Exception {
        Channel channel = ctx.channel();
        /*
        将该客户加入聊天的信息推送给其他在线的客户端
        该方法会将channelGroup中所有的channel遍历，并发送消息，我们不需要自己遍历
         */
        channelGroup.writeAndFlush("[客户端]+" + channel.remoteAddress() + "加入聊天" + sdf.format(new Date()) + "\n");
        channelGroup.add(channel);
    }

    /**
     * 表示channel处于活动状态，提示xx上线
     *
     * @param ctx
     * @throws Exception
     */
    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        System.out.println(ctx.channel().remoteAddress() + "上线了~");
    }

    /**
     * 表示channel处于不活动状态，提示xx离线了
     *
     * @param ctx
     * @throws Exception
     */
    @Override
    public void channelInactive(ChannelHandlerContext ctx) throws Exception {
        System.out.println(ctx.channel().remoteAddress() + "离线了~");
    }

    /**
     * 断开连接，将xx客户离开信息推送给当前在线的客户
     *
     * @param ctx
     * @throws Exception
     */
    @Override
    public void handlerRemoved(ChannelHandlerContext ctx) throws Exception {
        Channel channel = ctx.channel();
        channelGroup.writeAndFlush("[客户端]" + channel.remoteAddress() + "离开了\n");
        System.out.println("channelGroup size" + channelGroup.size());
    }

    /**
     * 读取数据
     *
     * @param ctx
     * @param msg
     * @throws Exception
     */
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, String msg) throws Exception {
        Channel channel = ctx.channel();
        //遍历channelGroup，根据不同的情况，回送不同的消息
        channelGroup.forEach(ch -> {
            if (channel != ch) {
                //不是当前的channel，转发消息
                ch.writeAndFlush("[客户]" + channel.remoteAddress() + "发送了消息" + msg + "\n");
            } else {
                //回显自己发送的消息给自己
                ch.writeAndFlush("[自己]发送了消息" + msg + "\n");
            }
        });
    }

    /**
     *
     * @param ctx
     * @param cause
     * @throws Exception
     */
    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        ctx.close();
    }
}

public class GroupChatClient {
    private final String HOST;
    private final int PORT;

    public GroupChatClient(String HOST, int PORT) {
        this.HOST = HOST;
        this.PORT = PORT;
    }

    public void run() throws InterruptedException {
        NioEventLoopGroup group = new NioEventLoopGroup();
        try {
            Bootstrap bootstrap = new Bootstrap();
            bootstrap.group(group).channel(NioSocketChannel.class).handler(new ChannelInitializer<SocketChannel>() {
                @Override
                protected void initChannel(SocketChannel socketChannel) throws Exception {
                    ChannelPipeline pipeline = socketChannel.pipeline();
                    pipeline.addLast("decoder", new StringDecoder());
                    pipeline.addLast("encoder", new StringEncoder());
                    pipeline.addLast(new GroupChatClientHandler());
                }
            });
            ChannelFuture channelFuture = bootstrap.connect(HOST, PORT).sync();
            Channel channel = channelFuture.channel();
            System.out.println("-----------" + channel.remoteAddress() + "------------");
            //客户端需要输入信息，创建一个扫描器
            Scanner scanner = new Scanner(System.in);
            while (scanner.hasNextLine()) {
                String msg = scanner.nextLine();
                //通过channel发送到服务器
                channel.writeAndFlush(msg + "\r\n");
            }
        } finally {
            group.shutdownGracefully();
        }
    }

    public static void main(String[] args) throws InterruptedException {
        new GroupChatClient("127.0.0.1",7000).run();
    }
}

public class GroupChatClientHandler extends SimpleChannelInboundHandler<String> {

    @Override
    protected void channelRead0(ChannelHandlerContext channelHandlerContext, String s) throws Exception {
        System.out.println(s.trim());
    }
}

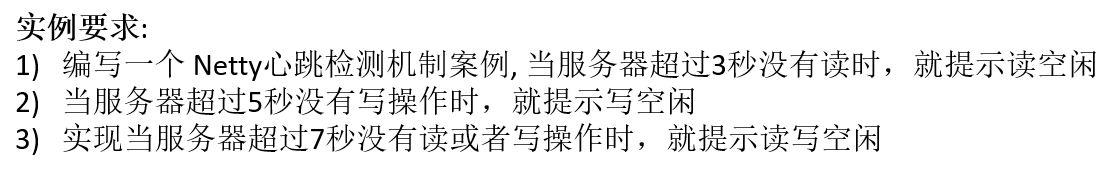

12 Netty心跳检测机制案例

public class MyServer {
    public static void main(String[] args) throws InterruptedException {
        NioEventLoopGroup bossGroup = new NioEventLoopGroup(1);
        NioEventLoopGroup workerGroup = new NioEventLoopGroup();
        try {
            ServerBootstrap serverBootstrap = new ServerBootstrap();
            serverBootstrap.group(bossGroup,workerGroup)
                    .channel(NioServerSocketChannel.class)
                    .handler(new LoggingHandler(LogLevel.INFO))//在bossGroup增加一个日志处理器
                    .childHandler(new ChannelInitializer<SocketChannel>() {
                        @Override
                        protected void initChannel(SocketChannel socketChannel) throws Exception {
                            ChannelPipeline pipeline = socketChannel.pipeline();
                            /*
                            加入一个Netty提供的IdleStateHandler
                            说明：
                                1、IdleStateHandler是Netty提供的处理空闲状态的处理器
                                2、long readerIdleTime,  表示多长时间没有读，就会发送一个心跳检测包检测是否连接
                                   long writerIdleTime,  表示多长时间没有写，就会发送一个心跳检测包检测是否连接
                                   long allIdleTime,     表示多长时间既没有读也没有写，就会发送一个心跳检测包检测是否连接
                                3、当IdleStateHandler触发后，就会传递给管道的下一个handler处理
                                    通过调用(触发)下一个handler的userEventTiggered，在该方法中去处理IdleStateEvent(读空闲，写空闲，读写空闲)
                             */
                            pipeline.addLast(new IdleStateHandler(3,5,7, TimeUnit.SECONDS));
                            //加入一个对空闲检测进一步处理的handler(自定义)
                            pipeline.addLast(new MyServerHandler());
                        }
                    });
            ChannelFuture channelFuture = serverBootstrap.bind(7000).sync();
            channelFuture.channel().closeFuture().sync();
        }finally {
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }
    }
}

public class MyServerHandler extends ChannelInboundHandlerAdapter {

    /**
     * @param ctx 上下文
     * @param evt 事件
     * @throws Exception
     */
    @Override
    public void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception {
        if (evt instanceof IdleStateEvent) {
            //将evt 向下转型IdleStateEvent
            IdleStateEvent event = (IdleStateEvent) evt;
            String eventType = null;
            switch (event.state()) {
                case READER_IDLE:
                    eventType = "读空闲";
                    break;
                case WRITER_IDLE:
                    eventType = "写空闲";
                    break;
                case ALL_IDLE:
                    eventType = "读写空闲";
                    break;
                default:
            }
            System.out.println(ctx.channel().remoteAddress()+"--超时时间--"+eventType);
            System.out.println("服务器做相应处理");
            //如果发生空闲，关闭通道
            //ctx.channel().close();

        }
    }
}

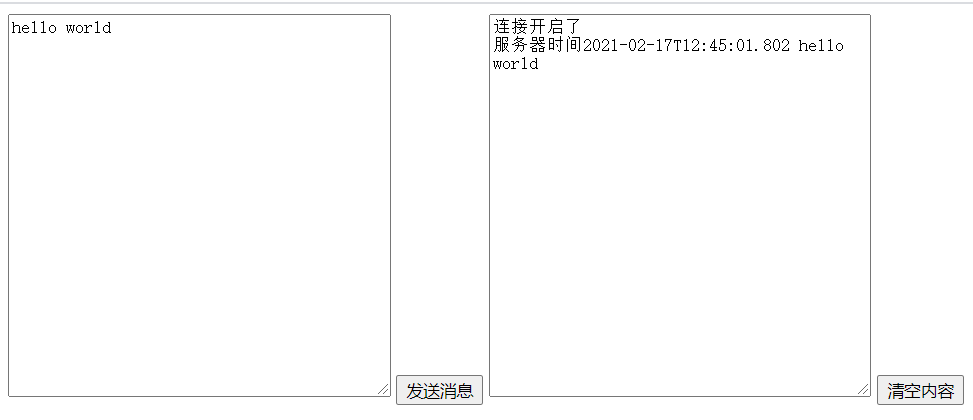

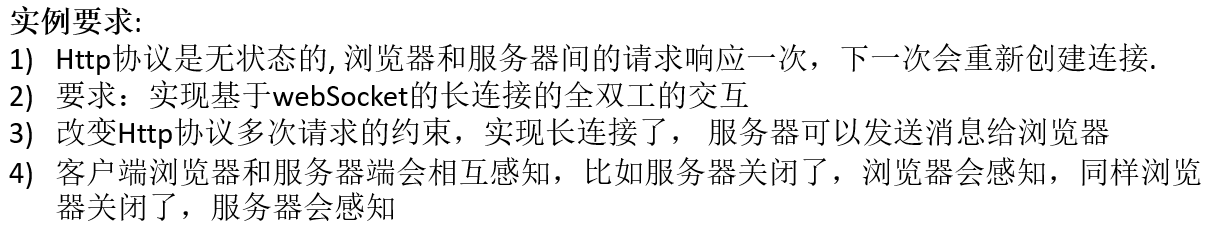

13 Netty通过WebSocket编程实现服务器和客户端长连接

public class MyServer {
    public static void main(String[] args) throws InterruptedException {
        NioEventLoopGroup bossGroup = new NioEventLoopGroup(1);
        NioEventLoopGroup workerGroup = new NioEventLoopGroup();
        try {
            ServerBootstrap serverBootstrap = new ServerBootstrap();
            serverBootstrap.group(bossGroup,workerGroup)
                    .channel(NioServerSocketChannel.class)
                    .handler(new LoggingHandler(LogLevel.INFO))
                    .childHandler(new ChannelInitializer<SocketChannel>() {
                        @Override
                        protected void initChannel(SocketChannel ch) throws Exception {
                            ChannelPipeline pipeline = ch.pipeline();
                            //因为基于http协议，使用http的编码和解码器
                            pipeline.addLast(new HttpServerCodec());
                            //是以块方式写，添加ChunkedWriteHandler处理器
                            pipeline.addLast(new ChunkedWriteHandler());
                            /*
                            说明:
                                1、数据在传输过程中是分段，HttpObjectAggregator就是可以将多个段聚合
                                2、这就是为什么，当浏览器发送大量数据时，就会发出多次http请求
                             */
                            pipeline.addLast(new HttpObjectAggregator(8192));
                            /*
                            说明：
                                1、对于websocket，它的数据是以帧(frame)的形式传递
                                2、看一看到WebSocketFrame下面有6个子类
                                3、浏览器发送请求时，ws://localhost:7000/hello 表示请求的uri
                                4、WebSocketServerProtocolHandler核心功能是将http协议升级为ws协议，保持长连接
                                5、通过状态码101 将http升级为ws
                             */
                            pipeline.addLast(new WebSocketServerProtocolHandler("/hello"));
                            //自定义handler，处理业务逻辑
                            pipeline.addLast(new MyTextWebSocketFrameHandler());
                        }
                    });
            ChannelFuture channelFuture = serverBootstrap.bind(7000).sync();
            channelFuture.channel().closeFuture().sync();
        }finally {
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }
    }
}

/**
 * @author ：SevenYear
 * @description：TextWebSocketFrame 表示一个文本帧
 * @date ：2021/2/17 11:17
 */
public class MyTextWebSocketFrameHandler extends SimpleChannelInboundHandler<TextWebSocketFrame> {

    @Override
    protected void channelRead0(ChannelHandlerContext ctx, TextWebSocketFrame msg) throws Exception {
        System.out.println("服务器收到消息 " + msg.text());
        //回复消息
        ctx.channel().writeAndFlush(new TextWebSocketFrame("服务器时间" + LocalDateTime.now() + " " + msg.text()));
    }

    /**
     * 当web客户端连接后，触发方法
     *
     * @param ctx
     * @throws Exception
     */
    @Override
    public void handlerAdded(ChannelHandlerContext ctx) throws Exception {
        //id表示唯一的值，LongText是唯一的，ShortText不是唯一的
        System.out.println("handlerAdded被调用" + ctx.channel().id().asLongText());
        System.out.println("handlerAdded被调用" + ctx.channel().id().asShortText());
    }

    @Override
    public void handlerRemoved(ChannelHandlerContext ctx) throws Exception {
        System.out.println("handlerRemoved被调用" + ctx.channel().id().asLongText());
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        System.out.println("异常发生" + cause.getMessage());
        ctx.close();
    }
}

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<script>
    var socket;
    //判断当前浏览器是否支持websocket
    if (window.WebSocket) {
        //go on
        socket = new WebSocket("ws://localhost:7000/hello")
        //相当于channelRead0 ev收到服务器端回送的消息
        socket.onmessage = function (ev) {
            var rt = document.getElementById("responseText")
            rt.value = rt.value + "\n" + ev.data;
        }
        //相当于连接开启(感知到连接开启)
        socket.onopen = function (ev) {
            var rt = document.getElementById("responseText")
            rt.value = "连接开启了"
        }
        socket.onclose = function (ev) {
            var rt = document.getElementById("responseText")
            rt.value = rt.value + "\n" + "连接关闭了.."
        }
    } else {
        alert("当前浏览器不支持websocket")
    }

    //发送消息到服务器
    function send(message) {
        if (!window.socket) {
            return
        }
        if (socket.readyState == WebSocket.OPEN) {
            socket.send(message)
        } else {
            alert("连接没有开启")
        }
    }
</script>
<form onsubmit="return false">
    <textarea name="message" style="height: 300px;width: 300px"></textarea>
    <input type="button" value="发送消息" onclick="send(this.form.message.value)">
    <textarea id="responseText" style="height: 300px;width: 300px"></textarea>
    <input type="button" value="清空内容" onclick="document.getElementById('responseText').value=''">
</form>
</body>
</html>
