Spring IOC学习（4）——AbstractBeanFactory

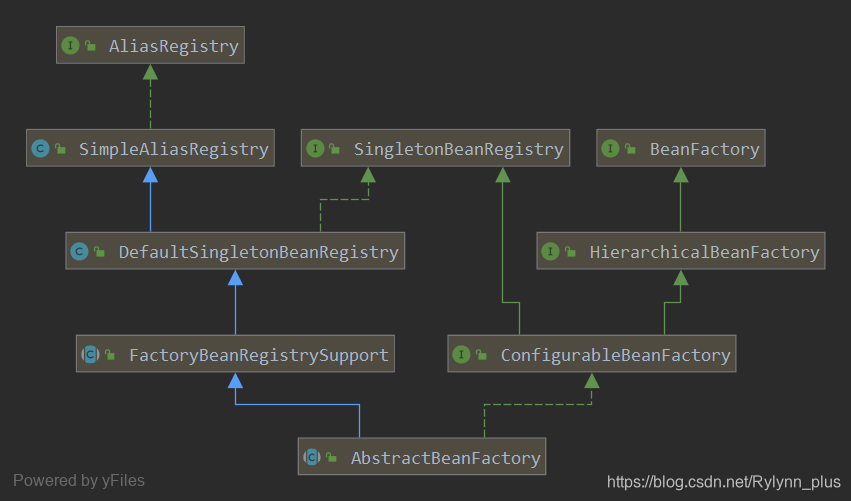

AbstractBeanFactory：单例对象管理能力+可配置；获取bean的总体流程在doGetBean已经成型

/**
  * Return an instance, which may be shared or independent, of the specified bean.
  * @param name the name of the bean to retrieve
  * @param requiredType the required type of the bean to retrieve
  * @param args arguments to use when creating a bean instance using explicit arguments
  * (only applied when creating a new instance as opposed to retrieving an existing one)
  * @param typeCheckOnly whether the instance is obtained for a type check,
  * not for actual use
  * @return an instance of the bean
  * @throws BeansException if the bean could not be created
  */
 @SuppressWarnings("unchecked")
 protected <T> T doGetBean(
   final String name, final Class<T> requiredType, final Object[] args, boolean typeCheckOnly)
   throws BeansException {

  //将原name转换为规范的beanName；比如去掉FactoryBean的&前缀、将别名转换为规范名
  final String beanName = transformedBeanName(name);
  Object bean;

  // Eagerly check singleton cache for manually registered singletons.
  //尝试从缓存获取单例（所谓的三级缓存，见DefaultSingletonBeanRegistry）
  Object sharedInstance = getSingleton(beanName);
  if (sharedInstance != null && args == null) {
   //从缓存中获取到了；可能是完全态的bean,也可能是提前暴露的半成品
   if (logger.isDebugEnabled()) {
    if (isSingletonCurrentlyInCreation(beanName)) {
     logger.debug("Returning eagerly cached instance of singleton bean '" + beanName +
       "' that is not fully initialized yet - a consequence of a circular reference");
    }
    else {
     logger.debug("Returning cached instance of singleton bean '" + beanName + "'");
    }
   }
   //获取真正需要获取的对象；例如处理FactoryBean的情况：加&时需要获取bean本身，不加&时需要获取产品bean
   bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
  }

  else {
   //从缓存中连半成品bean都没有获取到；则寻找bean定义，根据bean定义创建一个bean
   // Fail if we're already creating this bean instance:
   // We're assumably within a circular reference.
   if (isPrototypeCurrentlyInCreation(beanName)) {
    //对原型模式的bean，无法解决循环依赖问题，直接抛异常
    throw new BeanCurrentlyInCreationException(beanName);
   }

   // Check if bean definition exists in this factory.
   //获取父BeanFactory
   BeanFactory parentBeanFactory = getParentBeanFactory();
   if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
    //本BeanFactory没有对应的bean定义，则尝试从父BeanFactory查找bean定义并创建bean
    // Not found -> check parent.
    //获取name对应的规范名；如果有&前缀则保留
    String nameToLookup = originalBeanName(name);
    if (args != null) {
     // Delegation to parent with explicit args.
     //有构造参数则根据对应的构造参数创建bean
     return (T) parentBeanFactory.getBean(nameToLookup, args);
    }
    else {
     // No args -> delegate to standard getBean method.
     return parentBeanFactory.getBean(nameToLookup, requiredType);
    }
   }

   //本BeanFactory有对应的bean定义，继续往下执行

   if (!typeCheckOnly) {
    //不需要类型检查，则先标记为已创建？
    markBeanAsCreated(beanName);
   }

   try {
    //合并为RootBeanDefinition？
    final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
    //检查；bean定义不能是抽象的
    checkMergedBeanDefinition(mbd, beanName, args);

    // Guarantee initialization of beans that the current bean depends on.
    //初始化此bean之前，必须先初始化它所depends-on的所有bean
    //一开始学习的时候将depends-on理解错了，在这里卡了很久。关于depends-on科普：https://blog.youkuaiyun.com/sjyttkl/article/details/72774015
    //我理解为depends-on是一种弱依赖关系；而平时常说的“依赖注入“则属于持有其他对象引用的强依赖关系
    //不难看出，Spring无法处理循环depends-on的情况
    String[] dependsOn = mbd.getDependsOn();
    if (dependsOn != null) {
     for (String dep : dependsOn) {
      if (isDependent(beanName, dep)) {
       //循环depends-on是不合理的，抛异常
       throw new BeanCreationException(mbd.getResourceDescription(), beanName,
         "Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
      }
      //注册依赖关系
      registerDependentBean(dep, beanName);
      try {
       //底层其实就是调用了doGetBean方法，确保depends-on的bean能被初始化
       getBean(dep);
      }
      catch (NoSuchBeanDefinitionException ex) {
       throw new BeanCreationException(mbd.getResourceDescription(), beanName,
         "'" + beanName + "' depends on missing bean '" + dep + "'", ex);
      }
     }
    }

    // Create bean instance.
    //终于开始创建此bean
    if (mbd.isSingleton()) {
     //单例，则尝试从缓存获取；没有获取到则通过抽象方法createBean（关键方法，所有检索bean的方法最终都通过它来完成实际的创建）创建
     //createBean的实现在org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#createBean
     //Spring如何解决循环依赖问题，到这里其实还没有结束，在AbstractAutowireCapableBeanFactory才能有最终答案
     sharedInstance = getSingleton(beanName, new ObjectFactory<Object>() {
      @Override
      public Object getObject() throws BeansException {
       try {
        return createBean(beanName, mbd, args);
       }
       catch (BeansException ex) {
        // Explicitly remove instance from singleton cache: It might have been put there
        // eagerly by the creation process, to allow for circular reference resolution.
        // Also remove any beans that received a temporary reference to the bean.
        destroySingleton(beanName);
        throw ex;
       }
      }
     });
     bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
    }

    else if (mbd.isPrototype()) {
     // It's a prototype -> create a new instance.
     Object prototypeInstance = null;
     try {
      //标记为正在创建
      beforePrototypeCreation(beanName);
      //原型bean，每次都通过createBean创建新的
      prototypeInstance = createBean(beanName, mbd, args);
     }
     finally {
      //从正在创建中移除
      afterPrototypeCreation(beanName);
     }
     bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
    }

    else {
     //其他Scope的处理；不深究
     String scopeName = mbd.getScope();
     final Scope scope = this.scopes.get(scopeName);
     if (scope == null) {
      throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
     }
     try {
      Object scopedInstance = scope.get(beanName, new ObjectFactory<Object>() {
       @Override
       public Object getObject() throws BeansException {
        beforePrototypeCreation(beanName);
        try {
         return createBean(beanName, mbd, args);
        }
        finally {
         afterPrototypeCreation(beanName);
        }
       }
      });
      bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
     }
     catch (IllegalStateException ex) {
      throw new BeanCreationException(beanName,
        "Scope '" + scopeName + "' is not active for the current thread; consider " +
        "defining a scoped proxy for this bean if you intend to refer to it from a singleton",
        ex);
     }
    }
   }
   catch (BeansException ex) {
    cleanupAfterBeanCreationFailure(beanName);
    throw ex;
   }
  }

  // Check if required type matches the type of the actual bean instance.
  if (requiredType != null && bean != null && !requiredType.isInstance(bean)) {
   //如若需要则进行类型转换并返回
   try {
    return getTypeConverter().convertIfNecessary(bean, requiredType);
   }
   catch (TypeMismatchException ex) {
    if (logger.isDebugEnabled()) {
     logger.debug("Failed to convert bean '" + name + "' to required type '" +
       ClassUtils.getQualifiedName(requiredType) + "'", ex);
    }
    throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
   }
  }
  return (T) bean;
 }
