Redis学习笔记：Redis与MySQL数据双写一致性 Java Canal配置Redis，MySQL步骤

Redis学习笔记：Redis与MySQL数据双写一致性 Java Canal配置Redis，MySQL步骤

MySQL8配置

修改my.ini文件

文件位置在mysql的安装目录下，博主的目录如下：D:\Environments\Mysql\mysql-8.0.34-winx64
打开my.ini文件，在**[mysqld]**下添加：

log-bin=mysql-bin
binlog-format=ROW
server_id=1

重启mysql

首先以管理员的身份打开命令行工具，WIN+R后，Ctrl+Shift+Enter即可
关闭mysql服务

net stop mysql80

开启mysql服务

net start mysql80

创建用户，授权

在mysql数据库中原生的mysql数据表中新建查询，输入以下命令：

drop user canal;
CREATE USER canal IDENTIFIED WITH mysql_native_password BY 'canal';
GRANT SELECT, REPLICATION SLAVE, REPLICATION CLIENT ON *.* TO 'canal'@'%';
FLUSH PRIVILEGES;

Canal服务端配置

修改配置

# 进入conf/example目录
cd conf/example
# 修改配置文件
vi instance.properties

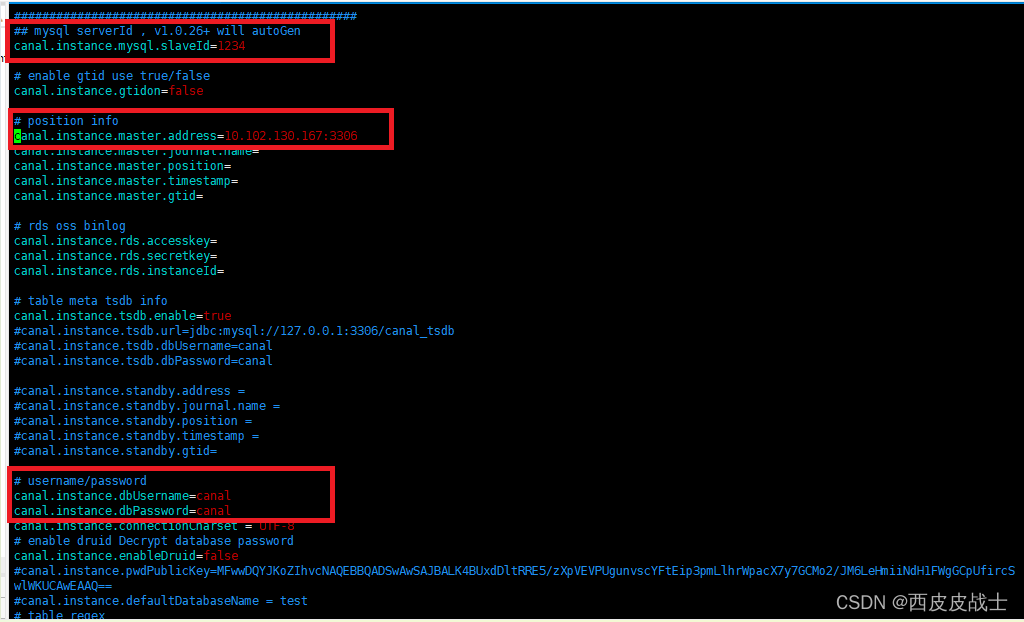

修改如下：

第二个红框中个的ip地址即mysql所在的ip，博主的mysql是在windows上的
在windows查看本机ip地址的方式是：WIN+R cmd后输入：

ipconfig

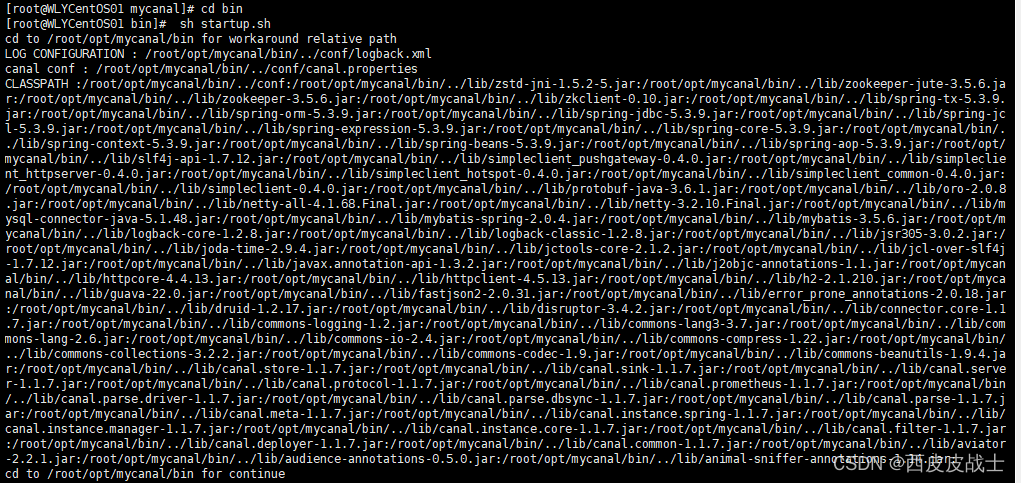

启动服务并验证

# 进入bin目录
cd bin
# 启动脚本
sh startup.sh

Java整合Canal

监听

@Component
public class RedisCanalClientExample {

    public static final Integer _60SECONDS = 60;
    public static final String REDIS_IP_ADDR = "192.168.81.128";

    private static void redisInsert(List<CanalEntry.Column> columns)
    {
        JSONObject jsonObject = new JSONObject();
        for (CanalEntry.Column column : columns)
        {
            System.out.println(column.getName() + " : " + column.getValue() + "    update=" + column.getUpdated());
            jsonObject.put(column.getName(),column.getValue());
        }
        if(columns.size() > 0)
        {
            try(Jedis jedis = RedisUtils.getJedis())
            {
                jedis.set(columns.get(0).getValue(),jsonObject.toJSONString());
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }

    private static void redisDelete(List<CanalEntry.Column> columns)
    {
        JSONObject jsonObject = new JSONObject();
        for (CanalEntry.Column column : columns)
        {
            jsonObject.put(column.getName(),column.getValue());
        }
        if(columns.size() > 0)
        {
            try(Jedis jedis = RedisUtils.getJedis())
            {
                jedis.del(columns.get(0).getValue());
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }

    private static void redisUpdate(List<CanalEntry.Column> columns)
    {
        JSONObject jsonObject = new JSONObject();
        for (CanalEntry.Column column : columns)
        {
            System.out.println(column.getName() + " : " + column.getValue() + "    update=" + column.getUpdated());
            jsonObject.put(column.getName(),column.getValue());
        }
        if(columns.size() > 0)
        {
            try(Jedis jedis = RedisUtils.getJedis())
            {
                jedis.set(columns.get(0).getValue(),jsonObject.toJSONString());
                System.out.println("---------update after: "+jedis.get(columns.get(0).getValue()));
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }

    public static void printEntry(List<CanalEntry.Entry> entries) {
        for (CanalEntry.Entry entry : entries) {
            if (entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONBEGIN || entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONEND) {
                continue;
            }

            CanalEntry.RowChange rowChage = null;
            try {
                //获取变更的row数据
                rowChage = CanalEntry.RowChange.parseFrom(entry.getStoreValue());
            } catch (Exception e) {
                throw new RuntimeException("ERROR ## parser of eromanga-event has an error,data:" + entry.toString(), e);
            }
            //获取变动类型
            CanalEntry.EventType eventType = rowChage.getEventType();
            System.out.println(String.format("================&gt; binlog[%s:%s] , name[%s,%s] , eventType : %s",
                    entry.getHeader().getLogfileName(), entry.getHeader().getLogfileOffset(),
                    entry.getHeader().getSchemaName(), entry.getHeader().getTableName(), eventType));

            for (CanalEntry.RowData rowData : rowChage.getRowDatasList()) {
                if (eventType == CanalEntry.EventType.INSERT) {
                    redisInsert(rowData.getAfterColumnsList());
                } else if (eventType == CanalEntry.EventType.DELETE) {
                    redisDelete(rowData.getBeforeColumnsList());
                } else {//EventType.UPDATE
                    redisUpdate(rowData.getAfterColumnsList());
                }
            }
        }
    }

    public static void main(String[] args) {
        System.out.println("--------------init()--------------");

        // 创建链接canal服务器
        CanalConnector connector = CanalConnectors.newSingleConnector(new InetSocketAddress(REDIS_IP_ADDR, 11111),
                "example",
                "",
                "");
        int batchSize = 1000;
        //空闲空转计数器
        int emptyCount = 0;
        System.out.println("--------------canal init ok, 开始监听mysql变化--------------");
        try {
            connector.connect();
            connector.subscribe("redis_learn.t_user");
            connector.rollback();
            int totalEmptyCount = 10 * _60SECONDS;
            while (emptyCount < totalEmptyCount) {
                System.out.println("我是canal，每秒一次正在监听：" + UUID.randomUUID().toString());
                //获取指定数量的数据
                Message mes = connector.getWithoutAck(batchSize);
                long batchId = mes.getId();
                int size = mes.getEntries().size();
                if (batchId == -1 || size == 0) {
                    emptyCount++;
                    try {
                        TimeUnit.SECONDS.sleep(1);
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                } else {
                    //计数器重新置零
                    emptyCount = 0;
                    printEntry(mes.getEntries());
                }
                //提交确认
                connector.ack(batchId);
            }
            System.out.println("已经监听了" + totalEmptyCount + "秒，无任何消息，请重启重试......");
        } finally {
            connector.disconnect();
        }
    }
}

修改mysql指定的表的数据，如下图所示：

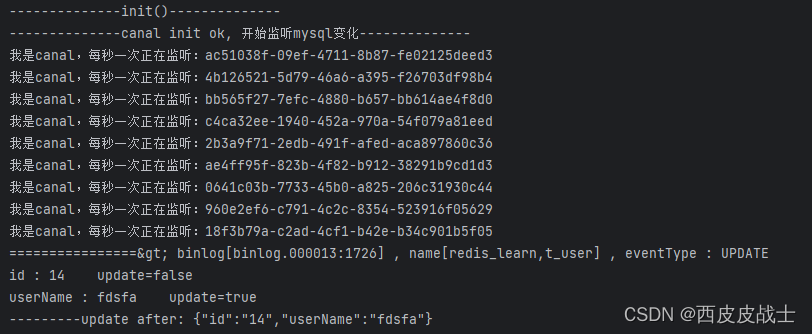

控制台输出监控日志，运行结果如下：

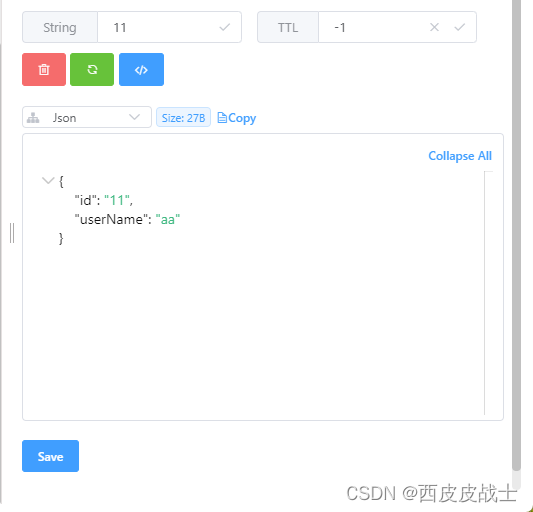

redis中的数据，如下图所示：
