Arduino元件使用方法收藏| DHT22 温湿度传感器

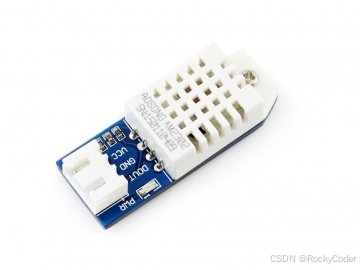

这是是已校准的数字温湿度传感器，用于检测环境温湿度，采用DHT22(AM2302)，标准单总线接口。拥有比DHT11更高的精度和更大的量程。

参数名称	参数
传感器	DHT22(温湿度传感器)
工作电压	3.3V-5.5V
湿度分辨率	0.1%RH
湿度测量范围	0%RH ~ 99.9%RH
湿度测量误差	±2%RH (25°C)
温度分辨率	0.1°C
温度测量范围	-40°C ~ 80°C
温度测量误差	±0.5℃
引脚	功能
VCC	电源正（3.3V-5.5V）
GND	电源地
DOUT	通信端口

 在Arduino UNO上的范例程序 dht22.ino：

#include <dht.h>

dht DHT;

#define DHT22_PIN 5

struct {
  uint32_t total;
  uint32_t ok;
  uint32_t crc_error;
  uint32_t time_out;
  uint32_t connect;
  uint32_t ack_l;
  uint32_t ack_h;
  uint32_t unknown;
} stat = { 0, 0, 0, 0, 0, 0, 0, 0};

void setup() {
  Serial.begin(115200);
  Serial.println("dht22_test.ino");
  Serial.print("LIBRARY VERSION: ");
  Serial.println(DHT_LIB_VERSION);
  Serial.println();
  Serial.println("Type,\tstatus,\tHumidity (%),\tTemperature (C)\tTime (us)");
}

void loop() {
  // READ DATA
  Serial.print("DHT22, \t");

  uint32_t start = micros();
  int chk = DHT.read22(DHT22_PIN);
  uint32_t stop = micros();

  stat.total++;
  switch (chk)
  {
    case DHTLIB_OK:
      stat.ok++;
      Serial.print("OK,\t");
      break;
    case DHTLIB_ERROR_CHECKSUM:
      stat.crc_error++;
      Serial.print("Checksum error,\t");
      break;
    case DHTLIB_ERROR_TIMEOUT:
      stat.time_out++;
      Serial.print("Time out error,\t");
      break;
    case DHTLIB_ERROR_CONNECT:
      stat.connect++;
      Serial.print("Connect error,\t");
      break;
    case DHTLIB_ERROR_ACK_L:
      stat.ack_l++;
      Serial.print("Ack Low error,\t");
      break;
    case DHTLIB_ERROR_ACK_H:
      stat.ack_h++;
      Serial.print("Ack High error,\t");
      break;
    default:
      stat.unknown++;
      Serial.print("Unknown error,\t");
      break;
  }
  // DISPLAY DATA
  Serial.print(DHT.humidity, 1);
  Serial.print(",\t");
  Serial.print(DHT.temperature, 1);
  Serial.print(",\t");
  Serial.print(stop - start);
  Serial.println();

  if (stat.total % 20 == 0)
  {
    Serial.println("\nTOT\tOK\tCRC\tTO\tCON\tACK_L\tACK_H\tUNK");
    Serial.print(stat.total);
    Serial.print("\t");
    Serial.print(stat.ok);
    Serial.print("\t");
    Serial.print(stat.crc_error);
    Serial.print("\t");
    Serial.print(stat.time_out);
    Serial.print("\t");
    Serial.print(stat.connect);
    Serial.print("\t");
    Serial.print(stat.ack_l);
    Serial.print("\t");
    Serial.print(stat.ack_h);
    Serial.print("\t");
    Serial.print(stat.unknown);
    Serial.println("\n");
  }
  delay(2000);
}

范例输出示例：

dht22.ino
LIBRARY VERSION: 0.1.36

Type,	status,	Humidity (%),	Temperature (C)	Time (us)
DHT22, 	OK,	40.0,	24.0,	4800
DHT22, 	OK,	89.0,	24.0,	5060
DHT22, 	OK,	89.0,	24.0,	5060
DHT22, 	OK,	89.0,	24.0,	5064
DHT22, 	OK,	89.0,	24.0,	5064
DHT22, 	OK,	89.0,	24.0,	5064
DHT22, 	OK,	89.0,	24.0,	5064
DHT22, 	OK,	89.0,	24.0,	5060
DHT22, 	OK,	89.0,	24.0,	5064
DHT22, 	OK,	89.0,	24.0,	5064
DHT22, 	OK,	89.0,	24.0,	5064
DHT22, 	OK,	89.0,	24.0,	5060
DHT22, 	OK,	89.0,	24.0,	5060
DHT22, 	OK,	89.0,	24.0,	5064
DHT22, 	OK,	89.0,	24.0,	5064
DHT22, 	OK,	89.0,	24.0,	5064
DHT22, 	OK,	89.0,	24.0,	5064
DHT22, 	OK,	89.0,	24.0,	5064
DHT22, 	OK,	89.0,	24.0,	5064
DHT22, 	OK,	89.0,	24.0,	5068

TOT	OK	CRC	TO	CON	ACK_L	ACK_H	UNK
20	20	0	0	0	0	0	0

通过修改范例程序，可以应用到实例中。
