接口数据加密传输

加密算法采用了对称加密AES算法

前端

引入 crypto-js

# 使用npm引入
npm install crypto-js --save
# 如果npm引入失败，使用cnpm
cnpm install crypto-js --save

然后写一个js，方便调用

AesUtil.js

import CryptoJS from 'crypto-js';

/**
 * 随机生成16位的AES密钥
 * @returns {string}
 */
export const getAESKey = () => {
    var chars = ['0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K', 'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S', 'T', 'U', 'V', 'W', 'X', 'Y', 'Z'];
    var n = 16;
    var res = "";
    for (var i = 0; i < n; i++) {
        var id = Math.ceil(Math.random() * 35);
        res += chars[id];
    }
    return res;
}

/**
 * 加密
 * @param data
 * @param aesKey
 * @returns {string}
 * @constructor
 */
export const encryptAes = (data, aesKey) => {
    let key = CryptoJS.enc.Utf8.parse(aesKey);
    let srcs = CryptoJS.enc.Utf8.parse(data);
    let encrypted = CryptoJS.AES.encrypt(srcs, key, {
        mode: CryptoJS.mode.ECB,
        padding: CryptoJS.pad.Pkcs7
    });
    console.log(encrypted.ciphertext)
    return encrypted.ciphertext.toString();
};

/**
 * 解密Aes
 * @param data
 * @param aesKey
 * @returns {string}
 */
export const decryptAes = (data, aesKey) => {
    let keyStr = aesKey ? aesKey : "1234567890abcdef";
    var key = CryptoJS.enc.Utf8.parse(keyStr);
    var decrypt = CryptoJS.AES.decrypt(data, key, {
        mode: CryptoJS.mode.ECB,
        padding: CryptoJS.pad.Pkcs7
    });
    return CryptoJS.enc.Utf8.stringify(decrypt).toString();
};

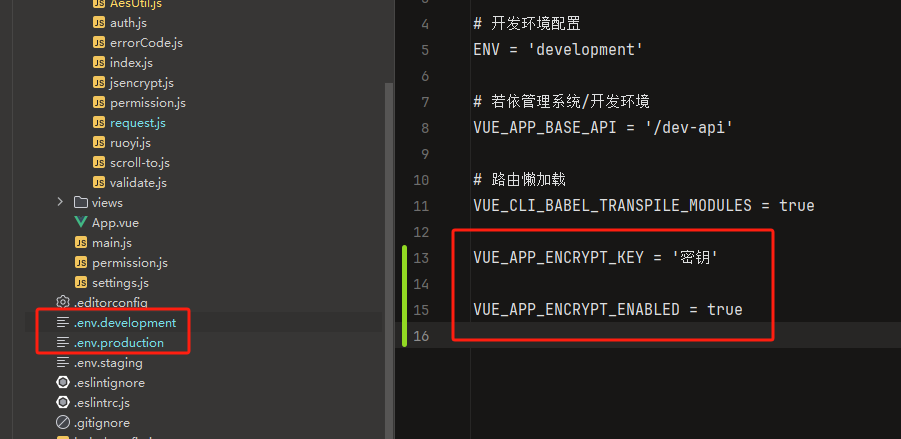

全局环境中配置两个参数，用来控制加密解密
在这里插入图片描述

// 这里的密钥必须要符合AES的规则，可以先调用AesUtil中的getAESKey 方法，将获取到的key复制粘贴到此处
VUE_APP_ENCRYPT_KEY = '密钥'
// 这里控制是否加密
VUE_APP_ENCRYPT_ENABLED = true

在request.js的请求和响应中拦截数据并处理
先在request.js最上面引入加密解密方法和环境变量信息

import {decryptAes, encryptAes} from "@/utils/AesUtil";
const aesKey = process.env.VUE_APP_ENCRYPT_KEY;
const encryptEnabled = process.env.VUE_APP_ENCRYPT_ENABLED === 'true';

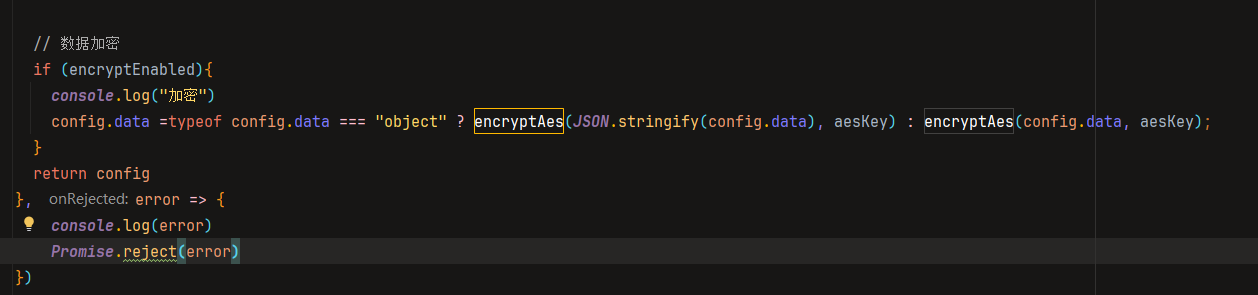

配置请求拦截器：

在这里插入图片描述
在return config上方加上这段：

  // 数据加密
  if (encryptEnabled){
    console.log("加密")
    config.data =typeof config.data === "object" ? encryptAes(JSON.stringify(config.data), aesKey) : encryptAes(config.data, aesKey);
  }

配置响应拦截器：

将拦截器换成这个

service.interceptors.response.use(res => {
    let data;
    // 数据解密
    if (res.data instanceof Object||!encryptEnabled){
      data = res.data
    }else {
      let dataStr = decryptAes(res.data,aesKey)
      data = JSON.parse(dataStr)
    }
    // 未设置状态码则默认成功状态
    const code = data.code || 200;
    // 获取错误信息
    const msg = errorCode[code] || data.msg || errorCode['default']
    // 二进制数据则直接返回
    if (res.request.responseType ===  'blob' || res.request.responseType ===  'arraybuffer') {
      return data
    }
    if (code === 401) {
      if (!isRelogin.show) {
        isRelogin.show = true;
        MessageBox.confirm('登录状态已过期，您可以继续留在该页面，或者重新登录', '系统提示', { confirmButtonText: '重新登录', cancelButtonText: '取消', type: 'warning' }).then(() => {
          isRelogin.show = false;
          store.dispatch('LogOut').then(() => {
            location.href = '/index';
          })
      }).catch(() => {
        isRelogin.show = false;
      });
    }
      return Promise.reject('无效的会话，或者会话已过期，请重新登录。')
    } else if (code === 500) {
      Message({ message: msg, type: 'error' })
      return Promise.reject(new Error(msg))
    } else if (code === 601) {
      Message({ message: msg, type: 'warning' })
      return Promise.reject('error')
    } else if (code !== 200) {
      Notification.error({ title: msg })
      return Promise.reject('error')
    } else {
      return data
    }
  },

后端

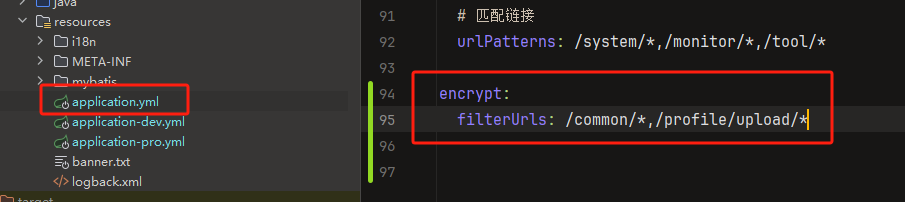

在application.yml中配置过滤的接口，配置的接口不会加密
在这里插入图片描述
application.yml加入下面配置：

encrypt:
  filterUrls: /common/*,/profile/upload/*

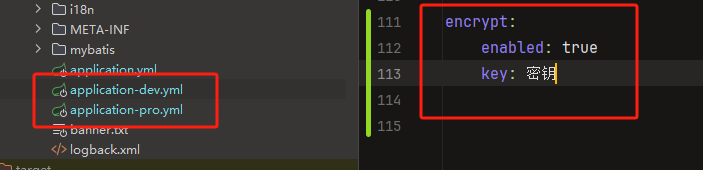

application-dev.yml和application-pro.yml配置是否开启加密及密钥
在这里插入图片描述
application-dev.yml和application-pro.yml都加入下面的配置：

encrypt:
    enabled: true
    key: 密钥

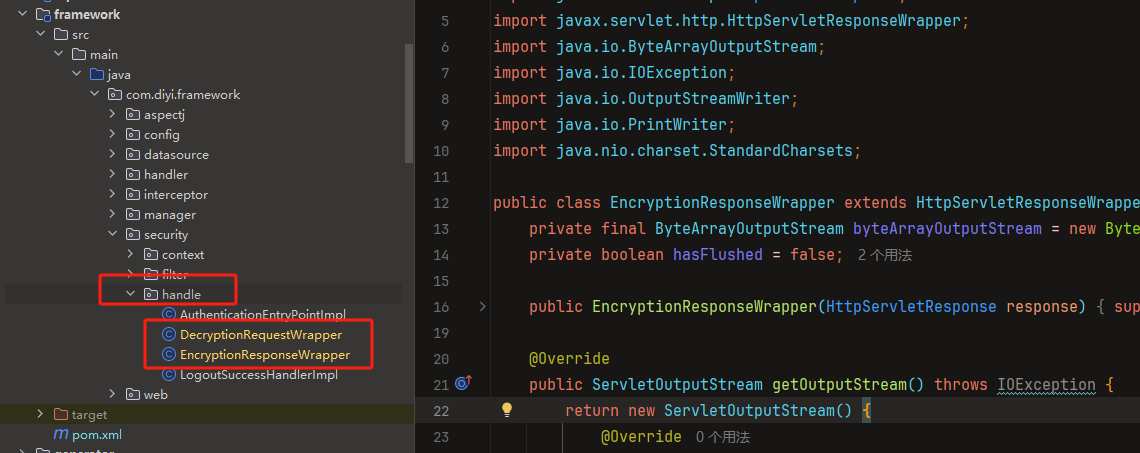

然后在framework模块增加请求和响应的自定义增强器：
在这里插入图片描述

自定义请求增强器DecryptionRequestWrapper


import javax.servlet.ReadListener;
import javax.servlet.ServletInputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletRequestWrapper;
import java.io.BufferedReader;
import java.io.ByteArrayInputStream;
import java.io.IOException;
import java.io.InputStreamReader;
import java.nio.charset.StandardCharsets;

/**
 * 自定义请求增强器
 */
public class DecryptionRequestWrapper extends HttpServletRequestWrapper {
    private String decryptedBody;

    public DecryptionRequestWrapper(HttpServletRequest request, String decryptedBody) throws IOException {
        super(request);
        this.decryptedBody = decryptedBody;
    }

    @Override
    public BufferedReader getReader() throws IOException {
        return new BufferedReader(new InputStreamReader(new ByteArrayInputStream(decryptedBody.getBytes(StandardCharsets.UTF_8))));
    }

    @Override
    public ServletInputStream getInputStream() throws IOException {
        final ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(decryptedBody.getBytes(StandardCharsets.UTF_8));
        return new ServletInputStream() {
            @Override
            public int read() throws IOException {
                return byteArrayInputStream.read();
            }

            @Override
            public boolean isFinished() {
                return byteArrayInputStream.available() == 0;
            }

            @Override
            public boolean isReady() {
                return true;
            }

            @Override
            public void setReadListener(ReadListener readListener) {
            }
        };
    }
}

自定义响应增强器EncryptionResponseWrapper


import javax.servlet.ServletOutputStream;
import javax.servlet.WriteListener;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpServletResponseWrapper;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.io.OutputStreamWriter;
import java.io.PrintWriter;
import java.nio.charset.StandardCharsets;

/**
 * 自定义响应增强器
 */
public class EncryptionResponseWrapper extends HttpServletResponseWrapper {
    private final ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
    private boolean hasFlushed = false;

    public EncryptionResponseWrapper(HttpServletResponse response) {
        super(response);
    }

    @Override
    public ServletOutputStream getOutputStream() throws IOException {
        return new ServletOutputStream() {
            @Override
            public boolean isReady() {
                return true;
            }

            @Override
            public void setWriteListener(WriteListener writeListener) {}

            @Override
            public void write(int b) throws IOException {
                byteArrayOutputStream.write(b);
            }
        };
    }

    @Override
    public PrintWriter getWriter() throws IOException {
        return new PrintWriter(new OutputStreamWriter(byteArrayOutputStream, StandardCharsets.UTF_8));
    }

    @Override
    public void flushBuffer() throws IOException {
        super.flushBuffer();
        if (byteArrayOutputStream != null) {
            byteArrayOutputStream.flush();
        }
        hasFlushed = true;
    }

    public byte[] getContentAsByteArray() throws IOException {
        if (!hasFlushed) {
            flushBuffer();
        }
        return byteArrayOutputStream.toByteArray();
    }
}

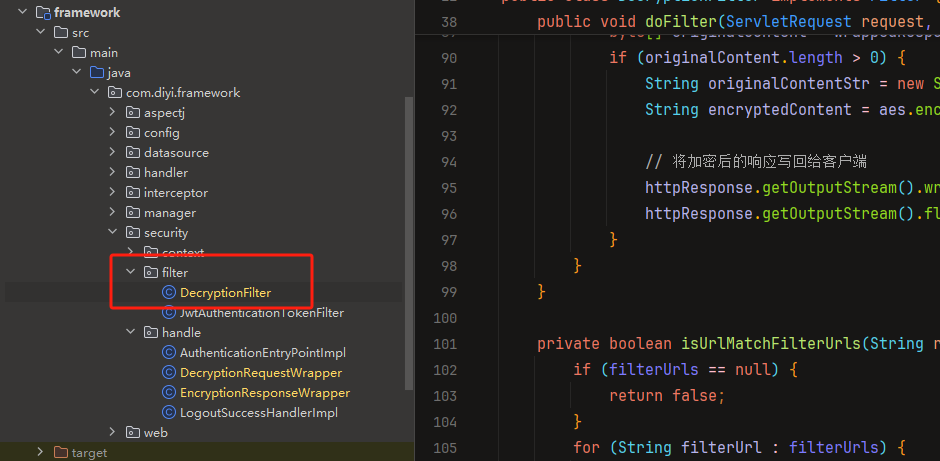

在framework模块，增加接口过滤器

在这里插入图片描述

接口过滤器DecryptionFilter


import cn.hutool.crypto.SecureUtil;
import cn.hutool.crypto.symmetric.AES;
import com.diyi.framework.security.handle.DecryptionRequestWrapper;
import com.diyi.framework.security.handle.EncryptionResponseWrapper;
import lombok.Data;
import javax.servlet.Filter;
import javax.servlet.FilterChain;
import javax.servlet.FilterConfig;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.BufferedReader;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.List;

/**
 * 接口加密解密过滤器
 */
 // 使用了@Data注解，这里需要引入一下lombok的包，也可以不引入，手写get和set方法，不过感觉比较乱
@Data
public class DecryptionFilter implements Filter {

    private Boolean enabled;
    private String key;
    private List<String> filterUrls;

    public DecryptionFilter(Boolean enabled, String key, List<String> filterUrls) {
        this.enabled = enabled;
        this.key = key;
        this.filterUrls = filterUrls;
    }

    @Override
    public void init(FilterConfig filterConfig) throws ServletException {}

    @Override
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
            throws IOException, ServletException {
        HttpServletRequest httpRequest = (HttpServletRequest) request;
        HttpServletResponse httpResponse = (HttpServletResponse) response;

        // 获取请求的 URL
        String requestUrl = httpRequest.getRequestURI();

        // 检查请求的 URL 是否匹配过滤列表中的规则
        if (!enabled||isUrlMatchFilterUrls(requestUrl)) {
            // 如果匹配上，直接放行，不走加密解密逻辑
            chain.doFilter(request, response);
            return;
        }

        // 缓存请求体以便多次读取
        String body = getRequestBody(httpRequest);
        AES aes = SecureUtil.aes(key.getBytes());

        if (!body.isEmpty()) {
            body = body.replace("\"","");
            // 假设body中的双引号已被去除或其他预处理
            String decryptedBody = aes.decryptStr(body);

            // 将解密后的请求体传入新的请求对象
            DecryptionRequestWrapper wrappedRequest = new DecryptionRequestWrapper(httpRequest, decryptedBody);

            // 使用自定义的HttpServletResponseWrapper来捕获响应体
            EncryptionResponseWrapper wrappedResponse = new EncryptionResponseWrapper(httpResponse);

            // 传递包装后的请求和响应对象
            chain.doFilter(wrappedRequest, wrappedResponse);

            // 在这里加密响应体
            byte[] originalContent = wrappedResponse.getContentAsByteArray();
            if (originalContent.length > 0) {
                String originalContentStr = new String(originalContent, StandardCharsets.UTF_8);
                String encryptedContent = aes.encryptBase64(originalContentStr);

                // 将加密后的响应写回给客户端
                httpResponse.getOutputStream().write(encryptedContent.getBytes(StandardCharsets.UTF_8));
                httpResponse.getOutputStream().flush();
            }
        } else {
            // 使用自定义的HttpServletResponseWrapper来捕获响应体
            EncryptionResponseWrapper wrappedResponse = new EncryptionResponseWrapper(httpResponse);

            // 传递包装后的请求和响应对象
            chain.doFilter(request, wrappedResponse);

            // 在这里加密响应体
            byte[] originalContent = wrappedResponse.getContentAsByteArray();
            if (originalContent.length > 0) {
                String originalContentStr = new String(originalContent, StandardCharsets.UTF_8);
                String encryptedContent = aes.encryptBase64(originalContentStr);

                // 将加密后的响应写回给客户端
                httpResponse.getOutputStream().write(encryptedContent.getBytes(StandardCharsets.UTF_8));
                httpResponse.getOutputStream().flush();
            }
        }
    }

    private boolean isUrlMatchFilterUrls(String requestUrl) {
        if (filterUrls == null) {
            return false;
        }
        for (String filterUrl : filterUrls) {
            if (isUrlMatchPattern(requestUrl, filterUrl)) {
                return true;
            }
        }
        return false;
    }

    private boolean isUrlMatchPattern(String requestUrl, String pattern) {
        String[] requestSegments = requestUrl.split("/");
        String[] patternSegments = pattern.split("/");

        int requestIndex = 0;
        int patternIndex = 0;

        while (requestIndex < requestSegments.length && patternIndex < patternSegments.length) {
            if ("*".equals(patternSegments[patternIndex])) {
                patternIndex++;
                // 处理连续的 * 通配符
                while (patternIndex < patternSegments.length && "*".equals(patternSegments[patternIndex])) {
                    patternIndex++;
                }
                if (patternIndex == patternSegments.length) {
                    // 如果模式的最后是 *，则直接匹配成功
                    return true;
                }
                // 查找下一个匹配的路径段
                while (requestIndex < requestSegments.length && !requestSegments[requestIndex].equals(patternSegments[patternIndex])) {
                    requestIndex++;
                }
                if (requestIndex == requestSegments.length) {
                    // 没有找到匹配的路径段
                    return false;
                }
            } else if (!requestSegments[requestIndex].equals(patternSegments[patternIndex])) {
                return false;
            }
            requestIndex++;
            patternIndex++;
        }

        // 检查是否所有路径段都匹配
        return requestIndex == requestSegments.length && patternIndex == patternSegments.length;
    }

    private String getRequestBody(HttpServletRequest request) throws IOException {
        StringBuilder stringBuilder = new StringBuilder();
        BufferedReader bufferedReader = null;
        try {
            bufferedReader = request.getReader();
            char[] charBuffer = new char[128];
            int bytesRead;
            while ((bytesRead = bufferedReader.read(charBuffer)) != -1) {
                stringBuilder.append(charBuffer, 0, bytesRead);
            }
        } catch (IOException ex) {
            throw ex;
        } finally {
            if (bufferedReader != null) {
                try {
                    bufferedReader.close();
                } catch (IOException ex) {
                    // 忽略
                }
            }
        }
        return stringBuilder.toString();
    }

    @Override
    public void destroy() {}
}

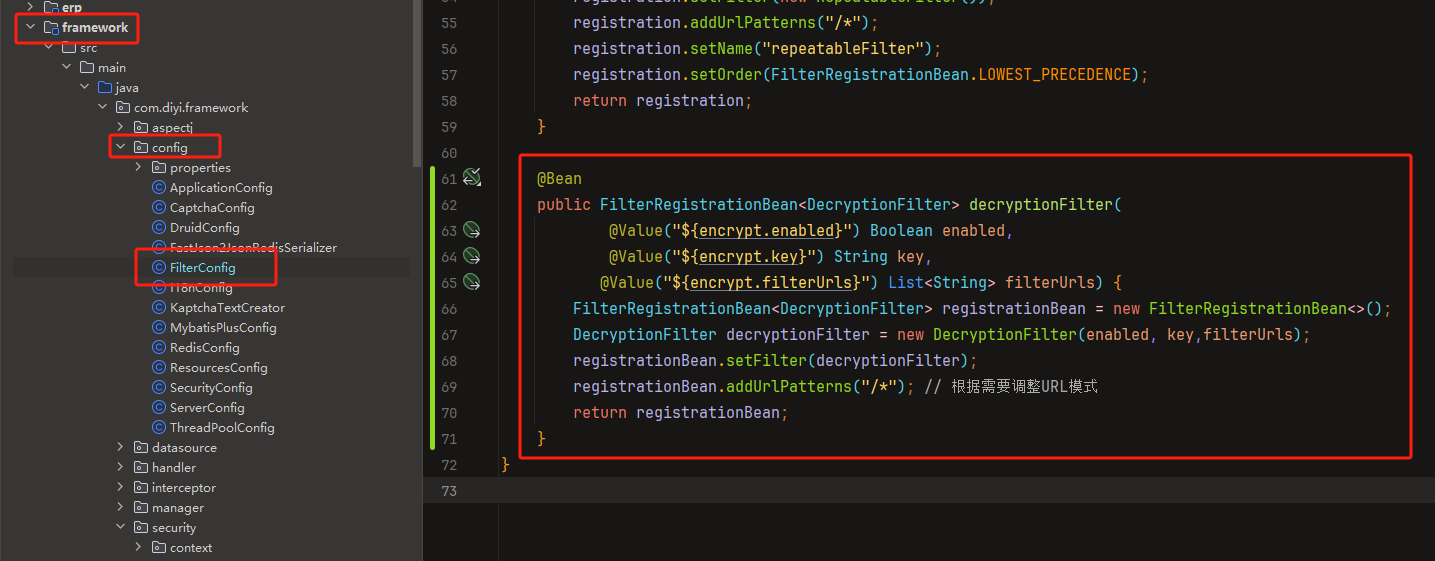

在framework模块，配置过滤器FilterConfig，使其生效

在这里插入图片描述

代码如下：

    @Bean
    public FilterRegistrationBean<DecryptionFilter> decryptionFilter(
            @Value("${encrypt.enabled}") Boolean enabled,
            @Value("${encrypt.key}") String key,
           @Value("${encrypt.filterUrls}") List<String> filterUrls) {
        FilterRegistrationBean<DecryptionFilter> registrationBean = new FilterRegistrationBean<>();
        DecryptionFilter decryptionFilter = new DecryptionFilter(enabled, key,filterUrls);
        registrationBean.setFilter(decryptionFilter);
        registrationBean.addUrlPatterns("/*"); // 根据需要调整URL模式
        return registrationBean;
    }
