分布式定时任务—xxl-job学习（三）调度中心（xxl-job-admin）的启动和任务调度过程源码分析
- 前言
- 一、调度中心的启动
- 1.1 分析XxlJobAdminConfig类
- 1.2 分析XxlJobScheduler.init()
- 1.3 分析XxlJobTrigger核心类
- 二、彩蛋
前言
接上一篇：分布式定时任务—xxl-job学习（二）——执行器的启动过程源码分析
更早：分布式定时任务—xxl-job学习（一）:简单demo搭建
在上一篇我们深度分析了下xxl-job执行器组件的启动加载原理，本篇我们来深度挖掘一下调度中心（xxl-job-admin）的启动和调度过程。
xxl.job.version使用的依旧是2.2.1-SNAPSHOT版本
一、调度中心的启动

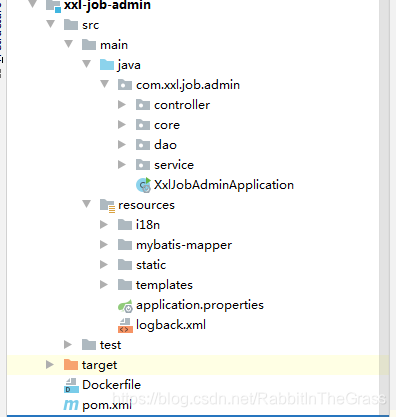

通过上边xxl-job-admin的代码目录层级我们可以知道它包括：controller层支持在Web页面进行CRUD、核心类core、持久层dao以及业务实现层service。
首先我们先看com.xxl.job.admin.core.conf目录下的XxlJobAdminConfig.java
1.1 分析XxlJobAdminConfig类
@Component
public class XxlJobAdminConfig implements InitializingBean, DisposableBean {
private static XxlJobAdminConfig adminConfig = null;
public static XxlJobAdminConfig getAdminConfig() {
return adminConfig;
}
// ---------------------- XxlJobScheduler ----------------------
private XxlJobScheduler xxlJobScheduler;
@Override
public void afterPropertiesSet() throws Exception {
adminConfig = this;
xxlJobScheduler = new XxlJobScheduler();
xxlJobScheduler.init();
}
@Override
public void destroy() throws Exception {
xxlJobScheduler.destroy();
}
// ---------------------- XxlJobScheduler ----------------------
// conf
@Value("${xxl.job.i18n}")
private String i18n;
@Value("${xxl.job.accessToken}")
private String accessToken;
@Value("${spring.mail.from}")
private String emailFrom;
@Value("${xxl.job.triggerpool.fast.max}")
private int triggerPoolFastMax;
@Value("${xxl.job.triggerpool.slow.max}")
private int triggerPoolSlowMax;
@Value("${xxl.job.logretentiondays}")
private int logretentiondays;
// dao, service
@Resource
private XxlJobLogDao xxlJobLogDao;
@Resource
private XxlJobInfoDao xxlJobInfoDao;
@Resource
private XxlJobRegistryDao xxlJobRegistryDao;
@Resource
private XxlJobGroupDao xxlJobGroupDao;
@Resource
private XxlJobLogReportDao xxlJobLogReportDao;
@Resource
private JavaMailSender mailSender;
@Resource
private DataSource dataSource;
@Resource
private JobAlarmer jobAlarmer;
public String getI18n() {
if (!Arrays.asList("zh_CN", "zh_TC", "en").contains(i18n)) {
return "zh_CN";
}
return i18n;
}
public String getAccessToken() {
return accessToken;
}
public String getEmailFrom() {
return emailFrom;
}
public int getTriggerPoolFastMax() {
if (triggerPoolFastMax < 200) {
return 200;
}
return triggerPoolFastMax;
}
public int getTriggerPoolSlowMax() {
if (triggerPoolSlowMax < 100) {
return 100;
}
return triggerPoolSlowMax;
}
public int getLogretentiondays() {
if (logretentiondays < 7) {
return -1; // Limit greater than or equal to 7, otherwise close
}
return logretentiondays;
}
public XxlJobLogDao getXxlJobLogDao() {
return xxlJobLogDao;
}
public XxlJobInfoDao getXxlJobInfoDao() {
return xxlJobInfoDao;
}
public XxlJobRegistryDao getXxlJobRegistryDao() {
return xxlJobRegistryDao;
}
public XxlJobGroupDao getXxlJobGroupDao() {
return xxlJobGroupDao;
}
public XxlJobLogReportDao getXxlJobLogReportDao() {
return xxlJobLogReportDao;
}
public JavaMailSender getMailSender() {
return mailSender;
}
public DataSource getDataSource() {
return dataSource;
}
public JobAlarmer getJobAlarmer() {
return jobAlarmer;
}
}
- 配置了
i18n（调度中心国际化配置）、accessToken（调度中心通讯TOKEN）、emailFrom（报警邮箱）、triggerPoolFastMax（ 调度线程池最大线程配置）、triggerPoolSlowMax（ 调度线程池最大线程配置）、logretentiondays（调度中心日志表数据保存天数）等参数； - 注入了
DataSource、XxlJobLogDao、XxlJobInfoDao、XxlJobRegistryDao、XxlJobGroupDao、XxlJobLogReportDao、JavaMailSender、JobAlarmer等dao和service接口； - 同时因为它实现了
InitializingBean, DisposableBean接口，所以在这个对象初始化的时候会调用afterPropertiesSet()方法。
注意：
在afterPropertiesSet()方法中新建了一个XxlJobScheduler对象，并调用了它的init()方法。
1.2 分析XxlJobScheduler.init()
public void init() throws Exception {
// init i18n
initI18n();
// admin registry monitor run
JobRegistryMonitorHelper.getInstance().start();
// admin fail-monitor run
JobFailMonitorHelper.getInstance().start();
// admin lose-monitor run
JobLosedMonitorHelper.getInstance().start();
// admin trigger pool start
JobTriggerPoolHelper.toStart();
// admin log report start
JobLogReportHelper.getInstance().start();
// start-schedule
JobScheduleHelper.getInstance().start();
logger.info(">>>>>>>>> init xxl-job admin success.");
}
1.2.1 initI18n()
// ---------------------- I18n ----------------------
private void initI18n(){
for (ExecutorBlockStrategyEnum item:ExecutorBlockStrategyEnum.values()) {
item.setTitle(I18nUtil.getString("jobconf_block_".concat(item.name())));
}
}
初始化新增任务页面中的阻塞处理策略相关的国际化信息。如果没有配置国际化语言则默认为中文。
1.2.2 JobRegistryMonitorHelper.getInstance().start()
private Thread registryThread;
private volatile boolean toStop = false;
public void start(){
registryThread = new Thread(new Runnable() {
@Override
public void run() {
while (!toStop) {
try {
// auto registry group
List<XxlJobGroup> groupList = XxlJobAdminConfig.getAdminConfig().getXxlJobGroupDao().findByAddressType(0);
if (groupList!=null && !groupList.isEmpty()) {
// remove dead address (admin/executor)
List<Integer> ids = XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().findDead(RegistryConfig.DEAD_TIMEOUT, new Date());
if (ids!=null && ids.size()>0) {
XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().removeDead(ids);
}
// fresh online address (admin/executor)
HashMap<String, List<String>> appAddressMap = new HashMap<String, List<String>>();
List<XxlJobRegistry> list = XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().findAll(RegistryConfig.DEAD_TIMEOUT, new Date());
if (list != null) {
for (XxlJobRegistry item: list) {
if (RegistryConfig.RegistType.EXECUTOR.name().equals(item.getRegistryGroup())) {
String appname = item.getRegistryKey();
List<String> registryList = appAddressMap.get(appname);
if (registryList == null) {
registryList = new ArrayList<String>();
}
if (!registryList.contains(item.getRegistryValue())) {
registryList.add(item.getRegistryValue());
}
appAddressMap.put(appname, registryList);
}
}
}
// fresh group address
for (XxlJobGroup group: groupList) {
List<String> registryList = appAddressMap.get(group.getAppname());
String addressListStr = null;
if (registryList!=null && !registryList.isEmpty()) {
Collections.sort(registryList);
addressListStr = "";
for (String item:registryList) {
addressListStr += item + ",";
}
addressListStr = addressListStr.substring(0, addressListStr.length()-1);
}
group.setAddressList(addressListStr);
XxlJobAdminConfig.getAdminConfig().getXxlJobGroupDao().update(group);
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(">>>>>>>>>>> xxl-job, job registry monitor thread error:{}", e);
}
}
try {
TimeUnit.SECONDS.sleep(RegistryConfig.BEAT_TIMEOUT);
} catch (InterruptedException e) {
if (!toStop) {
logger.error(">>>>>>>>>>> xxl-job, job registry monitor thread error:{}", e);
}
}
}
logger.info(">>>>>>>>>>> xxl-job, job registry monitor thread stop");
}
});
registryThread.setDaemon(true);
registryThread.setName("xxl-job, admin JobRegistryMonitorHelper");
registryThread.start();
}
分析：
该类主要是创建一个守护线程管理注册地址（每30秒执行一次）
- 从xxl_job_group表查询所有自动注册的执行器分组
groupList； - 删除过期注册地址，查询xxl_job_registry表中
update_time小于当前时间前90秒的记录并做delete删除； - 查询xxl_job_registry表中
update_time大于当前时间前90秒的注册记录，并存入HashMap<String, List<String>> appAddressMap中，key为执行器的appname，value为执行器注册地址集合； - 循环
groupList，从HashMap<String, List<String>> appAddressMap中获取每个分组对应的地址集合，拼接每一个地址，以","分隔，并更新到xxl_job_group中。
1.2.3 JobFailMonitorHelper.getInstance().start()
public void start(){
monitorThread = new Thread(new Runnable() {
@Override
public void run() {
// monitor
while (!toStop) {
try {
List<Long> failLogIds = XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().findFailJobLogIds(1000);
if (failLogIds!=null && !failLogIds.isEmpty()) {
for (long failLogId: failLogIds) {
// lock log
int lockRet = XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().updateAlarmStatus(failLogId, 0, -1);
if (lockRet < 1) {
continue;
}
XxlJobLog log = XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().load(failLogId);
XxlJobInfo info = XxlJobAdminConfig.getAdminConfig().getXxlJobInfoDao().loadById(log.getJobId());
// 1、fail retry monitor
if (log.getExecutorFailRetryCount() > 0) {
JobTriggerPoolHelper.trigger(log.getJobId(), TriggerTypeEnum.RETRY, (log.getExecutorFailRetryCount()-1), log.getExecutorShardingParam(), log.getExecutorParam(), null);
String retryMsg = "<br><br><span style=\"color:#F39C12;\" > >>>>>>>>>>>"+ I18nUtil.getString("jobconf_trigger_type_retry") +"<<<<<<<<<<< </span><br>";
log.setTriggerMsg(log.getTriggerMsg() + retryMsg);
XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().updateTriggerInfo(log);
}
// 2、fail alarm monitor
int newAlarmStatus = 0; // 告警状态：0-默认、-1=锁定状态、1-无需告警、2-告警成功、3-告警失败
if (info!=null && info.getAlarmEmail()!=null && info.getAlarmEmail().trim().length()>0) {
boolean alarmResult = XxlJobAdminConfig.getAdminConfig().getJobAlarmer().alarm(info, log);
newAlarmStatus = alarmResult?2:3;
} else {
newAlarmStatus = 1;
}
XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().updateAlarmStatus(failLogId, -1, newAlarmStatus);
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(">>>>>>>>>>> xxl-job, job fail monitor thread error:{}", e);
}
}
try {
TimeUnit.SECONDS.sleep(10);
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
}
logger.info(">>>>>>>>>>> xxl-job, job fail monitor thread stop");
}
});
monitorThread.setDaemon(true);
monitorThread.setName("xxl-job, admin JobFailMonitorHelper");
monitorThread.start();
}
分析：
-
新建一个预警守护线程（每十秒工作一次）
TimeUnit.SECONDS.sleep(10); -
从xxl_job_log表查询失败日志记录id集合，每次取1000条；
List<Long> failLogIds = XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().findFailJobLogIds(1000);<select id="findFailJobLogIds" resultType="long" > SELECT id FROM `xxl_job_log` WHERE !( (trigger_code in (0, 200) and handle_code = 0) OR (handle_code = 200) ) AND `alarm_status` = 0 ORDER BY id ASC LIMIT #{pagesize} </select> -
如果failLogIds不为空，则循环failLogIds
-
锁住这条日志记录（其实是把这条记录的
alarm_status字段从0变成了-1）； -
根据日志记录
id从数据库加载日志记录对象XxlJobLog，根据日志记录里的jobId加载任务对象XxlJobInfo； -
校验是否重试：如果任务设置了失败重试次数，那么进行失败重试。
- 将任务信息、失败次数-1加入调度线程队列中进行调度；
JobTriggerPoolHelper.trigger(log.getJobId(), TriggerTypeEnum.RETRY, (log.getExecutorFailRetryCount()-1), log.getExecutorShardingParam(), log.getExecutorParam(), null) - 将重试信息更新到本条日志记录中；
String retryMsg = "<br><br><span style=\"color:#F39C12;\" > >>>>>>>>>>>"+ I18nUtil.getString("jobconf_trigger_type_retry") +"<<<<<<<<<<< </span><br>"; log.setTriggerMsg(log.getTriggerMsg() + retryMsg); XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().updateTriggerInfo(log);
- 将任务信息、失败次数-1加入调度线程队列中进行调度；
-
校验预警状态：
告警状态：0-默认、-1=锁定状态、1-无需告警、2-告警成功、3-告警失败
如果任务配置了预警邮箱，调用所有实现JobAlarm接口的预警实现类的doAlarm(XxlJobInfo info, XxlJobLog jobLog)方法得到最终状态，并根据日志id把当前日志记录的状态从-1更新到最终状态。
1.2.3.1 分析失败重试中的JobTriggerPoolHelper.trigger()方法
public static void trigger(int jobId, TriggerTypeEnum triggerType, int failRetryCount, String executorShardingParam, String executorParam, String addressList) {
helper.addTrigger(jobId, triggerType, failRetryCount, executorShardingParam, executorParam, addressList);
}
// job timeout count
private volatile long minTim = System.currentTimeMillis()/60000; // ms > min
private volatile ConcurrentMap<Integer, AtomicInteger> jobTimeoutCountMap = new ConcurrentHashMap<>();
/**
* add trigger
*/
public void addTrigger(final int jobId,
final TriggerTypeEnum triggerType,
final int failRetryCount,
final String executorShardingParam,
final String executorParam,
final String addressList) {
// choose thread pool
ThreadPoolExecutor triggerPool_ = fastTriggerPool;
AtomicInteger jobTimeoutCount = jobTimeoutCountMap.get(jobId);
if (jobTimeoutCount!=null && jobTimeoutCount.get() > 10) { // job-timeout 10 times in 1 min
triggerPool_ = slowTriggerPool;
}
// trigger
triggerPool_.execute(new Runnable() {
@Override
public void run() {
long start = System.currentTimeMillis();
try {
// do trigger
XxlJobTrigger.trigger(jobId, triggerType, failRetryCount, executorShardingParam, executorParam, addressList);
} catch (Exception e) {
logger.error(e.getMessage(), e);
} finally {
// check timeout-count-map
long minTim_now = System.currentTimeMillis()/60000;
if (minTim != minTim_now) {
minTim = minTim_now;
jobTimeoutCountMap.clear();
}
// incr timeout-count-map
long cost = System.currentTimeMillis()-start;
if (cost > 500) { // ob-timeout threshold 500ms
AtomicInteger timeoutCount = jobTimeoutCountMap.putIfAbsent(jobId, new AtomicInteger(1));
if (timeoutCount != null) {
timeoutCount.incrementAndGet();
}
}
}
}
});
}
分析：
- JobTriggerPoolHelper类中有一个
ConcurrentMap<Integer, AtomicInteger> jobTimeoutCountMap变量，保存每个任务的执行次数，key为任务的jobId； - 根据传入的jobId，从
jobTimeoutCountMap取到对应的值jobTimeoutCount； - 如果
jobTimeoutCount不为空并且大于10（即该任务在一分钟内调度了10次）则使用慢线程池来执行任务，否则使用默认的快线程池； - 调用
XxlJobTrigger.trigger(jobId, triggerType, failRetryCount, executorShardingParam, executorParam, addressList);执行任务； - check timeout-count-map；（==注意：==此处暂时没明白为什么要判断minTim != minTim_now，待补充。。。。）
- 计算调度任务的花费时间，如果大于500ms，则先调用
jobTimeoutCountMap.putIfAbsent(jobId, new AtomicInteger(1))，如果已经存在对应的key，则调用incrementAndGet()方法加1。
XxlJobTrigger.trigger()方法稍后再详细讲解。
1.2.3.2 分析失败预警中的XxlJobAdminConfig.getAdminConfig().getJobAlarmer().alarm(info, log)方法
1.2.3.2.1 分析JobAlarmer预警类
@Component
public class JobAlarmer implements ApplicationContextAware, InitializingBean {
private static Logger logger = LoggerFactory.getLogger(JobAlarmer.class);
private ApplicationContext applicationContext;
private List<JobAlarm> jobAlarmList;
@Override
public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
this.applicationContext = applicationContext;
}
@Override
public void afterPropertiesSet() throws Exception {
Map<String, JobAlarm> serviceBeanMap = applicationContext.getBeansOfType(JobAlarm.class);
if (serviceBeanMap != null && serviceBeanMap.size() > 0) {
jobAlarmList = new ArrayList<JobAlarm>(serviceBeanMap.values());
}
}
/**
* job alarm
*
* @param info
* @param jobLog
* @return
*/
public boolean alarm(XxlJobInfo info, XxlJobLog jobLog) {
boolean result = false;
if (jobAlarmList!=null && jobAlarmList.size()>0) {
result = true; // success means all-success
for (JobAlarm alarm: jobAlarmList) {
boolean resultItem = false;
try {
resultItem = alarm.doAlarm(info, jobLog);
} catch (Exception e) {
logger.error(e.getMessage(), e);
}
if (!resultItem) {
result = false;
}
}
}
return result;
}
}
分析：
- 这个类ApplicationContextAware, InitializingBean接口，重写了setApplicationContext()方法和afterPropertiesSet()方法，那么这个对象在初始化的时候会从Spring容器对象ApplicationContext中取到指定的类的list。在这里就是所有的
JobAlarm，于是我们拿到了jobAlarmList。 - alarm(info, log)方法其实是循环
jobAlarmList，执行每个JobAlarm类的doAlarm方法。
1.2.3.2.2 分析EmailJobAlarm邮件预警类
@Component
public class EmailJobAlarm implements JobAlarm {
private static Logger logger = LoggerFactory.getLogger(EmailJobAlarm.class);
/**
* fail alarm
*
* @param jobLog
*/
public boolean doAlarm(XxlJobInfo info, XxlJobLog jobLog){
boolean alarmResult = true;
// send monitor email
if (info!=null && info.getAlarmEmail()!=null && info.getAlarmEmail().trim().length()>0) {
// alarmContent
String alarmContent = "Alarm Job LogId=" + jobLog.getId();
if (jobLog.getTriggerCode() != ReturnT.SUCCESS_CODE) {
alarmContent += "<br>TriggerMsg=<br>" + jobLog.getTriggerMsg();
}
if (jobLog.getHandleCode()>0 && jobLog.getHandleCode() != ReturnT.SUCCESS_CODE) {
alarmContent += "<br>HandleCode=" + jobLog.getHandleMsg();
}
// email info
XxlJobGroup group = XxlJobAdminConfig.getAdminConfig().getXxlJobGroupDao().load(Integer.valueOf(info.getJobGroup()));
String personal = I18nUtil.getString("admin_name_full");
String title = I18nUtil.getString("jobconf_monitor");
String content = MessageFormat.format(loadEmailJobAlarmTemplate(),
group!=null?group.getTitle():"null",
info.getId(),
info.getJobDesc(),
alarmContent);
Set<String> emailSet = new HashSet<String>(Arrays.asList(info.getAlarmEmail().split(",")));
for (String email: emailSet) {
// make mail
try {
MimeMessage mimeMessage = XxlJobAdminConfig.getAdminConfig().getMailSender().createMimeMessage();
MimeMessageHelper helper = new MimeMessageHelper(mimeMessage, true);
helper.setFrom(XxlJobAdminConfig.getAdminConfig().getEmailFrom(), personal);
helper.setTo(email);
helper.setSubject(title);
helper.setText(content, true);
XxlJobAdminConfig.getAdminConfig().getMailSender().send(mimeMessage);
} catch (Exception e) {
logger.error(">>>>>>>>>>> xxl-job, job fail alarm email send error, JobLogId:{}", jobLog.getId(), e);
alarmResult = false;
}
}
}
return alarmResult;
}
/**
* load email job alarm template
*
* @return
*/
private static final String loadEmailJobAlarmTemplate(){
String mailBodyTemplate = "<h5>" + I18nUtil.getString("jobconf_monitor_detail") + "：</span>" +
"<table border=\"1\" cellpadding=\"3\" style=\"border-collapse:collapse; width:80%;\" >\n" +
" <thead style=\"font-weight: bold;color: #ffffff;background-color: #ff8c00;\" >" +
" <tr>\n" +
" <td width=\"20%\" >"+ I18nUtil.getString("jobinfo_field_jobgroup") +"</td>\n" +
" <td width=\"10%\" >"+ I18nUtil.getString("jobinfo_field_id") +"</td>\n" +
" <td width=\"20%\" >"+ I18nUtil.getString("jobinfo_field_jobdesc") +"</td>\n" +
" <td width=\"10%\" >"+ I18nUtil.getString("jobconf_monitor_alarm_title") +"</td>\n" +
" <td width=\"40%\" >"+ I18nUtil.getString("jobconf_monitor_alarm_content") +"</td>\n" +
" </tr>\n" +
" </thead>\n" +
" <tbody>\n" +
" <tr>\n" +
" <td>{0}</td>\n" +
" <td>{1}</td>\n" +
" <td>{2}</td>\n" +
" <td>"+ I18nUtil.getString("jobconf_monitor_alarm_type") +"</td>\n" +
" <td>{3}</td>\n" +
" </tr>\n" +
" </tbody>\n" +
"</table>";
return mailBodyTemplate;
}
}
分析：
- 实现了
JobAlarm预警接口 - 如果配置了报警邮件地址（多个地址使用","分隔），则发送预警邮件。
发送邮件这块实际上是使用了spring-boot-starter-mail，
其他发送邮件的各种方法可以参考本人的
SpringBoot学习历程（十一）：SpringBoot2.X集成mail发送邮件
如果要实现自己业务的其他预警方法，只需要实现JobAlarm接口，重写doAlarm方法即可。（比如钉钉等）
1.2.4 JobLosedMonitorHelper.getInstance().start()
public class JobLosedMonitorHelper {
private static Logger logger = LoggerFactory.getLogger(JobLosedMonitorHelper.class);
private static JobLosedMonitorHelper instance = new JobLosedMonitorHelper();
public static JobLosedMonitorHelper getInstance(){
return instance;
}
// ---------------------- monitor ----------------------
private Thread monitorThread;
private volatile boolean toStop = false;
public void start(){
monitorThread = new Thread(new Runnable() {
@Override
public void run() {
// monitor
while (!toStop) {
try {
// 任务结果丢失处理：调度记录停留在 "运行中" 状态超过10min，且对应执行器心跳注册失败不在线，则将本地调度主动标记失败；
Date losedTime = DateUtil.addMinutes(new Date(), -10);
List<Long> losedJobIds = XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().findLostJobIds(losedTime);
if (losedJobIds!=null && losedJobIds.size()>0) {
for (Long logId: losedJobIds) {
XxlJobLog jobLog = new XxlJobLog();
jobLog.setId(logId);
jobLog.setHandleTime(new Date());
jobLog.setHandleCode(ReturnT.FAIL_CODE);
jobLog.setHandleMsg( I18nUtil.getString("joblog_lost_fail") );
XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().updateHandleInfo(jobLog);
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(">>>>>>>>>>> xxl-job, job fail monitor thread error:{}", e);
}
}
try {
TimeUnit.SECONDS.sleep(60);
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
}
logger.info(">>>>>>>>>>> xxl-job, JobLosedMonitorHelper stop");
}
});
monitorThread.setDaemon(true);
monitorThread.setName("xxl-job, admin JobLosedMonitorHelper");
monitorThread.start();
}
public void toStop(){
toStop = true;
// interrupt and wait
monitorThread.interrupt();
try {
monitorThread.join();
} catch (InterruptedException e) {
logger.error(e.getMessage(), e);
}
}
}
分析：
该类主要是任务结果丢失处理
Date losedTime = DateUtil.addMinutes(new Date(), -10)取到十分钟前的时间；- 从xxl_job_log表查询调度记录停留在 “运行中” 状态超过10min，且对应执行器心跳注册失败不在线的记录id集合；
<select id="findLostJobIds" resultType="long" >
SELECT t.id
FROM xxl_job_log AS t
WHERE t.trigger_code = 200
and t.handle_code = 0
and t.trigger_time <![CDATA[ <= ]]> #{losedTime}
and t.executor_address not in (
SELECT t2.registry_value
FROM xxl_job_registry AS t2
)
</select>
- 如果id集合不为空，则循环更新xxl_job_log表对应记录，将本地调度主动标记失败。
1.2.5 JobTriggerPoolHelper.toStart()
// ---------------------- helper ----------------------
private static JobTriggerPoolHelper helper = new JobTriggerPoolHelper();
public static void toStart() {
helper.start();
}
public static void toStop() {
helper.stop();
}
// ---------------------- trigger pool ----------------------
// fast/slow thread pool
private ThreadPoolExecutor fastTriggerPool = null;
private ThreadPoolExecutor slowTriggerPool = null;
public void start(){
fastTriggerPool = new ThreadPoolExecutor(
10,
XxlJobAdminConfig.getAdminConfig().getTriggerPoolFastMax(),
60L,
TimeUnit.SECONDS,
new LinkedBlockingQueue<Runnable>(1000),
new ThreadFactory() {
@Override
public Thread newThread(Runnable r) {
return new Thread(r, "xxl-job, admin JobTriggerPoolHelper-fastTriggerPool-" + r.hashCode());
}
});
slowTriggerPool = new ThreadPoolExecutor(
10,
XxlJobAdminConfig.getAdminConfig().getTriggerPoolSlowMax(),
60L,
TimeUnit.SECONDS,
new LinkedBlockingQueue<Runnable>(2000),
new ThreadFactory() {
@Override
public Thread newThread(Runnable r) {
return new Thread(r, "xxl-job, admin JobTriggerPoolHelper-slowTriggerPool-" + r.hashCode());
}
});
}
public void stop() {
//triggerPool.shutdown();
fastTriggerPool.shutdownNow();
slowTriggerPool.shutdownNow();
logger.info(">>>>>>>>> xxl-job trigger thread pool shutdown success.");
}
分析：
初始化快慢两个线程池：fastTriggerPool和slowTriggerPool。当任务执行的时候默认使用快线程池fastTriggerPool；当任务执行失败并且重试次数达到阈值的时候就会使用慢线程池slowTriggerPool来执行任务
1.2.6 JobLogReportHelper.getInstance().start()
public class JobLogReportHelper {
private static Logger logger = LoggerFactory.getLogger(JobLogReportHelper.class);
private static JobLogReportHelper instance = new JobLogReportHelper();
public static JobLogReportHelper getInstance(){
return instance;
}
private Thread logrThread;
private volatile boolean toStop = false;
public void start(){
logrThread = new Thread(new Runnable() {
@Override
public void run() {
// last clean log time
long lastCleanLogTime = 0;
while (!toStop) {
// 1、log-report refresh: refresh log report in 3 days
try {
for (int i = 0; i < 3; i++) {
// today
Calendar itemDay = Calendar.getInstance();
itemDay.add(Calendar.DAY_OF_MONTH, -i);
itemDay.set(Calendar.HOUR_OF_DAY, 0);
itemDay.set(Calendar.MINUTE, 0);
itemDay.set(Calendar.SECOND, 0);
itemDay.set(Calendar.MILLISECOND, 0);
Date todayFrom = itemDay.getTime();
itemDay.set(Calendar.HOUR_OF_DAY, 23);
itemDay.set(Calendar.MINUTE, 59);
itemDay.set(Calendar.SECOND, 59);
itemDay.set(Calendar.MILLISECOND, 999);
Date todayTo = itemDay.getTime();
// refresh log-report every minute
XxlJobLogReport xxlJobLogReport = new XxlJobLogReport();
xxlJobLogReport.setTriggerDay(todayFrom);
xxlJobLogReport.setRunningCount(0);
xxlJobLogReport.setSucCount(0);
xxlJobLogReport.setFailCount(0);
Map<String, Object> triggerCountMap = XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().findLogReport(todayFrom, todayTo);
if (triggerCountMap!=null && triggerCountMap.size()>0) {
int triggerDayCount = triggerCountMap.containsKey("triggerDayCount")?Integer.valueOf(String.valueOf(triggerCountMap.get("triggerDayCount"))):0;
int triggerDayCountRunning = triggerCountMap.containsKey("triggerDayCountRunning")?Integer.valueOf(String.valueOf(triggerCountMap.get("triggerDayCountRunning"))):0;
int triggerDayCountSuc = triggerCountMap.containsKey("triggerDayCountSuc")?Integer.valueOf(String.valueOf(triggerCountMap.get("triggerDayCountSuc"))):0;
int triggerDayCountFail = triggerDayCount - triggerDayCountRunning - triggerDayCountSuc;
xxlJobLogReport.setRunningCount(triggerDayCountRunning);
xxlJobLogReport.setSucCount(triggerDayCountSuc);
xxlJobLogReport.setFailCount(triggerDayCountFail);
}
// do refresh
int ret = XxlJobAdminConfig.getAdminConfig().getXxlJobLogReportDao().update(xxlJobLogReport);
if (ret < 1) {
XxlJobAdminConfig.getAdminConfig().getXxlJobLogReportDao().save(xxlJobLogReport);
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(">>>>>>>>>>> xxl-job, job log report thread error:{}", e);
}
}
// 2、log-clean: switch open & once each day
if (XxlJobAdminConfig.getAdminConfig().getLogretentiondays()>0
&& System.currentTimeMillis() - lastCleanLogTime > 24*60*60*1000) {
// expire-time
Calendar expiredDay = Calendar.getInstance();
expiredDay.add(Calendar.DAY_OF_MONTH, -1 * XxlJobAdminConfig.getAdminConfig().getLogretentiondays());
expiredDay.set(Calendar.HOUR_OF_DAY, 0);
expiredDay.set(Calendar.MINUTE, 0);
expiredDay.set(Calendar.SECOND, 0);
expiredDay.set(Calendar.MILLISECOND, 0);
Date clearBeforeTime = expiredDay.getTime();
// clean expired log
List<Long> logIds = null;
do {
logIds = XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().findClearLogIds(0, 0, clearBeforeTime, 0, 1000);
if (logIds!=null && logIds.size()>0) {
XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().clearLog(logIds);
}
} while (logIds!=null && logIds.size()>0);
// update clean time
lastCleanLogTime = System.currentTimeMillis();
}
try {
TimeUnit.MINUTES.sleep(1);
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
}
logger.info(">>>>>>>>>>> xxl-job, job log report thread stop");
}
});
logrThread.setDaemon(true);
logrThread.setName("xxl-job, admin JobLogReportHelper");
logrThread.start();
}
public void toStop(){
toStop = true;
// interrupt and wait
logrThread.interrupt();
try {
logrThread.join();
} catch (InterruptedException e) {
logger.error(e.getMessage(), e);
}
}
}
分析： 创建一个守护线程（每一分钟工作一次）
- 刷新前三天的日志相关报表数据：
- 取到前N天的开始时间和结束时间；
- 从xxl_job_log表统计相关指标；
<select id="findLogReport" resultType="java.util.Map" > SELECT COUNT(handle_code) triggerDayCount, SUM(CASE WHEN (trigger_code in (0, 200) and handle_code = 0) then 1 else 0 end) as triggerDayCountRunning, SUM(CASE WHEN handle_code = 200 then 1 else 0 end) as triggerDayCountSuc FROM xxl_job_log WHERE trigger_time BETWEEN #{from} and #{to} </select> - 保存结果到xxl_job_log_report表，有则更新，没有则新增
- 清理N天前的日志记录（N就是我们配置的
xxl.job.logretentiondays参数，必须大于7，否则无效）- 删除xxl_job_log表
trigger_time是N天前的数据。
- 删除xxl_job_log表
1.2.7 JobScheduleHelper.getInstance().start()
public class JobScheduleHelper {
private static Logger logger = LoggerFactory.getLogger(JobScheduleHelper.class);
private static JobScheduleHelper instance = new JobScheduleHelper();
public static JobScheduleHelper getInstance(){
return instance;
}
public static final long PRE_READ_MS = 5000; // pre read
private Thread scheduleThread;
private Thread ringThread;
private volatile boolean scheduleThreadToStop = false;
private volatile boolean ringThreadToStop = false;
private volatile static Map<Integer, List<Integer>> ringData = new ConcurrentHashMap<>();
public void start(){
// schedule thread
scheduleThread = new Thread(new Runnable() {
@Override
public void run() {
try {
TimeUnit.MILLISECONDS.sleep(5000 - System.currentTimeMillis()%1000 );
} catch (InterruptedException e) {
if (!scheduleThreadToStop) {
logger.error(e.getMessage(), e);
}
}
logger.info(">>>>>>>>> init xxl-job admin scheduler success.");
// pre-read count: treadpool-size * trigger-qps (each trigger cost 50ms, qps = 1000/50 = 20)
int preReadCount = (XxlJobAdminConfig.getAdminConfig().getTriggerPoolFastMax() + XxlJobAdminConfig.getAdminConfig().getTriggerPoolSlowMax()) * 20;
while (!scheduleThreadToStop) {
// Scan Job
long start = System.currentTimeMillis();
Connection conn = null;
Boolean connAutoCommit = null;
PreparedStatement preparedStatement = null;
boolean preReadSuc = true;
try {
conn = XxlJobAdminConfig.getAdminConfig().getDataSource().getConnection();
connAutoCommit = conn.getAutoCommit();
conn.setAutoCommit(false);
preparedStatement = conn.prepareStatement( "select * from xxl_job_lock where lock_name = 'schedule_lock' for update" );
preparedStatement.execute();
// tx start
// 1、pre read
long nowTime = System.currentTimeMillis();
List<XxlJobInfo> scheduleList = XxlJobAdminConfig.getAdminConfig().getXxlJobInfoDao().scheduleJobQuery(nowTime + PRE_READ_MS, preReadCount);
if (scheduleList!=null && scheduleList.size()>0) {
// 2、push time-ring
for (XxlJobInfo jobInfo: scheduleList) {
// time-ring jump
if (nowTime > jobInfo.getTriggerNextTime() + PRE_READ_MS) {
// 2.1、trigger-expire > 5s：pass && make next-trigger-time
logger.warn(">>>>>>>>>>> xxl-job, schedule misfire, jobId = " + jobInfo.getId());
// fresh next
refreshNextValidTime(jobInfo, new Date());
} else if (nowTime > jobInfo.getTriggerNextTime()) {
// 2.2、trigger-expire < 5s：direct-trigger && make next-trigger-time
// 1、trigger
JobTriggerPoolHelper.trigger(jobInfo.getId(), TriggerTypeEnum.CRON, -1, null, null, null);
logger.debug(">>>>>>>>>>> xxl-job, schedule push trigger : jobId = " + jobInfo.getId() );
// 2、fresh next
refreshNextValidTime(jobInfo, new Date());
// next-trigger-time in 5s, pre-read again
if (jobInfo.getTriggerStatus()==1 && nowTime + PRE_READ_MS > jobInfo.getTriggerNextTime()) {
// 1、make ring second
int ringSecond = (int)((jobInfo.getTriggerNextTime()/1000)%60);
// 2、push time ring
pushTimeRing(ringSecond, jobInfo.getId());
// 3、fresh next
refreshNextValidTime(jobInfo, new Date(jobInfo.getTriggerNextTime()));
}
} else {
// 2.3、trigger-pre-read：time-ring trigger && make next-trigger-time
// 1、make ring second
int ringSecond = (int)((jobInfo.getTriggerNextTime()/1000)%60);
// 2、push time ring
pushTimeRing(ringSecond, jobInfo.getId());
// 3、fresh next
refreshNextValidTime(jobInfo, new Date(jobInfo.getTriggerNextTime()));
}
}
// 3、update trigger info
for (XxlJobInfo jobInfo: scheduleList) {
XxlJobAdminConfig.getAdminConfig().getXxlJobInfoDao().scheduleUpdate(jobInfo);
}
} else {
preReadSuc = false;
}
// tx stop
} catch (Exception e) {
if (!scheduleThreadToStop) {
logger.error(">>>>>>>>>>> xxl-job, JobScheduleHelper#scheduleThread error:{}", e);
}
} finally {
// commit
if (conn != null) {
try {
conn.commit();
} catch (SQLException e) {
if (!scheduleThreadToStop) {
logger.error(e.getMessage(), e);
}
}
try {
conn.setAutoCommit(connAutoCommit);
} catch (SQLException e) {
if (!scheduleThreadToStop) {
logger.error(e.getMessage(), e);
}
}
try {
conn.close();
} catch (SQLException e) {
if (!scheduleThreadToStop) {
logger.error(e.getMessage(), e);
}
}
}
// close PreparedStatement
if (null != preparedStatement) {
try {
preparedStatement.close();
} catch (SQLException e) {
if (!scheduleThreadToStop) {
logger.error(e.getMessage(), e);
}
}
}
}
long cost = System.currentTimeMillis()-start;
// Wait seconds, align second
if (cost < 1000) { // scan-overtime, not wait
try {
// pre-read period: success > scan each second; fail > skip this period;
TimeUnit.MILLISECONDS.sleep((preReadSuc?1000:PRE_READ_MS) - System.currentTimeMillis()%1000);
} catch (InterruptedException e) {
if (!scheduleThreadToStop) {
logger.error(e.getMessage(), e);
}
}
}
}
logger.info(">>>>>>>>>>> xxl-job, JobScheduleHelper#scheduleThread stop");
}
});
scheduleThread.setDaemon(true);
scheduleThread.setName("xxl-job, admin JobScheduleHelper#scheduleThread");
scheduleThread.start();
// ring thread
ringThread = new Thread(new Runnable() {
@Override
public void run() {
// align second
try {
TimeUnit.MILLISECONDS.sleep(1000 - System.currentTimeMillis()%1000 );
} catch (InterruptedException e) {
if (!ringThreadToStop) {
logger.error(e.getMessage(), e);
}
}
while (!ringThreadToStop) {
try {
// second data
List<Integer> ringItemData = new ArrayList<>();
int nowSecond = Calendar.getInstance().get(Calendar.SECOND); // 避免处理耗时太长，跨过刻度，向前校验一个刻度；
for (int i = 0; i < 2; i++) {
List<Integer> tmpData = ringData.remove( (nowSecond+60-i)%60 );
if (tmpData != null) {
ringItemData.addAll(tmpData);
}
}
// ring trigger
logger.debug(">>>>>>>>>>> xxl-job, time-ring beat : " + nowSecond + " = " + Arrays.asList(ringItemData) );
if (ringItemData.size() > 0) {
// do trigger
for (int jobId: ringItemData) {
// do trigger
JobTriggerPoolHelper.trigger(jobId, TriggerTypeEnum.CRON, -1, null, null, null);
}
// clear
ringItemData.clear();
}
} catch (Exception e) {
if (!ringThreadToStop) {
logger.error(">>>>>>>>>>> xxl-job, JobScheduleHelper#ringThread error:{}", e);
}
}
// next second, align second
try {
TimeUnit.MILLISECONDS.sleep(1000 - System.currentTimeMillis()%1000);
} catch (InterruptedException e) {
if (!ringThreadToStop) {
logger.error(e.getMessage(), e);
}
}
}
logger.info(">>>>>>>>>>> xxl-job, JobScheduleHelper#ringThread stop");
}
});
ringThread.setDaemon(true);
ringThread.setName("xxl-job, admin JobScheduleHelper#ringThread");
ringThread.start();
}
private void refreshNextValidTime(XxlJobInfo jobInfo, Date fromTime) throws ParseException {
Date nextValidTime = new CronExpression(jobInfo.getJobCron()).getNextValidTimeAfter(fromTime);
if (nextValidTime != null) {
jobInfo.setTriggerLastTime(jobInfo.getTriggerNextTime());
jobInfo.setTriggerNextTime(nextValidTime.getTime());
} else {
jobInfo.setTriggerStatus(0);
jobInfo.setTriggerLastTime(0);
jobInfo.setTriggerNextTime(0);
}
}
private void pushTimeRing(int ringSecond, int jobId){
// push async ring
List<Integer> ringItemData = ringData.get(ringSecond);
if (ringItemData == null) {
ringItemData = new ArrayList<Integer>();
ringData.put(ringSecond, ringItemData);
}
ringItemData.add(jobId);
logger.debug(">>>>>>>>>>> xxl-job, schedule push time-ring : " + ringSecond + " = " + Arrays.asList(ringItemData) );
}
public void toStop(){
// 1、stop schedule
scheduleThreadToStop = true;
try {
TimeUnit.SECONDS.sleep(1); // wait
} catch (InterruptedException e) {
logger.error(e.getMessage(), e);
}
if (scheduleThread.getState() != Thread.State.TERMINATED){
// interrupt and wait
scheduleThread.interrupt();
try {
scheduleThread.join();
} catch (InterruptedException e) {
logger.error(e.getMessage(), e);
}
}
// if has ring data
boolean hasRingData = false;
if (!ringData.isEmpty()) {
for (int second : ringData.keySet()) {
List<Integer> tmpData = ringData.get(second);
if (tmpData!=null && tmpData.size()>0) {
hasRingData = true;
break;
}
}
}
if (hasRingData) {
try {
TimeUnit.SECONDS.sleep(8);
} catch (InterruptedException e) {
logger.error(e.getMessage(), e);
}
}
// stop ring (wait job-in-memory stop)
ringThreadToStop = true;
try {
TimeUnit.SECONDS.sleep(1);
} catch (InterruptedException e) {
logger.error(e.getMessage(), e);
}
if (ringThread.getState() != Thread.State.TERMINATED){
// interrupt and wait
ringThread.interrupt();
try {
ringThread.join();
} catch (InterruptedException e) {
logger.error(e.getMessage(), e);
}
}
logger.info(">>>>>>>>>>> xxl-job, JobScheduleHelper stop");
}
}
分析：
创建了两个守护线程scheduleThread和ringThread
1.2.7.1 scheduleThread
- 根据treadpool-size * trigger-qps (each trigger cost 50ms, qps = 1000/50 = 20)计算预读取任务数；
- 执行for update语句锁定任务的获取资格；
- 从xxl_job_info表查询未来5秒内即将要执行的任务集合；
<select id="scheduleJobQuery" parameterType="java.util.HashMap" resultMap="XxlJobInfo"> SELECT <include refid="Base_Column_List" /> FROM xxl_job_info AS t WHERE t.trigger_status = 1 and t.trigger_next_time <![CDATA[ <= ]]> #{maxNextTime} ORDER BY id ASC LIMIT #{pagesize} </select> - 如果当前任务的触发时间已经超时5秒以上，跳过本次执行，计算下一次的执行时间
- 如果当前时间大于任务的下次触发时间，则调用
JobTriggerPoolHelper.trigger(jobInfo.getId(), TriggerTypeEnum.CRON, -1, null, null, null);执行调度；计算下一次的执行时间；如果任务正在运行中并且下一次执行时间在5秒内，则进行此任务数据的缓存，处理逻辑就是第6步； - 其他情况下则存入
Map<Integer, List<Integer>> ringData中，key为下次执行时间数，value为待执行任务id集合； - 更新任务的触发调度信息；
1.2.7.2 ringThread
- 避免处理耗时太长，跨过刻度，向前校验一个刻度；
- 从
Map<Integer, List<Integer>> ringData中取两个刻度（当前秒和上一秒）的任务id集合； - 循环第二步的任务id集合，调用
JobTriggerPoolHelper.trigger(jobId, TriggerTypeEnum.CRON, -1, null, null, null);触发调度。
1.3 分析XxlJobTrigger核心类
1.3.1 trigger()方法
public static void trigger(int jobId,
TriggerTypeEnum triggerType,
int failRetryCount,
String executorShardingParam,
String executorParam,
String addressList) {
// load data
XxlJobInfo jobInfo = XxlJobAdminConfig.getAdminConfig().getXxlJobInfoDao().loadById(jobId);
if (jobInfo == null) {
logger.warn(">>>>>>>>>>>> trigger fail, jobId invalid，jobId={}", jobId);
return;
}
if (executorParam != null) {
jobInfo.setExecutorParam(executorParam);
}
int finalFailRetryCount = failRetryCount>=0?failRetryCount:jobInfo.getExecutorFailRetryCount();
XxlJobGroup group = XxlJobAdminConfig.getAdminConfig().getXxlJobGroupDao().load(jobInfo.getJobGroup());
// cover addressList
if (addressList!=null && addressList.trim().length()>0) {
group.setAddressType(1);
group.setAddressList(addressList.trim());
}
// sharding param
int[] shardingParam = null;
if (executorShardingParam!=null){
String[] shardingArr = executorShardingParam.split("/");
if (shardingArr.length==2 && isNumeric(shardingArr[0]) && isNumeric(shardingArr[1])) {
shardingParam = new int[2];
shardingParam[0] = Integer.valueOf(shardingArr[0]);
shardingParam[1] = Integer.valueOf(shardingArr[1]);
}
}
if (ExecutorRouteStrategyEnum.SHARDING_BROADCAST==ExecutorRouteStrategyEnum.match(jobInfo.getExecutorRouteStrategy(), null)
&& group.getRegistryList()!=null && !group.getRegistryList().isEmpty()
&& shardingParam==null) {
for (int i = 0; i < group.getRegistryList().size(); i++) {
processTrigger(group, jobInfo, finalFailRetryCount, triggerType, i, group.getRegistryList().size());
}
} else {
if (shardingParam == null) {
shardingParam = new int[]{0, 1};
}
processTrigger(group, jobInfo, finalFailRetryCount, triggerType, shardingParam[0], shardingParam[1]);
}
}
分析：
- 根据jobId从数据库xxl_job_info表中加载任务信息
XxlJobInfo； - 校验方法入参executorParam，不为空则覆盖任务信息的executorParam；
- 校验方法入参failRetryCount，大于等于0则覆盖；
- 从数据库xxl_job_group表加载执行器信息，校验方法入参addressList，不为空则覆盖执行器的地址类型为手动注入1，地址列表为入参addressList；
- 校验方法入参executorShardingParam，
- 如果任务的路由策略是分片广播且执行器的注册地址列表不为空，需要根据分片参数调用本类中的
processTrigger()方法。
1.3.2 processTrigger()方法
private static void processTrigger(XxlJobGroup group, XxlJobInfo jobInfo, int finalFailRetryCount, TriggerTypeEnum triggerType, int index, int total){
// param
ExecutorBlockStrategyEnum blockStrategy = ExecutorBlockStrategyEnum.match(jobInfo.getExecutorBlockStrategy(), ExecutorBlockStrategyEnum.SERIAL_EXECUTION); // block strategy
ExecutorRouteStrategyEnum executorRouteStrategyEnum = ExecutorRouteStrategyEnum.match(jobInfo.getExecutorRouteStrategy(), null); // route strategy
String shardingParam = (ExecutorRouteStrategyEnum.SHARDING_BROADCAST==executorRouteStrategyEnum)?String.valueOf(index).concat("/").concat(String.valueOf(total)):null;
// 1、save log-id
XxlJobLog jobLog = new XxlJobLog();
jobLog.setJobGroup(jobInfo.getJobGroup());
jobLog.setJobId(jobInfo.getId());
jobLog.setTriggerTime(new Date());
XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().save(jobLog);
logger.debug(">>>>>>>>>>> xxl-job trigger start, jobId:{}", jobLog.getId());
// 2、init trigger-param
TriggerParam triggerParam = new TriggerParam();
triggerParam.setJobId(jobInfo.getId());
triggerParam.setExecutorHandler(jobInfo.getExecutorHandler());
triggerParam.setExecutorParams(jobInfo.getExecutorParam());
triggerParam.setExecutorBlockStrategy(jobInfo.getExecutorBlockStrategy());
triggerParam.setExecutorTimeout(jobInfo.getExecutorTimeout());
triggerParam.setLogId(jobLog.getId());
triggerParam.setLogDateTime(jobLog.getTriggerTime().getTime());
triggerParam.setGlueType(jobInfo.getGlueType());
triggerParam.setGlueSource(jobInfo.getGlueSource());
triggerParam.setGlueUpdatetime(jobInfo.getGlueUpdatetime().getTime());
triggerParam.setBroadcastIndex(index);
triggerParam.setBroadcastTotal(total);
// 3、init address
String address = null;
ReturnT<String> routeAddressResult = null;
if (group.getRegistryList()!=null && !group.getRegistryList().isEmpty()) {
if (ExecutorRouteStrategyEnum.SHARDING_BROADCAST == executorRouteStrategyEnum) {
if (index < group.getRegistryList().size()) {
address = group.getRegistryList().get(index);
} else {
address = group.getRegistryList().get(0);
}
} else {
routeAddressResult = executorRouteStrategyEnum.getRouter().route(triggerParam, group.getRegistryList());
if (routeAddressResult.getCode() == ReturnT.SUCCESS_CODE) {
address = routeAddressResult.getContent();
}
}
} else {
routeAddressResult = new ReturnT<String>(ReturnT.FAIL_CODE, I18nUtil.getString("jobconf_trigger_address_empty"));
}
// 4、trigger remote executor
ReturnT<String> triggerResult = null;
if (address != null) {
triggerResult = runExecutor(triggerParam, address);
} else {
triggerResult = new ReturnT<String>(ReturnT.FAIL_CODE, null);
}
// 5、collection trigger info
StringBuffer triggerMsgSb = new StringBuffer();
triggerMsgSb.append(I18nUtil.getString("jobconf_trigger_type")).append("：").append(triggerType.getTitle());
triggerMsgSb.append("<br>").append(I18nUtil.getString("jobconf_trigger_admin_adress")).append("：").append(IpUtil.getIp());
triggerMsgSb.append("<br>").append(I18nUtil.getString("jobconf_trigger_exe_regtype")).append("：")
.append( (group.getAddressType() == 0)?I18nUtil.getString("jobgroup_field_addressType_0"):I18nUtil.getString("jobgroup_field_addressType_1") );
triggerMsgSb.append("<br>").append(I18nUtil.getString("jobconf_trigger_exe_regaddress")).append("：").append(group.getRegistryList());
triggerMsgSb.append("<br>").append(I18nUtil.getString("jobinfo_field_executorRouteStrategy")).append("：").append(executorRouteStrategyEnum.getTitle());
if (shardingParam != null) {
triggerMsgSb.append("("+shardingParam+")");
}
triggerMsgSb.append("<br>").append(I18nUtil.getString("jobinfo_field_executorBlockStrategy")).append("：").append(blockStrategy.getTitle());
triggerMsgSb.append("<br>").append(I18nUtil.getString("jobinfo_field_timeout")).append("：").append(jobInfo.getExecutorTimeout());
triggerMsgSb.append("<br>").append(I18nUtil.getString("jobinfo_field_executorFailRetryCount")).append("：").append(finalFailRetryCount);
triggerMsgSb.append("<br><br><span style=\"color:#00c0ef;\" > >>>>>>>>>>>"+ I18nUtil.getString("jobconf_trigger_run") +"<<<<<<<<<<< </span><br>")
.append((routeAddressResult!=null&&routeAddressResult.getMsg()!=null)?routeAddressResult.getMsg()+"<br><br>":"").append(triggerResult.getMsg()!=null?triggerResult.getMsg():"");
// 6、save log trigger-info
jobLog.setExecutorAddress(address);
jobLog.setExecutorHandler(jobInfo.getExecutorHandler());
jobLog.setExecutorParam(jobInfo.getExecutorParam());
jobLog.setExecutorShardingParam(shardingParam);
jobLog.setExecutorFailRetryCount(finalFailRetryCount);
//jobLog.setTriggerTime();
jobLog.setTriggerCode(triggerResult.getCode());
jobLog.setTriggerMsg(triggerMsgSb.toString());
XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().updateTriggerInfo(jobLog);
logger.debug(">>>>>>>>>>> xxl-job trigger end, jobId:{}", jobLog.getId());
}
分析：
- 处理方法入参：阻塞处理策略、路由策略、分片参数；
- 保存一条日志记录到xxl_job_log表；
- 初始化任务调度参数（包括执行器参数、日志记录id、任务信息和分片参数）；
- 初始化调度地址（如果路由策略是分片广播，则从执行器地址列表中获取分片参数i对应的地址即可；如果是其他路由策略则调用对应
ExecutorRouter的route方法获取最终执行器地址）； - 调用
runExecutor(triggerParam, address)方法执行远程任务调度； - 组装任务触发调度信息；
- 将触发调度信息更新到对应日志记录中。
1.3.3 runExecutor()方法
public static ReturnT<String> runExecutor(TriggerParam triggerParam, String address){
ReturnT<String> runResult = null;
try {
ExecutorBiz executorBiz = XxlJobScheduler.getExecutorBiz(address);
runResult = executorBiz.run(triggerParam);
} catch (Exception e) {
logger.error(">>>>>>>>>>> xxl-job trigger error, please check if the executor[{}] is running.", address, e);
runResult = new ReturnT<String>(ReturnT.FAIL_CODE, ThrowableUtil.toString(e));
}
StringBuffer runResultSB = new StringBuffer(I18nUtil.getString("jobconf_trigger_run") + "：");
runResultSB.append("<br>address：").append(address);
runResultSB.append("<br>code：").append(runResult.getCode());
runResultSB.append("<br>msg：").append(runResult.getMsg());
runResult.setMsg(runResultSB.toString());
return runResult;
}
分析：
- 根据执行器地址获取对应的
ExecutorBizClient（所有的执行器客户端会保存在ConcurrentMap<String, ExecutorBiz> executorBizRepository中）； - 调用
ExecutorBizClient.run(triggerParam)方法；
使用XxlJobRemotingUtil工具类发送了一个post请求@Override public ReturnT<String> run(TriggerParam triggerParam) { return XxlJobRemotingUtil.postBody(addressUrl + "run", accessToken, timeout, triggerParam, String.class); } - 处理返回的结果信息；
二、彩蛋
本篇跟进了一下调度中心（xxl-job-admin）的启动过程和任务调度触发原理，下一篇我们继续跟进下调度中心的web页面端api调用源码分析。
8086
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
