GAMES101-08Shading2 (着色，管线，纹理渲染)

@[TOC](08Shading 1 (illumination,Shading and Graphics Pipeline))

---

一、Shading 2(Shading,Pipeline and Texture Mapping)

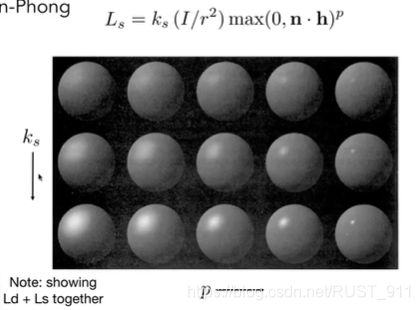

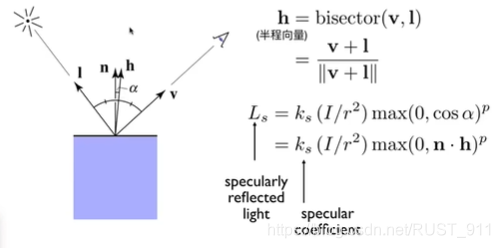

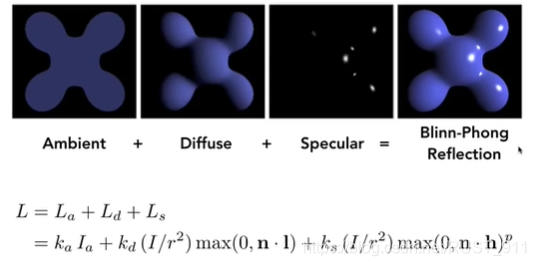

高光：观察方向和镜面反射方向接近。半程向量是一种优化，简化计算

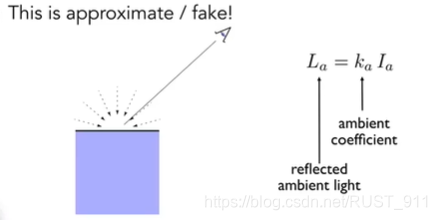

Ambient Term
Shading that does not depend on anything

• Add constant color to account for disregarded illumination and fill in black shadows

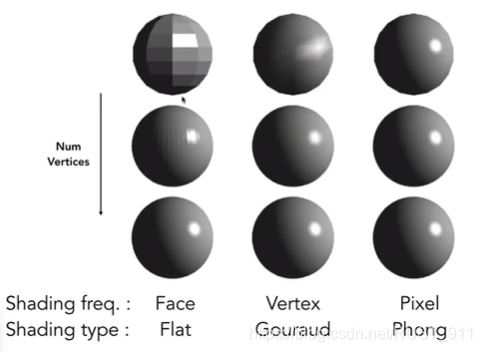

  Flat shading
• Triangle face is flat one normal vector
• Not good forsmooth surfaces

Gouraud shading

• lnterpolate colors from vertices across triangle
• Each vertex has a normal vector (how?)

Phong shading

• lnterpolate normalvectors across each triangle
• Compute full shading model at each pixel
• Not the Blinn-Phong Reflectance Model

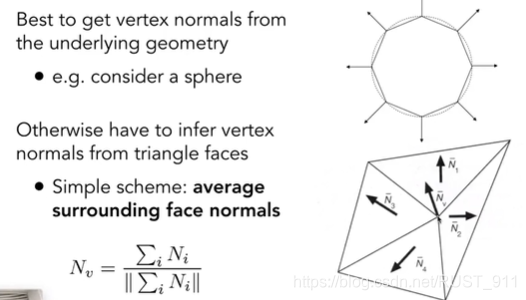

  Defining Per-Vertex Normal Vectors

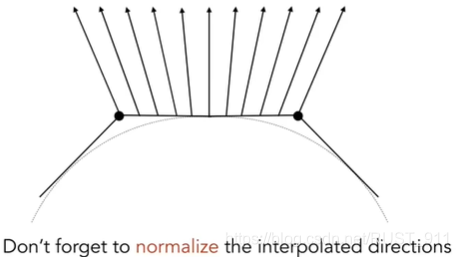

Barycentric interpolation (introducing soon)of vertex normals

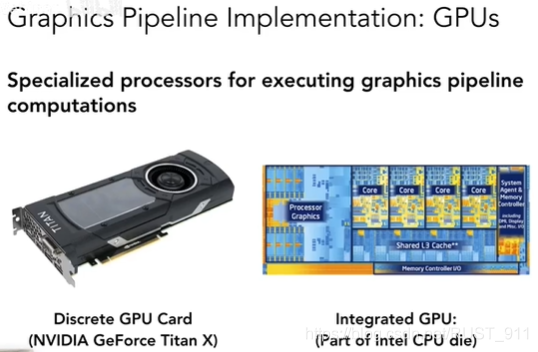

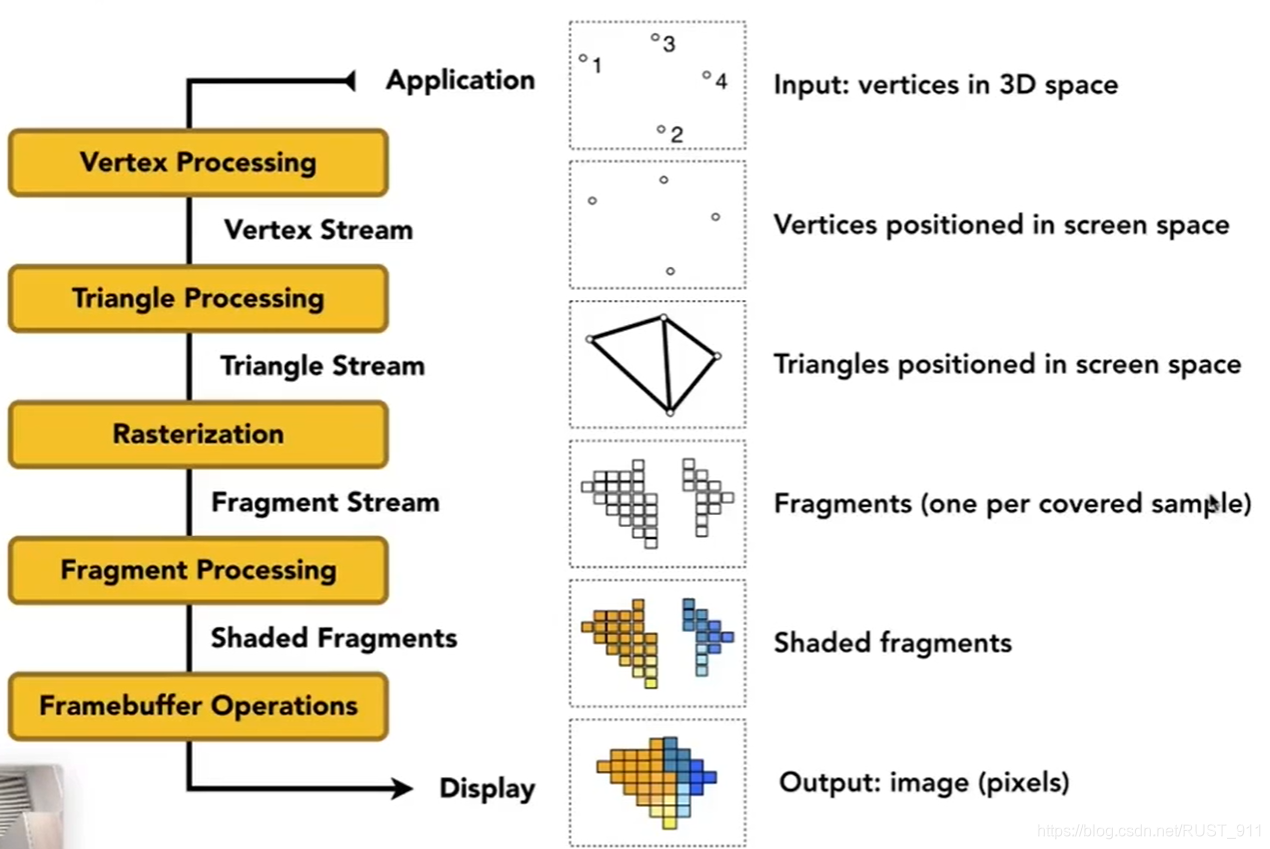

Graphics (Real-time Rendering) Pipeline实时渲染管线

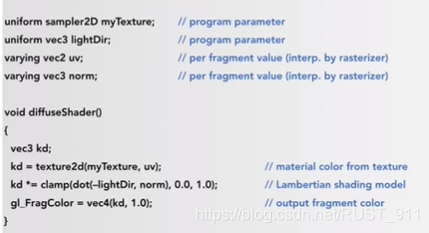

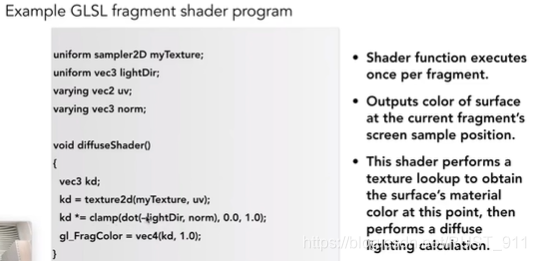

Snail Shader Program
lnigo Quilez, https://youtu.be/XuSnLbB1j6E

Texture Mapping

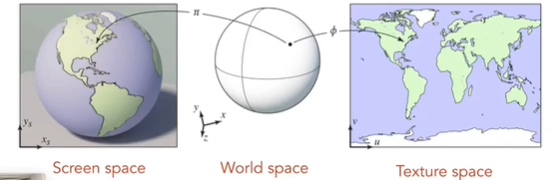

Surfaces are 2D
Surface lives in 3D world space

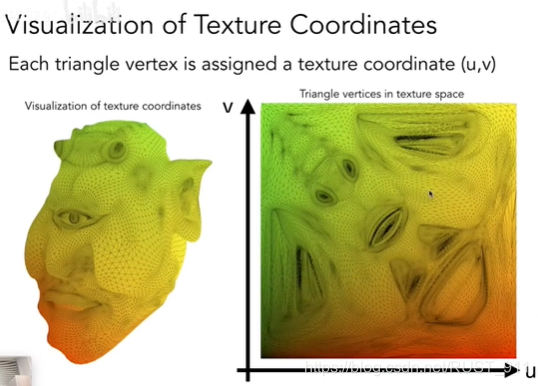

Every 3D surface point also has a place where it goes in the 2D image (texture).

均为（0，1）

纹理的无缝衔接，贴图
