ActiveReports实现报表批量打印

需求:将一段时间内的审批单按照时间筛选并批量打印

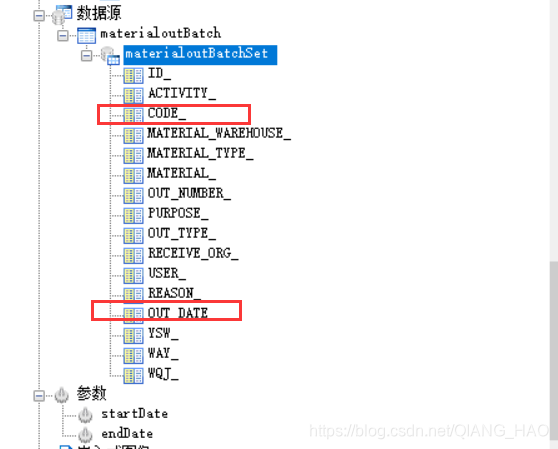

数据准备：根据需求要求筛选出所需数据，并将页面分组字段和排序字段暴露在数据集的列字段列表中!

SELECT
	o.ID_, o.ACTIVITY_, o.CODE_, w.NAME_ AS MATERIAL_WAREHOUSE_, t.NAME_ AS MATERIAL_TYPE_,
	i.MATERIAL_, i.OUT_NUMBER_, da.NAME_ AS PURPOSE_, db.NAME_ AS OUT_TYPE_,
	org.NAME_ AS RECEIVE_ORG_, u.NAME_ AS USER_, o.REASON_, o.OUT_DATE_,
	s.YSW_, s.WAY_, IF ( ( o.OUT_DATE_ >= '2019-03-4 00:00:00' ), s.JXN_, s.WQJ_ ) AS WQJ_
FROM
	(SELECT a.*, 1 AS NUM_ FROM T_MATERIAL_MATERIAL_OUT a ) o
LEFT JOIN T_MATERIAL_MATERIAL_WAREHOUSE w ON w.STATUS_ > -1 AND o.MATERIAL_WAREHOUSE_=w.ID_
LEFT JOIN T_MATERIAL_MATERIAL_TYPE t ON t.STATUS_ > -1 AND o.MATERIAL_TYPE_=t.ID_
LEFT JOIN t_comm_dictionary da ON da.STATUS_> -1 AND o.PURPOSE_=da.ID_
LEFT JOIN t_comm_dictionary db ON db.STATUS_> -1 AND o.OUT_TYPE_=db.ID_
LEFT JOIN t_comm_organization org ON org.STATUS_ > -1 AND o.RECEIVE_ORG_=org.ID_
LEFT JOIN t_comm_user u ON u.STATUS_ > -1 AND o.USER_=u.ID_
LEFT JOIN (
	SELECT s.MATERIAL_, SUM(s.OUT_NUMBER_) AS OUT_NUMBER_, s.CODE_
	FROM v_material_inventory_detail_sum s
	LEFT JOIN t_material_material_warehouse w ON s.MATERIAL_WAREHOUSE_=w.ID_
	WHERE
	s.TYPE_ = '出库' AND w.WARE_HOUSE_TYPE_ = 9701127
	GROUP BY s.CODE_,s.MATERIAL_) i ON i.CODE_=o.CODE_
LEFT JOIN (
	SELECT a.YSW_, b.WAY_, c.WQJ_,d.JXN_, 1 AS NUM_
FROM
	(SELECT s.USER_ID_ AS YSW_ID_,s.IMGS_ as YSW_, 1 AS NUM_YSW_ FROM t_comm_sign s WHERE s.STATUS_ > 0 AND s.USER_ID_=2689) a,
	(SELECT s.USER_ID_ AS WAY_ID_,s.IMGS_ as WAY_, 1 AS NUM_WAY_ FROM t_comm_sign s WHERE s.STATUS_ > 0 AND s.USER_ID_=2690) b,
	(SELECT s.USER_ID_ AS WQJ_ID_,s.IMGS_ as WQJ_, 1 AS NUM_WQJ_ FROM t_comm_sign s WHERE s.STATUS_ > 0 AND s.USER_ID_=2692) c ,
	(SELECT s.USER_ID_ AS JXN_ID_,s.IMGS_ as JXN_, 1 AS NUM_JXN_ FROM t_comm_sign s WHERE s.STATUS_ > 0 AND s.USER_ID_=2693) d
WHERE a.NUM_YSW_=b.NUM_WAY_=c.NUM_WQJ_=d.NUM_JXN_) s ON s.NUM_=o.NUM_
WHERE o.STATUS_ = 3 AND t.APPROVAL_TYPE_= 9701124;

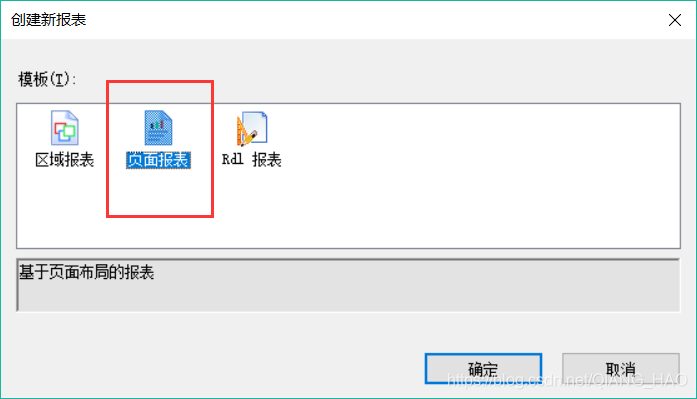

新建报表报表类型选择为“页面报表”，以页面进行布局

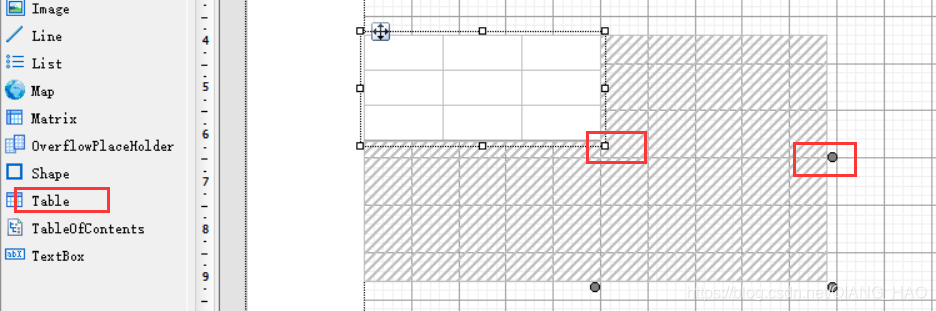

使用Table控件，将table拖入页面区域后可以看到控件周围会有两种控件大小调整的按钮，白色的为控制报表表格实际占用的页面大小，灰色为控制报表生成明细数据后可以占用的页面大小

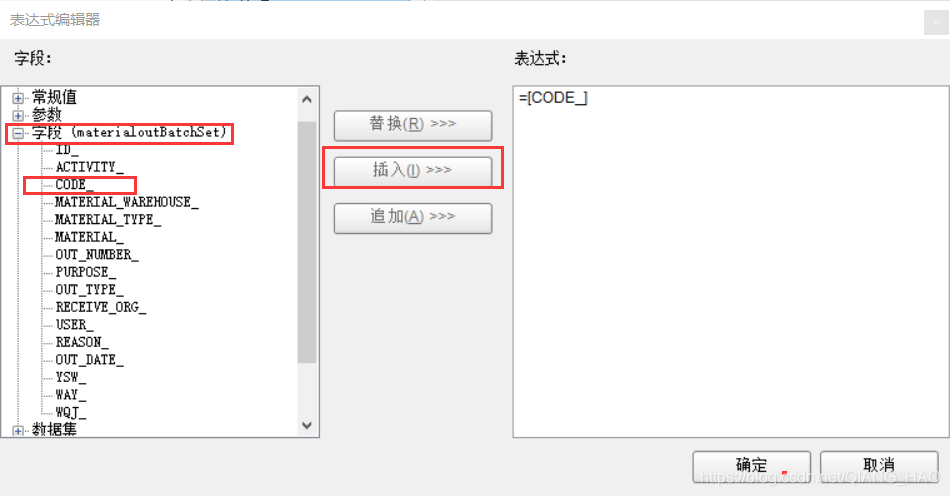

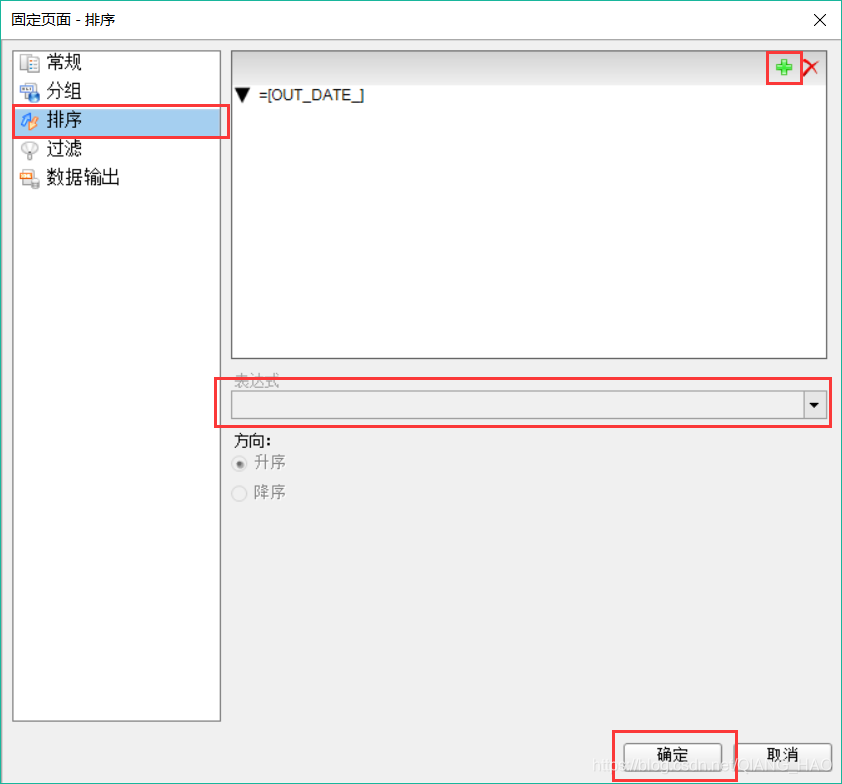

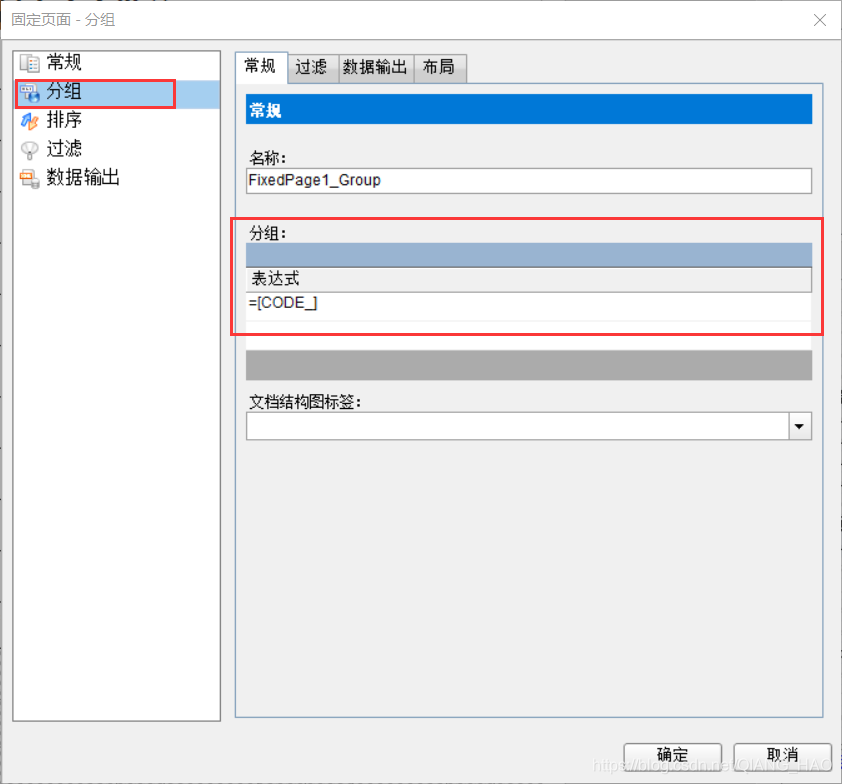

修改“固定页面布局设置”，选中页面的灰色空白区域，页面左下角会出现“固定页面布局设置”按钮，选择分组添加添加分组表达式和排序表达式，在字段列表中选择code插入

设计报表主体，字段添加完成后预览会发现报表已经按照“code”进行分组并按照“outDate”倒叙排列显示明细列表了

注意：尽量将前文所说的灰色“报表明细生成后可占用的页面大小”调整为与页面大小保持一致，否则报表是无法占整个页面，影响打印效果
