Microsoft Store Error Code: 0x80131500

问题:

Microsoft Store 无法正常打开,报错提示0x80131500

解决:

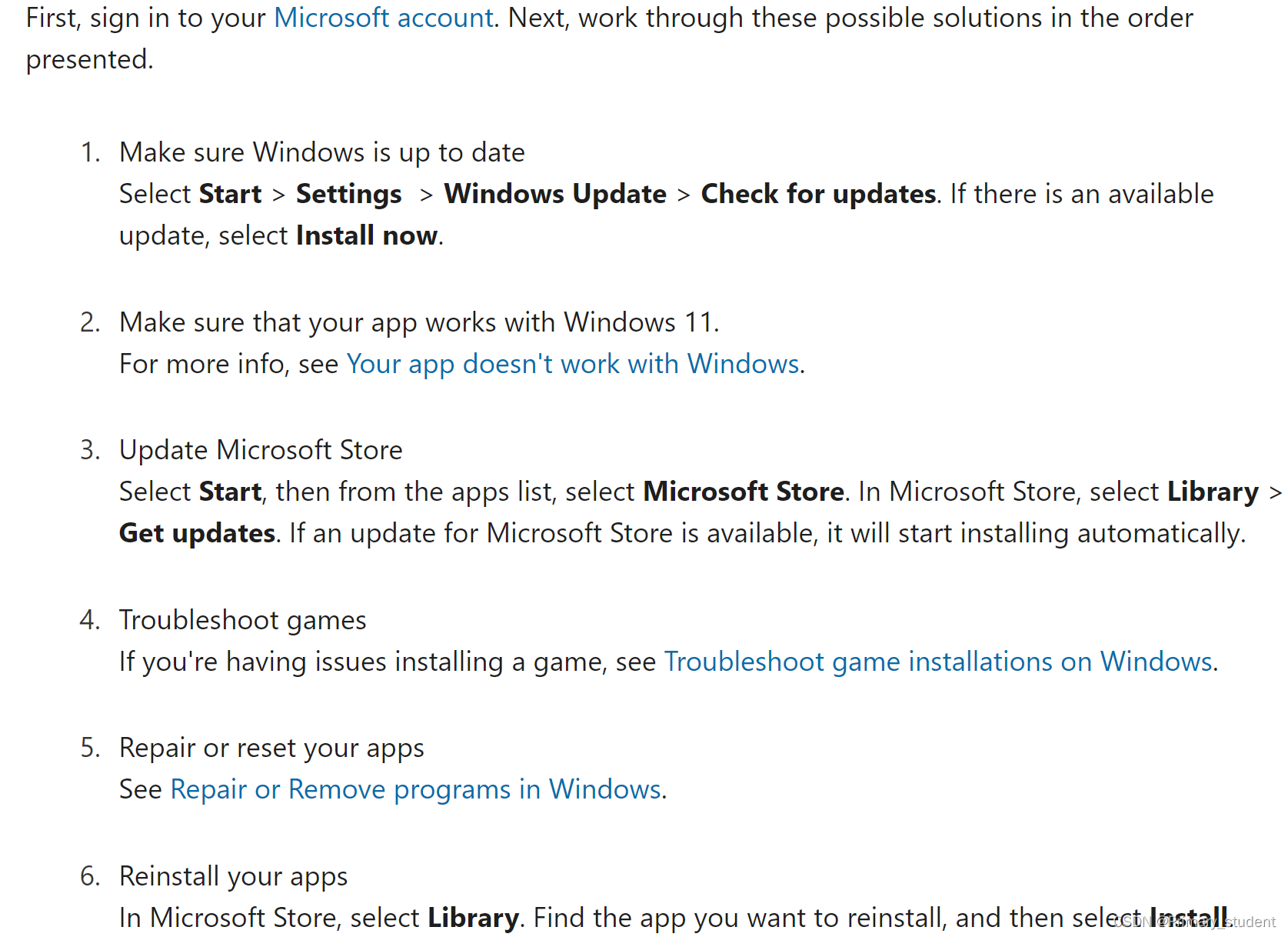

1.重置Store:

重置
原链接:
https://support.microsoft.com/en-us/account-billing/fix-problems-with-apps-from-microsoft-store-93ed0bcf-9c12-3df6-6dda-92ec5d0415ac
笔者使用该方法未能有效重置store,报错仍旧存在。

2.Internet属性设置

win+R启动inetcpl.cpl

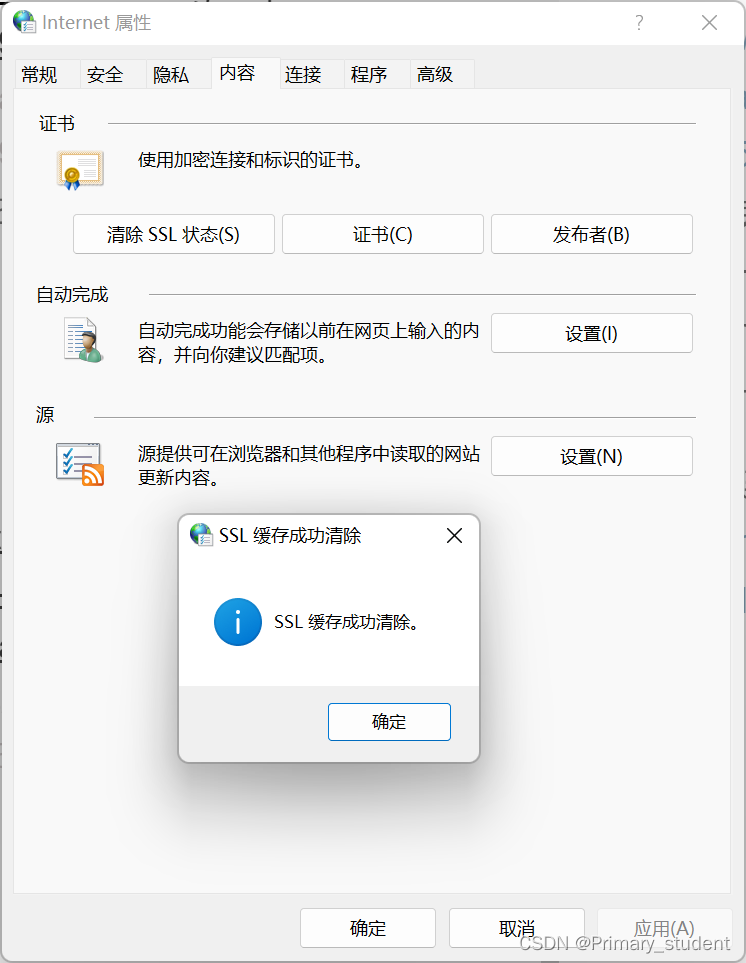

内容——清除SSL状态
SSL

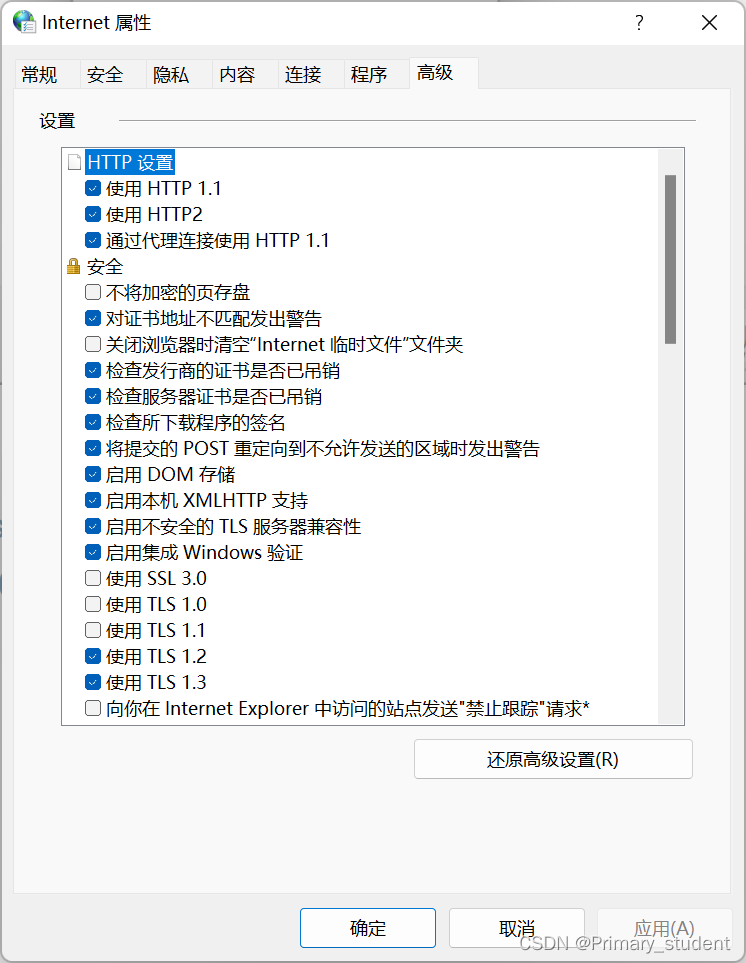

随后在高级中,勾选TLS1.2 1.3
如图
成功解决问题

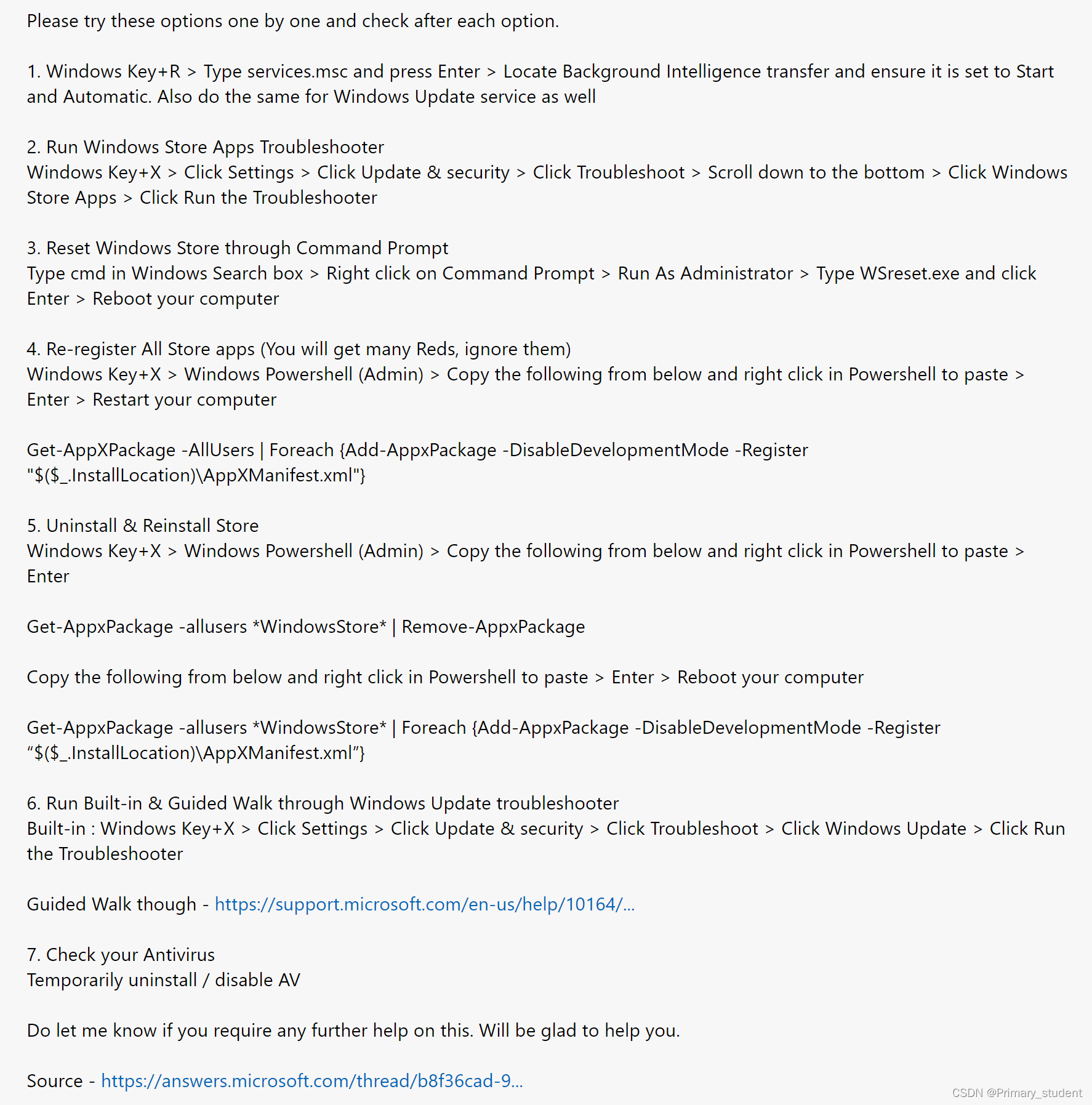

3.重装Microsoft store

Get-AppxPackage -allusers *WindowsStore* | Foreach {Add-AppxPackage -DisableDevelopmentMode -Register “$($_.InstallLocation)\AppXManifest.xml”}
重装
笔者使用该方式无法找到文件夹,此处留档。

参考链接:

https://answers.microsoft.com/en-us/windows/forum/all/microsoft-store-error-code-0x80131500/41d2d363-83ee-4b5d-ba43-615ca63bb1bf
