bug(Tomcat):java.lang.IllegalArgumentException: servlet映射中的<url pattern>[opus/addPage]无效

文章讲述了在web开发中遇到的两种启动失败的错误情况。一种是由于@WebServlet注解中缺少反斜杠引起的URL映射无效,另一种是两个Servlet映射到了同一个URL模式导致的冲突。解决方案分别是对注解添加反斜杠和修改Servlet的URL映射以避免冲突。

引出

web开发常见bug,项目启动失败


报错信息:

java.lang.IllegalArgumentException: servlet映射中的<url pattern>[opus/addPage]无效

在这里插入图片描述

问题描述:

启动tomcat就报错,项目启动不起来,报错信息是url pattern无效。这个问题是因为@WebServlet(value = “/us”) 中反斜杠 / 没有写;

在这里插入图片描述

在这里插入图片描述

相同类型【启动失败】的报错问题如下:

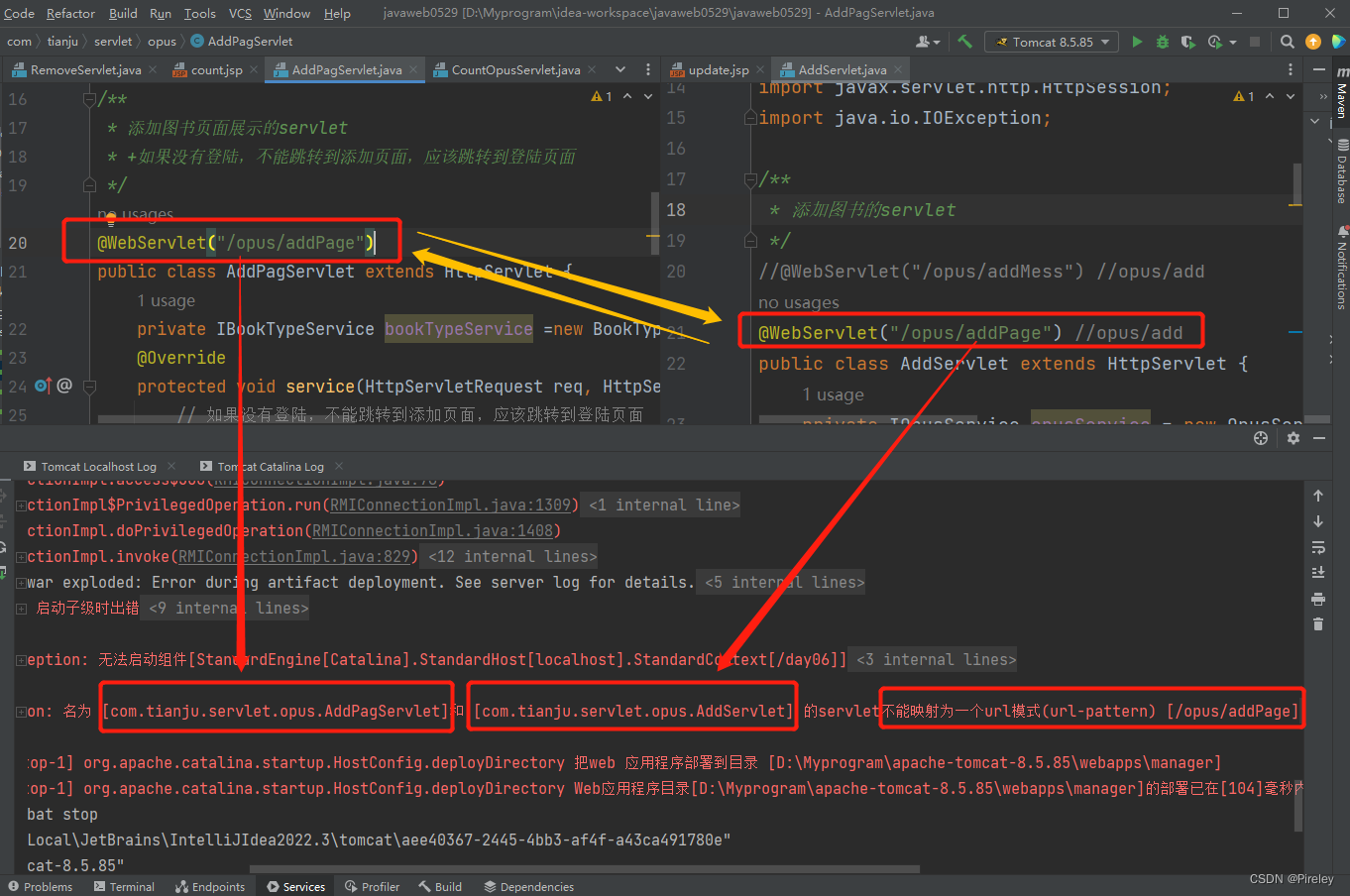

java.lang.IllegalArgumentException: 名为 [com.tianju.servlet.opus.AddPagServlet]和 [com.tianju.servlet.opus.AddServlet] 的servlet不能映射为一个url模式(url-pattern) [/opus/addPage]

这个问题是因为两个Serlet 指向了同一个路径

在这里插入图片描述在这里插入图片描述

解决方案:

(1)@WebServlet(value = “/us”) 中反斜杠 / 没有写;把反斜杠加上

(2)两个Serlet 指向同一个路径;把其中一个@WebServlet() 的路径换成别的


总结

🐛 bug不可怕,找到它并消灭就好了!

(1)@WebServlet(value = “/us”) 中反斜杠 / 没有写;把反斜杠加上

(2)两个Serlet 指向同一个路径;把其中一个@WebServlet() 的路径换成别的
