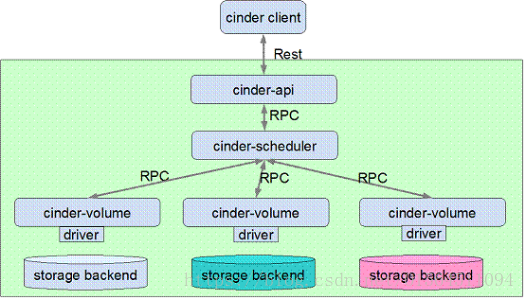

1、架构
这里的驱动改为VMwareVcVmdkDriver
2、配置
1)前提
在计算节点上要配置对接上vCenter上,可以成功创建虚机。
2)配置
当前配置文件:(以下配置项覆盖原有的--或者原有的注释掉)
在存储节点 /etc/cinder/cinder.conf
[DEFAULT]
default_volume_type = vmware
enabled_backends = vmware
[vmware]
volume_driver = cinder.volume.drivers.vmware.vmdk.VMwareVcVmdkDriver
vmware_host_ip=172.21.128.111
vmware_host_password=Ruijie@123
vmware_host_userna
